DTC P1217 ENGINE OVER TEMPERATURE
EC-327
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

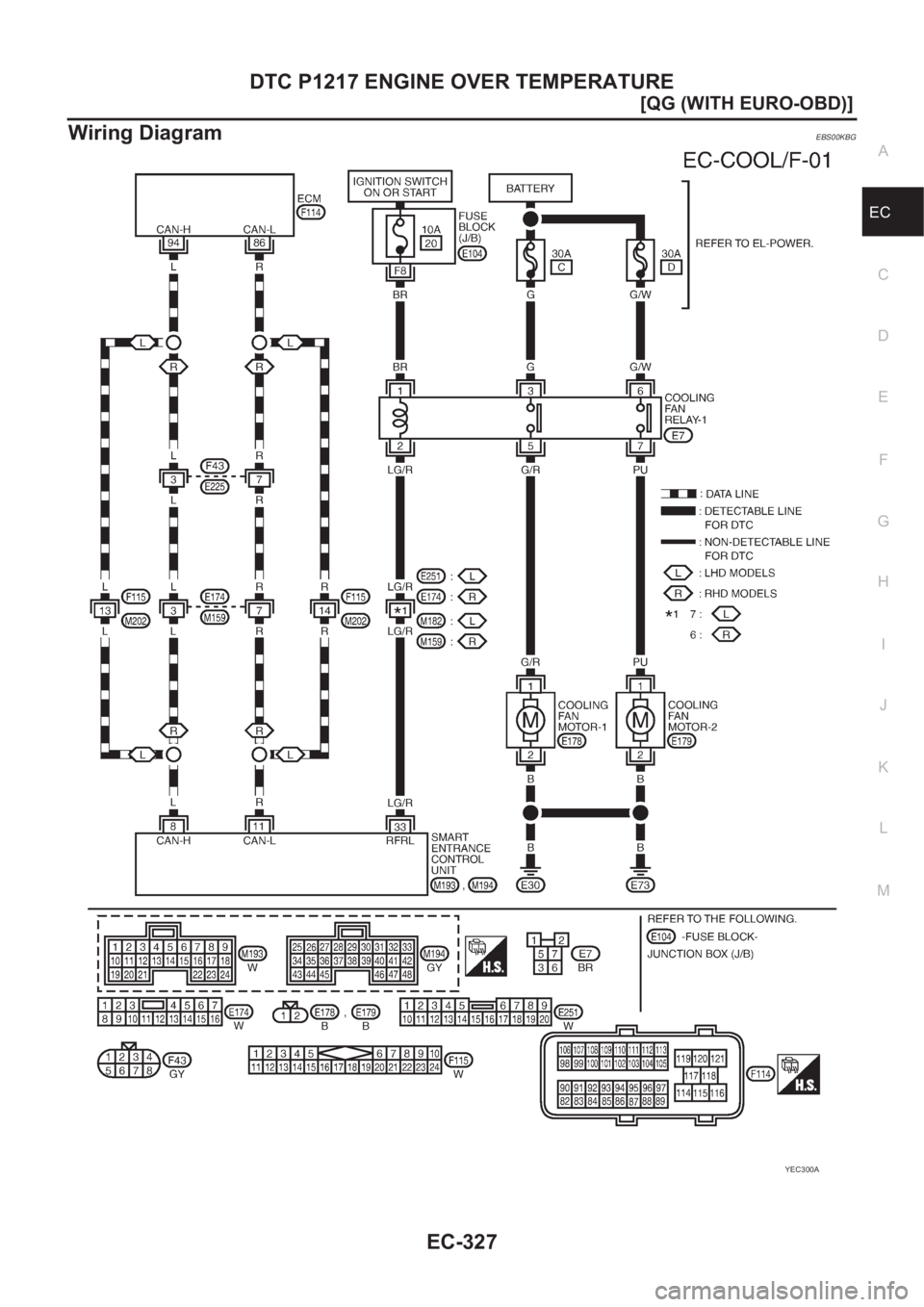

Wiring DiagramEBS00KBG
YEC300A

EC-332
[QG (WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
3. CHECK COOLING FAN MOTORS CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan motor-1 harness connector and cooling
fan motor-2 harness connector.
3. Check harness continuity between cooling fan relay-1 terminal 5
and cooling fan motor-1 terminal 1, cooling fan motor-1 terminal
2 and body ground.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
5. Check harness continuity between cooling fan relay-1 terminal 7
and cooling fan motor-2 terminal 1, cooling fan motor-2 terminal
2 and body ground.
Refer to Wiring Diagram.
6. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK COOLING FAN OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect smart entrance control unit.
2. Check harness continuity between smart entrance control unit
terminal 33 and cooling fan relay-1 terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E251, M182 (LHD models)
●Harness connectors E174, M159 (RHD models)
●Harness for open or short between smart entrance control unit and cooling fan relay-1
>> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK COOLING FAN RELAY-1
Refer to EC-334, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace cooling fan relay.Continuity should exist.
Continuity should exist.
MBIB0252E
Continuity should exist.
MBIB0264E

DTC P1223, P1224 TP SENSOR
EC-337
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

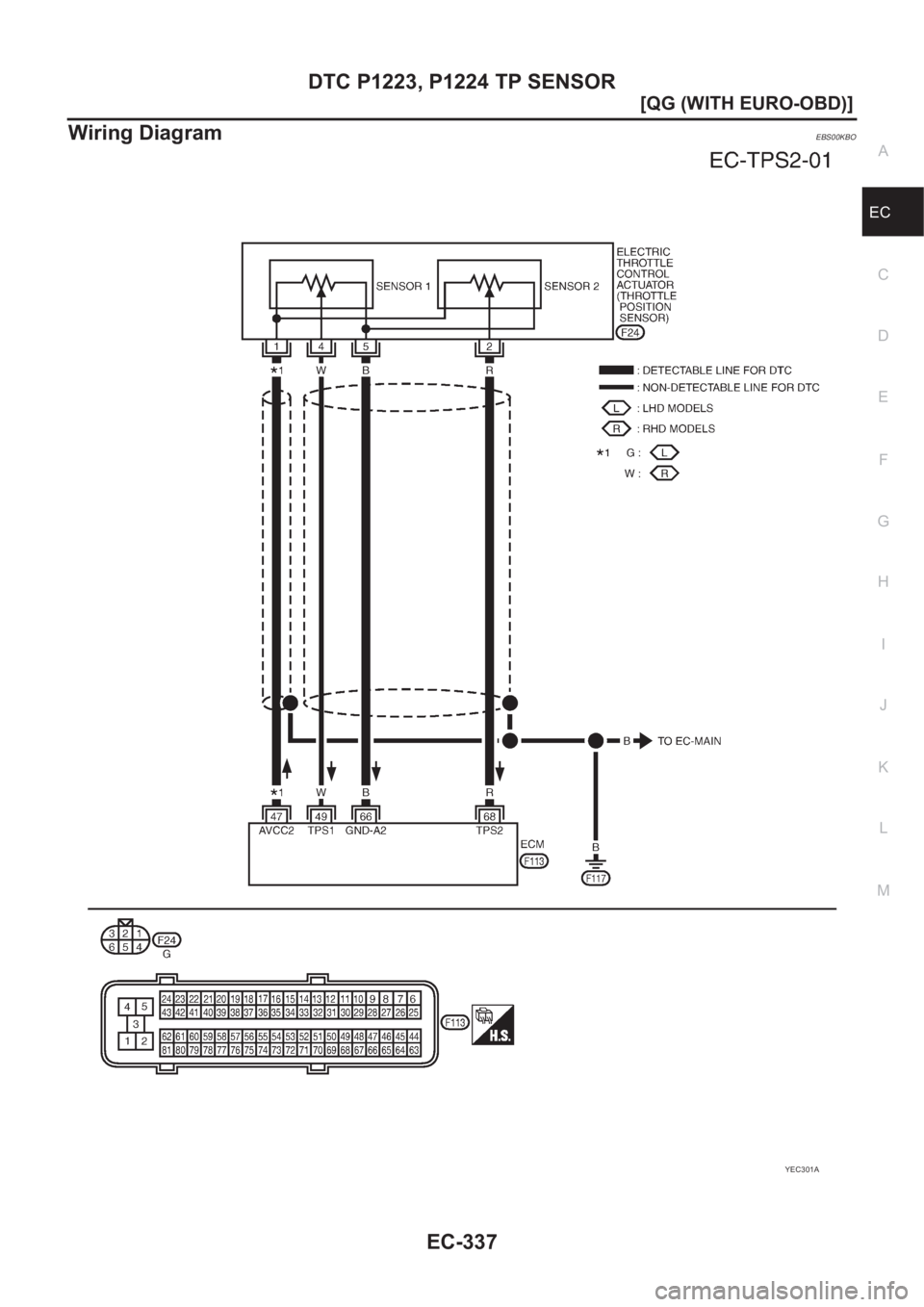

Wiring DiagramEBS00KBO
YEC301A

DTC P1223, P1224 TP SENSOR
EC-339
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

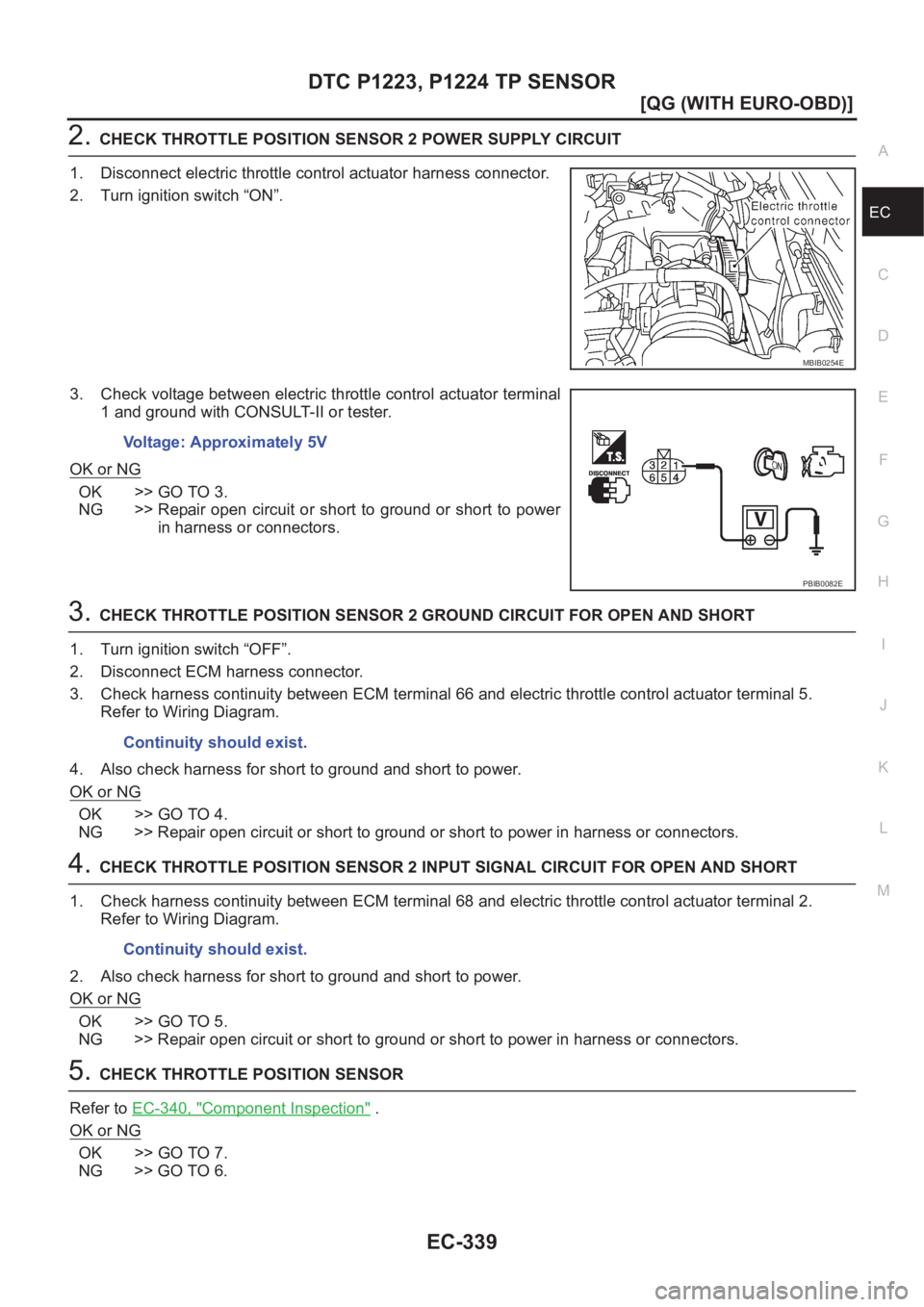

2.CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch “ON”.
3. Check voltage between electric throttle control actuator terminal
1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3.CHECK THROTTLE POSITION SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 66 and electric throttle control actuator terminal 5.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK THROTTLE POSITION SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 68 and electric throttle control actuator terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK THROTTLE POSITION SENSOR
Refer to EC-340, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
MBIB0254E
Voltage: Approximately 5V
PBIB0082E
Continuity should exist.
Continuity should exist.

DTC P1227, P1228 APP SENSOR
EC-347
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

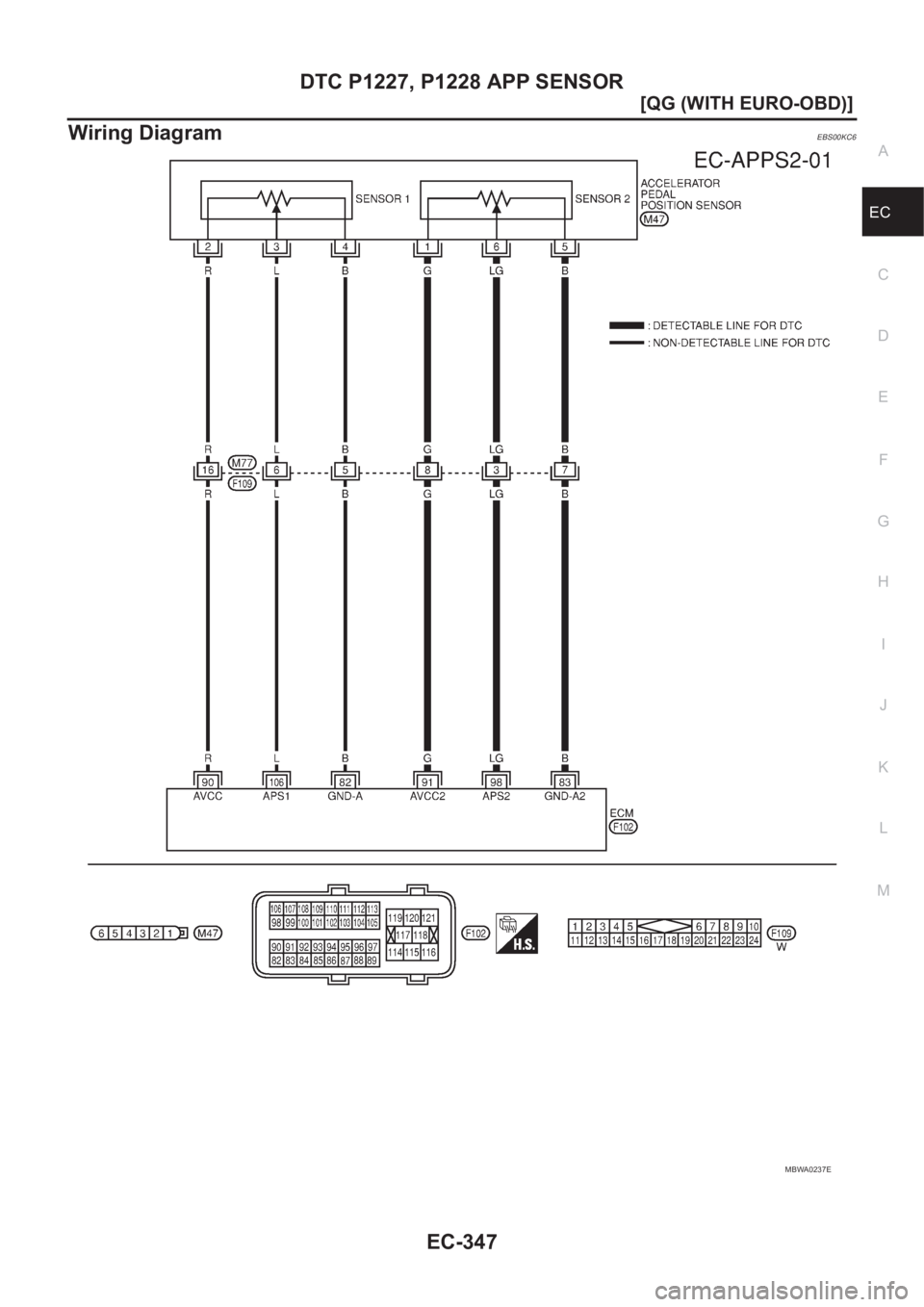

Wiring DiagramEBS00KC6
MBWA0237E

DTC P1227, P1228 APP SENSOR
EC-349
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

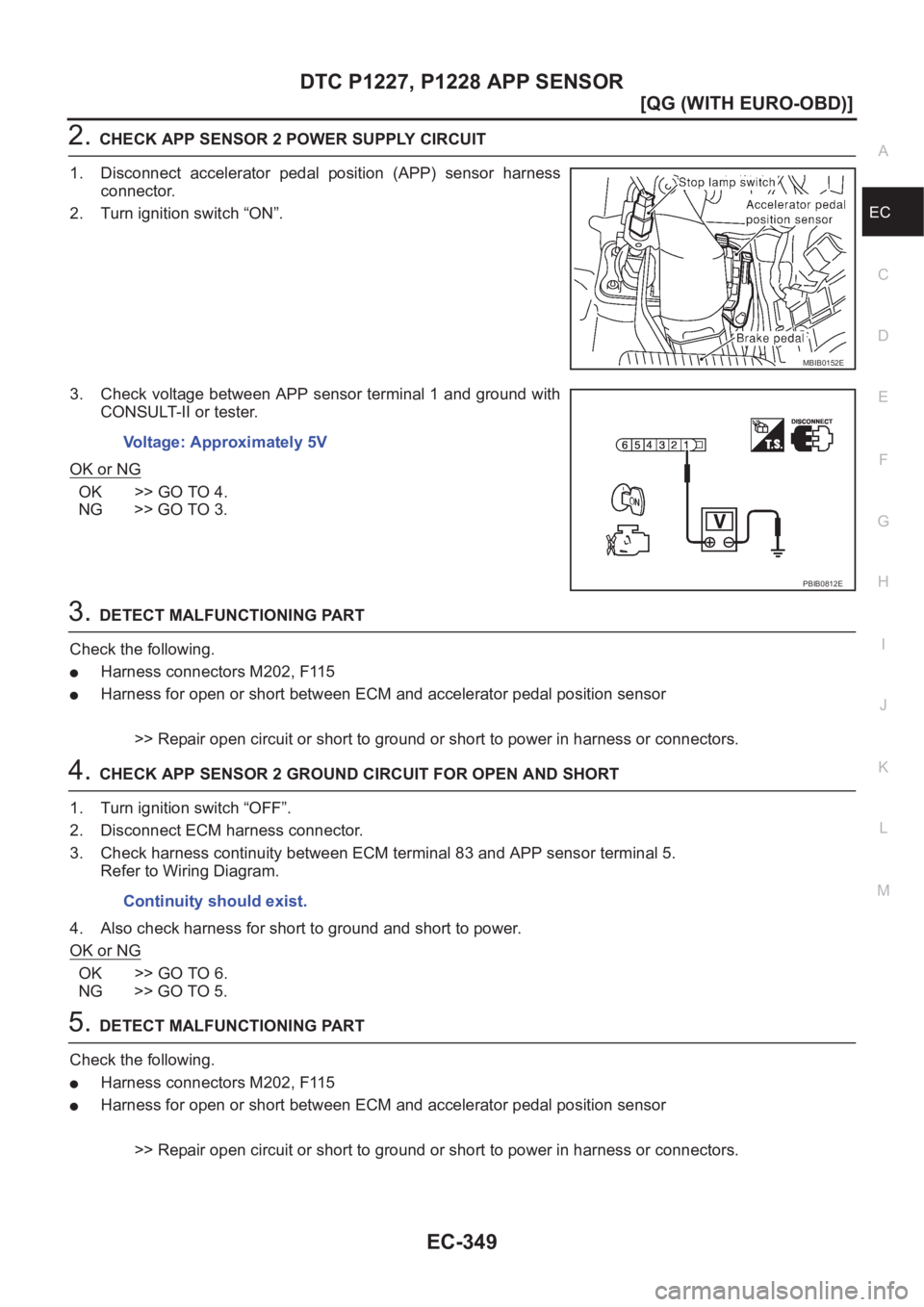

2.CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch “ON”.
3. Check voltage between APP sensor terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M202, F115
●Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK APP SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 83 and APP sensor terminal 5.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M202, F115
●Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
MBIB0152E
Voltage: Approximately 5V
PBIB0812E
Continuity should exist.

EC-350
[QG (WITH EURO-OBD)]
DTC P1227, P1228 APP SENSOR

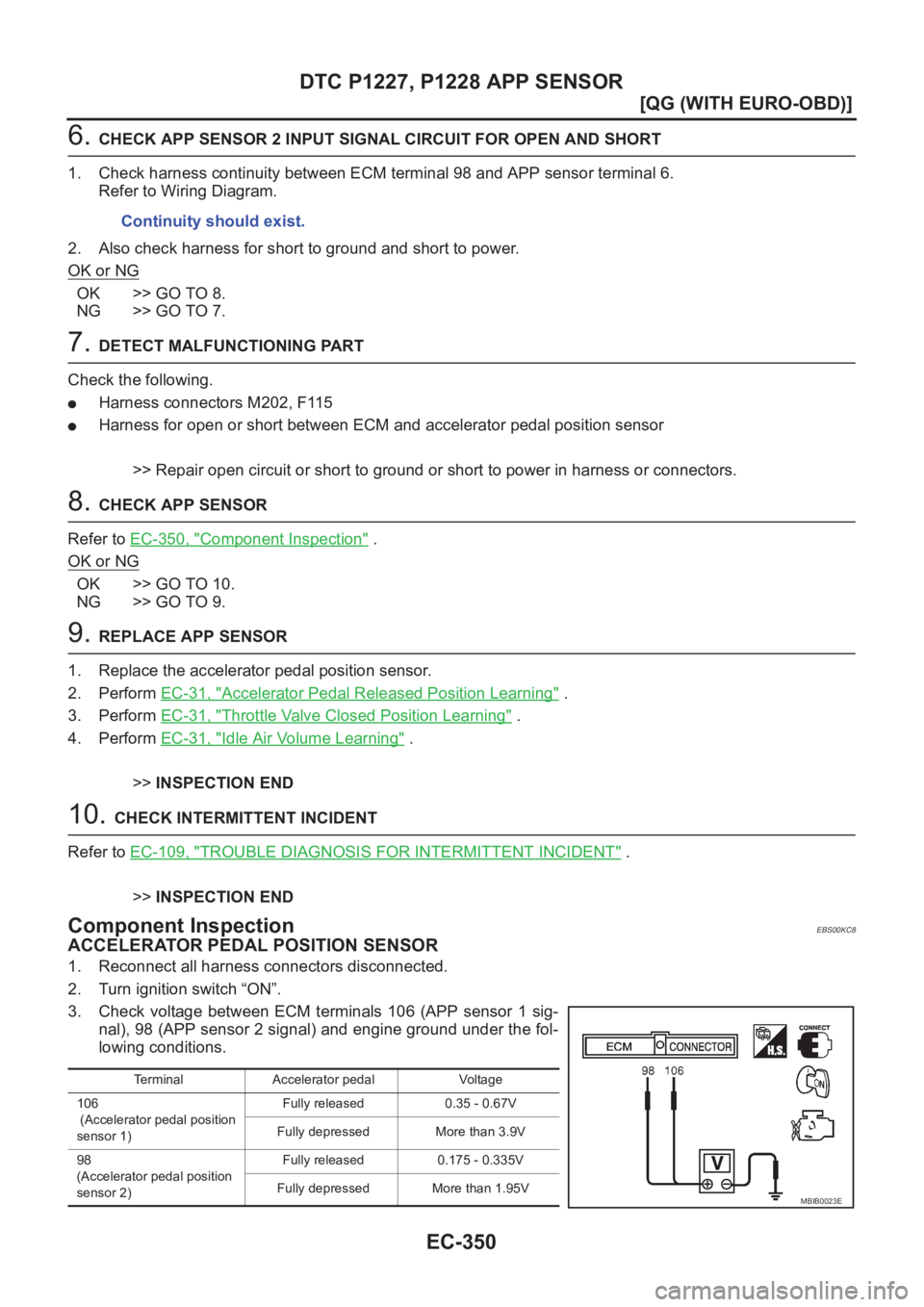

6. CHECK APP SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 98 and APP sensor terminal 6.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M202, F115
●Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK APP SENSOR
Refer to EC-350, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9. REPLACE APP SENSOR
1. Replace the accelerator pedal position sensor.
2. Perform EC-31, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-31, "
Throttle Valve Closed Position Learning" .
4. Perform EC-31, "
Idle Air Volume Learning" .
>>INSPECTION END
10. CHECK INTERMITTENT INCIDENT
Refer to EC-109, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00KC8
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch “ON”.
3. Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and engine ground under the fol-
lowing conditions.Continuity should exist.
Terminal Accelerator pedal Voltage
106
(Accelerator pedal position
sensor 1)Fully released 0.35 - 0.67V
Fully depressed More than 3.9V
98
(Accelerator pedal position
sensor 2)Fully released 0.175 - 0.335V
Fully depressed More than 1.95V
MBIB0023E

DTC P1229 SENSOR POWER SUPPLY
EC-353
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

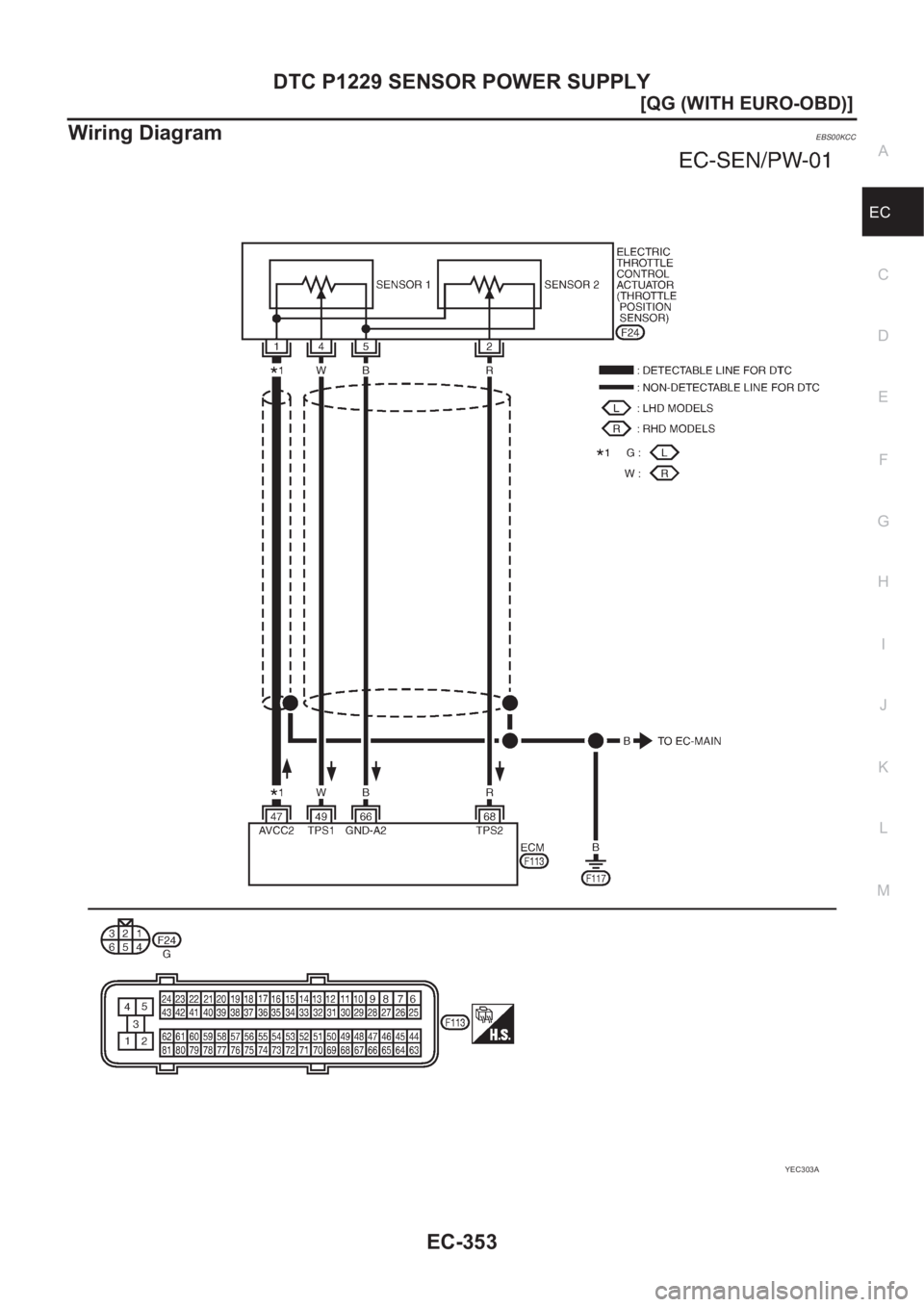

Wiring DiagramEBS00KCC
YEC303A
