2003 NISSAN 350Z Setting

DET AILED MAP CO VERAGE
AREAS (MCA) FOR THE
NA VIGA TION SYSTEM
This system is designed to help you reach your
destination, and also performs other functions
as outlined in this manual. However , you, the
driver , must use the system safely and prop-
erly . Information concerning road conditions,
traffic signs and the availability of services may
not always be up-to-date. The system is not a
substitute for safe, proper , and legal driving.
Map data covers select metropolitan areas in
the United States.
Map data is available on map DVD-ROM. For
information about map DVD-ROMs, contact a
NISSAN dealer or call the NISSAN Navigation
System help desk at 1-800-NISSAN-1 (1-800-
647-7261) for U.S., and at 1-800-777-0325 for
CANADA.
Map data includes 2 types of areas: “Detailed
coverage areas” providing all detailed roaddata and other areas showing “Main roads
only”.
NOTE:
Detailed map data is not available in
many areas and is generally limited to
select major metropolitan areas.
For information on which metropolitan areas
are in detailed coverage areas, please refer to
the NISSAN Navigation System Software Book-
let (included). When you purchase an updated
map DVD-ROM, a new software booklet will be
provided.
WHEN A GRAY ROAD IS DIS-
PLAYED ON THE MAP

Route calculation may not be possible when
a destination or the current vehicle location
is near a gray road.

When setting a destination, the road near
the cross cursor blinks. For gray roads,
however , the road may not blink.
When you are driving on a gray road after
the vehicle has deviated from the suggested
route during route guidance, automatic re-
routing may not start immediately .

Route guidance (enlarged view and voice
guidance) may not be done at the intersec-
tion where the road your vehicle is driving
on and a gray road intersect.

POI information and street names near gray
roads are not contained in the map data.
HOW DOES THE NISSAN NAVIGATION SYSTEM WORK?
2-4

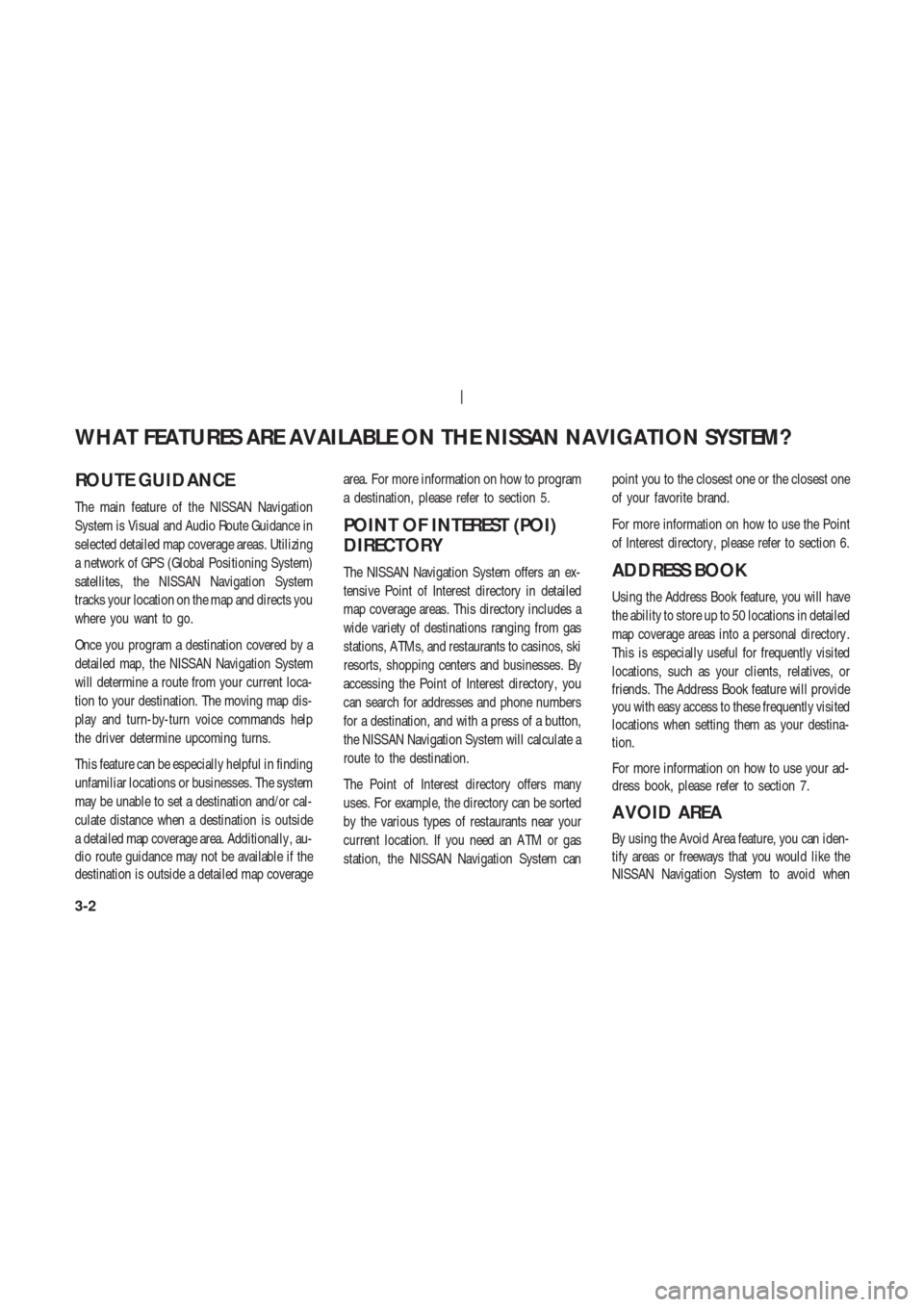

ROUTE GUIDANCE
The main feature of the NISSAN Navigation
System is Visual and Audio Route Guidance in
selected detailed map coverage areas. Utilizing
a network of GPS (Global Positioning System)
satellites, the NISSAN Navigation System
tracks your location on the map and directs you
where you want to go.
Once you program a destination covered by a
detailed map, the NISSAN Navigation System
will determine a route from your current loca-
tion to your destination. The moving map dis-
play and turn-by-turn voice commands help
the driver determine upcoming turns.
This feature can be especially helpful in finding
unfamiliar locations or businesses. The system
may be unable to set a destination and/or cal-
culate distance when a destination is outside
a detailed map coverage area. Additionally , au-
dio route guidance may not be available if the
destination is outside a detailed map coveragearea. For more information on how to program
a destination, please refer to section 5.
POINT OF INTEREST (POI)
DIRECTORY
The NISSAN Navigation System offers an ex-
tensive Point of Interest directory in detailed
map coverage areas. This directory includes a
wide variety of destinations ranging from gas
stations, A TMs, and restaurants to casinos, ski
resorts, shopping centers and businesses. By
accessing the Point of Interest directory , you
can search for addresses and phone numbers
for a destination, and with a press of a button,
the NISSAN Navigation System will calculate a
route to the destination.
The Point of Interest directory offers many
uses. For example, the directory can be sorted
by the various types of restaurants near your
current location. If you need an A TM or gas
station, the NISSAN Navigation System canpoint you to the closest one or the closest one
of your favorite brand.
For more information on how to use the Point
of Interest directory , please refer to section 6.ADDRESS BOOK
Using the Address Book feature, you will have
the ability to store up to 50 locations in detailed
map coverage areas into a personal directory .
This is especially useful for frequently visited
locations, such as your clients, relatives, or
friends. The Address Book feature will provide
you with easy access to these frequently visited
locations when setting them as your destina-
tion.
For more information on how to use your ad-
dress book, please refer to section 7.
A VOID AREA
By using the Avoid Area feature, you can iden-
tify areas or freeways that you would like the
NISSAN Navigation System to avoid when
WHAT FEATURES ARE AVAILABLE ON THE NISSAN NAVIGATION SYSTEM?
3-2

The system also has the following useful fea-
tures:

Enlarged display of intersections.

Automatic re-routing when a vehicle is off
the course (when map is displayed).
For more information on the Voice Guidance
feature, please refer to section 10.
SHORT MENUS
T o make the NISSAN Navigation System easier
to use, there is a short menu function in whichthe most commonly used items are listed.
When the indicator is illuminated, the short
menus (Easy Mode) are displayed. When the
indicator is turned off, the default navigation
systems menus (Expert Mode) are displayed.
INFO:

[Easy Mode] is the default setting on the
initial screen at the delivery of your new ve-
hicle.

The term [Expert Mode] is used in this
manual when the
Short Menus key indi-
cator is turned off. When the green indicator
is highlighted, the system is set to [Easy
Mode].

When the SETTING , DEST or
ROUTE button is pressed in the [Easy
Mode] screen, the
Help key is displayed.
For more information on the Short Menu
feature, please refer to section 4.
INV1444
WHAT FEATURES ARE AVAILABLE ON THE NISSAN NAVIGATION SYSTEM?
3-4

4 HOW DO I OPERATE THE NISSAN NAVIGATION SYSTEM?
Opening/closing the liquid crystal (LC)
display ........................................................ 4-2
How to open the LC display .................. 4-2
How to close the LC display .................. 4-2
Control panel button functions .................. 4-4
Names of the components .................... 4-5
How to use the joystick and the push enter
button ..................................................... 4-6
How to use thePREVIOUSbutton ....... 4-6
How to use theCANCELbutton .......... 4-6
How to use theSETTINGbutton.......... 4-8
How to use theDESTbutton ............ 4-11
How to use theROUTEbutton .......... 4-13
How to eject/insert the disc ..................... 4-15
Setting up the st art -up screen .................. 4-16
Confirma tion of destina tion or
wa ypoint ............................................... 4-16
Clearing the memory ................................. 4-18
Setting the average speed ........................ 4-19
About route guidance ................................ 4-21Notes on route guidance ...................... 4-21
About the displa y error ........................ 4-23

NAMES OF THE COMPONENTS
1. VOICE button; refer to page 10-4.
Provides upcoming voice command from
the current location.
2. ROUTE button; refer to page 4-13.
Displays the setting menu screen at the time
of route calculation.
3. SETTING button; refer to page 4-8.
Performs various adjustments and settings
to help you use the navigation system more
effectively .4. INFO button: refer to section 12.
Displays the [MAINTENANCE INFO.]
screen.
5. MAP button; refer to page 5-32.
T oggles between the intersection and the
map during route guidance. Returns to the
map screen from the settings screen.
6. DEST button; refer to page 4-11.
Displays the “Set a Destination” menu.7. JOYSTICK and PUSH ENTER button; refer
to page 4-6.
Scrolls the map, selects and sets each set-
ting item.
8. PREVIOUS button; refer to page 4-6.
Returns to the previous screen during set-
up.
Finishes the set-up after it is completed.
9. ZOOM IN / ZOOM OUT button; refer
to page 11-2.
Alters the scale of the map display .
10. CANCEL button; refer to page 4-6.
Cancels operations or the route guidance.
11. D/N (Day/Night) button; refer to page
11-19.
Changes display brightness.
12.
button; refer to page 4-15.
Ejects the DVD-ROM.
INI0092
HOW DO I OPERATE THE NISSAN NAVIGATION SYSTEM?
4-5

HOW TO USE THE JOYSTICK
AND THE PUSH ENTER BUT-
TON
The navigation system is operated by selecting
keys on the screen with the joystick and press-
ing the PUSH ENTER button. Be sure to un-
derstand the operation of the joystick before
using the navigation system.
Selecting the keys on the screen
Use the joystick to select keys on the screen.
The joystick can be tilted in eight directions.
The selected key will be highlighted in yellow.
INFO:
Use the joystick to scroll the map.
Selecting the function of the
highlighted key
Press the PUSH ENTER button.
The display shows the screen to carry out thefunction of the selected key (highlighted in yel-
low).
HOW TO USE THEPREVIOUS
BUTTON
This button has two functions.
T o return to the previous screen:
When this button is pressed during setup,
setup will be canceled, and the screen will re-
turn to the previous screen.
T o finish the set-up:
When this button is pressed after set-up is
completed, the settings will be renewed as di-
rected, and the screen will return to the map.
INFO:
When the PREVIOUS button must be
pressed, (for example, after the set-up is fin-
ished) instructions are given in the operation
procedure of each section in this manual. If the
PREVIOUS button is pressed when not fin-ished with the set-up, the setting will be can-
celed, and the screen will return to the previous
screen.
HOW TO USE THECANCEL
BUTTON
This button has two functions:

Operation is canceled when pushed during
operation.

The [CONFIRMA TION] screen is displayed
during route guidance in the present loca-
tion map.
INV1445
HOW DO I OPERATE THE NISSAN NAVIGATION SYSTEM?
4-6

When theDo not Cancelkey is
selected
The [Confirmation] screen will return to the
map screen.
HOW TO USE THESETTING
BUTTON
When the SETTING button is pressed, the
[SETTINGS] screen is displayed.
WARNING
For safety , some of the functions on
the menu will be disabled while the
vehicle is moving. T o use the tempo-
rarily disabled functions, park the ve-
hicle in a safe place, shift to P or N,
and set the parking brake.
T o use the navigation system more effectively ,
various adjustments and settings can be per-
formed.
Displaykey:
The key also adjusts the display mode.
Please refer to page 11-17.
Language/Unitkey:
Changes language and unit.
Please refer to page 4-9.
Navigationkey:
Changes various settings of the navigation
system.
Please refer to page 4-9.
Short Menuskey:
This key changes between [Expert Mode] and
[Easy Mode].
Please refer to page 3-4.
Guidance Volumekey:
Adjusts or turns off volume of the voice guid-
ance.
Please refer to “Adjusting the guide volume” on
page 10-2.
Helpkey:
Available only in easy mode (short menus).
Y ou can see the explanation of navigational
functions.
INV1448
HOW DO I OPERATE THE NISSAN NAVIGATION SYSTEM?
4-8

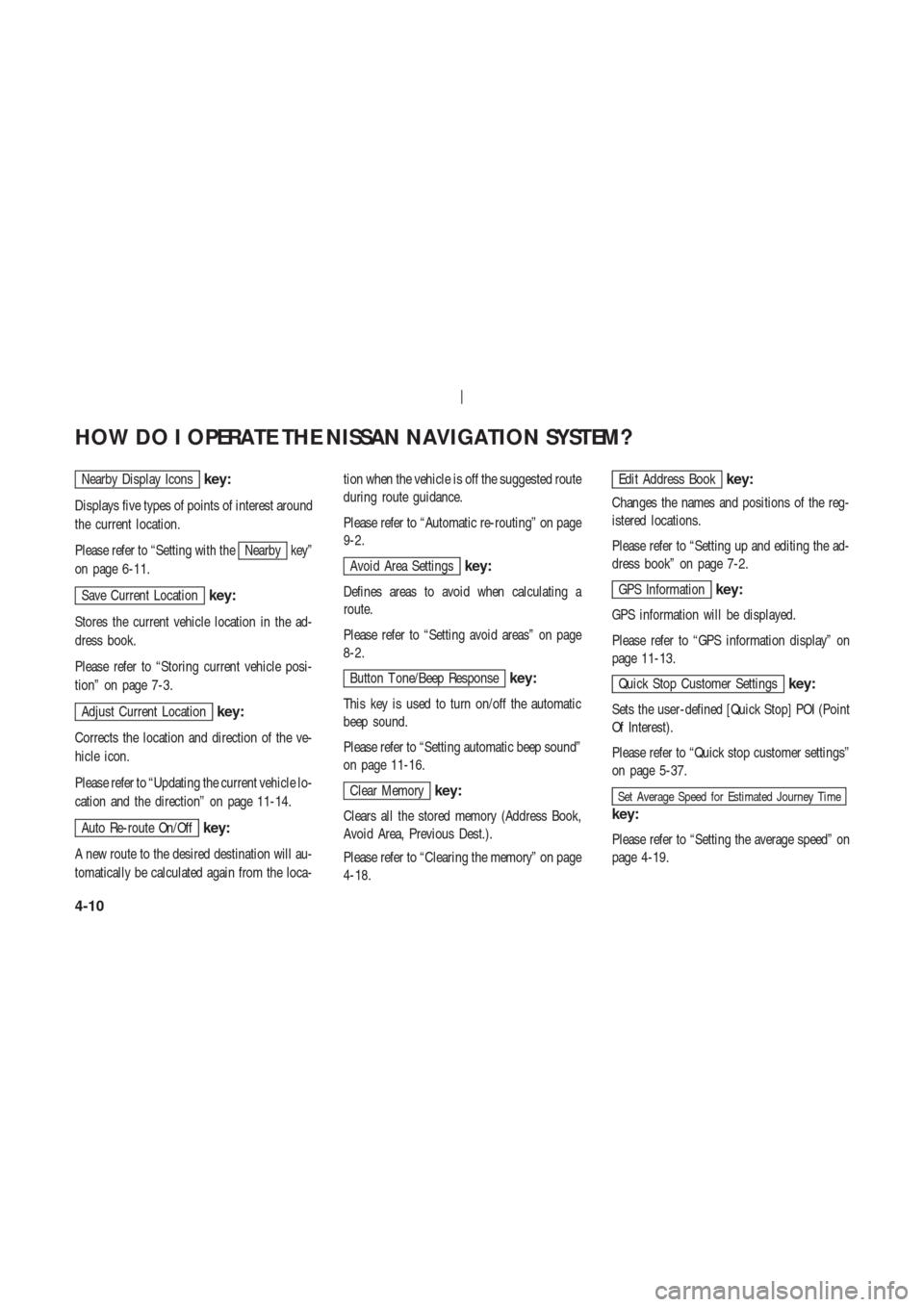

Nearby Display Iconskey:
Displays five types of points of interest around
the current location.
Please refer to “Setting with the
Nearby key”
on page 6-11.
Save Current Locationkey:
Stores the current vehicle location in the ad-
dress book.
Please refer to “Storing current vehicle posi-
tion” on page 7-3.
Adjust Current Locationkey:
Corrects the location and direction of the ve-
hicle icon.
Please refer to “Updating the current vehicle lo-
cation and the direction” on page 11-14.
Auto Re-route On/Offkey:
A new route to the desired destination will au-
tomatically be calculated again from the loca-tion when the vehicle is off the suggested route
during route guidance.
Please refer to “Automatic re-routing” on page
9-2.
Avoid Area Settingskey:
Defines areas to avoid when calculating a
route.
Please refer to “Setting avoid areas” on page
8-2.
Button T one/Beep Responsekey:
This key is used to turn on/off the automatic
beep sound.
Please refer to “Setting automatic beep sound”
on page 11-16.
Clear Memorykey:
Clears all the stored memory (Address Book,
Avoid Area, Previous Dest.).
Please refer to “Clearing the memory” on page
4-18.
Edit Address Bookkey:
Changes the names and positions of the reg-
istered locations.
Please refer to “Setting up and editing the ad-
dress book” on page 7-2.
GPS Informationkey:
GPS information will be displayed.
Please refer to “GPS information display” on
page 11-13.
Quick Stop Customer Settingskey:
Sets the user-defined [Quick Stop] POI (Point
Of Interest).
Please refer to “Quick stop customer settings”
on page 5-37.
Set Average Speed for Estimated Journey Time
key:
Please refer to “Setting the average speed” on
page 4-19.
HOW DO I OPERATE THE NISSAN NAVIGATION SYSTEM?
4-10
