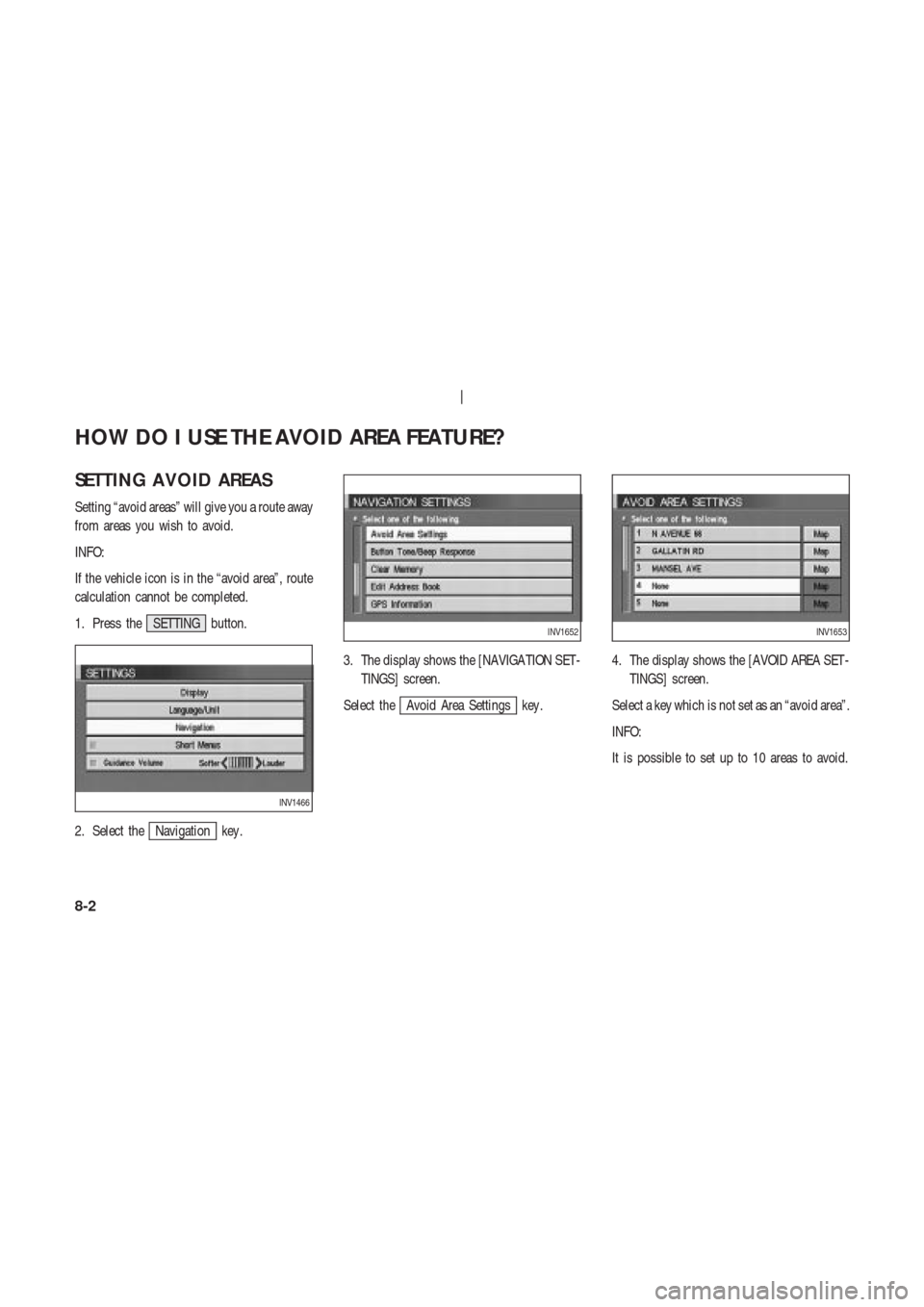

SETTING A VOID AREAS
Setting “avoid areas” will give you a route away
from areas you wish to avoid.
INFO:
If the vehicle icon is in the “avoid area”, route
calculation cannot be completed.
1. Press the SETTING button.
2. Select the
Navigation key .3. The display shows the [NAVIGA TION SET -
TINGS] screen.
Select the
Avoid Area Settings key .4. The display shows the [AVOID AREA SET -
TINGS] screen.
Select a key which is not set as an “avoid area”.
INFO:
It is possible to set up to 10 areas to avoid.
INV1466
INV1652INV1653
HOW DO I USE THE AVOID AREA FEATURE?
8-2

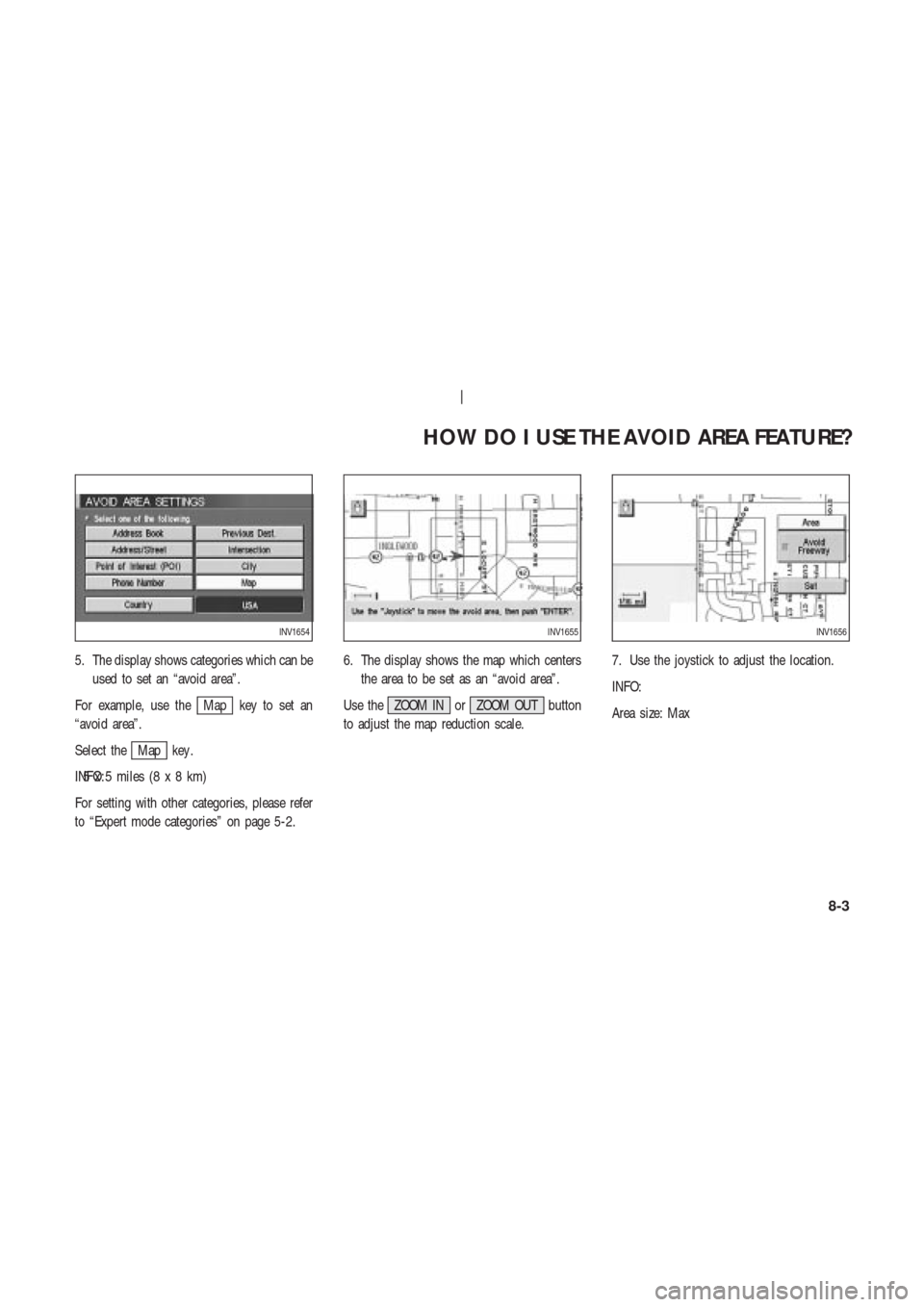

5. The display shows categories which can be
used to set an “avoid area”.
For example, use the
Map key to set an
“avoid area”.
Select the
Map key .
INFO:
For setting with other categories, please refer
to “Expert mode categories” on page 5-2.6. The display shows the map which centers
the area to be set as an “avoid area”.
Use the ZOOM IN or ZOOM OUT button
to adjust the map reduction scale.7. Use the joystick to adjust the location.
INFO:
Area size: Max
.5x5miles (8x8km)
INV1654INV1655INV1656
HOW DO I USE THE AVOID AREA FEATURE?
8-3

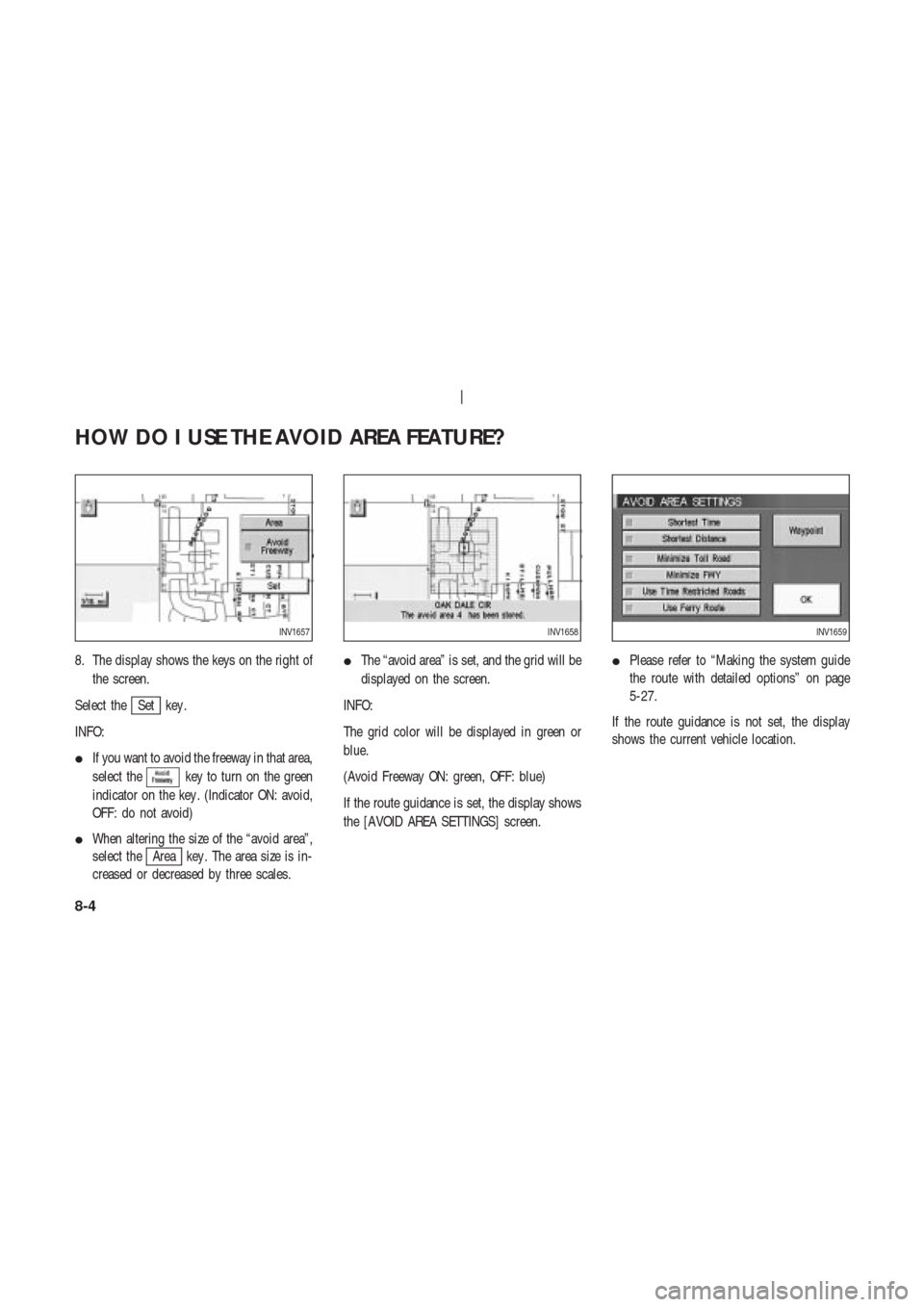

8. The display shows the keys on the right of
the screen.
Select the
Set key .
INFO:

If you want to avoid the freeway in that area,
select the
key to turn on the green
indicator on the key . (Indicator ON: avoid,
OFF: do not avoid)

When altering the size of the “avoid area”,
select the
Area key . The area size is in-
creased or decreased by three scales.
The “avoid area” is set, and the grid will be
displayed on the screen.
INFO:
The grid color will be displayed in green or
blue.
(Avoid Freeway ON: green, OFF: blue)
If the route guidance is set, the display shows
the [AVOID AREA SETTINGS] screen.
Please refer to “Making the system guide
the route with detailed options” on page
5-27.
If the route guidance is not set, the display
shows the current vehicle location.
INV1657INV1658INV1659
HOW DO I USE THE AVOID AREA FEATURE?
8-4

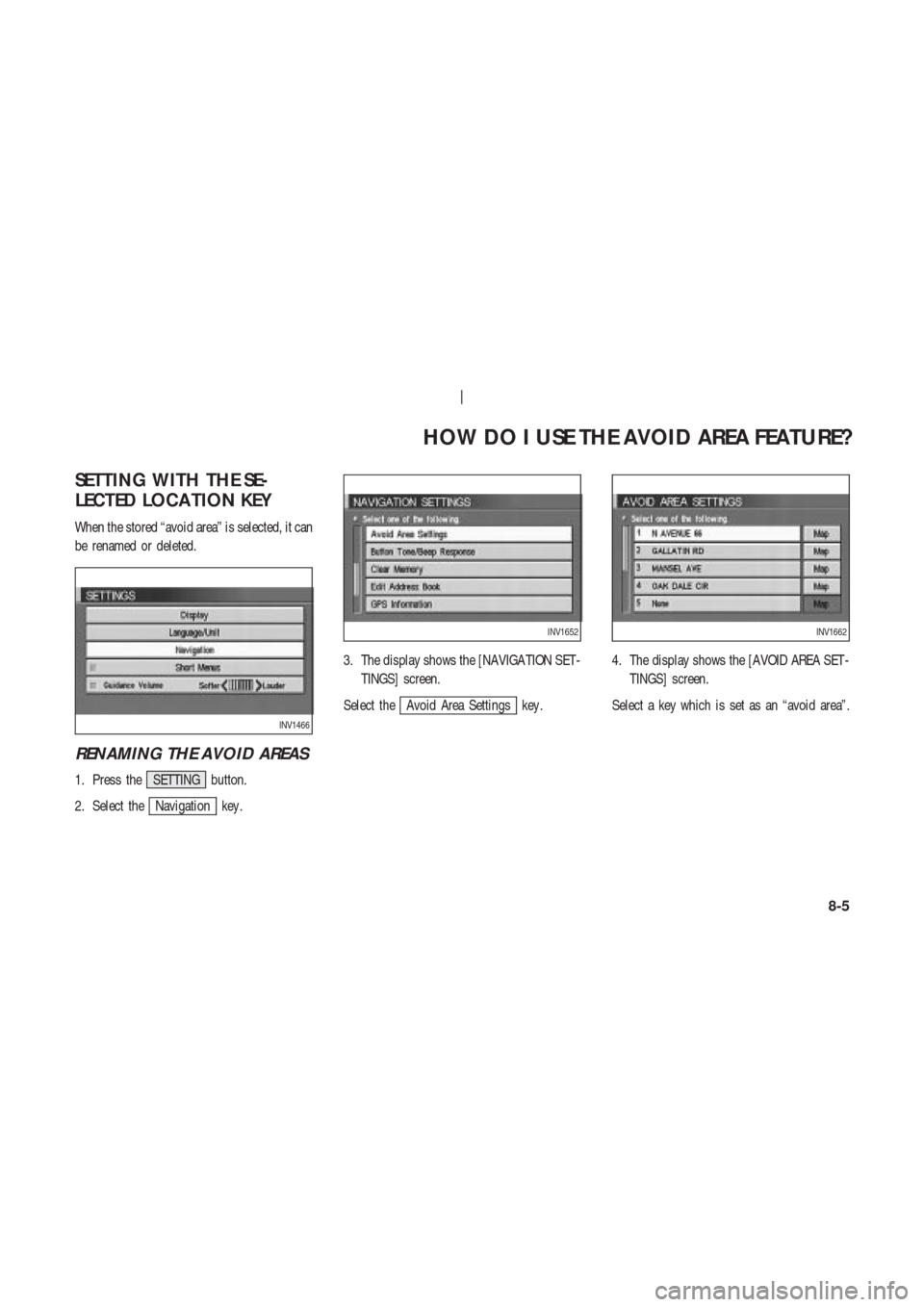

SETTING WITH THE SE-
LECTED LOCA TION KEY
When the stored “avoid area” is selected, it can
be renamed or deleted.
RENAMING THE AVOID AREAS
1. Press the SETTING button.
2. Select the
Navigation key .3. The display shows the [NAVIGA TION SET -
TINGS] screen.
Select the
Avoid Area Settings key .4. The display shows the [AVOID AREA SET -
TINGS] screen.
Select a key which is set as an “avoid area”.
INV1466
INV1652INV1662
HOW DO I USE THE AVOID AREA FEATURE?
8-5

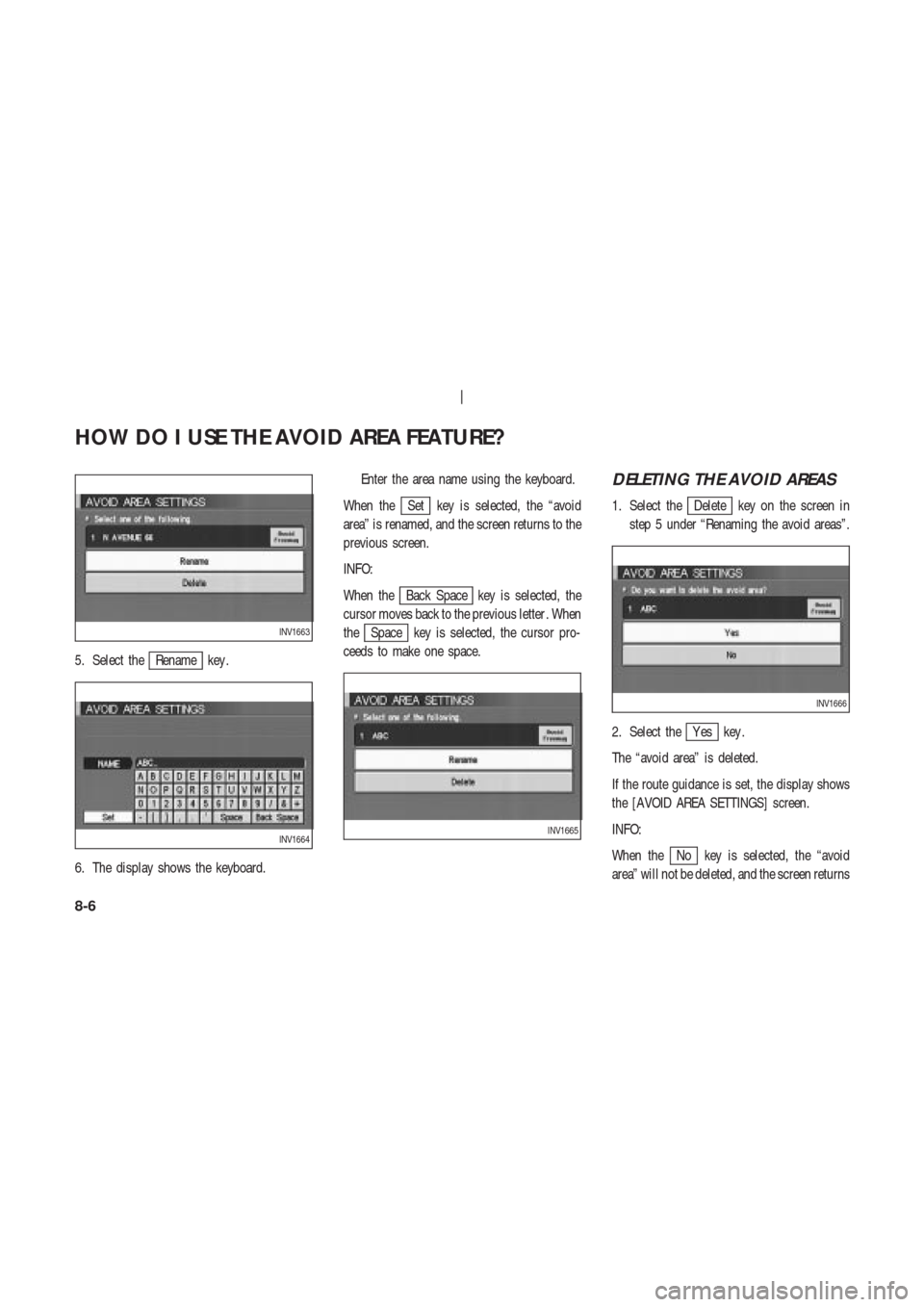

5. Select theRename key .
6. The display shows the keyboard.Enter the area name using the keyboard.
When the
Set key is selected, the “avoid
area” is renamed, and the screen returns to the
previous screen.
INFO:
When the
Back Space key is selected, the
cursor moves back to the previous letter . When
the
Space key is selected, the cursor pro-
ceeds to make one space.
DELETING THE AVOID AREAS
1. Select theDelete key on the screen in
step 5 under “Renaming the avoid areas”.
2. Select the
Y es key .
The “avoid area” is deleted.
If the route guidance is set, the display shows
the [AVOID AREA SETTINGS] screen.
INFO:
When the
No key is selected, the “avoid
area” will not be deleted, and the screen returns
INV1663
INV1664INV1665
INV1666
HOW DO I USE THE AVOID AREA FEATURE?
8-6

to the previous screen.
3. Please refer to “Making the system guide
the route with detailed options” on page
5-27.
If the route guidance is not set, the display
shows the current vehicle location.SETTING WITH THEMapKEY
When the stored “avoid area” is selected, it can
be adjusted or deleted.
Press the SETTING button.
Adjusting the stored avoid areas
1. Select theNavigation key .2. The display shows the [NAVIGA TION SET -
TINGS] screen.
Select the
Avoid Area Settings key .
INV1659
INV1466
INV1652
HOW DO I USE THE AVOID AREA FEATURE?
8-7

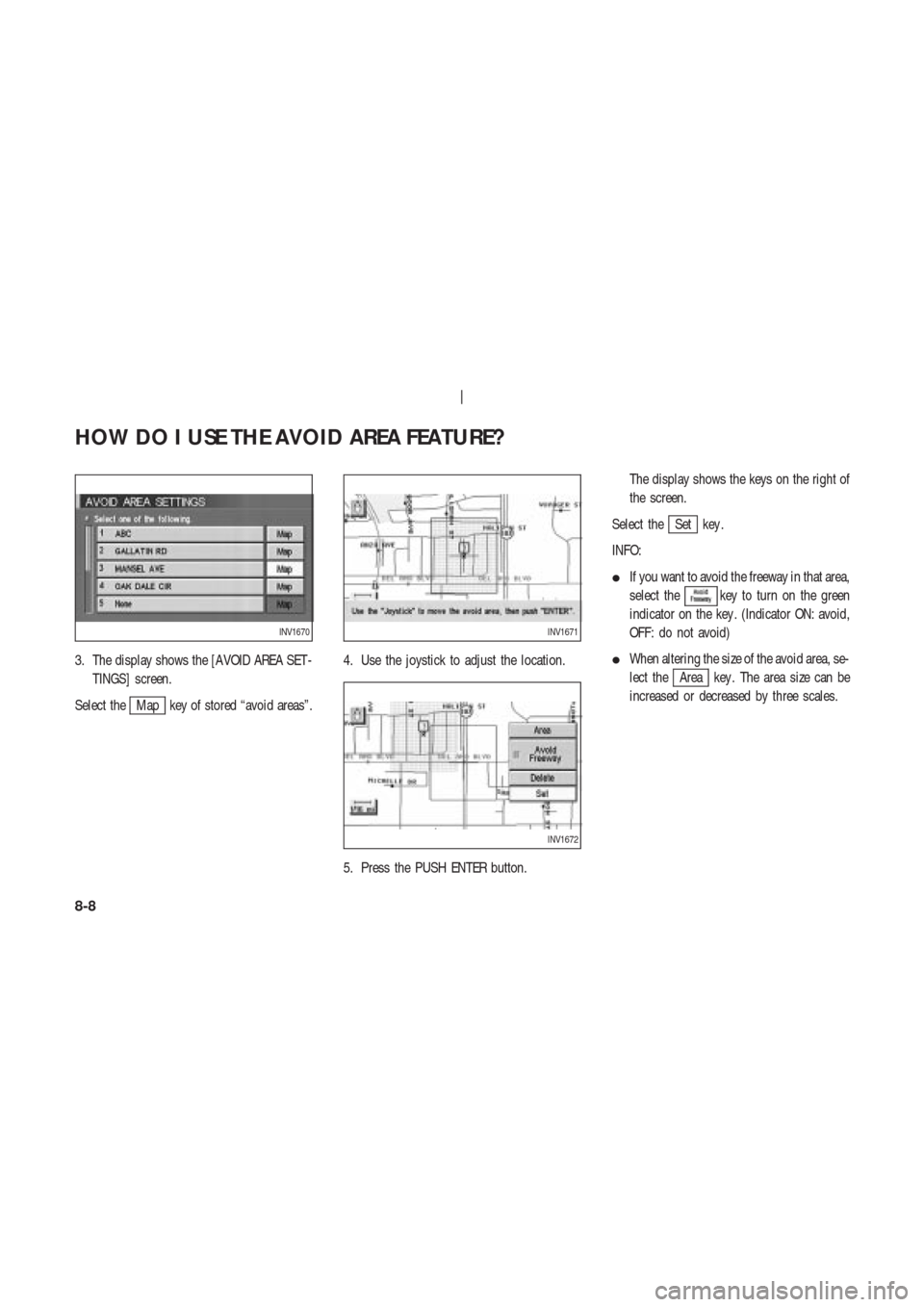

3. The display shows the [AVOID AREA SET -
TINGS] screen.
Select the
Map key of stored “avoid areas”.4. Use the joystick to adjust the location.
5. Press the PUSH ENTER button.The display shows the keys on the right of
the screen.
Select the
Set key .
INFO:

If you want to avoid the freeway in that area,
select the
key to turn on the green
indicator on the key . (Indicator ON: avoid,
OFF: do not avoid)

When altering the size of the avoid area, se-
lect the
Area key . The area size can be
increased or decreased by three scales.
INV1670INV1671
INV1672
HOW DO I USE THE AVOID AREA FEATURE?
8-8

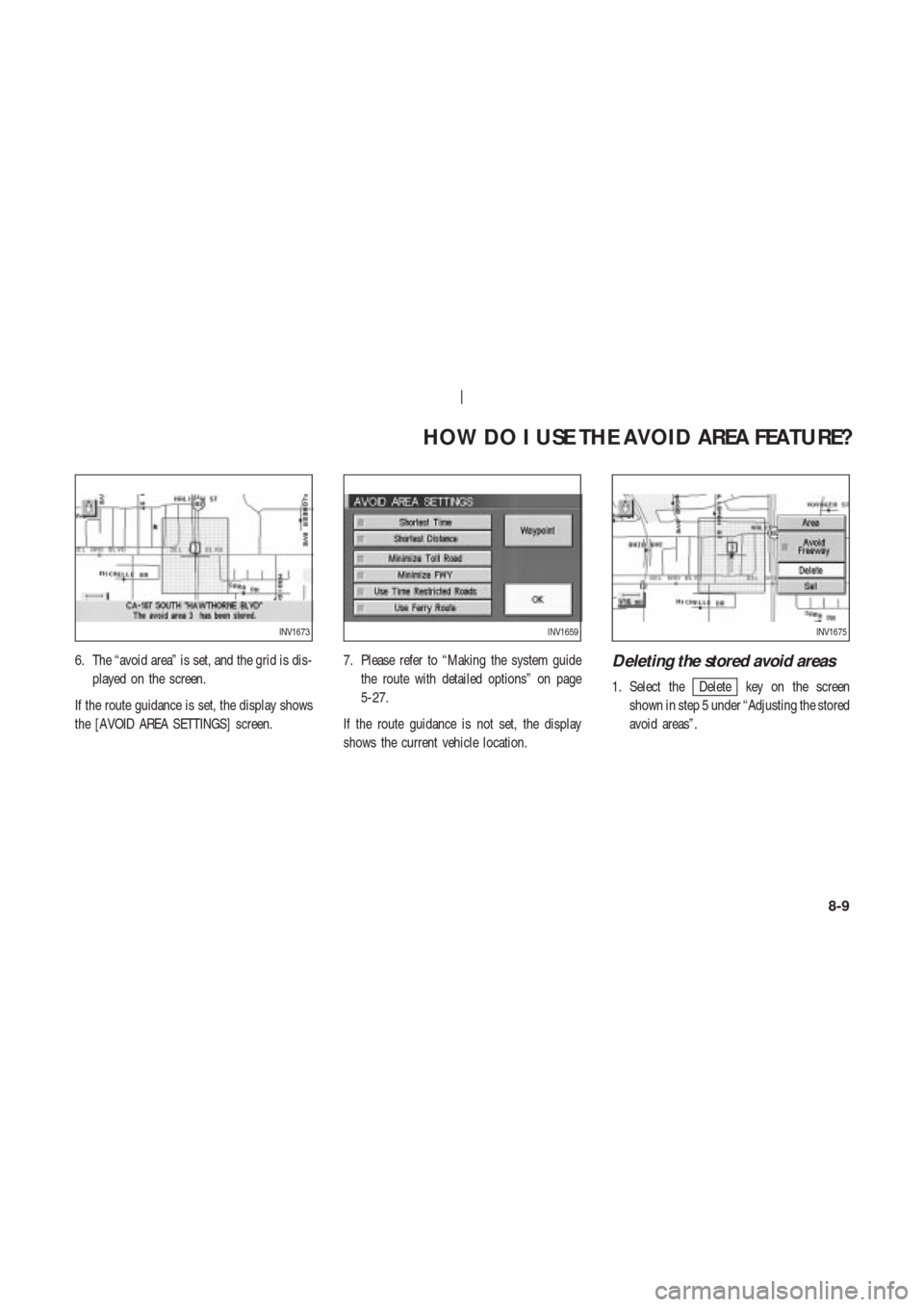

6. The “avoid area” is set, and the grid is dis-
played on the screen.
If the route guidance is set, the display shows
the [AVOID AREA SETTINGS] screen.7. Please refer to “Making the system guide
the route with detailed options” on page
5-27.
If the route guidance is not set, the display
shows the current vehicle location.Deleting the stored avoid areas
1. Select theDelete key on the screen
shown in step 5 under “Adjusting the stored
avoid areas”.
INV1673INV1659INV1675
HOW DO I USE THE AVOID AREA FEATURE?
8-9
