2003 NISSAN 350Z display

4. Select theContrast key .
When the joystick is tilted to the right, contrast
of the screen will be higher , and will be lower
when tilted to the left.
SWITCHING THE DISPLAY
COLOR
1. Press the SETTING button.2. Select the
Display key .
3. The [DISPLA Y SETTINGS] screen will bedisplayed.
Select the
Brightness/Contrast/Map Background
key .
4. Select the
Map Background key .
The display brightness will be altered.
HOW TO USE THED/N
(DAY/NIGHT) BUTTON
1. Press the D/N button.
INV1735INV1730
INV1731
INV1738
HOW DO I ADJUST THE DISPLAY?
11-19

2. When the D/N button is pressed, the
screen will repeatedly switch between nor-
mal lighting and dimmer lighting indepen-
dently of turning on or off of illumination.
DISPLAY OFF
The display can be turned off with the following
procedure.
1. Press the SETTING button.2. Select the
Display key .
3. The [DISPLA Y SETTINGS] screen will bedisplayed.
Select the
Display Off key .
The indicator of the [DISPLA Y OFF] will
turn green.
4. A comment will be displayed for 5 seconds
and the display will turn off.
T o restart the display , press the SETTING
button and select the
Display Off key
again.
INFO:

When the INFO and MAP buttons are
INV1739INV1730
INV1741
INV1742
HOW DO I ADJUST THE DISPLAY?
11-20

pressed with the display turned off, the
screen shows normally , then the display
turns off again.

When the D/N button is pressed with the
display turned off, the display brightness is
changed when the screen is re-displayed.
SETTING DISPLAY DURATION
Y ou can set the display duration time.
1. Press the SETTING button.
2. Select the
Display key .3. The [DISPLA Y SETTINGS] screen will be
displayed.
Select the
Setting Display Duration key .
INFO:
When you finish setting the display duration
time, the display will return to the previous dis-
play automatically .
HOW TO HANDLE THE DIS-
PLA Y
The display uses liquid crystal and should be
handled with care.
WARNING
Never disassemble the display . It
has some areas with extreme high
voltage. T ouching it may result in se-
rious personal injury .
CHARACTERISTICS OF LIQUID
CRYSTAL DISPLAY

If the temperature inside the vehicle is es-
pecially low, the display will stay relatively
dim or the movement of the images may be
slow. These conditions are normal; when
the temperature rises, the display will func-
tion normally .

Y ou may notice darker or brighter dots in
parts of the display; this is inherent in
monitor displays and is not a malfunction.

Y ou may also notice a remnant of the pre-
vious display image on the screen. This af-
INV1730
INV1744
HOW DO I ADJUST THE DISPLAY?
11-21

terimage is inherent in displays and is not
abnormal.
INFO:
The screen may become distorted by strong
magnetic fields.
MAINTENANCE OF THE DIS-
PLAY
CAUTION

T o clean the display , never use a
rough cloth, alcohol, benzine,
thinner , any kind of solvent, or pa-
per towel with chemical cleaning
agent. They will scratch or dete-
riorate the panel.

Do not splash any liquid such as
water or car fragrance on the dis-
play . Contact with liquid will
cause the system to malfunction.If you need to clean the display screen, use a
dry soft cloth. If additional cleaning is neces-
sary , use a small amount of neutral detergent
with a soft cloth. Never soak the exterior with
water or detergent.
HOW DO I ADJUST THE DISPLAY?
11-22

MAINTENANCE INFORMA-
TION
1. Press the INFO button.
2. The [MAINTENANCE INFO.] screen will be
displayed.
3. T o set the maintenance information for the
Engine Oil or Oil Filter , choose an item us-
ing the joystick and press the PUSH ENTER
button.4. The [ENGINE OIL] screen will be displayed.
5. T o reset, select the
RESET key .
6. Set the distance of the maintenance sched-
ule.
T o determine the maintenance interval, refer to
the vehicle’s Owner’s Manual.
T o automatically display the [MAINTENANCE
INFO.] screen when setting trip distance is
reached, select the
Display Maintenance Notification key and
press the PUSH ENTER button.
INV1756
INV1750
HOW DO I USE THE VEHICLE INFORMATION?
12-2

BASIC OPERA TIONS
Symptom Possible cause Remedy
No image comes on. The brightness adjustment is at the lowest set-
ting.Adjust the settings to make the display
brighter.
No map comes on the screen. No map DVD-ROM is inserted, or it is inserted
upside down.Insert the DVD-ROM correctly.
The map display mode is switched off.
Press theMAPbutton.
No voice guide is available.
or
The volume is not high enough.The volume is not set correctly or turned off. Adjust the volume correctly.
The screen is too dim. The movement is slow. The temperature in the vehicle is low. Wait for the temperature in the vehicle to rise.
There are a few darker or brighter dots in the
display.This is inherent to displays. This condition is a
characteristic of liquid crystal displays.This condition is not abnormal.

Stored location in the address book and other memory functions may be lost if the car’s battery is disconnected or becomes discharged for a long
time.
If this should occur , service the car’s battery as necessary and re-enter the address book information.
TROUBLESHOOTING GUIDE
14-3

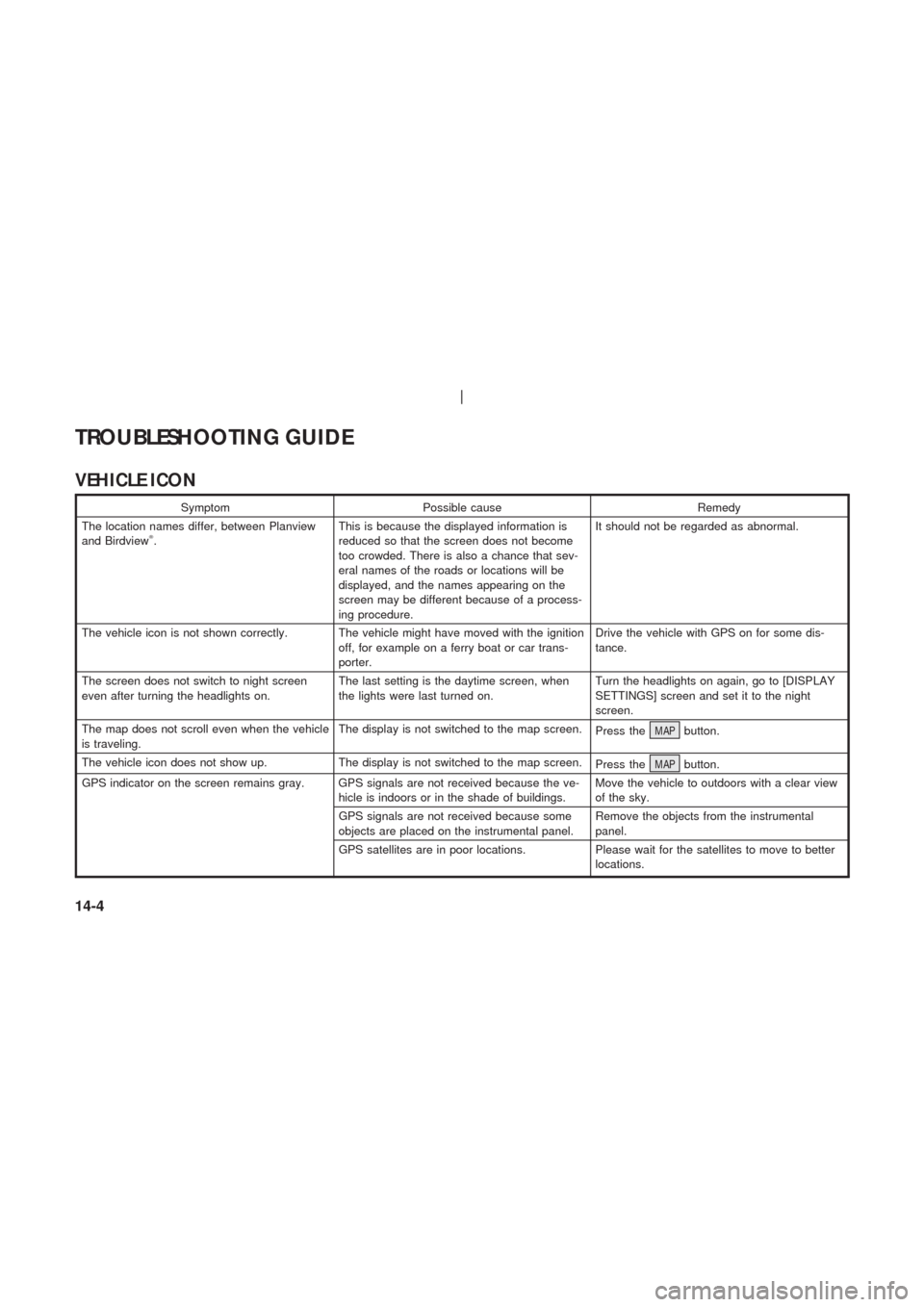

VEHICLE ICON
Symptom Possible cause Remedy
The location names differ, between Planview
and Birdview
.This is because the displayed information is
reduced so that the screen does not become
too crowded. There is also a chance that sev-
eral names of the roads or locations will be
displayed, and the names appearing on the
screen may be different because of a process-
ing procedure.It should not be regarded as abnormal.
The vehicle icon is not shown correctly. The vehicle might have moved with the ignition
off, for example on a ferry boat or car trans-
porter.Drive the vehicle with GPS on for some dis-
tance.
The screen does not switch to night screen
even after turning the headlights on.The last setting is the daytime screen, when
the lights were last turned on.Turn the headlights on again, go to [DISPLAY
SETTINGS] screen and set it to the night
screen.
The map does not scroll even when the vehicle
is traveling.The display is not switched to the map screen.
Press theMAPbutton.
The vehicle icon does not show up. The display is not switched to the map screen.
Press theMAPbutton.
GPS indicator on the screen remains gray. GPS signals are not received because the ve-
hicle is indoors or in the shade of buildings.Move the vehicle to outdoors with a clear view
of the sky.
GPS signals are not received because some
objects are placed on the instrumental panel.Remove the objects from the instrumental
panel.
GPS satellites are in poor locations. Please wait for the satellites to move to better
locations.
TROUBLESHOOTING GUIDE
14-4

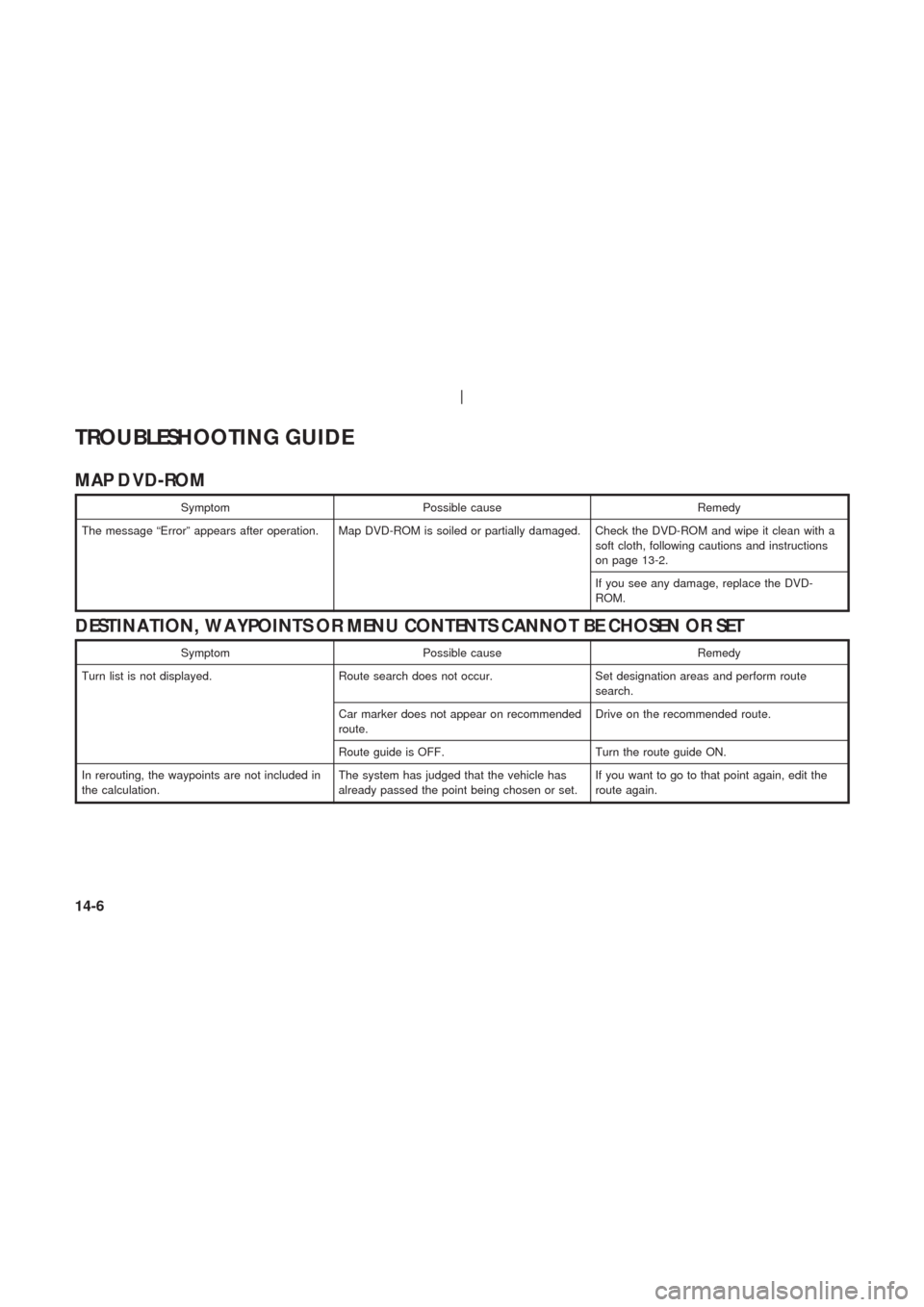

MAP D VD-ROM
Symptom Possible cause Remedy
The message “Error” appears after operation. Map DVD-ROM is soiled or partially damaged. Check the DVD-ROM and wipe it clean with a
soft cloth, following cautions and instructions
on page 13-2.
If you see any damage, replace the DVD-
ROM.
DESTINA TION, W A YPOINTS OR MENU CONTENTS CANNOT BE CHOSEN OR SET
Symptom Possible cause Remedy
Turn list is not displayed. Route search does not occur. Set designation areas and perform route
search.
Car marker does not appear on recommended
route.Drive on the recommended route.
Route guide is OFF. Turn the route guide ON.
In rerouting, the waypoints are not included in
the calculation.The system has judged that the vehicle has
already passed the point being chosen or set.If you want to go to that point again, edit the
route again.
TROUBLESHOOTING GUIDE
14-6
