2003 MINI COOPER Owners Manual

103
OVERVIEW REPAIRSOPERATIONCONTROLS DATA INDEX
TECHNICAL MODIFICATIONS CALIFORNIA PROPOSITION 65 WARNINGAny MINI Dealer will be glad to inform you
of the advisability, legal regulations and
factory recommendations for technical
modifications to the vehicle.
To do so, they require the vehicle identifica-
tion number from your vehicle documents.California laws require us to state the fol-
lowing warning:
Engine exhaust, some of its constitu-
ents, and certain vehicle components
contain or emit chemicals known to the
State of California to cause cancer and birth
defects and reproductive harm. In addition,
certain fluids contained in vehicles and cer-
tain products of component wear contain
or emit chemicals known to the State of
California to cause cancer and birth defects
or other reproductive harm.
Battery posts, terminals and related acces-
sories contain lead and lead compounds.
Wash your hands after handling.
Used engine oil contains chemicals that
have caused cancer in laboratory animals.
Always protect your skin by washing thor-
oughly with soap and water.<
ba.book Seite 103 Montag, 5. August 2002 8:09 20
ProCarManuals.com

104
ba.book Seite 104 Montag, 5. August 2002 8:09 20
ProCarManuals.com

OVERVIEW
CONTROLS
OPERATION, CARE, MAINTENANCE
OWNER SERVICE PROCEDURES
INDEX TECHNICAL DATA
105
OVERVIEW REPAIRSOPERATION CONTROLS DATA INDEX
Repairs
ba.book Seite 105 Montag, 5. August 2002 8:09 20
ProCarManuals.com

106

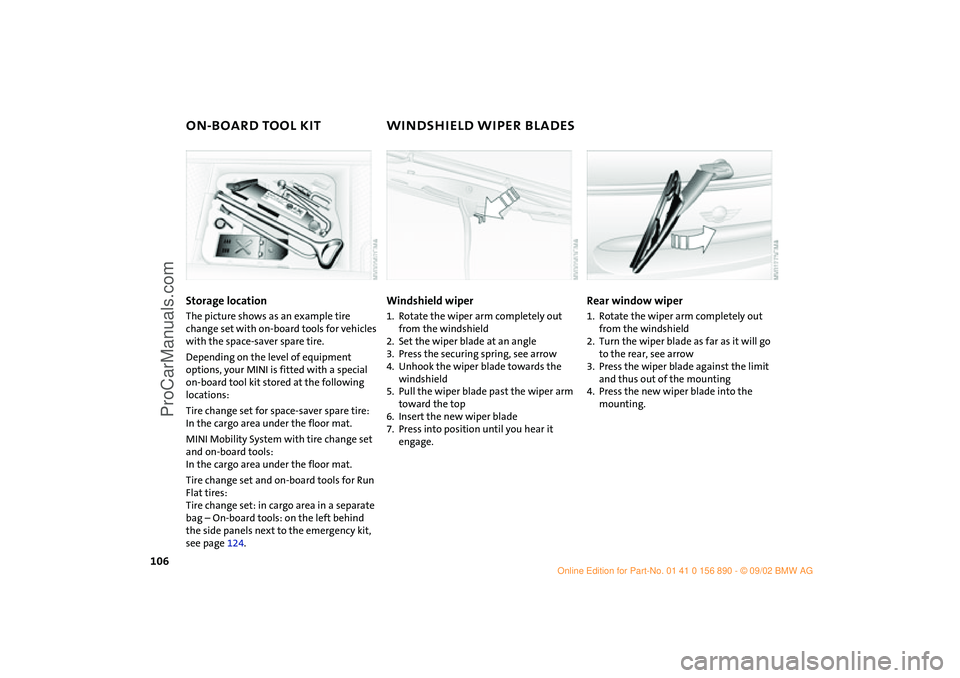

ON-BOARD TOOL KIT WINDSHIELD WIPER BLADESStorage locationThe picture shows as an example tire
change set with on-board tools for vehicles
with the space-saver spare tire.
Depending on the level of equipment
options, your MINI is fitted with a special
on-board tool kit stored at the following
locations:
Tire change set for space-saver spare tire:
In the cargo area under the floor mat.
MINI Mobility System with tire change set
and on-board tools:
In the cargo area under the floor mat.
Tire change set and on-board tools for Run
Flat tires:
Tire change set: in cargo area in a separate
bag – On-board tools: on the left behind
the side panels next to the emergency kit,
see page 124.
Windshield wiper1. Rotate the wiper arm completely out
from the windshield
2. Set the wiper blade at an angle
3. Press the securing spring, see arrow
4. Unhook the wiper blade towards the
windshield
5. Pull the wiper blade past the wiper arm
toward the top
6. Insert the new wiper blade
7. Press into position until you hear it
engage.
Rear window wiper1. Rotate the wiper arm completely out
from the windshield
2. Turn the wiper blade as far as it will go
to the rear, see arrow
3. Press the wiper blade against the limit
and thus out of the mounting
4. Press the new wiper blade into the
mounting.
ba.book Seite 106 Montag, 5. August 2002 8:09 20
ProCarManuals.com

107
OVERVIEW REPAIRSOPERATION CONTROLS DATA INDEX
LAMPS AND BULBSProceed carefully when handling lamps and
bulbs. If you are not familiar with any of
the procedures, consult your MINI Dealer.
Do not touch the glass portion of a
new bulb with your bare hands since
even small amounts of impurities burn into
the surface and reduce the service life of
the bulb. Use a clean cloth, paper napkin, or
similar material, or hold the bulb by its
metallic base.<
Replacement bulbs are available from your
MINI Dealer.
Whenever working on the electrical
system, switch off the electrical
accessory you are working on or disconnect
the cable from the negative terminal of the
battery. Failure to do this could result in
short circuits.
To prevent injuries and damage, comply
with any instructions provided by the bulb
manufacturer.<
1Low beams H7 bulb, 55 Watts2High beamsH7 bulb, 55 Watts
The H7 bulb is pressurized. Therefore,
wear safety glasses and protective
gloves. If the lamp is damaged there is a
risk of injury. MINI engine bonnet.
1. Pull on the tab of the cover of the defec-
tive lamp and open it
2. Press the retaining wire lightly at the
eyelet and at the same time guide it out-
wards
3. Fold the retaining wire down
4. Remove the lamp holder and replace the
lamp
5. Reinsert the lamp holder in the correct
position
6. Fold the retaining wire back up and
catch in place. Ensure that it is placed in
the middle of the wire connector.Xenon lamps* The service life of these bulbs is very long
and the probability of a failure is very low,
provided that they are not switched on and
off an unusual number of times. If one of
these bulbs should nevertheless fail, it is
possible to continue driving with great cau-
tion using the fog lamps, provided traffic
laws in your area do not prohibit this.
Because of the extremely high volt-
ages involved, any work on the xenon
lighting system should be carried out by
technically-qualified personnel only. Other-
wise, there is a risk of fatal injury.<
ba.book Seite 107 Montag, 5. August 2002 8:09 20
ProCarManuals.com

108
LAMPS AND BULBSTurn signal indicators, front 21 Watt bulb
1. Open the bonnet
2. Reach into the opening for the turn sig-
nal indicators from above
3. Apply gentle pressure to the bulb holder
while turning it to the left
4. Remove and replace the bulb.Parking lamps and standing lamps 5 Watt bulb
The parking lamps and standing lamps are
integrated in the lamp housing of the turn
signal indicator.
1. Turn the bulb holder to the left and pull
out
2. Remove and replace the bulb.
Side turn signal indicators5 Watt bulb
1. Press the bulb towards the rear of the
vehicle and remove
2. Remove and replace the bulb.Side marker lamps3 Watt bulb
Side marker lamps in the wheelhouse pan-
eling of the bumper.
Please contact a MINI Dealer in case of a
malfunction.
Fog lamps* H11 bulb, 55 Watts
Please contact a MINI Dealer in case of a
malfunction.
ba.book Seite 108 Montag, 5. August 2002 8:09 20
ProCarManuals.com

109
OVERVIEW REPAIRSOPERATION CONTROLS DATA INDEX
LAMPS AND BULBSTail lamps Rear lamp – 3: bulb 21/5 Watts
Other bulbs: 21 Watts
1Rear fog lamp – not active red
2Turn signal indicator yellow
3Rear lamp red
4Rear lamp/Brake lamp red
To make this clear, the illustration shows a
dismantled tail lamp with the bulb holder
removed. All of the bulbs are integrated in
the bulb holder.
To reach the bulb holder, remove the cover
of the side trim panel in the cargo area. Replacing bulbs1. Unplug the power supply
2. Release the bulb holder, see arrow, and
remove
3. Apply gentle pressure to the bulb while
turning it to the left
4. Remove and replace the bulb
5. Plug in the power supply receptacle
6. Press the bulb holder into position until
you hear it engage.
Backup lampMINI COOPER:
Access to the lamp via the back or under-
side of the bumper.
1. Press the clips together
2. Push the lamp out of the bumper
3. Apply gentle pressure to the bulb while
turning it to the left
4. Remove and replace the bulb.
MINI COOPER S:
Please contact a MINI Dealer in case of a
malfunction.
ba.book Seite 109 Montag, 5. August 2002 8:09 20
ProCarManuals.com

110
LAMPS AND BULBSCenter high-mount brake lamp LED strip on the tailgate.
Please contact a MINI Dealer in case of a
malfunction.
License plate lamps 5 Watt bulb
1. Apply a screwdriver to the recess and
lever out the lamp cover
2. Replace the bulb.
Interior lamps6 Watt xenon bulb
1. Press out the lamp cover with a screw-
driver
2. Remove and replace the bulb.Reading lamps2 x 6 Watt xenon bulbs
1. Press out the lamp cover with a screw-
driver
2. Unscrew the entire lamp with a screw-
driver
3. Remove the bulb from above and
replace.
