2003 MERCEDES-BENZ SLK320 Owner's Manual

241 Practical hints
Flat tire

Remove the wheel.

Take the spare tire out of the trunk.
Mounting the new wheel
Wheel bolts1 Wheel bolt for

wheel rim size 7Jx16 H2 and 8Jx16 H2


AMG wheel rim size 7
1⁄2Jx17 H2 and
8
1⁄2Jx17 H2


spare wheel rim size 4
1⁄2Bx16 H2
2 Wheel bolt for


spare wheel rim size 4
1⁄2Bx15 H2
(located with electric air pump)

Clean contact surfaces of wheel and
wheel hub.

Guide the spare wheel onto the align-
ment bolt and push it on.

Insert wheel bolts and tighten them
slightly.

Inflate the spare tire using the electric
air pump (
page 243).
!Wheel bolts2 must be used when
mounting spare wheel rim size
41⁄2Bx15 H2.
The use of any wheel bolts other than
wheel bolts2 for spare wheel rim size
4
1⁄2Bx15 H2 can cause physical dam-
age to the vehicle.
Warning!
G
Be sure to use original length wheel bolts
when remounting the original wheel after it
has been repaired.
Warning!
G
Inflate spare wheel with collapsible tire only
after the wheel is properly mounted.!To avoid paint damage, place wheel flat
against hub and hold it there while in-
stalling first wheel bolt.


242 Practical hintsFlat tire

Unscrew the alignment bolt, install last
wheel bolt and tighten slightly.
Lowering the vehicle

Lower vehicle by turning crank coun-
terclockwise until vehicle is resting ful-
ly on its own weight.

Pull the jack out of the jack support
tube.

Remove jack tube cover.1-5Wheel bolts

Tighten the five wheel bolts evenly, fol-
lowing the diagonal sequence illustrat-
ed (1to5), until all bolts are tight.
Observe a tightening torque of 80 ft lb
(110 Nm).
Warning!
G
Always replace wheel bolts that are dam-
aged or rusted.
Never apply oil or grease to wheel bolts.
Damaged wheel hub threads should be re-
paired immediately. Do not continue to drive
under these circumstances! Contact an au-
thorized Mercedes-Benz Center or call
Roadside Assistance.
Incorrect mounting bolts or improperly
tightened mounting bolts can cause the
wheel to come off. This could cause an acci-
dent. Be sure to use the correct mounting
bolts.
Warning!
G
Use only genuine equipment
Mercedes-Benz wheel bolts. They are identi-
fied by the Mercedes star. Other wheel bolts
may come loose.
Do not tighten the wheel bolts when the ve-
hicle is raised. Otherwise the vehicle could
tip over.
Warning!
G
Have the tightening torque checked after
changing a wheel. The wheels could come
loose if they are not tightened to a torque of
80 ft lb (110 Nm).

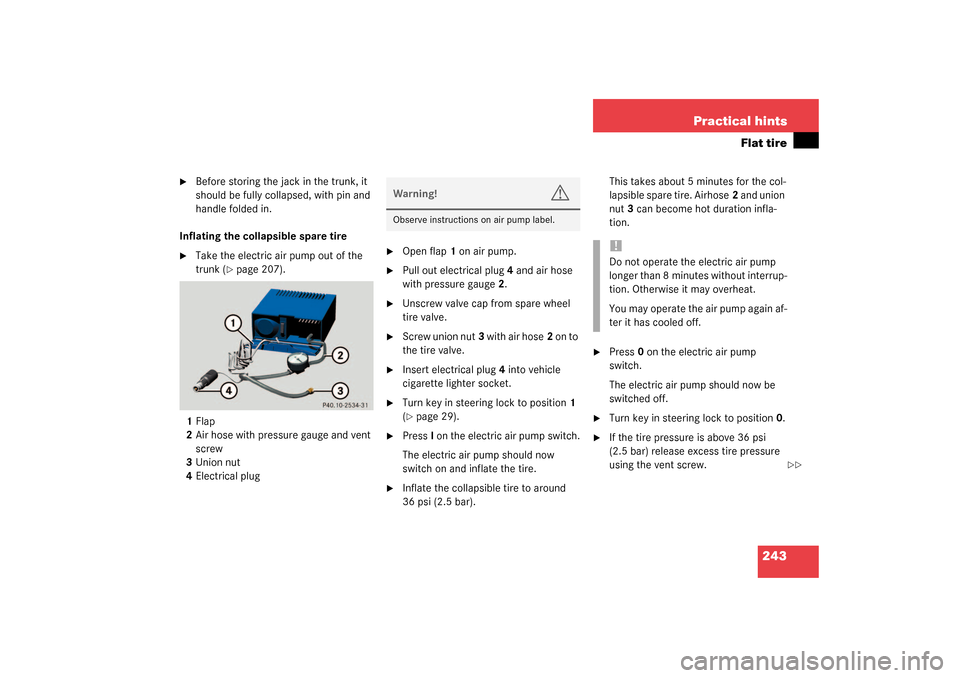

243 Practical hints
Flat tire

Before storing the jack in the trunk, it
should be fully collapsed, with pin and
handle folded in.
Inflating the collapsible spare tire

Take the electric air pump out of the
trunk (
page 207).
1Flap
2Air hose with pressure gauge and vent
screw
3Union nut
4Electrical plug

Open flap1 on air pump.

Pull out electrical plug4 and air hose
with pressure gauge2.

Unscrew valve cap from spare wheel
tire valve.

Screw union nut3 with air hose2 on to
the tire valve.

Insert electrical plug4 into vehicle
cigarette lighter socket.

Turn key in steering lock to position1
(page 29).

PressI on the electric air pump switch.
The electric air pump should now
switch on and inflate the tire.

Inflate the collapsible tire to around
36 psi (2.5 bar).This takes about 5 minutes for the col-
lapsible spare tire. Airhose2 and union
nut3 can become hot duration infla-
tion.

Press0 on the electric air pump
switch.
The electric air pump should now be
switched off.

Turn key in steering lock to position0.

If the tire pressure is above 36 psi
(2.5 bar) release excess tire pressure
using the vent screw.
Warning!
G
Observe instructions on air pump label.
!Do not operate the electric air pump
longer than 8 minutes without interrup-
tion. Otherwise it may overheat.
You may operate the air pump again af-
ter it has cooled off.

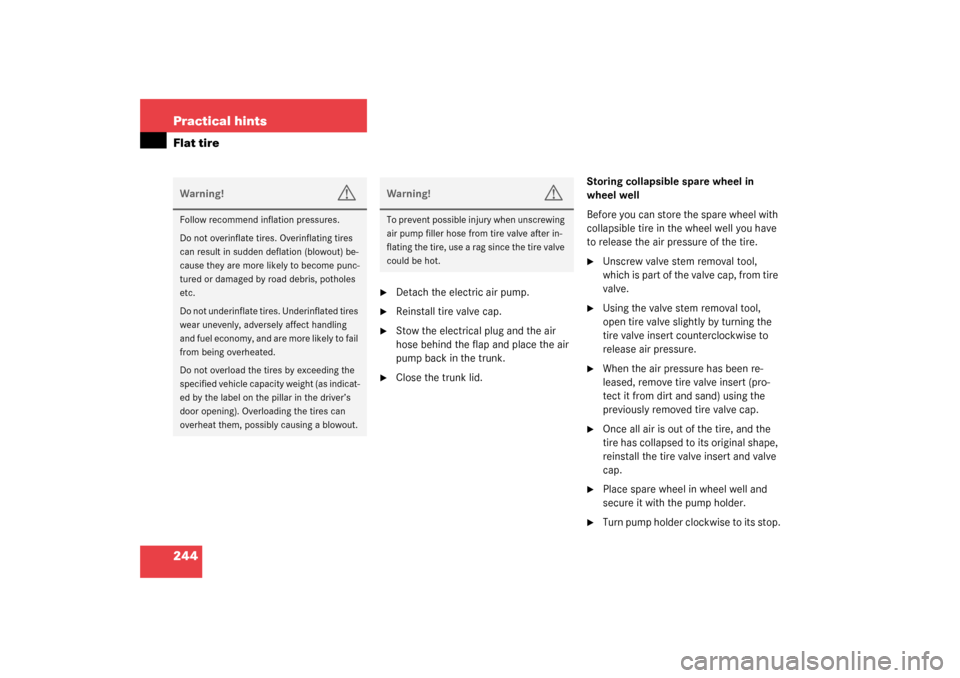

244 Practical hintsFlat tire

Detach the electric air pump.

Reinstall tire valve cap.

Stow the electrical plug and the air
hose behind the flap and place the air
pump back in the trunk.

Close the trunk lid.Storing collapsible spare wheel in
wheel well
Before you can store the spare wheel with
collapsible tire in the wheel well you have
to release the air pressure of the tire.

Unscrew valve stem removal tool,
which is part of the valve cap, from tire
valve.

Using the valve stem removal tool,
open tire valve slightly by turning the
tire valve insert counterclockwise to
release air pressure.

When the air pressure has been re-
leased, remove tire valve insert (pro-
tect it from dirt and sand) using the
previously removed tire valve cap.

Once all air is out of the tire, and the
tire has collapsed to its original shape,
reinstall the tire valve insert and valve
cap.

Place spare wheel in wheel well and
secure it with the pump holder.

Tu rn pu m p hold er cl ockwi se to its st op.
Warning!
G
Follow recommend inflation pressures.
Do not overinflate tires. Overinflating tires
can result in sudden deflation (blowout) be-
cause they are more likely to become punc-
tured or damaged by road debris, potholes
etc.
Do not underinflate tires. Underinflated tires
wear unevenly, adversely affect handling
and fuel economy, and are more likely to fail
from being overheated.
Do not overload the tires by exceeding the
specified vehicle capacity weight (as indicat-
ed by the label on the pillar in the driver’s
door opening). Overloading the tires can
overheat them, possibly causing a blowout.
Warning!
G
To prevent possible injury when unscrewing
air pump filler hose from tire valve after in-
flating the tire, use a rag since the tire valve
could be hot.

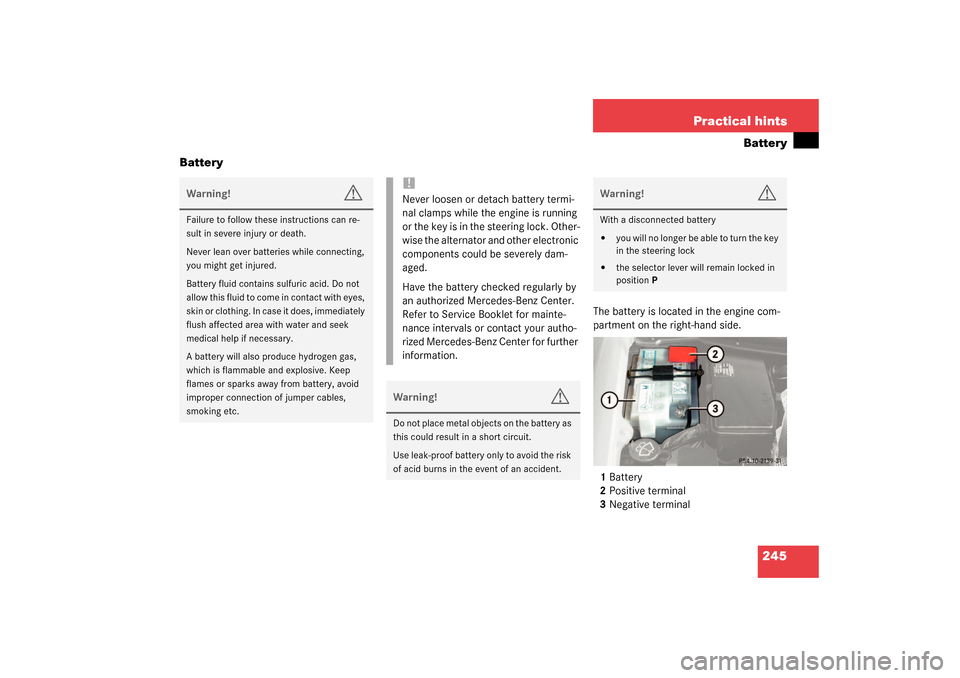

245 Practical hints
Battery
Battery
The battery is located in the engine com-
partment on the right-hand side.
1Battery
2Positive terminal
3Negative terminal
Warning!
G
Failure to follow these instructions can re-
sult in severe injury or death.
Never lean over batteries while connecting,
you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking etc.
!Never loosen or detach battery termi-
nal clamps while the engine is running
or the key is in the steering lock. Other-
wise the alternator and other electronic
components could be severely dam-
aged.
Have the battery checked regularly by
an authorized Mercedes-Benz Center.
Refer to Service Booklet for mainte-
nance intervals or contact your autho-
rized Mercedes-Benz Center for further
information.Warning!
G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.
Warning!
G
With a disconnected battery

y o u w i l l n o l o n g e r b e a b l e t o t u r n t h e k e y
in the steering lock


the selector lever will remain locked in
positionP

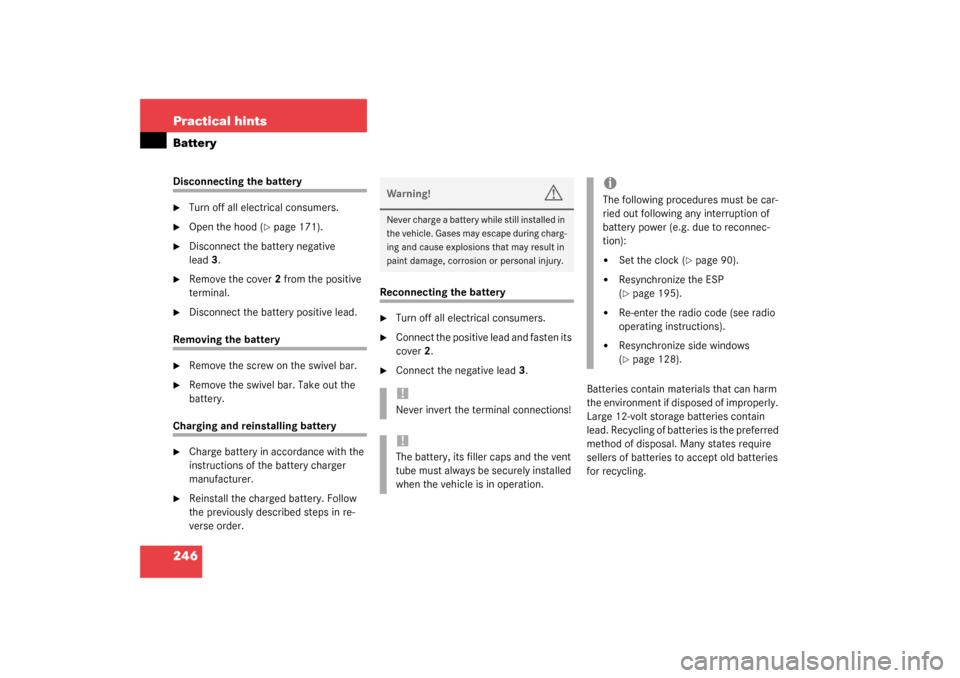

246 Practical hintsBatteryDisconnecting the battery
Turn off all electrical consumers.

Open the hood (
page 171).

Disconnect the battery negative
lead3.

Remove the cover2 from the positive
terminal.

Disconnect the battery positive lead.
Removing the battery
Remove the screw on the swivel bar.

Remove the swivel bar. Take out the
battery.
Charging and reinstalling battery
Charge battery in accordance with the
instructions of the battery charger
manufacturer.

Reinstall the charged battery. Follow
the previously described steps in re-
verse order.
Reconnecting the battery
Turn off all electrical consumers.

Connect the positive lead and fasten its
cover2.

Connect the negative lead3.
Batteries contain materials that can harm
the environment if disposed of improperly.
Large 12-volt storage batteries contain
lead. Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.Warning!
G
Never charge a battery while still installed in
the vehicle. Gases may escape during charg-
ing and cause explosions that may result in
paint damage, corrosion or personal injury.!Never invert the terminal connections!!The battery, its filler caps and the vent
tube must always be securely installed
when the vehicle is in operation.
iThe following procedures must be car-
ried out following any interruption of
battery power (e.g. due to reconnec-
tion):

Set the clock (
page 90).


Resynchronize the ESP
(page 195).


Re-enter the radio code (see radio
operating instructions).


Resynchronize side windows
(page 128).

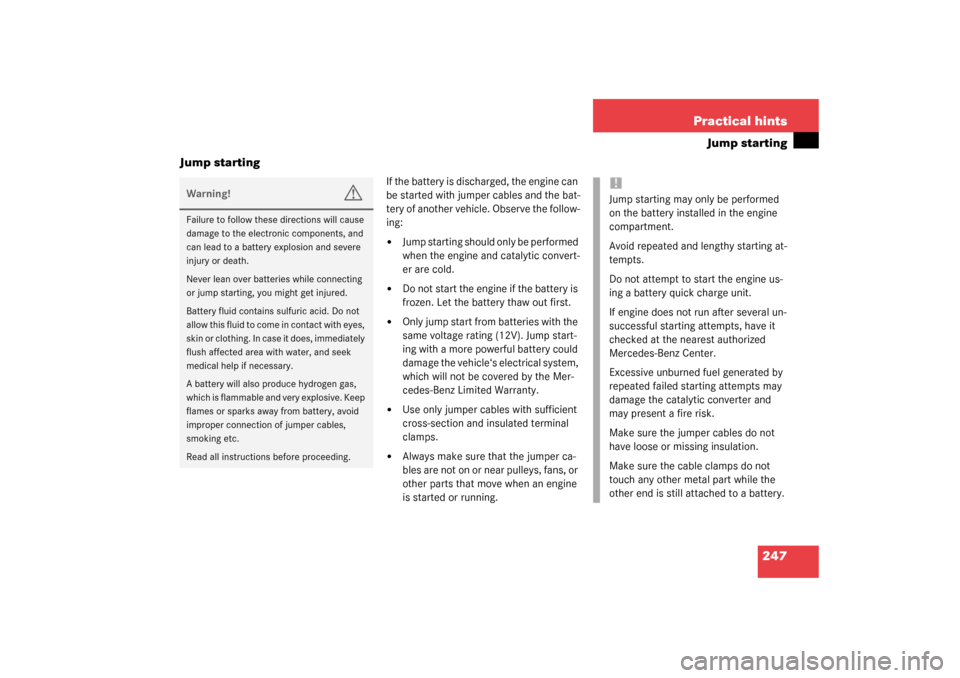

247 Practical hints
Jump starting
Jump starting
If the battery is discharged, the engine can
be started with jumper cables and the bat-
tery of another vehicle. Observe the follow-
ing:

Jump starting should only be performed
when the engine and catalytic convert-
er are cold.


Do not start the engine if the battery is
frozen. Let the battery thaw out first.


Only jump start from batteries with the
same voltage rating (12V). Jump start-
ing with a more powerful battery could
damage the vehicle‘s electrical system,
which will not be covered by the Mer-
cedes-Benz Limited Warranty.


Use only jumper cables with sufficient
cross-section and insulated terminal
clamps.


Always make sure that the jumper ca-
bles are not on or near pulleys, fans, or
other parts that move when an engine
is started or running.
Warning!
G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking etc.
Read all instructions before proceeding.
!Jump starting may only be performed
on the battery installed in the engine
compartment.
Avoid repeated and lengthy starting at-
tempts.
Do not attempt to start the engine us-
ing a battery quick charge unit.
If engine does not run after several un-
successful starting attempts, have it
checked at the nearest authorized
Mercedes-Benz Center.
Excessive unburned fuel generated by
repeated failed starting attempts may
damage the catalytic converter and
may present a fire risk.
Make sure the jumper cables do not
have loose or missing insulation.
Make sure the cable clamps do not
touch any other metal part while the
other end is still attached to a battery.

248 Practical hintsJump startingThe battery is located in the engine com-
partment on the right hand side.
Make sure that the two vehicles do not
touch.

Turn off all electrical consumers, ex-
cept hazard warning flashers or work
lights.

Apply parking brake.

Shift selector lever to positionP (man-
ual transmission to Neutral).1Positive terminal of charged battery
2Positive terminal of discharged battery
3Negative terminal of discharged
battery
4Negative terminal of charged battery

Connect positive terminals1 and2 of
the batteries with the jumper cables.
Clamp cable to charged battery1 first.

Start engine of the vehicle with the
charged battery and run at idle speed.

Connect negative terminals3 and4 of
the batteries with the jumper cables.
Clamp cable to charged battery4 first.

Start the engine of the disabled vehi-
cle.
Now you can again turn on the electrical
consumers. Do not turn on the lights under
any circumstances.

Remove the jumper cables first from
negative terminals3 and4 of the bat-
teries and then from positive
terminals1 and2.

Have the battery checked at the near-
est authorized Mercedes-Benz Center.
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries.
iVehicles with automatic transmission:
Do not tow-start vehicle.
