2003 MERCEDES-BENZ SLK320 Owner's Manual

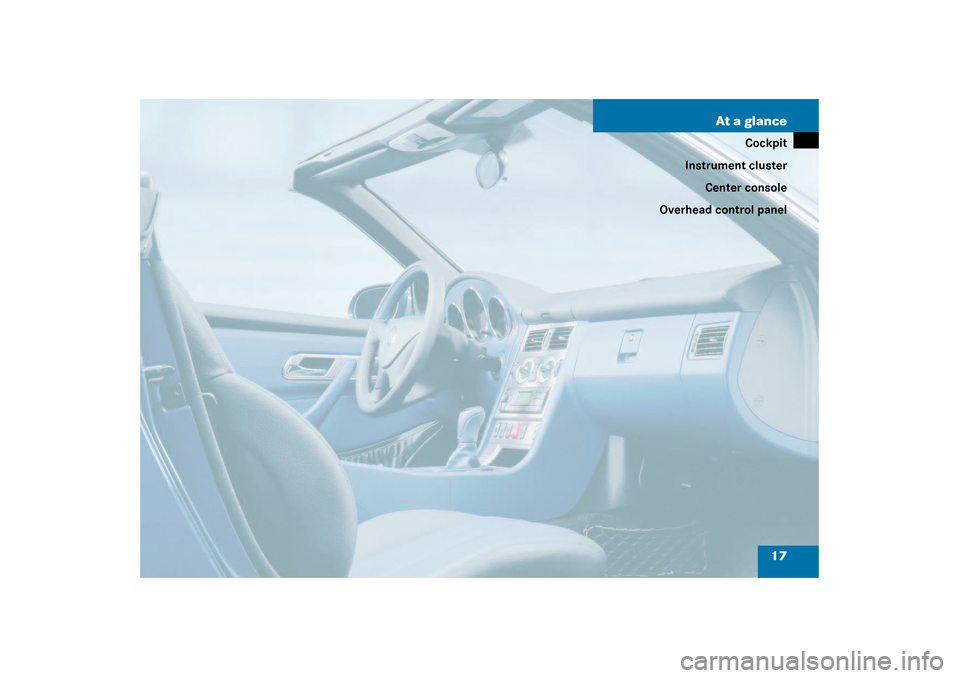

17 At a glance
Cockpit
Instrument cluster
Center console
Overhead control panel

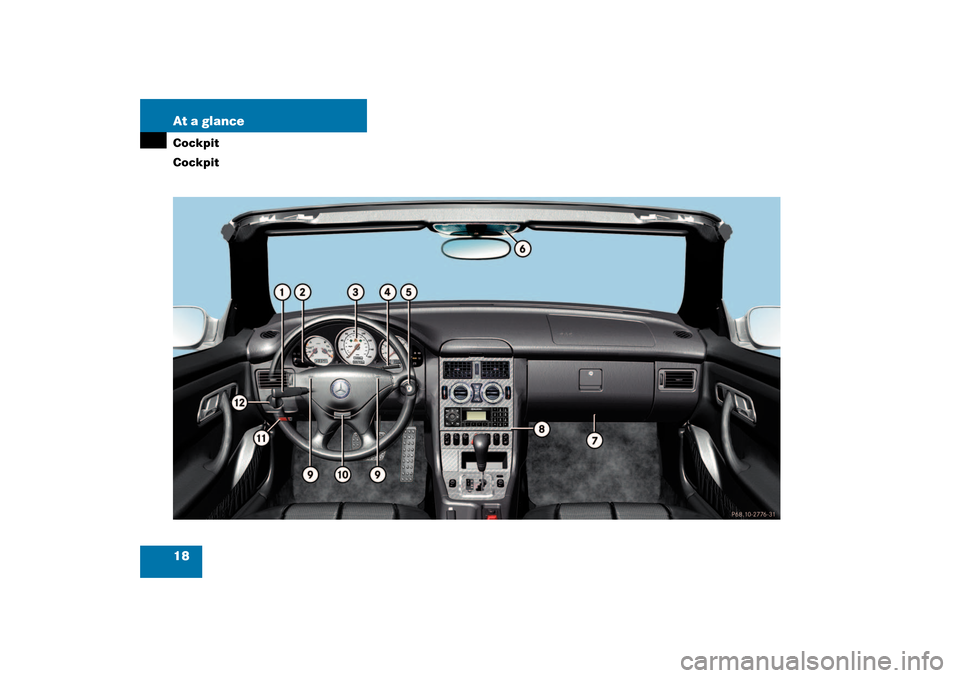

18 At a glanceCockpit
Cockpit

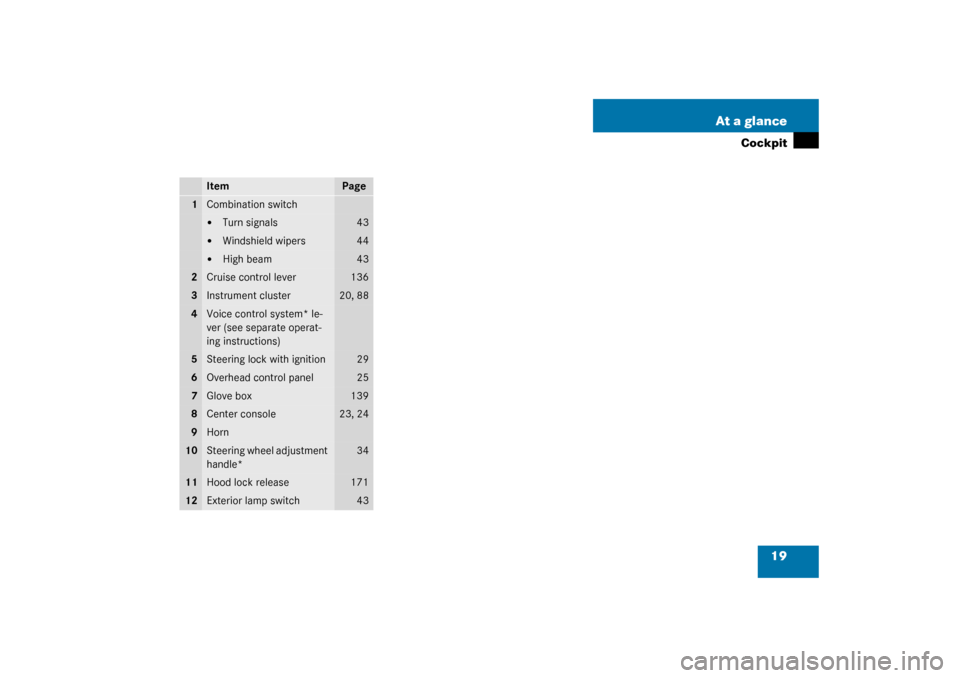

19 At a glance
Cockpit
Item
Page
1
Combination switch

Turn signals
43


Windshield wipers
44


High beam
43
2
Cruise control lever
136
3
Instrument cluster
20, 88
4
Voice control system* le-
ver (see separate operat-
ing instructions)
5
Steering lock with ignition
29
6
Overhead control panel
25
7
Glove box
139
8
Center console
23, 24
9
Horn
10
Steering wheel adjustment
handle*
34
11
Hood lock release
171
12
Exterior lamp switch
43

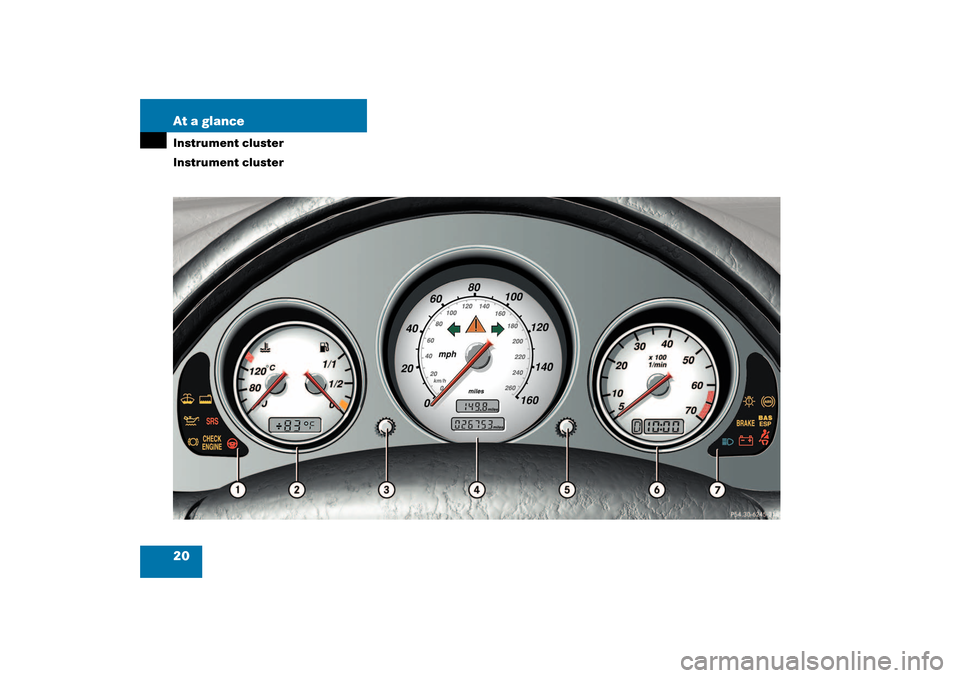

20 At a glanceInstrument cluster
Instrument cluster

21 At a glance
Instrument cluster
Item
Page
1
Left indicator lamps
with:W
Low windshield
washer and head-
lamp washer* sys-
tem fluid level
warning lamp
200
/
Low engine coolant
level warning lamp
201
N
Low engine oil level
warning lamp
200
1
Supplemental re-
straint system indi-
cator lamp
52,
197
2
Brake pad wear in-
dicator lamp
202
?
Engine malfunction
indicator lamp
199
_
Telescoping steer-
ing column warning
lamp*
200
Item
Page
2
Warning display with:D
Coolant tempera-
ture gauge
88
A
Fuel gauge with fuel
reserve warning
lamp
201
Outside temperature
indicator
90
3
Knob for:

Instrument cluster illu-
mination
88


Resetting trip odome-
ter
89


Activating Flexible Ser-
vice System (FSS) indi-
cator
185
4
Speedometer with:L
Turn signal
K
indicator lamps
v
Electronic Stability
Program (ESP)
warning lamp
68,
194
Trip odometer
89
Main odometer
5
Knob for:

Setting clock
90
6
Tachometer with:Selector lever position
41, 93
Digital clock
90
7
Right indicator lamps
with:$
Exterior lamp failure
indicator lamp
203
A
High beam head-
lamp indicator
43, 84
#
Charge indicator
lamp
202
Item
Page

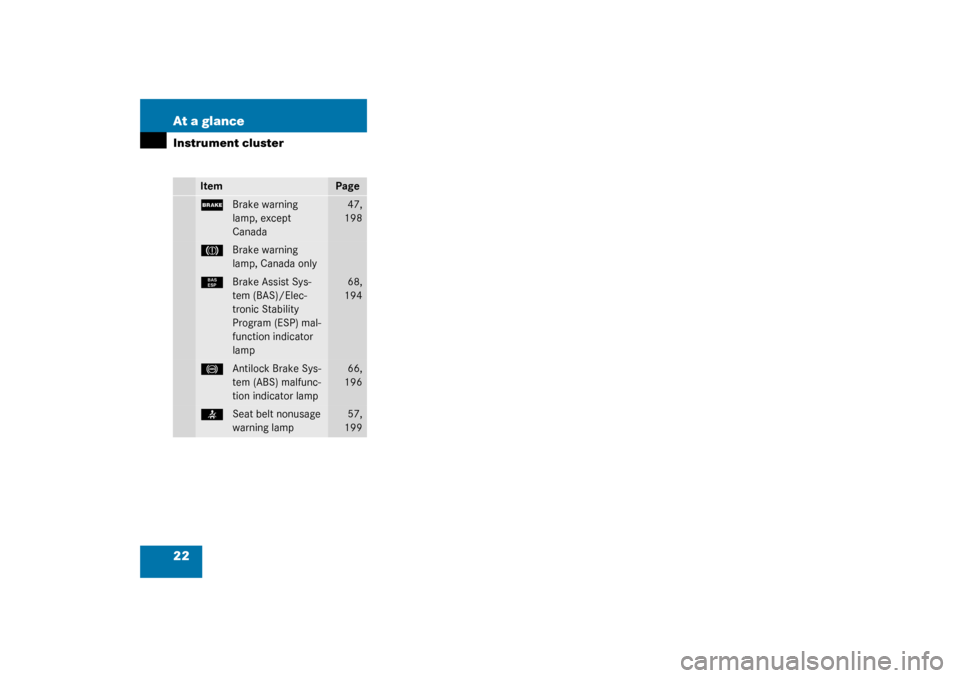

22 At a glanceInstrument cluster
Item
Page
;
Brake warning
lamp, except
Canada
47,
198
3
Brake warning
lamp, Canada only
¿
Brake Assist Sys-
tem (BAS)/Elec-
tronic Stability
Program (ESP) mal-
function indicator
lamp
68,
194
-
Antilock Brake Sys-
tem (ABS) malfunc-
tion indicator lamp
66,
196
<
Seat belt nonusage
warning lamp
57,
199

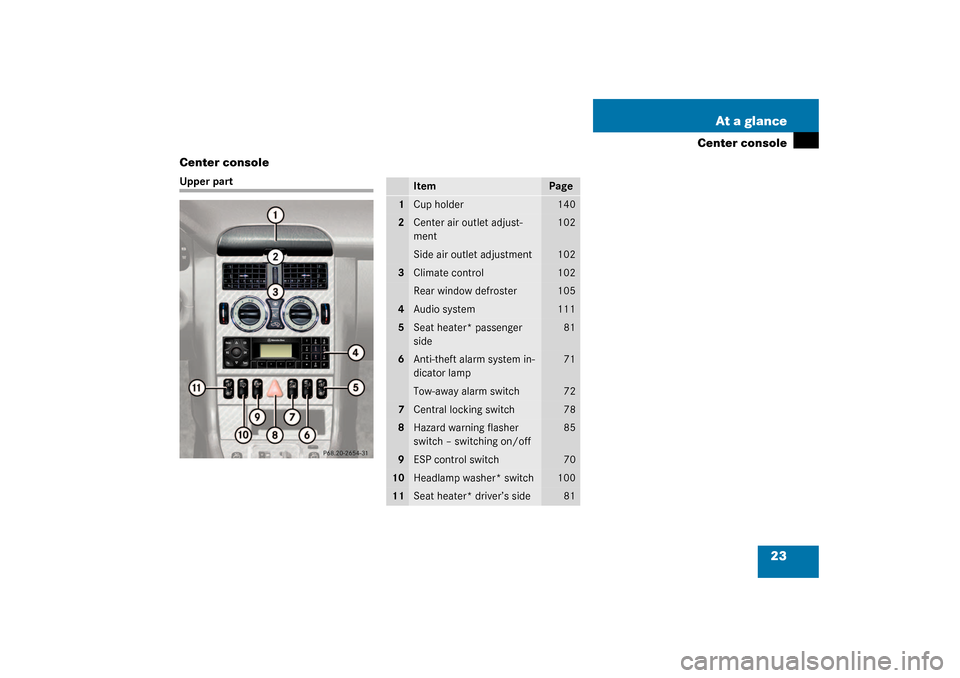

23 At a glance
Center console
Center console
Upper part
Item
Page
1
Cup holder
140
2
Center air outlet adjust-
ment
102
Side air outlet adjustment
102
3
Climate control
102
Rear window defroster
105
4
Audio system
111
5
Seat heater* passenger
side
81
6
Anti-theft alarm system in-
dicator lamp
71
Tow-away alarm switch
72
7
Central locking switch
78
8
Hazard warning flasher
switch – switching on/off
85
9
ESP control switch
70
10
Headlamp washer* switch
100
11
Seat heater* driver’s side
81

24 At a glanceCenter consoleLower Part
Item
Page
1
Selector lever for
automatic transmission*
96
Gearshift lever for manual
transmission
91
2
Storage compartment
3
Indicator lamp
7
62
4
Switch for opening/closing
windows on passenger
side
127
5
Exterior rear view mirror
adjustment
35
6
Switch for opening/closing
the hardtop
129
7
Storage compartment
140
Cigarette lighter
143
Item
Page
8
Parking brake lever
42
9
Switch for opening/closing
windows on the driver’s
side
127
10
Program mode selector for
automatic transmission*
97
11
Ashtray
142
Coin holder
142
