2003 MERCEDES-BENZ SLK320 Owner's Manual

217 Practical hints
Opening/closing in an emergency
2Control cable, right
4Control cable, left
5Hinge
Complete the following steps simulta-
neously:
First person:
Pull on control cables 2 and4 at
the same time.
With the control cables, you release
the catch of the trunk lid.Second person:

Push the trunk lid and hinge5 to
the rear.
The trunk lid tilts backward.
6Striker eye

Carefully fold down trunk lid in the di-
rection of arrowA.
The trunk lid lock engages audibly in
striker eye6.

Pull the trunk lid as far as it will go in
the direction of arrowB.

Warning!
G
While doing this, move backwards carefully.
Otherwise, you could injure yourself on the
trunk lid lock.

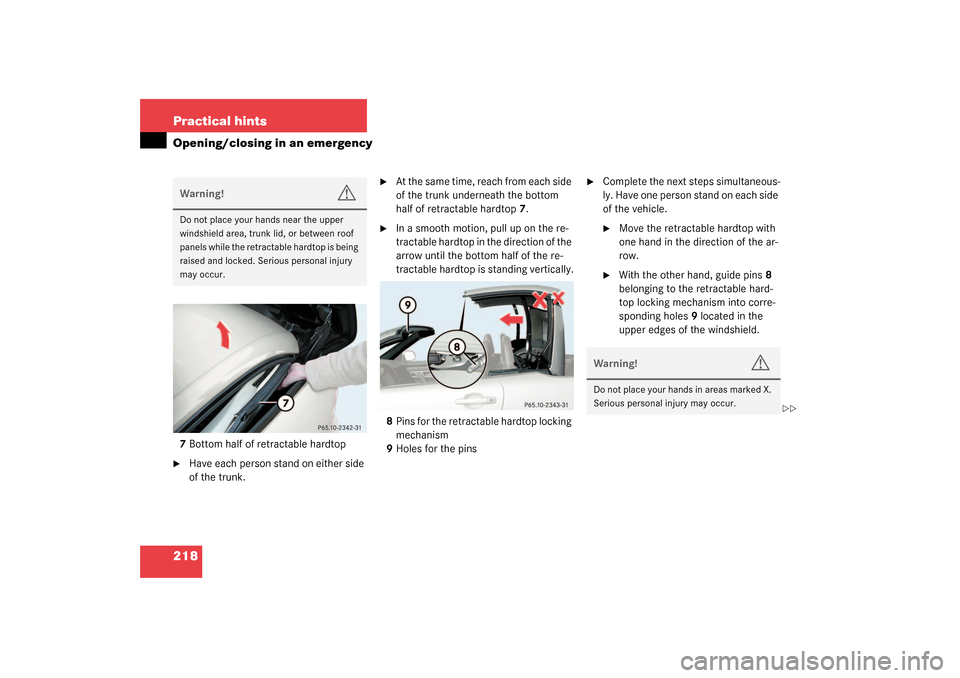

218 Practical hintsOpening/closing in an emergency7Bottom half of retractable hardtop
Have each person stand on either side
of the trunk.

At the same time, reach from each side
of the trunk underneath the bottom
half of retractable hardtop7.

In a smooth motion, pull up on the re-
tractable hardtop in the direction of the
arrow until the bottom half of the re-
tractable hardtop is standing vertically.
8Pins for the retractable hardtop locking
mechanism
9Holes for the pins

Complete the next steps simultaneous-
ly. Have one person stand on each side
of the vehicle.
Move the retractable hardtop with
one hand in the direction of the ar-
row.

With the other hand, guide pins8
belonging to the retractable hard-
top locking mechanism into corre-
sponding holes9 located in the
upper edges of the windshield.
Warning!
G
Do not place your hands near the upper
windshield area, trunk lid, or between roof
panels while the retractable hardtop is being
raised and locked. Serious personal injury
may occur.

Warning!
G
Do not place your hands in areas marked X.
Serious personal injury may occur.

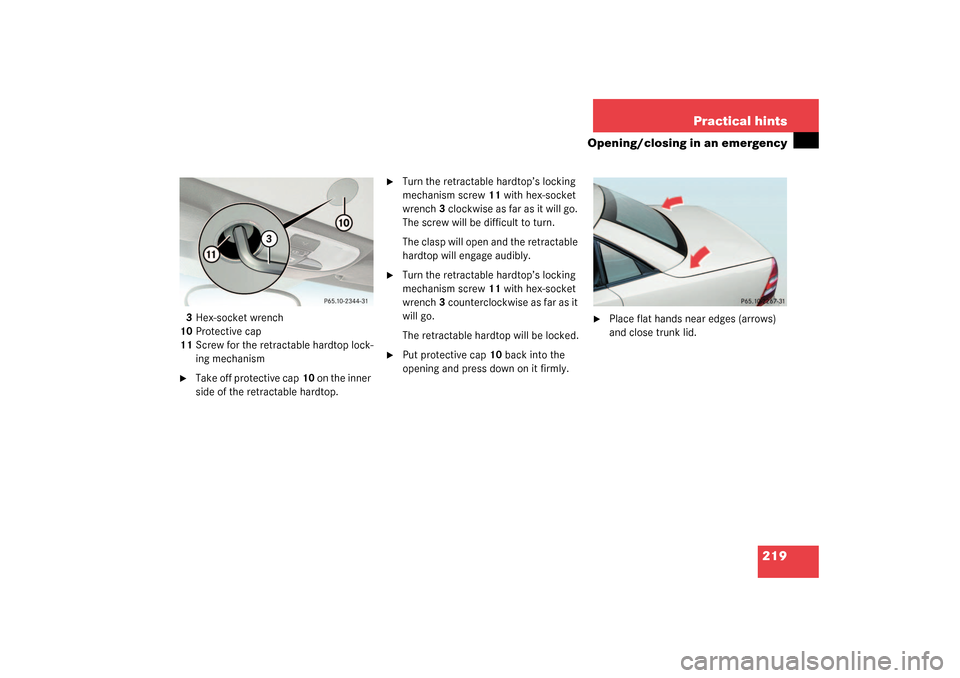

219 Practical hints
Opening/closing in an emergency
3Hex-socket wrench
10Protective cap
11Screw for the retractable hardtop lock-
ing mechanism
Take off protective cap10 on the inner
side of the retractable hardtop.

Turn the retractable hardtop’s locking
mechanism screw11 with hex-socket
wrench3 clockwise as far as it will go.
The screw will be difficult to turn.
The clasp will open and the retractable
hardtop will engage audibly.

Turn the retractable hardtop’s locking
mechanism screw11 with hex-socket
wrench3 counterclockwise as far as it
will go.
The retractable hardtop will be locked.

Put protective cap10 back into the
opening and press down on it firmly.

Place flat hands near edges (arrows)
and close trunk lid.

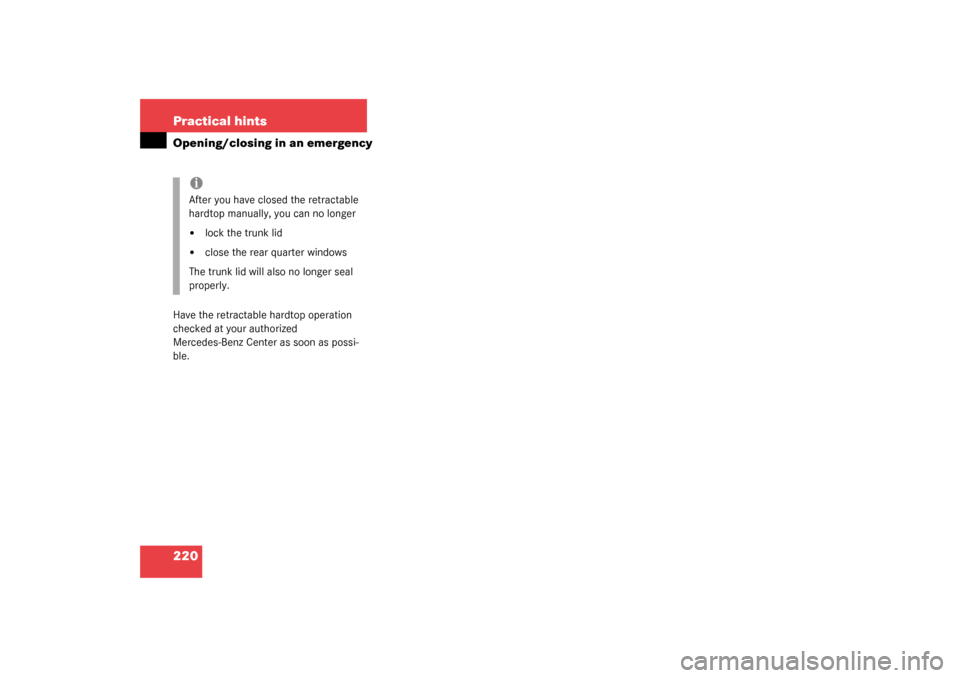

220 Practical hintsOpening/closing in an emergencyHave the retractable hardtop operation
checked at your authorized
Mercedes-Benz Center as soon as possi-
ble.
iAfter you have closed the retractable
hardtop manually, you can no longer

lock the trunk lid


close the rear quarter windows
The trunk lid will also no longer seal
properly.

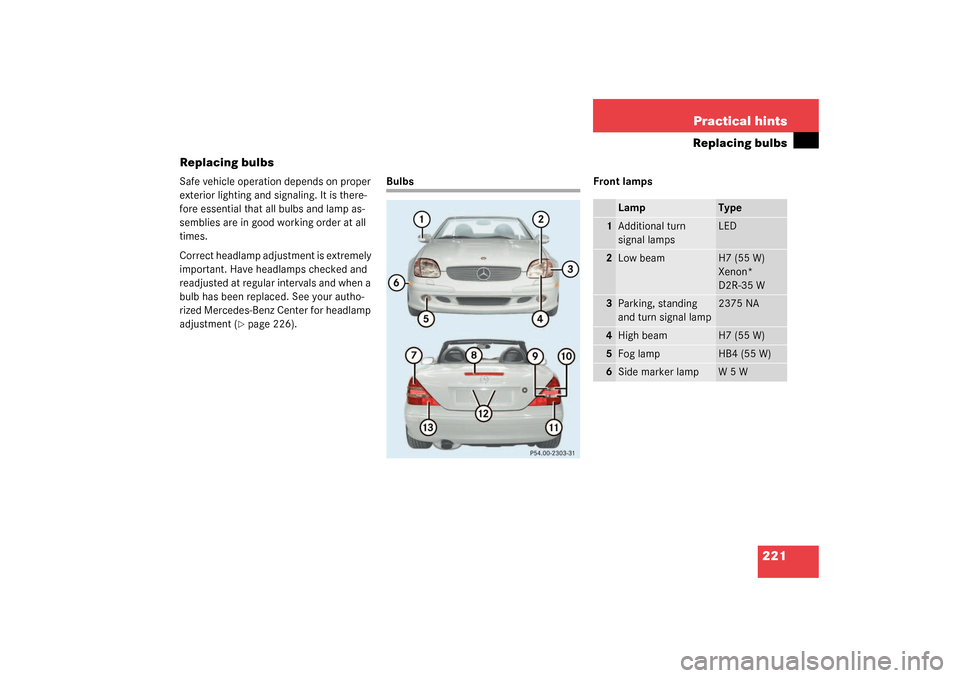

221 Practical hints
Replacing bulbs
Replacing bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See your autho-
rized Mercedes-Benz Center for headlamp
adjustment (
page 226).
Bulbs Front lamps
Lamp
Type
1
Additional turn
signal lamps
LED
2
Low beam
H7 (55 W)
Xenon*
D2R-35 W
3
Parking, standing
and turn signal lamp
2375 NA
4
High beam
H7 (55 W)
5
Fog lamp
HB4 (55 W)
6
Side marker lamp
W5W

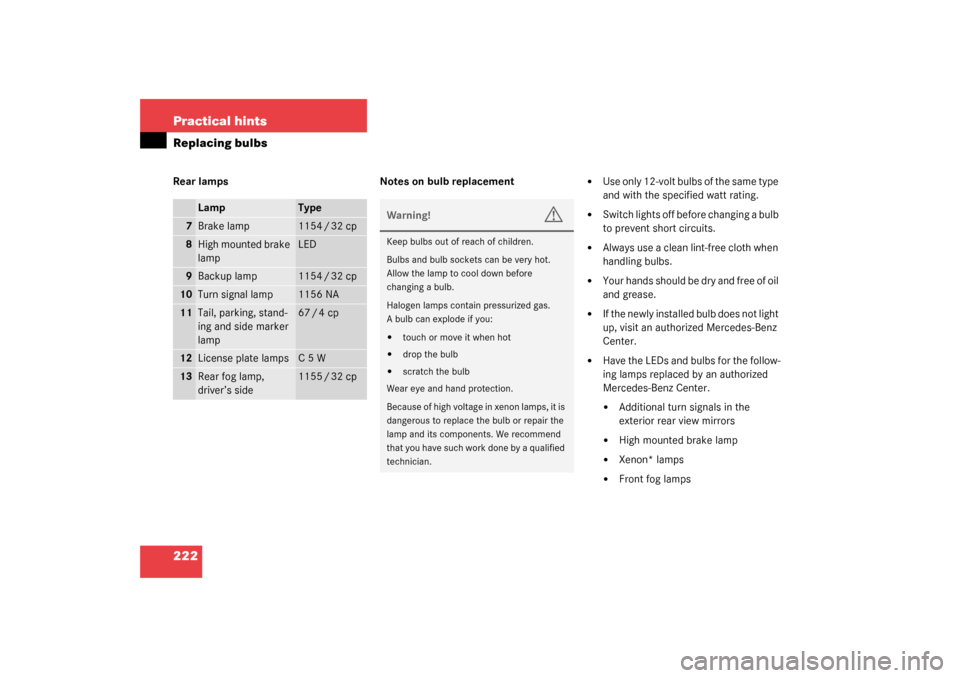

222 Practical hintsReplacing bulbsRear lamps Notes on bulb replacement


Use only 12-volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Center.


Have the LEDs and bulbs for the follow-
ing lamps replaced by an authorized
Mercedes-Benz Center.

Additional turn signals in the
exterior rear view mirrors


High mounted brake lamp


Xenon* lamps


Front fog lamps
Lamp
Type
7
Brake lamp
1154 / 32 cp
8
High mounted brake
lamp
LED
9
Backup lamp
1154 / 32 cp
10
Turn signal lamp
1156 NA
11
Tail, parking, stand-
ing and side marker
lamp
67 / 4 cp
12
License plate lamps
C5W
13
Rear fog lamp,
driver’s side
1155 / 32 cp
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot.
Allow the lamp to cool down before
changing a bulb.
Halogen lamps contain pressurized gas.
A bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.

223 Practical hints
Replacing bulbs

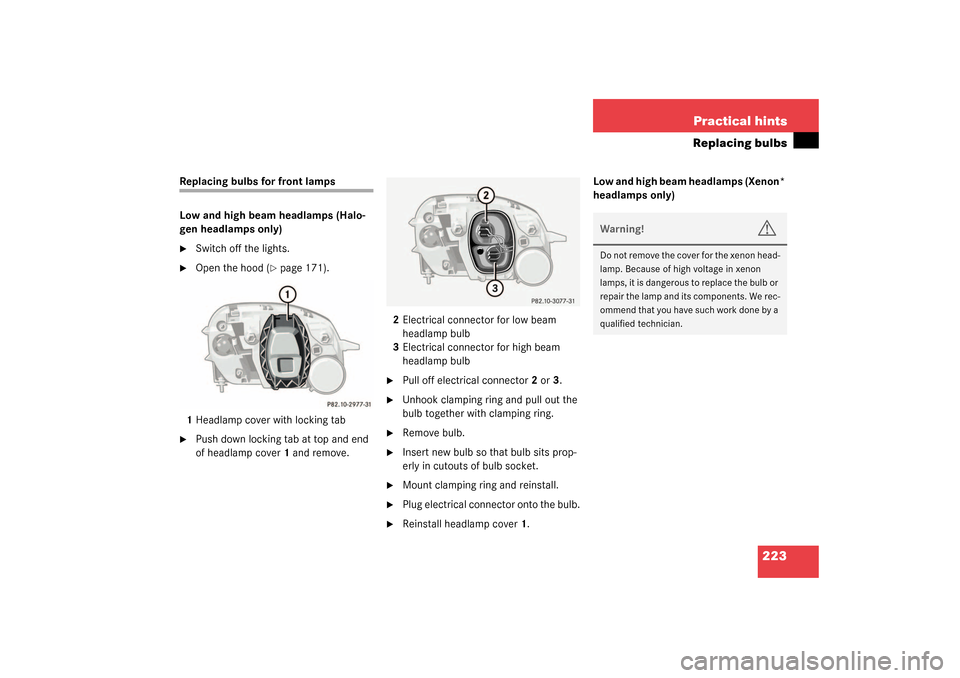

Replacing bulbs for front lamps
Low and high beam headlamps (Halo-
gen headlamps only)
Switch off the lights.

Open the hood (
page 171).
1Headlamp cover with locking tab

Push down locking tab at top and end
of headlamp cover1 and remove.2Electrical connector for low beam
headlamp bulb
3Electrical connector for high beam
headlamp bulb

Pull off electrical connector2 or3.

Unhook clamping ring and pull out the
bulb together with clamping ring.

Remove bulb.

Insert new bulb so that bulb sits prop-
erly in cutouts of bulb socket.

Mount clamping ring and reinstall.

Plug electrical connector onto the bulb.

Reinstall headlamp cover1.Low and high beam headlamps (Xenon*
headlamps only)
Warning!
G
Do not remove the cover for the xenon head-
lamp. Because of high voltage in xenon
lamps, it is dangerous to replace the bulb or
repair the lamp and its components. We rec-
ommend that you have such work done by a
qualified technician.

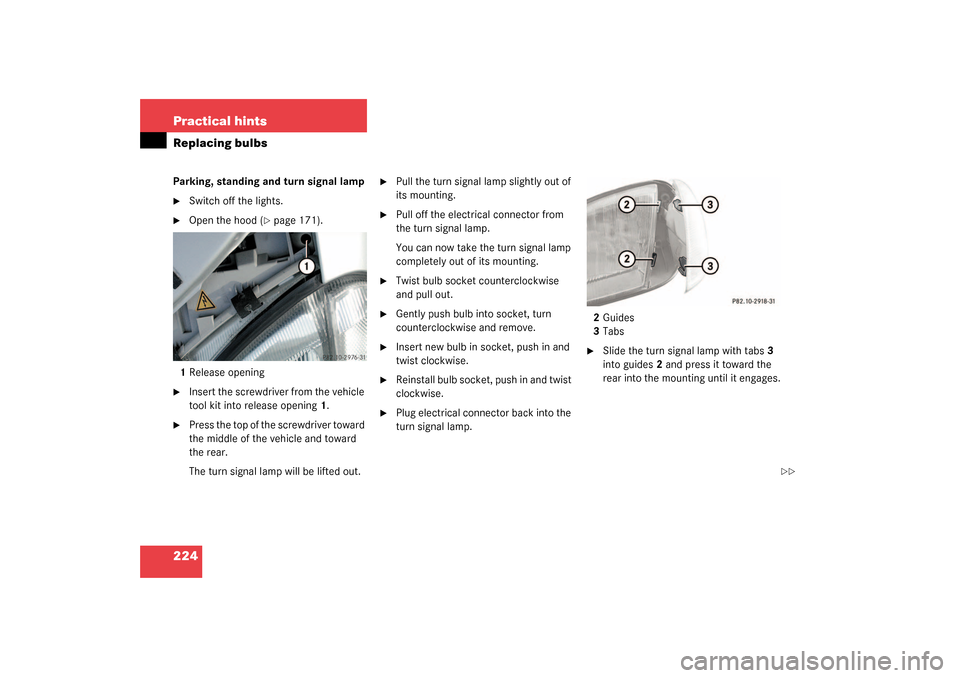

224 Practical hintsReplacing bulbsParking, standing and turn signal lamp
Switch off the lights.

Open the hood (
page 171).
1Release opening

Insert the screwdriver from the vehicle
tool kit into release opening1.

Press the top of the screwdriver toward
the middle of the vehicle and toward
the rear.
The turn signal lamp will be lifted out.

Pull the turn signal lamp slightly out of
its mounting.

Pull off the electrical connector from
the turn signal lamp.
You can now take the turn signal lamp
completely out of its mounting.

Twist bulb socket counterclockwise
and pull out.

Gently push bulb into socket, turn
counterclockwise and remove.

Insert new bulb in socket, push in and
twist clockwise.

Reinstall bulb socket, push in and twist
clockwise.

Plug electrical connector back into the
turn signal lamp.2Guides
3Tabs

Slide the turn signal lamp with tabs3
into guides2 and press it toward the
rear into the mounting until it engages.
