2003 MERCEDES-BENZ S500 4MATIC display

ContentsControls in detail............................... 85
Locking and unlocking ......................... 86
SmartKey ....................................... 86

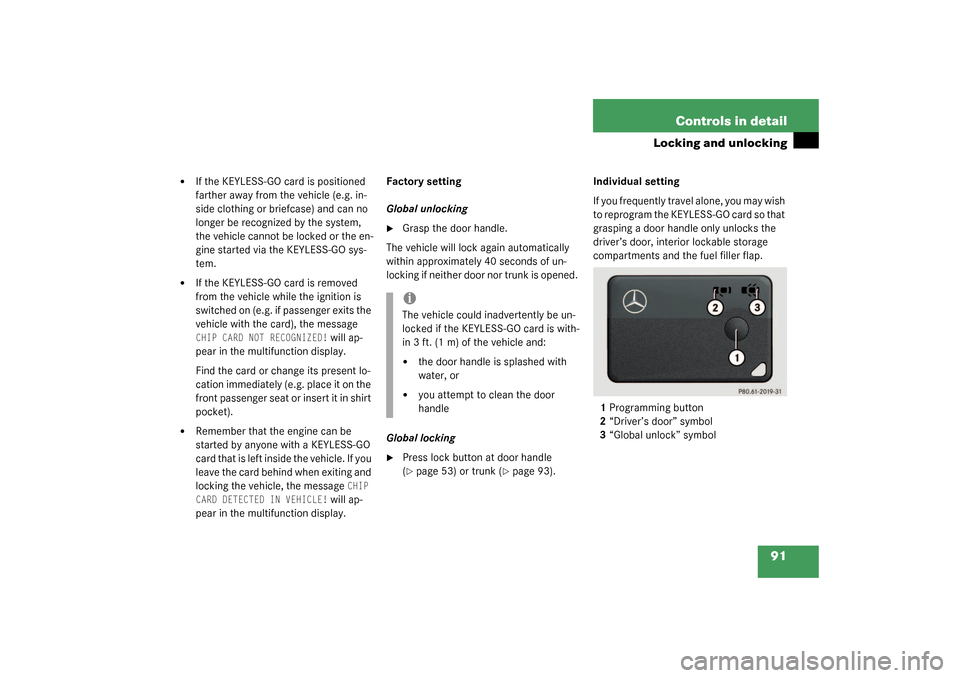

KEYLESS-GO card*......................... 89
Opening the doors from the
inside ............................................. 94
Opening the trunk lid...................... 95
Opening the trunk from the
inside ............................................. 96
Trunk lid emergency release .......... 96
Closing the trunk lid ....................... 97
Separately locking the trunk .......... 98
Separately unlocking the trunk ...... 98
Trunk lid opening/closing
ystem* ........................................... 99
Power closing assist for doors
and trunk lid ................................. 102
Automatic central locking ............ 102
Locking and unlocking from
the inside ..................................... 103
Seats.................................................. 104
Lumbar support ............................ 104
Easy-entry/exit feature ................ 104
Head restraints............................. 105
Multicontour seat* ....................... 107Drive-dynamic seat* .................... 109
Seat ventilation* .......................... 110
Seat heating* ............................... 111
Rear seats .................................... 113
Memory function ............................... 117
Storing positions into memory ..... 118
Recalling positions from
memory ........................................ 118
Storing exterior rear view mirror
parking position ........................... 118
Lighting.............................................. 120
Exterior lamp switch..................... 120
Combination switch ..................... 123
Hazard warning flasher ................ 124
Interior lighting............................. 124
Courtesy lighting .......................... 126
Instrument cluster ............................. 127
Instrument cluster illumination .... 127
Coolant temperature gauge ......... 128
Trip odometer .............................. 128
Tachometer .................................. 129
Outside temperature indicator ..... 129
Control system .................................. 130
Multifunction display .................... 130
Multifunction steering wheel ........ 131
Menus .......................................... 133Standard display menu ................ 135
AUDIO menu ................................ 135
CD changer* operating mode ...... 137
TEL menu* ................................... 139
NAVI menu ................................... 142
Distronic* menu .......................... 142
Trip computer menu..................... 143
Malfunction memory menu .......... 145
Settings menu .............................. 146
Automatic transmission ..................... 160
One-touch gearshifting ................ 161
Gear ranges ................................. 162
Gear selector lever position ......... 163
Program mode selector switch .... 164
Accelerator position ..................... 165
Emergency operation (Limp home
mode) .......................................... 165
Steering wheel gearshift control
(Speedshift) and manual shift
program S 55 AMG ...................... 166
Good visibility .................................... 168
Rear view mirror .......................... 168
Electrically folding exterior rear
view mirrors ................................. 170
Windshield wipers ........................ 171
Headlamp cleaning system .......... 171

ContentsAt the gas station............................... 261
Check regularly and before a
long trip ........................................ 262
Engine compartment.......................... 263
Hood ............................................ 263
Engine oil...................................... 264
Transmission fluid level ................ 268
Active Body Control* (ABC*)
fluid level ...................................... 268
Coolant......................................... 268
Battery ......................................... 270
Windshield washer system and
headlamp cleaning system* ......... 271
Tires and wheels ................................ 272
Important guidelines .................... 272
Life of tires ................................... 273
Direction of rotation ..................... 273
Checking tire inflation pressure ... 273
Rotating wheels............................ 277
Winter driving..................................... 278
Winter tires................................... 278
Block heater* ............................... 279
Snow chains ................................. 279Maintenance ...................................... 280
Clearing the service indicator....... 280
Service term exceeded ................ 280
Calling up the service indicator .... 281
Resetting the service indicator..... 281
Vehicle care ....................................... 282
Cleaning and care of vehicle ........ 282
Practical hints.................................. 289
What to do if …? ................................. 290
Lamps in instrument cluster......... 290
Lamp in center console ................ 295
Messages in the display ............... 296
Where will I find ...? ........................... 322
First aid kit ................................... 322
Vehicle jack, vehicle tool kit,
luggage bowl, spare wheel ........... 322
Unlocking/locking in an emergency .. 326
Unlocking the vehicle ................... 326
Locking the vehicle ...................... 327
Changing batteries ....................... 328
Fuel filler flap ............................... 329
Opening/closing in an emergency ..... 330
Sliding/pop-up roof ..................... 330Replacing bulbs ................................. 331
Bulbs ............................................ 331
Replacing bulbs for front lamps ... 333
Replacing bulbs for rear lamps .... 336
Replacing wiper blades ...................... 337
Removing ..................................... 337
Installing ...................................... 338
Flat tire .............................................. 339
Preparing the vehicle ................... 339
Mounting the spare wheel............ 339
Battery............................................... 344
Disconnecting the battery ............ 345
Removing the battery................... 345
Charging and reinstalling
battery ......................................... 345
Reconnecting the battery............. 345
Jump starting ..................................... 347
Towing the vehicle ............................. 349
Installing towing eye bolt ............. 351
Fuses ................................................. 353
Fuse boxes in passenger
compartment ............................... 353
Fuse boxes in engine
compartment ............................... 354
Emergency engine shut-down ...... 355

15 Introduction
Symbols
Symbols
The following symbols are found in this
Operator’s Manual:
* Optional equipment is identified
with an asterisk. Since standard
equipment varies between models,
the descriptions and illustrations in
this manual may differ slightly from
the actual equipment of your vehi-
cle.

This symbol points to instructions for
you to follow.

A number of these symbols appearing
in succession indicates a multiple-step
procedure.
 Page This symbol tells you where to
look for further information on a
topic.
This continuation symbol marks
an interrupted procedure which
will be continued on the next
page.
-> In the glossary of technical
terms, this symbol is used to
cross-reference term defini-
tions.
DISPLAY
Words appearing in the multi-
function display are printed in
the type shown here.
Warning!
G
Warning notices draw your attention to haz-
ards that may endanger your health or life,
or the health or life of others.!Highlights hazards that may result in
damage to your vehicle.iHelpful hints or further information you
may find useful.

23 At a glance
Instrument cluster
Item
Page
1
Coolant temperature
gauge
128
2
Fuel gauge with:Fuel reserve warning lamp
294
3
L
Left turn signal
indicator lamp
K
Right turn signal
indicator lamp
46
4
Speedometer with:v
Electronic Stability
Program (ESP)
warning lamp
l
Distance* warning
lamp
1
1Vehicles without Distronic*: Warning lamp without
function. It illuminates with SmartKey in starter
switch position2. It should go out when the engine
is running.
290
5
Tachometer
129
Item
Page
6
Right display with:-
Antilock Brake Sys-
tem (ABS) malfunc-
tion indicator lamp
290
A
High beam head-
lamp indicator
46
<
Seat belt nonusage
warning lamp
289
7
J
Reset button
127
8
Display with:
Program mode
164
Gear range
indicator
162
Digital clock (see
COMAND operat-
ing instructions)
9
Multifunction display
with:
Trip odometer
130
Main odometer
130
Stored speed for:Cruise control
196
Distronic*
142
10
Outside temperature in-
dicator
129
11
Left display with:1
Supplemental
restraint system
indicator lamp
292
;
Brake warning
lamp, except
Canada
293
3
Brake warning
lamp, Canada only
293
?
Engine malfunction
indicator lamp
294
12
Knob for instrument
cluster illumination
127
Item
Page

24 At a glanceMultifunction steering wheel
Multifunction steering wheel
Item
Page
1
Multifunction display
130
Operating control
system
130
2
Selecting the submenu or
setting the volume
131
ç
down / to decrease
æ
up / to increase
3
Telephone*: Press button
131
í
to take a call
to dial a call
ì
to end a call
to reject an in-
coming call
Item
Page
4
Menu systems: Press
button
131
è
for next system
ÿ
for previous system
5
Moving within a menu:
Press button
131
j
for next display
k
for previous display

38 Getting startedAdjustingSteering wheel adjustment
The stalk is located on the steering column
(lower left).
1Steering column, lengthen or shorten
2Steering column, height
Turn the SmartKey in the starter switch
to position1or2.
or

Press the KEYLESS GO* start/stop
button once or twice.
or

Open the driver’s or passenger door.Steering column, lengthen or shorten

Move stalk forward or backward in the
direction of arrows1 until a comfort-
able steering wheel position is reached
with your arms slightly bent at the el-
bow.
Steering column, height

Move the stalk up or down in the direc-
tion of arrows2. Make sure that your
legs can move freely and that all of the
displays (including malfunction and in-
dicator lamps) on the instrument clus-
ter are clearly visible.
Mirrors
Adjust the inside and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.
Inside rear view mirror
Manually adjust the inside rear view
mirror.Warning!
G
In the case of an accident liquid electrolyte
may escape the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.

91 Controls in detail
Locking and unlocking


If the KEYLESS-GO card is positioned
farther away from the vehicle (e.g. in-
side clothing or briefcase) and can no
longer be recognized by the system,
the vehicle cannot be locked or the en-
gine started via the KEYLESS-GO sys-
tem.


If the KEYLESS-GO card is removed
from the vehicle while the ignition is
switched on (e.g. if passenger exits the
vehicle with the card), the message CHIP CARD NOT RECOGNIZED!
will ap-
pear in the multifunction display.
Find the card or change its present lo-
cation immediately (e.g. place it on the
front passenger seat or insert it in shirt
pocket).


Remember that the engine can be
started by anyone with a KEYLESS-GO
card that is left inside the vehicle. If you
leave the card behind when exiting and
locking the vehicle, the message
CHIP
CARD DETECTED IN VEHICLE!
will ap-
pear in the multifunction display.Factory setting
Global unlocking

Grasp the door handle.
The vehicle will lock again automatically
within approximately 40 seconds of un-
locking if neither door nor trunk is opened.
Global locking

Press lock button at door handle
(page 53) or trunk (
page 93).Individual setting
If you frequently travel alone, you may wish
to reprogram the KEYLESS-GO card so that
grasping a door handle only unlocks the
driver’s door, interior lockable storage
compartments and the fuel filler flap.
1Programming button
2“Driver’s door” symbol
3“Global unlock” symbol
iThe vehicle could inadvertently be un-
locked if the KEYLESS-GO card is with-
in 3 ft. (1 m) of the vehicle and:

the door handle is splashed with
water, or


you attempt to clean the door
handle

120 Controls in detailLighting
LightingFor notes on how to switch on the head-
lamps and use the turn signals, see the
“Getting started” section (
page 46).
Exterior lamp switch
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.
M
Off
U
Automatic headlamp mode
C
Parking lamps (also side marker
lamps, tail lamps, license plate
lamps, instrument panel lamps)
Canada only: When engine is run-
ning, the low beam is also switched
on.
B
Parking lamps plus low beam or
high beam headlamps (combination
switch pushed forward).
ˆ
Standing lamps, right (turn left one
stop)
‚
Standing lamps, left (turn left two
stops)
iIf you remove the SmartKey and open
the driver’s door while the parking
lamps or low beam headlamps are
switched on, then:

A warning sounds.


$
appears in the multifunction
display.


The message
TURN OFF LIGHTS!
ap-
pears in the multifunction display.
iWith the daytime running lamp mode
activated and the engine running, the
low beam headlamps cannot be
switched off manually.
