344 Practical hintsBattery
Battery
The battery is located on the right side of
the trunk under the battery cover.
1Battery cover
Pull on the outer, right-hand side of
cover1 and remove it in the direction
of the arrow.
Warning!
G
Failure to follow these instructions can re-
sult in severe injury or death.
Never lean over batteries while connecting,
you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking etc.Warning!
G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.
!Never loosen or detach battery termi-
nal clamps while the engine is running
or the SmartKey is in the starter switch.
Otherwise the alternator and other
electronic components could be se-
verely damaged.
Have the battery checked regularly by
an authorized Mercedes-Benz Center.
Refer to Service Booklet for mainte-
nance intervals or contact your autho-
rized Mercedes-Benz Center for further
information.Warning!
G
With a disconnected battery

you will no longer be able to turn the
SmartKey in the starter switch and
pressing the KEYLESS-GO* start/stop
button (if so equipped) on the selector
lever will have no effect


the selector lever will remain locked in
positionP

349 Practical hints

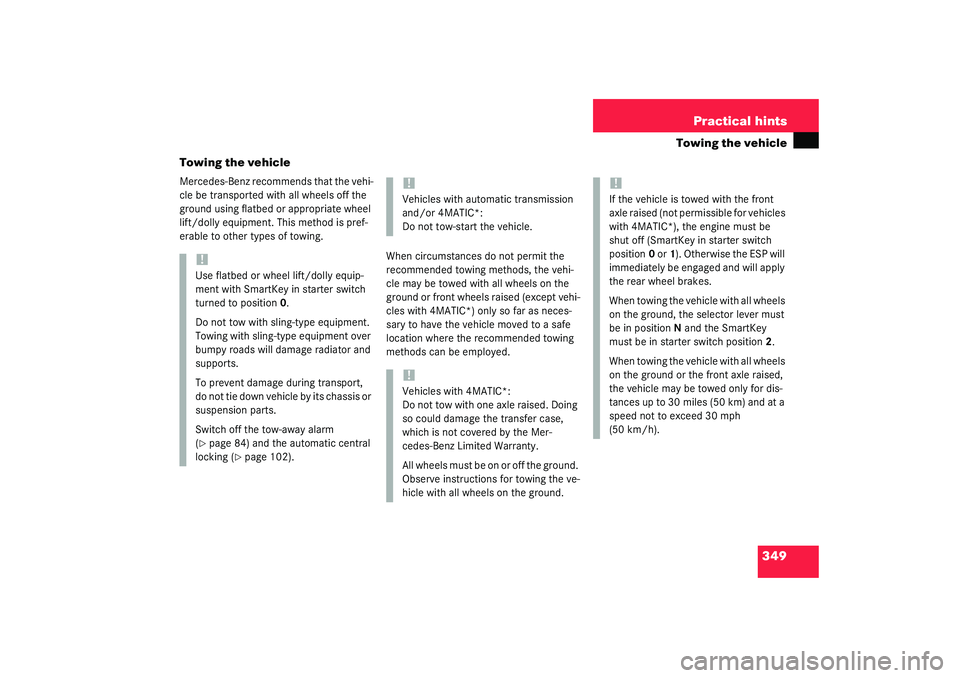

Towing the vehicle
Towing the vehicle
Mercedes-Benz recommends that the vehi-
cle be transported with all wheels off the
ground using flatbed or appropriate wheel
lift/dolly equipment. This method is pref-
erable to other types of towing.
When circumstances do not permit the
recommended towing methods, the vehi-
cle may be towed with all wheels on the
ground or front wheels raised (except vehi-
cles with 4MATIC*) only so far as neces-
sary to have the vehicle moved to a safe
location where the recommended towing
methods can be employed.
!Use flatbed or wheel lift/dolly equip-
ment with SmartKey in starter switch
turned to position0.
Do not tow with sling-type equipment.
Towing with sling-type equipment over
bumpy roads will damage radiator and
supports.
To prevent damage during transport,
do not tie down vehicle by its chassis or
suspension parts.
Switch off the tow-away alarm
(page 84) and the automatic central
locking (
page 102).
!Vehicles with automatic transmission
and/or 4MATIC*:
Do not tow-start the vehicle.!Vehicles with 4MATIC*:
Do not tow with one axle raised. Doing
so could damage the transfer case,
which is not covered by the Mer-
cedes-Benz Limited Warranty.
A l l w h e e l s m u s t b e o n o r o f f t h e g r o u n d .
Observe instructions for towing the ve-
hicle with all wheels on the ground.
!If the vehicle is towed with the front
axle raised (not permissible for vehicles
with 4MATIC*), the engine must be
shut off (SmartKey in starter switch
position0 or 1). Otherwise the ESP will
immediately be engaged and will apply
the rear wheel brakes.
When towing the vehicle with all wheels
on the ground, the selector lever must
be in positionN and the SmartKey
must be in starter switch position2.
When towing the vehicle with all wheels
on the ground or the front axle raised,
the vehicle may be towed only for dis-
tances up to 30 miles (50 km) and at a
speed not to exceed 30 mph
(50 km/h).

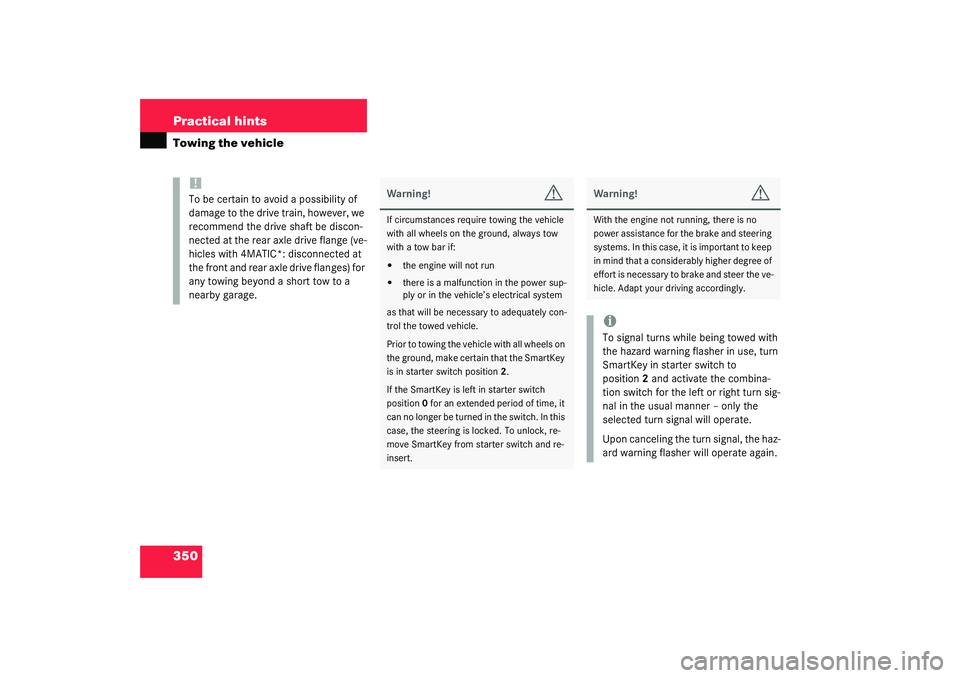

350 Practical hintsTowing the vehicle
!To be certain to avoid a possibility of
damage to the drive train, however, we
recommend the drive shaft be discon-
nected at the rear axle drive flange (ve-
hicles with 4MATIC*: disconnected at
the front and rear axle drive flanges) for
any towing beyond a short tow to a
nearby garage.
Warning!
G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:

the engine will not run


there is a malfunction in the power sup-
ply or in the vehicle’s electrical system
as that will be necessary to adequately con-
trol the towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make certain that the SmartKey
is in starter switch position2.
If the SmartKey is left in starter switch
position0 for an extended period of time, it
can no longer be turned in the switch. In this
case, the steering is locked. To unlock, re-
move SmartKey from starter switch and re-
insert.
Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle. Adapt your driving accordingly.iTo signal turns while being towed with
the hazard warning flasher in use, turn
SmartKey in starter switch to
position2 and activate the combina-
tion switch for the left or right turn sig-
nal in the usual manner – only the
selected turn signal will operate.
Upon canceling the turn signal, the haz-
ard warning flasher will operate again.

351 Practical hints
Towing the vehicle
Installing towing eye bolt
1Cover on right side of front bumper2Cover on right side of rear bumper
Removing cover

Press mark on cover in direction of ar-
row.

Lift cover off to reveal threaded hole for
towing eye bolt.
Installing towing eye bolt

Take towing eye bolt and wheel wrench
out of trunk (
page 322).

Screw towing eye bolt clockwise into
its stop and tighten with wheel wrench.
!When towing the vehicle with all wheels
on the ground, please note the follow-
ing:
With the automatic central locking acti-
vated and the SmartKey in starter
switch position2, or KEYLESS-GO*
start/stop button (if so equipped) in
position2, the vehicle doors lock if the
left front wheel as well as the right rear
wheel are turning at vehicle speeds of
approximately 9 mph (15 km/h) or
more.
Switch off the tow-away alarm
(page 84).
To prevent the vehicle doors from lock-
ing, deactivate the automatic central
locking (
page 102).
Towing of the vehicle should only be
done using the properly installed tow-
ing eye bolt. Never attach tow cable,
tow rope or tow rod to vehicle chassis,
frame or suspension parts.
iThe selector lever will remain locked in
positionP and the SmartKey will not
turn in the starter switch if the battery
is disconnected or discharged. See
notes on the battery (
page 344) or
on jump starting (
page 347).

355 Practical hintsFuses
1Fuse box cover, front passenger side
2Slide
Opening
Push both slides2 to the
Œ
symbol.

Remove cover1.Closing

Replace cover1 and press it down by
hand.

Push both slides 2 to the
‹
symbol.
Emergency engine shut-down
If the engine can no longer be stopped us-
ing the SmartKey or the KEYLESS-GO*
start/stop button, the engine can be
turned off by withdrawing two fuses.
For easy removal of fuses, use the fuse
extractor (supplied with vehicle tool kit) to
pull out the fuses marked on the fuse chart
as "ENGINE EMERGENCY STOP".
The fuse chart is also located in the vehicle
tool kit (
page 322).
!The cover must fit properly and the
slide must be positioned at the
‹

symbol, as moisture or dirt may impair
the functionality of the fuses.

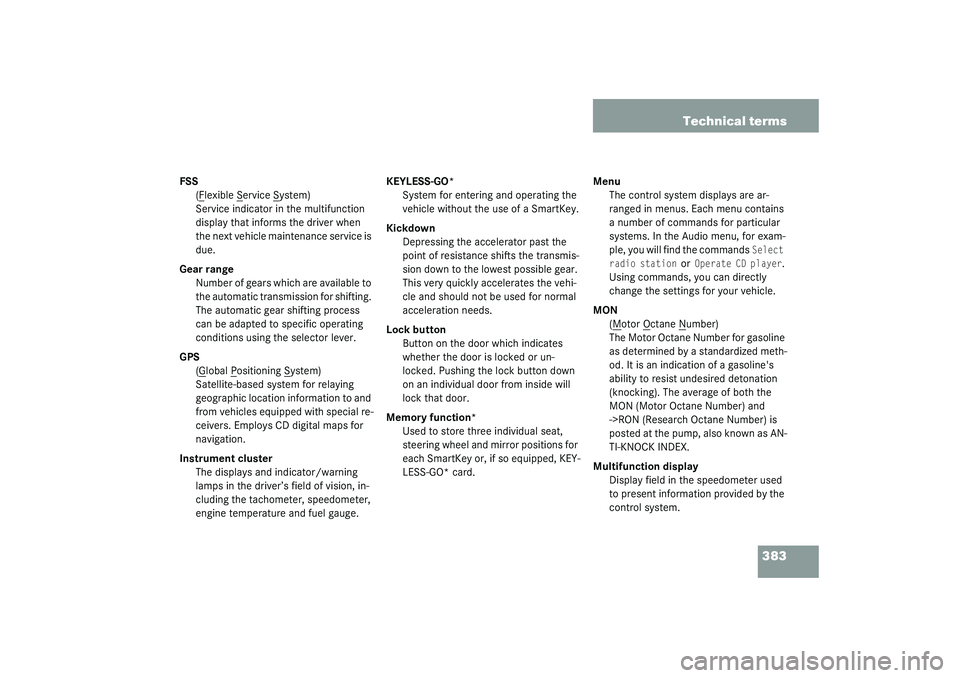

383 Technical terms
FSS
(F
lexible S
ervice S
ystem)
Service indicator in the multifunction
display that informs the driver when
the next vehicle maintenance service is
due.
Gear range
Number of gears which are available to
the automatic transmission for shifting.
The automatic gear shifting process
can be adapted to specific operating
conditions using the selector lever.
GPS
(G
lobal P
ositioning S
ystem)
Satellite-based system for relaying
geographic location information to and
from vehicles equipped with special re-
ceivers. Employs CD digital maps for
navigation.
Instrument cluster
The displays and indicator/warning
lamps in the driver’s field of vision, in-
cluding the tachometer, speedometer,
engine temperature and fuel gauge.KEYLESS-GO*
System for entering and operating the
vehicle without the use of a SmartKey.
Kickdown
Depressing the accelerator past the
point of resistance shifts the transmis-
sion down to the lowest possible gear.
This very quickly accelerates the vehi-
cle and should not be used for normal
acceleration needs.
Lock button
Button on the door which indicates
whether the door is locked or un-
locked. Pushing the lock button down
on an individual door from inside will
lock that door.
Memory function*
Used to store three individual seat,
steering wheel and mirror positions for
each SmartKey or, if so equipped, KEY-
LESS-GO* card.Menu
The control system displays are ar-
ranged in menus. Each menu contains
a number of commands for particular
systems. In the Audio menu, for exam-
ple, you will find the commands
Select
radio station
or Operate CD player
.
Using commands, you can directly
change the settings for your vehicle.
MON
(M
otor O
ctane N
umber)
The Motor Octane Number for gasoline
as determined by a standardized meth-
od. It is an indication of a gasoline's
ability to resist undesired detonation
(knocking). The average of both the
MON (Motor Octane Number) and
->RON (Research Octane Number) is
posted at the pump, also known as AN-
TI-KNOCK INDEX.
Multifunction display
Display field in the speedometer used
to present information provided by the
control system.

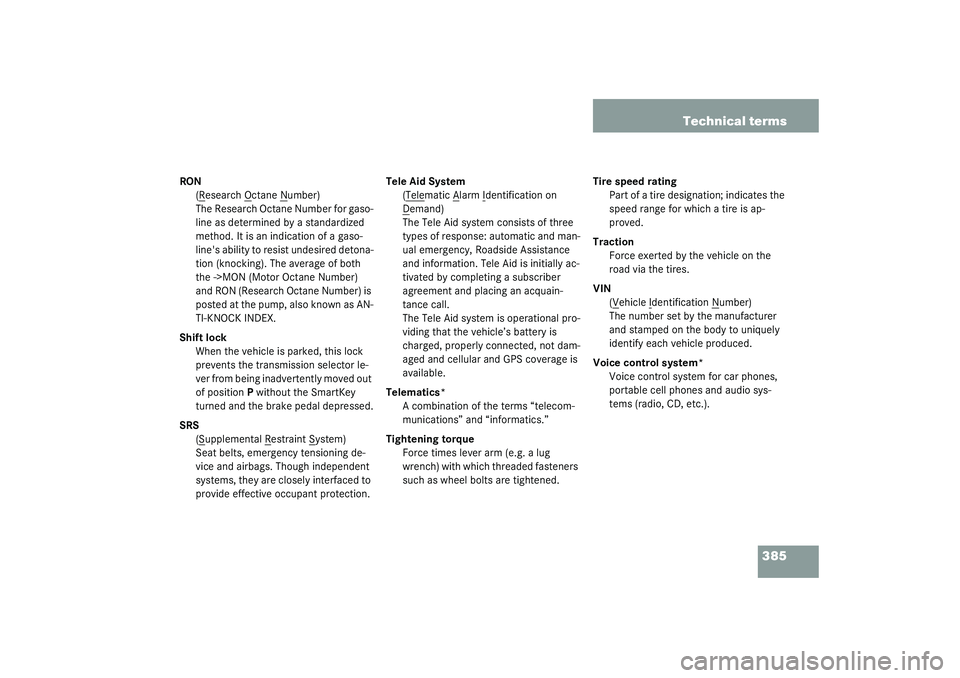

385 Technical terms
RON
(R
esearch O
ctane N
umber)
The Research Octane Number for gaso-
line as determined by a standardized
method. It is an indication of a gaso-
line's ability to resist undesired detona-
tion (knocking). The average of both
the ->MON (Motor Octane Number)
and RON (Research Octane Number) is
posted at the pump, also known as AN-
TI-KNOCK INDEX.
Shift lock
When the vehicle is parked, this lock
prevents the transmission selector le-
ver from being inadvertently moved out
of positionP without the SmartKey
turned and the brake pedal depressed.
SRS
(S
upplemental R
estraint S
ystem)
Seat belts, emergency tensioning de-
vice and airbags. Though independent
systems, they are closely interfaced to
provide effective occupant protection.Tele Aid System
(T
elematic A
larm I
dentification on
D
emand)
The Tele Aid system consists of three
types of response: automatic and man-
ual emergency, Roadside Assistance
and information. Tele Aid is initially ac-
tivated by completing a subscriber
agreement and placing an acquain-
tance call.
The Tele Aid system is operational pro-
viding that the vehicle’s battery is
charged, properly connected, not dam-
aged and cellular and GPS coverage is
available.
Telematics*
A combination of the terms “telecom-
munications” and “informatics.”
Tightening torque
Force times lever arm (e.g. a lug
wrench) with which threaded fasteners
such as wheel bolts are tightened.Tire speed rating
Part of a tire designation; indicates the
speed range for which a tire is ap-
proved.
Traction
Force exerted by the vehicle on the
road via the tires.
VIN
(V
ehicle I
dentification N
umber)
The number set by the manufacturer
and stamped on the body to uniquely
identify each vehicle produced.
Voice control system*
Voice control system for car phones,
portable cell phones and audio sys-
tems (radio, CD, etc.).

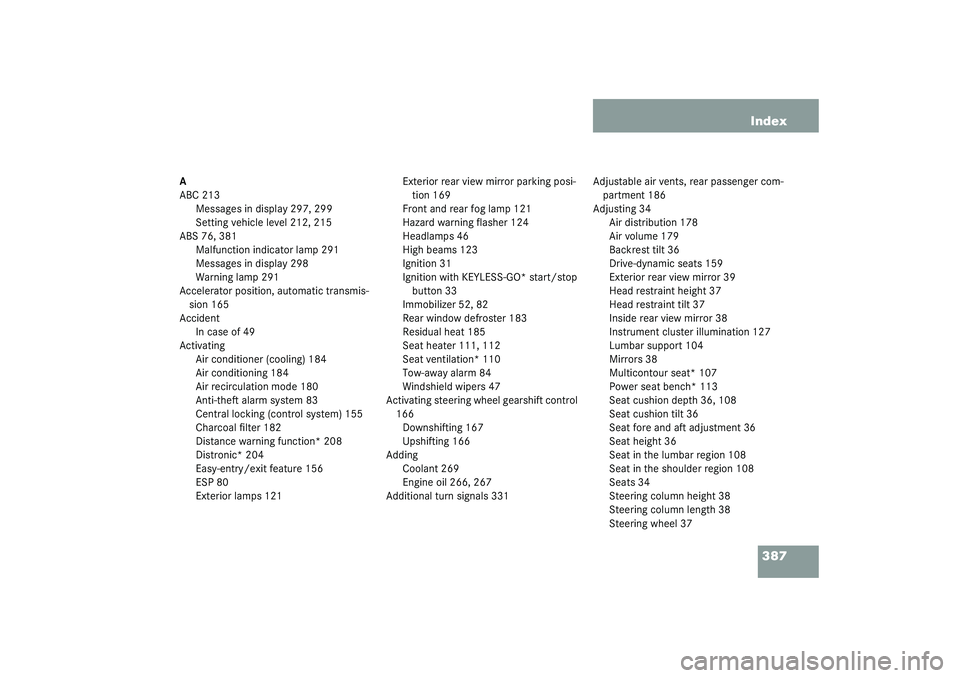

387 Index
A
ABC 213
Messages in display 297, 299
Setting vehicle level 212, 215
ABS 76, 381
Malfunction indicator lamp 291
Messages in display 298
Warning lamp 291
Accelerator position, automatic transmis-
sion 165
Accident
In case of 49
Activating
Air conditioner (cooling) 184
Air conditioning 184
Air recirculation mode 180
Anti-theft alarm system 83
Central locking (control system) 155
Charcoal filter 182
Distance warning function* 208
Distronic* 204
Easy-entry/exit feature 156
ESP 80
Exterior lamps 121Exterior rear view mirror parking posi-
tion 169
Front and rear fog lamp 121
Hazard warning flasher 124
Headlamps 46
High beams 123
Ignition 31
Ignition with KEYLESS-GO* start/stop
button 33
Immobilizer 52, 82
Rear window defroster 183
Residual heat 185
Seat heater 111, 112
Seat ventilation* 110
Tow-away alarm 84
Windshield wipers 47
Activating steering wheel gearshift control
166
Downshifting 167
Upshifting 166
Adding
Coolant 269
Engine oil 266, 267
Additional turn signals 331Adjustable air vents, rear passenger com-
partment 186
Adjusting 34
Air distribution 178
Air volume 179
Backrest tilt 36
Drive-dynamic seats 159
Exterior rear view mirror 39
Head restraint height 37
Head restraint tilt 37
Inside rear view mirror 38
Instrument cluster illumination 127
Lumbar support 104
Mirrors 38
Multicontour seat* 107
Power seat bench* 113
Seat cushion depth 36, 108
Seat cushion tilt 36
Seat fore and aft adjustment 36
Seat height 36
Seat in the lumbar region 108
Seat in the shoulder region 108
Seats 34
Steering column height 38
Steering column length 38
Steering wheel 37
