2003 MERCEDES-BENZ S CLASS traction control

Contents
Introduction.......................................... 9
Product information ................................ 9
Operator’s Manual ............................... 10
Service and warranty information .. 10
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 12
Operating your vehicle outside the
USA or Canada............................... 13
Where to find it .................................... 14
Symbols ............................................... 15
Operating safety .................................. 16
Proper use of the vehicle ............... 16
Problems with your vehicle .................. 17
Reporting safety defects...................... 18
Reporting safety defects ................ 18At a glance......................................... 19
Cockpit ................................................ 20
Instrument cluster ............................... 22
Multifunction steering wheel ............... 24Center console ..................................... 25
Upper part ...................................... 25
Lower part ...................................... 26
Overhead control panel ........................ 27
Door control panel................................ 28
Getting started................................... 29
Unlocking ............................................. 30
Unlocking with the SmartKey.......... 30
Unlocking with KEYLESS-GO* ......... 32
Adjusting .............................................. 34
Seats............................................... 34
Steering wheel ................................ 37
Mirrors ............................................ 38
Driving .................................................. 40
Fastening the seat belts.................. 40
Starting the engine ......................... 42
Switching on headlamps ................. 46
Turn signals and high beam ............ 46
Windshield wipers ........................... 47
Problems while driving .................... 48
Parking and locking .............................. 50
Parking brake.................................. 50
Switching off headlamps................. 51
Turning off engine ........................... 52
Safety and Security........................... 55
Occupant safety ................................... 56
Airbags ........................................... 57
Seat belts ....................................... 62
Preventive occupant safety
(PRE-SAFE) ..................................... 66
Children in the vehicle .................... 67
Override switch for rear passenger
compartment .................................. 74
Panic alarm .......................................... 75
Activating........................................ 75
Deactivating.................................... 75
Driving safety systems ......................... 76
ABS ................................................. 76
BAS ................................................. 78
ESP ................................................. 78
Four wheel electronic traction system
(4MATIC) with the ESP .................... 81
Anti-theft systems ................................ 82
Immobilizer ..................................... 82
Anti-theft alarm system .................. 82
Tow-away alarm .............................. 84

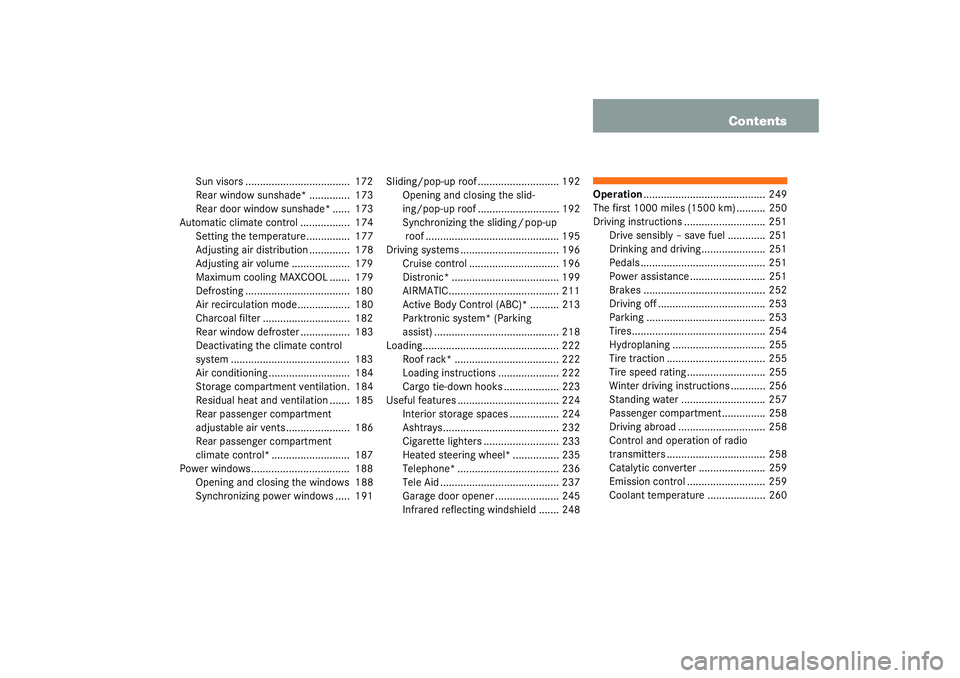

Contents
Sun visors .................................... 172
Rear window sunshade* .............. 173
Rear door window sunshade* ...... 173
Automatic climate control ................. 174
Setting the temperature ............... 177
Adjusting air distribution .............. 178
Adjusting air volume .................... 179
Maximum cooling MAXCOOL ....... 179
Defrosting .................................... 180
Air recirculation mode.................. 180
Charcoal filter .............................. 182
Rear window defroster ................. 183
Deactivating the climate control
system ......................................... 183
Air conditioning ............................ 184
Storage compartment ventilation. 184
Residual heat and ventilation ....... 185
Rear passenger compartment
adjustable air vents ...................... 186
Rear passenger compartment
climate control* ........................... 187
Power windows.................................. 188
Opening and closing the windows 188
Synchronizing power windows ..... 191Sliding/pop-up roof ............................ 192
Opening and closing the slid-
ing/pop-up roof ............................ 192
Synchronizing the sliding / pop-up
roof .............................................. 195
Driving systems .................................. 196
Cruise control ............................... 196
Distronic* ..................................... 199
AIRMATIC...................................... 211
Active Body Control (ABC)* .......... 213
Parktronic system* (Parking
assist) ........................................... 218
Loading............................................... 222
Roof rack* .................................... 222
Loading instructions ..................... 222
Cargo tie-down hooks ................... 223
Useful features ................................... 224
Interior storage spaces ................. 224
Ashtrays........................................ 232
Cigarette lighters .......................... 233
Heated steering wheel* ................ 235
Telephone* ................................... 236
Tele Aid ......................................... 237
Garage door opener ...................... 245
Infrared reflecting windshield ....... 248
Operation.......................................... 249
The first 1000 miles (1500 km) .......... 250
Driving instructions ............................ 251
Drive sensibly – save fuel ............. 251
Drinking and driving...................... 251
Pedals ........................................... 251
Power assistance .......................... 251
Brakes .......................................... 252
Driving off ..................................... 253
Parking ......................................... 253

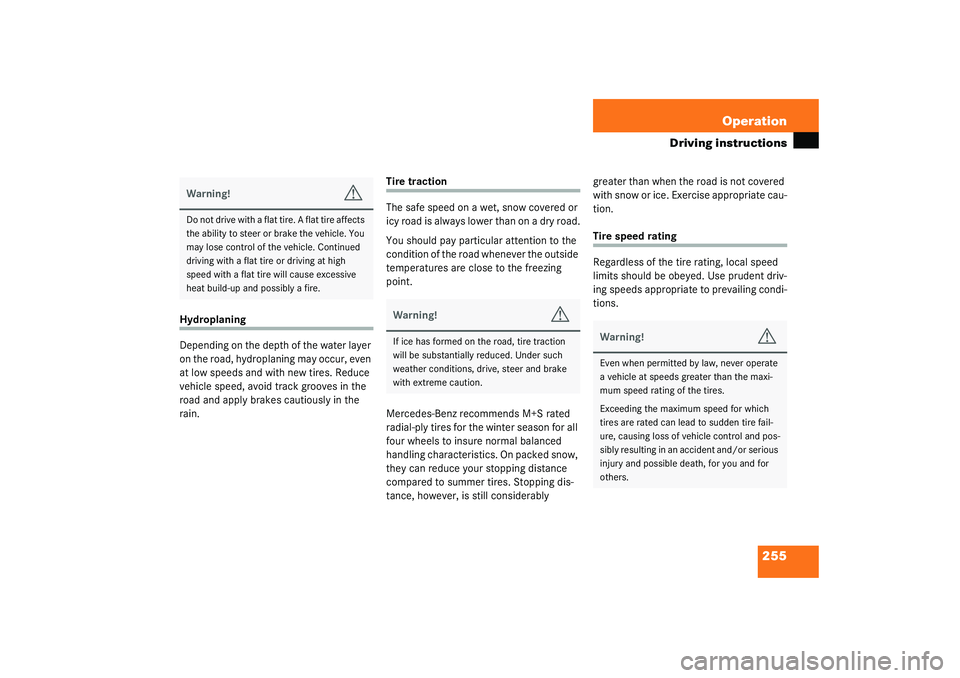

Tires.............................................. 254
Hydroplaning ................................ 255
Tire traction .................................. 255
Tire speed rating ........................... 255
Winter driving instructions ............ 256
Standing water ............................. 257
Passenger compartment............... 258
Driving abroad .............................. 258
Control and operation of radio
transmitters .................................. 258
Catalytic converter ....................... 259
Emission control ........................... 259
Coolant temperature .................... 260

80 Safety and SecurityDriving safety systemsSwitching off the ESP
To improve the vehicle's traction, turn off
the ESP in driving situations where it would
be advantageous to have the drive wheels
spin and thus cut into surfaces for better
grip such as:

starting out on slippery surfaces and in
deep snow in conjunction with snow
chains


sand or gravelThe switch is located on the center con-
sole.
1ESP off / on

Press ESP switch1 until the ESP warn-
ing lamp
v
in the speedometer
lights up.
ESP is deactivated.
If one or more wheels are spinning, the
ESP warning lampv
in the speedome-
ter flashes, regardless of the speed.
Traction control brakes a spinning wheel
even when ESP is deactivated.
ESP always operates when you are brak-
ing, even when it has been deactivated.Switching on ESP

Press switch1.
The ESP warning lamp
v
in the in-
strument cluster goes out. You are now
again in normal driving mode.
Warning!
G
The ESP should not be switched off during
normal driving other than in the circum-
stances described below. Disabling of the
system will reduce vehicle stability in stan-
dard driving maneuvers.iDistronic* cannot be activated when
ESP has been deactivated.
!Avoid spinning of a drive wheel for an
extended period with the ESP switched
off. This may cause serious damage to
the drivetrain which is not covered by
the Mercedes-Benz Limited Warranty.Warning!
G
When the ESP warning lamp
v
is
illuminated continuously, the ESP is
switched off.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP.

164 Controls in detailAutomatic transmission
Program mode selector switch
1Program mode selector switch
S Sport For standard driving
C Comfort For comfort driving

Press the program mode selector
switch repeatedly until the letter of the
desired shift program appears in the ta-
chometer display field (
page 130).
Select C for comfort driving:


The vehicle starts out in second
gear (both forward and reverse) for
gentler starts. This does not apply if
full throttle is applied or gear
range1 is selected.


Traction and driving stability are im-
proved on icy roads.


Upshifts occur earlier even when
you give more gas. The engine then
operates at lower rpms and the
wheels are less likely to spin.


The power transmission ratio for se-
lector lever positionR changes de-
pending on the program mode
selected (C or S).
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
KEYLESS-GO* card (if so equipped) with you
and lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. Children could move
the selector lever from positionP, which
could result in an accident and/or serious
personal injury.
!Never change the program mode when
the selector lever is out of positionP.
This could result in a change of driving
characteristics for which you may not
be prepared.

173 Controls in detail
Good visibility
Rear window sunshade*
The switch is located in the center console.
Turn the SmartKey to starter switch po-
sition 1 or 2.
Vehicles with KEYLESS-GO*: press the
start/stop button once or twice.

Press the switch briefly at 1 to raise the
sunshade.

Press the switch briefly at 1 to lower
the sunshade.
Always raise the sunshade fully for its sup-
port against the window frame.
Rear door window sunshade*
To raise sunshade pull on the tab and
engage in holder.

To lower sunshade disengage tab and
guide retraction.
Warning!
G
When operating the rear window sunshade,
b e s u r e t h a t t h e r e i s n o d a n g e r o f a n y o n e b e -
ing harmed by the raising or lowering proce-
dure.
The raising or lowering procedure can be im-
mediately reversed by pressing switch1.Warning!
G
When leaving the vehicle, always remove the
SmartKey from starter switch, and lock your
vehicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment can cause an accident and/or serious
personal injury.
!Always guide the sunshade. Do not let
it snap back abruptly, as the retractor
could be damaged.

196 Controls in detailDriving systems
Driving systemsThe driving systems of your vehicle are de-
scribed on the following pages:

Cruise control and Distronic*, with
which the vehicle can maintain a preset
speed


AIRMATIC adjusts the vehicle suspen-
sion characteristics automatically and
controls the vehicle level.


ABC* with vehicle level control sys-
tems, with which you can change vehi-
cle suspension characteristics


Parktronic*, which serves as a parking
assistant
For information on the BAS, ABS, and ESP
driving systems, see “Driving safety sys-
tems” (
page 76).
Cruise control
Cruise control automatically maintains the
speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time. You can set any speed
above 20 mph (30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever found on the left-hand side of the
steering column (
page 20).
Warning!
G
Cruise control is a convenience system de-
signed to assist the driver during vehicle op-
eration. The driver is and must remain at all
times responsible for the vehicle speed and
for safe brake operation.
Only use cruise control if the traffic, road
and weather conditions make it advisable to
travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.


The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.


Deactivate cruise control when driving
in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

200 Controls in detailDriving systemsWarning!
G
Distronic cannot take street and traffic con-
ditions into account. Only use Distronic if
the weather, road, and traffic conditions
make it advisable to travel at a steady
speed.Warning!
G
Use of Distronic can be dangerous on slip-
pery roads. Rapid changes in tire traction
can result in wheel spin and loss of control.
Distronic does not act upon adverse sight
distance conditions. Do not use Distronic
during conditions of fog and heavy rain,
snow or sleet.
Warning!
G
Close attention to road and traffic condi-
tions is imperative at all times, regardless of
whether or not Distronic is activated.
Use of Distronic can be dangerous on wind-
ing roads or in heavy traffic because condi-
tions do not allow safe driving at a steady
speed.
Distronic will not react to stationary objects
in the roadway (e.g. a stopped vehicle in a
traffic jam or a disabled vehicle). Distronic
will also not respond to oncoming vehicles.
Switch off Distronic:

when changing from the left to the right
lane if vehicles are moving more slowly
in the left lane


when entering a turn lane or highway off
ramp


in complex driving situations, such as in
highway construction zones
In these situations, Distronic will continue to
maintain the set speed unless deactivated.
Distronic is designed and intended only to
maintain a set speed and keep a set dis-
tance from moving objects in front of it.Warning!
G
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

255 Operation
Driving instructions
Hydroplaning
Depending on the depth of the water layer
on the road, hydroplaning may occur, even
at low speeds and with new tires. Reduce
vehicle speed, avoid track grooves in the
road and apply brakes cautiously in the
rain.
Tire traction
The safe speed on a wet, snow covered or
icy road is always lower than on a dry road.
You should pay particular attention to the
condition of the road whenever the outside
temperatures are close to the freezing
point.
Mercedes-Benz recommends M+S rated
radial-ply tires for the winter season for all
four wheels to insure normal balanced
handling characteristics. On packed snow,
they can reduce your stopping distance
compared to summer tires. Stopping dis-
tance, however, is still considerably greater than when the road is not covered
with snow or ice. Exercise appropriate cau-
tion.
Tire speed rating
Regardless of the tire rating, local speed
limits should be obeyed. Use prudent driv-
ing speeds appropriate to prevailing condi-
tions.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire or driving at high
speed with a flat tire will cause excessive
heat build-up and possibly a fire.
Warning!
G
If ice has formed on the road, tire traction
will be substantially reduced. Under such
weather conditions, drive, steer and brake
with extreme caution.
Warning!
G
Even when permitted by law, never operate
a vehicle at speeds greater than the maxi-
mum speed rating of the tires.
Exceeding the maximum speed for which
tires are rated can lead to sudden tire fail-
ure, causing loss of vehicle control and pos-
sibly resulting in an accident and/or serious
injury and possible death, for you and for
others.
