Controls in detail
Control system
Convenience submenu
Access the
CONVENIENCE
submenu via the
SETTINGS
menu. Use the
CONVENIENCE
sub-
menu to change the settings for a number
of convenience features. The following
functions are available:
Activating easy-entry/exit feature
Use this function to activate and deacti-
vate the easy-entry/exit feature. When the
feature is activated, the steering wheel and
driver’s seat will move back to facilitate ex-
iting when you
remove the key from the starter switch
open the driver’s door
However, the engine must be turned off. After entering the vehicle, the steering
wheel and seat will move into the position
stored in memory when
the driver’s door is closed
you put the key in the starter switch
and
press the appropriate stored position
button on the memory switch
(page 94)
Move the selection marker with
the
æ
or
ç
button to the
CONVE-
NIENCE
submenu.
Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
EASY-ENTRY FEATURE ACTIVATE
.
The selection marker is on the current
setting.
Function
Page
Activate easy-entry/exit feature
see
below
Set key dependency
124
Set parking position for exterior
rear view mirror
124
Warning!
G
You must make sure that no one can be-
come trapped or injured by the moving
steering wheel and the driver’s seat when
the easy-entry/exit feature is activated and
the driver’s door is being opened or the key
is removed from the starter switch. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/ or serious personal
injury.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.
iTo cancel seat/steering wheel move-
ment, do one of the following:
Press the seat adjustment
switch*(
page 34).
Move the steering column stalk*
(page 38).
Press the memory switch
(page 94).
124 Controls in detailControl system
Press
æ
or
ç
to change the
easy-entry/exit setting.

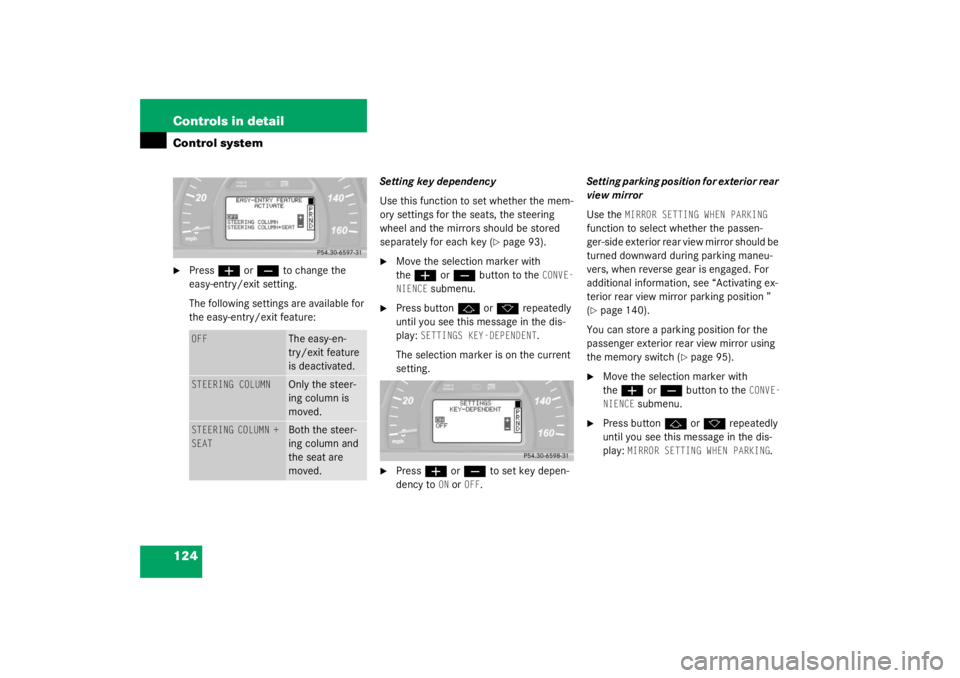

The following settings are available for
the easy-entry/exit feature: Setting key dependency
Use this function to set whether the mem-
ory settings for the seats, the steering
wheel and the mirrors should be stored
separately for each key (
page 93).
Move the selection marker with
the
æ
or
ç
button to the
CONVE-
NIENCE
submenu.
Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
SETTINGS KEY-DEPENDENT
.
The selection marker is on the current
setting.
Press
æ
or
ç
to set key depen-
dency to
ON or
OFF
. Setting parking position for exterior rear
view mirror
Use the
MIRROR SETTING WHEN PARKING
function to select whether the passen-
ger-side exterior rear view mirror should be
turned downward during parking maneu-
vers, when reverse gear is engaged. For
additional information, see “Activating ex-
terior rear view mirror parking position ”
(
page 140).
You can store a parking position for the
passenger exterior rear view mirror using
the memory switch (
page 95).
Move the selection marker with
the
æ
or
ç
button to the
CONVE-
NIENCE
submenu.
Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
MIRROR SETTING WHEN PARKING
.
OFF
The easy-en-
try/exit feature
is deactivated.
STEERING COLUMN
Only the steer-
ing column is
moved.
STEERING COLUMN +
SEAT
Both the steer-
ing column and
the seat are
moved.
138 Controls in detailGood visibility
Good visibilityInformation on the windshield wipers
(page 48) and for setting the rear view
mirrors (
page 39) is found in the “Get-
ting started” section.
Rear view mirror
Inside rear view mirror, antiglare posi-
tion
Tilt the mirror to the antiglare night posi-
tion using the lever at its lower edge. Automatic antiglare rear view mirror*
The reflection brightn
ess of the exterior
rear view mirror on the driver’s side and
the inside rear view mirror will respond au-
tomatically to glare when
the ignition is switched on, and
incoming light from headlamps falls on
the sensor in the inside rear view mir-
ror. The rear view mirror will not react if
reverse gear is engaged
the interior lighting is turned onWarning!
G
The automatic antiglare function does not
react if incoming light is not aimed directly
at sensors in the inside rear view mirror.
The inside rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, if the rear window sun-
shade is in raised position.
Glare can endanger you and others.
139
Controls in detail
Good visibility
Warning!
G
In the case of an accident liquid electrolyte
may escape from the mirror housing if the
mirror glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes.
!Electrolyte drops coming into contact
with the vehicle paint finish can be
completely removed only while in the
liquid state by applying plenty of water.
140 Controls in detailGood visibilityActivating exterior rear view mirror
parking position
Follow these steps to activate the mirror
parking position so that the passen-
ger-side exterior rear view mirror will be
turned downward to the stored positions.
Make sure you stored a parking posi-
tion for the passenger-side exterior
rear view mirror (
page 95)
Make sure that the
MIRROR SETTING
WHEN PARKING
function, found under
the
CONVENIENCE
submenu in the con-
trol system, is switched to
ON
(
page 124).
Switch on ignition.
Press button 2 (
page 40) for the pas-
senger-side exterior rear view mirror.
Place the gear selector lever in reverse
gear R .
The passenger-side exterior rear view
mirror will be turned downward in the
stored position. The exterior rear view mirror returns to its
previously stored driving position:
10 seconds after you put the gear se-
lector lever out of position
R
immediately once you exceed a vehicle
speed of approx. 6 mph (10 km/h)
immediately when you press the button
for driver’s side mirror (
page 40)
Headlamp cleaning system*
The switch is located on the left side of the
dashboard.
1 Headlamp washer switch
Switch on ignition.
Press switch 1.
The headlamps are cleaned with a
high-pressure water jet.
Information on filling up the washer reser-
voir can be found in the “Operation” sec-
tion (page 232).
141
Controls in detail
Good visibility
Sun visors
The sun visors protect you from sun glare
while driving.
Swing sun visors down when you expe-
rience glare.

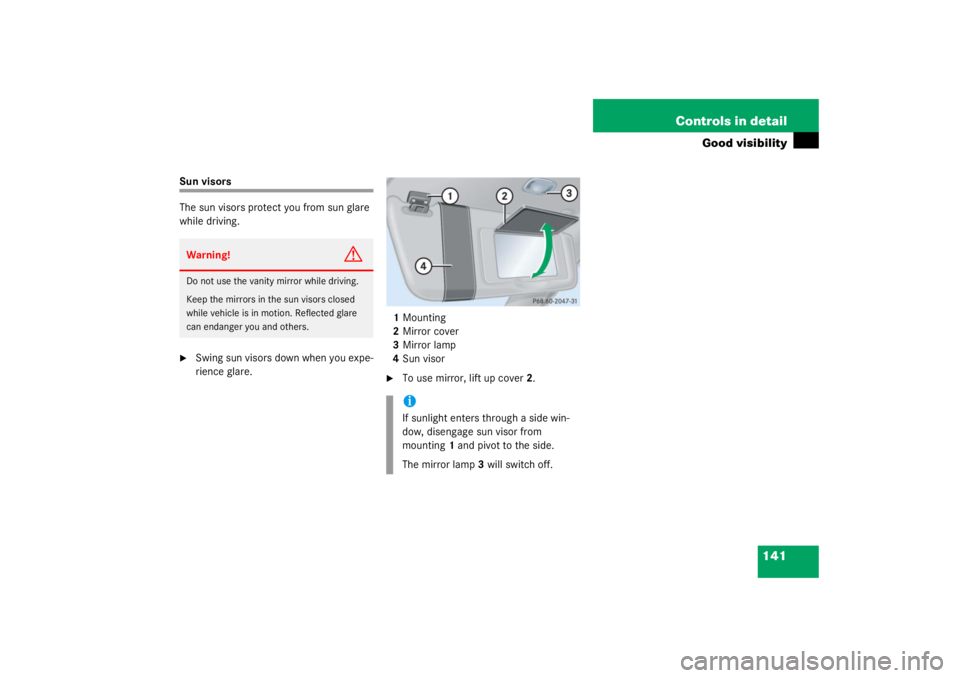

1
Mounting
2 Mirror cover
3 Mirror lamp
4 Sun visor
To use mirror, lift up cover 2.
Warning!
G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.
iIf sunlight enters through a side win-
dow, disengage sun visor from
mounting 1 and pivot to the side.
The mirror lamp 3 will switch off.
201
Controls in detail
Useful features
Tele Aid*
The Tele Aid system
(T
elematic A
larm I
dentification on D
e-
mand)
The Tele Aid system consists of three
types of response:
automatic and manual emergency
roadside assistance and
information
The Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and cel-
lular and GPS coverage is available.
The speaker volume of a Tele Aid call can
be adjusted when using the volume control
on the multifunction steering wheel. To
raise, press button
æ
and to lower,
press button
ç
.
To activate, press the SOS button, the
Roadside Assistance button
•
or
the Information button
¡
, depend-
ing on the type of response required. Shortly after the completion of your Ac-
quaintance Call, you will receive a user ID
and password via first call mail. By visiting
www.mbusa.com and selecting “Tele Aid”
(USA only), you will have access to account
information, remote door unlock and
more.
!The initial activation of the Tele Aid sys-
tem may only be performed by com-
pleting the subscriber agreement and
placing an acquaintance call using the
SOS button. Failure to
complete either
of these steps will result in a system
that is not activated. If the system is
not activated, the indicator lamp in the
SOS button stays on after turning key
in starter switch to position 2 and the
message
TELE AID – NOT ACTIVATED
will be shown in the multifunction dis-
play for approx. 10 seconds.
If you have any questions regarding ac-
tivation, please call the Response Cen-
ter at 1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada).
iThe SOS button is located above the in-
side rear view mirror.
The Roadside Assistance button
•
and the Information button
¡
are
located below the center armrest cov-
er.
!The Tele Aid system utilizes the cellular
network for communication and the
GPS (Global Positioning System) satel-
lites for vehicle location. If either of
these signals are unavailable, the
Tele Aid system may not function and if
this occurs, assistance must be sum-
moned by other means.
202 Controls in detailUseful featuresSystem self-check
Initially, after turning the key in starter
switch to position2, malfunctions are de-
tected and indicated (the indicator lamps
in the SOS button, the Roadside Assis-
tance button
•
and the Information
button
¡
stay on longer than
10 seconds or do not come on). The mes-
sage
TELE AID – VISIT WORKSHOP!
ap-
pears for approx. 10 seconds in the
multifunction display. Emergency calls
An emergency call is initiated automatical-
ly:
following an accident in which the
emergency tensioning devices (ETDs)
or airbags deploy
if the anti-theft alarm or the tow-away
alarm stays on for more than
20 seconds. See anti-theft alarm sys-
tem (
page 78)and tow-away alarm
(
page 79)
An emergency call can also be initiated
manually by opening the cover next to the
inside rear view mirror labeled “SOS”, then
briefly pressing the button located under
the cover. See below for instructions on
initiating an emergency call manually.
Once the emergency call is in progress, the
indicator lamp in the “SOS” button will be-
gin to flash. The message
EMERGENCY CALL
– CONNECTING CALL
appears in the multi-
function display. When the connection is
established, the message
EMERGENCY CALL
– CALL CONNECTED
appears in the multi-
Warning!
G
If the indicator lamps in the SOS button, in
the Roadside Assistance button and/or in
the Information button do not come on dur-
ing the system self-check or if any of these
indicators remain illuminated constantly in
red and/or the message
TELE AID defec-
tive – VISIT WORKSHOP!
is displayed in
the multifunction display after the system
self-check, a malfunction in the system has
been detected.
If a malfunction is indicated as outlined
above, the system may not operate as ex-
pected. Have the system checked at the
nearest Mercedes-Benz Center as soon as
possible.
