2003 MERCEDES-BENZ C CLASS COUPE mirror controls

ContentsControls in detail ............................... 81
Locking and unlocking ......................... 82 SmartKey ........................................ 82
Opening the doors from the inside . 85
Opening the trunk lid ...................... 85
Closing the trunk lid ....................... 86
Trunk lid emergency release .......... 86
Automatic central locking .............. 87
Locking and unlocking from
the inside ....................................... 87
Seats .................................................... 89 Easy-entry/exit feature* ................ 89
Head restraints............................... 90
Heated seats* ................................ 91
Memory function* ................................ 93 Storing positions into memory ....... 94
Recalling positions from memory ... 94
Storing exterior rear view mirror
parking position ............................. 95
Lighting ................................................ 96 Exterior lamp switch ....................... 96
Combination switch ........................ 99
Hazard warning flasher ................... 99
Interior lighting ............................. 100 Instrument cluster ............................. 102
Instrument cluster illumination .... 102
Coolant temperature gauge ......... 102
Trip odometer .............................. 103
Tachometer .................................. 103
Outside temperature indicator ..... 104
Control system .................................. 105 Multifunction display .................... 105
Multifunction steering wheel ........ 106
Menus .......................................... 108
Standard display menu ................ 110
AUDIO menu ................................ 110
NAV menu .................................... 112
Malfunction memory menu .......... 112
Settings menu .............................. 114
Trip computer menu ..................... 125
TEL menu* ................................... 126
Manual transmission ......................... 130 Shifting into reverse ..................... 131
Automatic transmission* ................... 132 One-touch gearshifting ................. 133
Gear ranges .................................. 134
Gear selector lever position ......... 135
Program mode selector switch ..... 136
Accelerator position ..................... 137 Emergency operation
(Limp Home Mode) ...................... 137
Good visibility .................................... 138 Rear view mirror ........................... 138
Headlamp cleaning system* ........ 140
Sun visors .................................... 141
Climate control .................................. 142 Setting the temperature ............... 145
Adjusting air distribution and
volume ......................................... 145
Defrosting .................................... 146
Air recirculation mode .................. 146
Rear window defroster ................. 147
Air conditioning ............................ 148
Ventilated storage compartment . 148
Rear passenger compartment
adjustable air vents ...................... 149
Deactivating the climate control
system ......................................... 149
Automatic climate control*
(Canada only) .................................... 150 Setting the temperature ............... 152
Adjusting air distribution .............. 153
Adjusting air volume .................... 153
Maximum cooling MAXCOOL ....... 154
Defrosting .................................... 154

34 Getting startedAdjusting1Release knob
Manually adjust the height of the head
restraint by pulling it upward. To lower
the head restraint, push release knob 1
and press down on the head restraint.
Head restraint tilt

Manually adjust the angle of the head
restraint. Push or pull on the lower
edge of the head restraint cushion.
More information can be found in the
“Controls in detail” section (
page 89) Power seat*

Turn the key in the starter switch to
position
1 or 2.
or

Open the driver’s or front passenger
door.
The seat adjustment switches are located
in each front door.
1 Head restraint height
2 Seat height
3 Seat cushion tilt
4 Seat fore and aft adjustment
5 Backrest tilt Seat fore and aft adjustment

Press the switch forward or backward
in the direction of arrow
4.
Adjust to a comfortable seating posi-
tion that still allows you to reach the
accelerator / brake pedal safely. The
position should be as far to the rear as
possible, consistent with ability to
properly operate controls.iWhen moving the seat, be sure that
there are no items in the footwell or be-
hind the seat. Otherwise you could
damage the seat.
With the memory function*
(page 93) you can store seat posi-
tions together with settings for the
steering wheel and the exterior rear
view mirrors.

39
Getting started
Adjusting
Steering column, lengthen or shorten
Move stalk forward or backward in the
direction of arrow
1 until a comfortable
steering wheel position is reached with
your arms slightly bent at the elbow.
Steering column, height

Move stalk up or down in the direction
of arrow 2. Make sure that your legs
can move freely and that all the dis-
plays (including malfunction and indi-
cator lamps) on the instrument cluster
are clearly visible.
Mirrors
Adjust the inside and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions. Inside rear view mirror

Manually adjust the inside rear view
mirror.
More information can be found in the
“Controls in detail” section (
page 138).
iWith the memory function*
(page 93) you can store settings for
the steering wheel together with set-
tings for the exterior rear view mirrors
and seat positions.
Warning!
G
In the case of an accident liquid electrolyte
may escape the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.

40 Getting startedAdjustingExterior rear view mirrorsThe buttons are located above the exterior
lamp switch.
1 Adjustment button
2 Passenger side mirror
3 Driver’s side mirror

Make sure that the ignition is switched
on.
All the lights in the instrument cluster
light up.

Press button 3 for the left mirror or
button 2 for the right mirror.

Push adjustment button 1 up, down,
left or right according to the setting de-
sired.
More information can be found in the
“Controls in detail” section (
page 138).
Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes. !Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their
liquid state by applying plenty of water.
iWith the memory function*
(page 93) you can store settings for
the exterior rear view mirrors together
with seat positions and settings for the
steering wheel.
!If an exterior rear view mirror housing
is forcibly pushed forward or backward,
reposition it by applying firm pressure
until it snaps into place. The mirror
housing is now properly positioned and
you can adjust the mirror normally.

93
Controls in detail
Memory function*
Memory function*
The memory button and stored position
switch are located on the door.
You can store up to three different settings
per key.
The following settings are saved for each
stored position:

Driver’s seat and backrest position


Steering wheel position


Driver’s side exterior rear view mirror
position


Passenger side exterior rear view mir-
ror position


Front passenger seat position
These key-dependent memory settings
can be deactivated if desired
(
page 124).
!Prior to operating the vehicle, the driv-
er should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to en-
sure adequate control, reach and com-
fort. The head restraint should also be
adjusted for proper height. Also see air-
bag section (
page 57) for proper seat
positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the inside and
outside rear view mirrors should be ad-
justed for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and Canadian
Motor Vehicle Safety Standards 213
and 210.2.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

94 Controls in detailMemory function*1Memory button
2 Stored position button
Make sure that the ignition is switched
on or the relevant door is open and the
SmartKey is inserted in the starter
switch.
Storing positions into memory
Adjust the seats, steering wheel and
rear view mirrors to the desired posi-
tion (
page 32).

Turn button 2 to selected memory po-
sition.

Press memory button 1.

Release memory button and push
button 2 within three seconds.
All the settings are stored at the select-
ed position.
Recalling positions from memory
Turn button 2 to selected memory po-
sition.

Press and hold button 2 until the seat,
steering wheel and rear view mirrors
have fully moved to the stored posi-
tions.iReleasing the button immediately
stops movement to the stored posi-
tions.Warning!
G
Do not operate the power seats using the
memory button if the seat backrest is in an
excessively reclined position. Doing so
could cause damage to front or rear seats.
First move backrest to an upright position.

95
Controls in detail
Memory function*
Storing exterior rear view mirror park-ing position
For easier parking, you can adjust the pas-
senger-side exterior rear view mirror so
that you can see the right rear wheel as
soon as you engage reverse gear
R.
You can store a parking position for the
passenger exterior rear view mirror for
each key using the memory switch.
For information about activating the park-
ing position, see “Activating exterior rear
view mirror parking position”
(page 124). 1
Adjustment button
2 Passenger side exterior rear view mir-
ror
3 Memory button

Stop the vehicle.

Switch ignition on (if not already on).

Press button 2.
The passenger side exterior rear view
mirror is selected.

Adjust the exterior rear view mirror
with button 1 so that you see the rear
wheel and the curb.

Press memory button “M” 3 on the
door.

Within three seconds press bottom of
adjustment button 1 above the exterior
lamp switch.
The parking position is stored if the
mirror does not move.iIf the mirror does move, repeat the
above steps. After the setting is stored
you can move the mirror again.

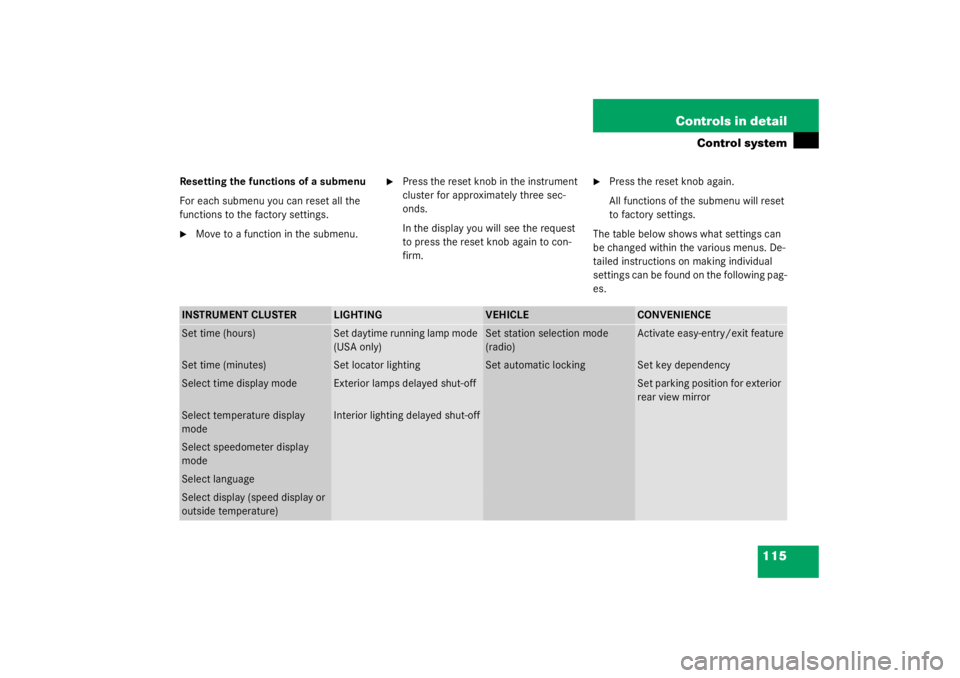

115
Controls in detail
Control system
Resetting the functions of a submenu
For each submenu you can reset all the
functions to the factory settings.
Move to a function in the submenu.

Press the reset knob in the instrument
cluster for approximately three sec-
onds.
In the display you will see the request
to press the reset knob again to con-
firm.

Press the reset knob again.
All functions of the submenu will reset
to factory settings.
The table below shows what settings can
be changed within the various menus. De-
tailed instructions on making individual
settings can be found on the following pag-
es.
INSTRUMENT CLUSTER
LIGHTING
VEHICLE
CONVENIENCE
Set time (hours)
Set daytime running lamp mode
(USA only)
Set station selection mode
(radio)
Activate easy-entry/exit feature
Set time (minutes)
Set locator lighting
Set automatic locking
Set key dependency
Select time display mode
Exterior lamps delayed shut-off
Set parking position for exterior
rear view mirror
Select temperature display
mode
Interior lighting delayed shut-off
Select speedometer display
modeSelect languageSelect display (speed display or
outside temperature)
