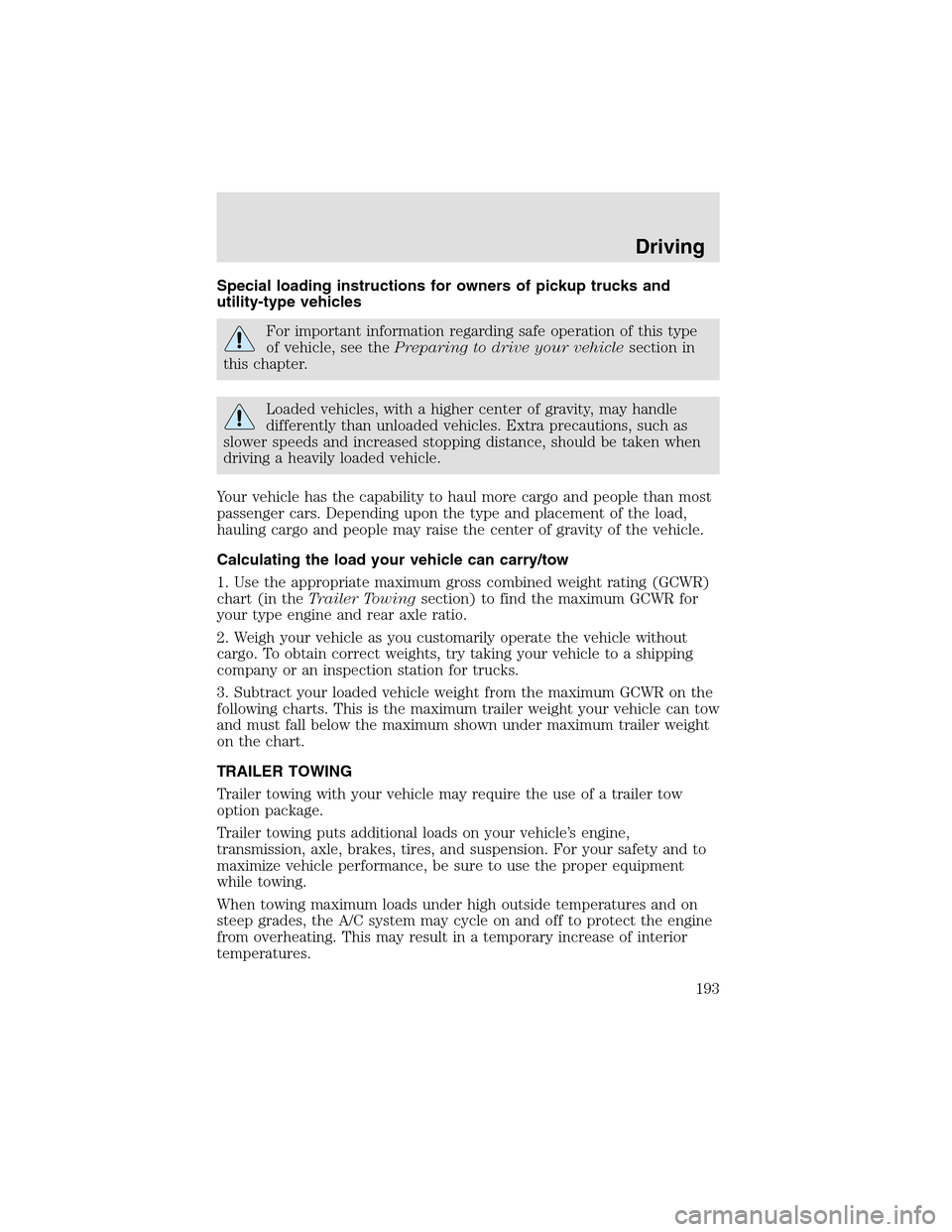

2003 LINCOLN AVIATOR Owners Manual

Page 193 of 288

LINCOLN AVIATOR 2003  Owners Manual Special loading instructions for owners of pickup trucks and
utility-type vehicles
For important information regarding safe operation of this type
of vehicle, see thePreparing to drive your vehiclesec

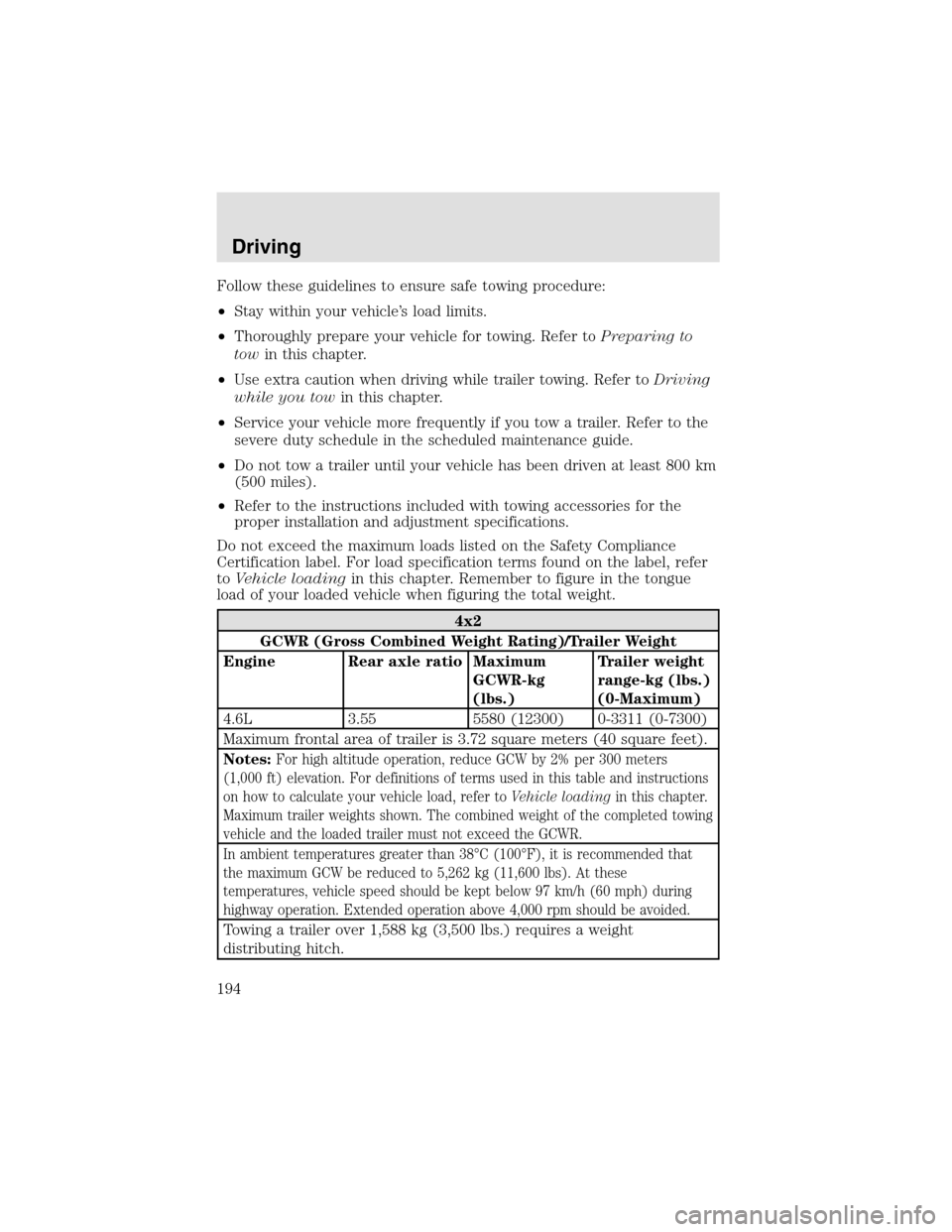

Page 194 of 288

LINCOLN AVIATOR 2003  Owners Manual Follow these guidelines to ensure safe towing procedure:
•Stay within your vehicle’s load limits.
•Thoroughly prepare your vehicle for towing. Refer toPreparing to
towin this chapter.
•Use ext

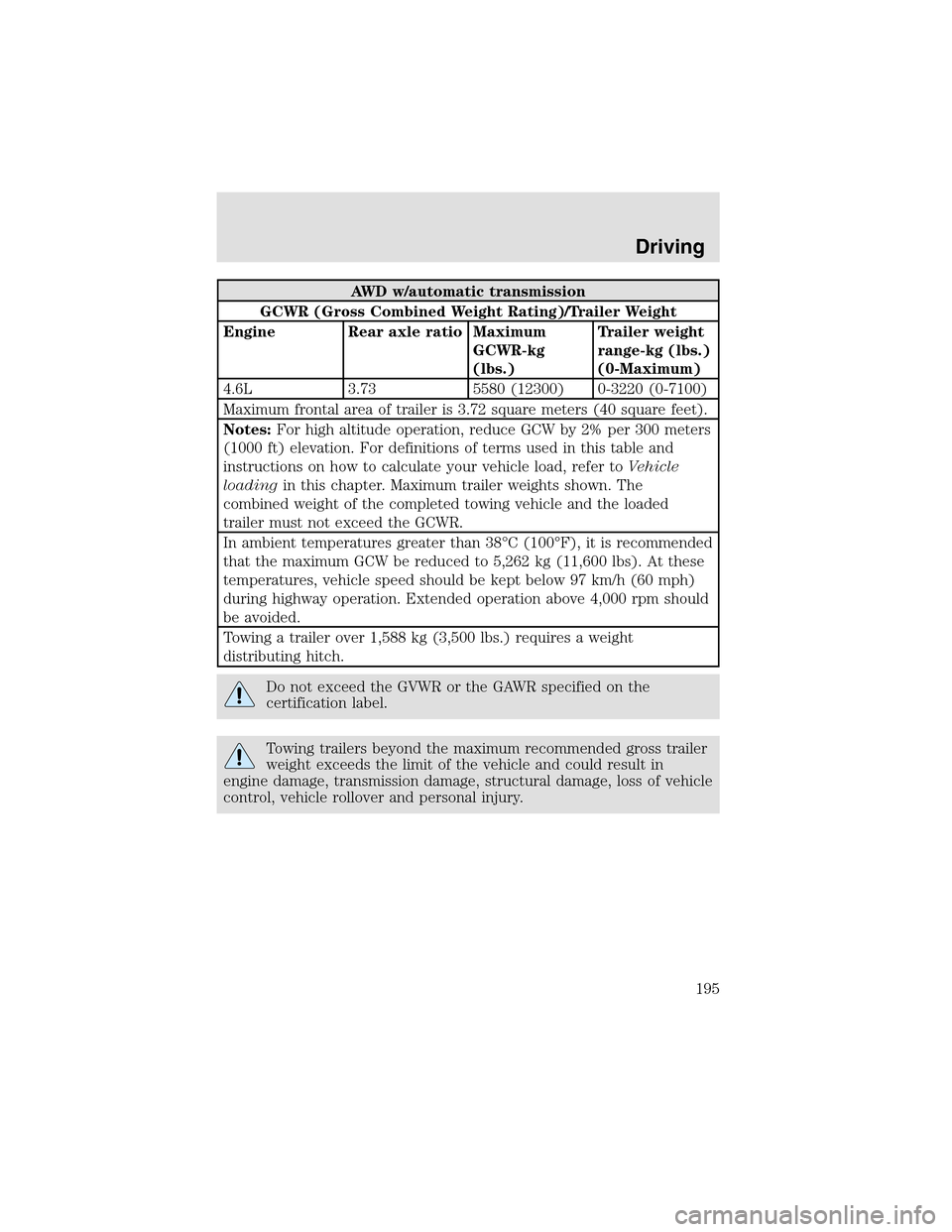

Page 195 of 288

LINCOLN AVIATOR 2003  Owners Manual AWD w/automatictransmission
GCWR (Gross Combined Weight Rating)/Trailer Weight
Engine Rear axle ratio Maximum
GCWR-kg
(lbs.)Trailer weight
range-kg (lbs.)
(0-Maximum)
4.6L 3.73 5580 (12300) 0-3220 (0-

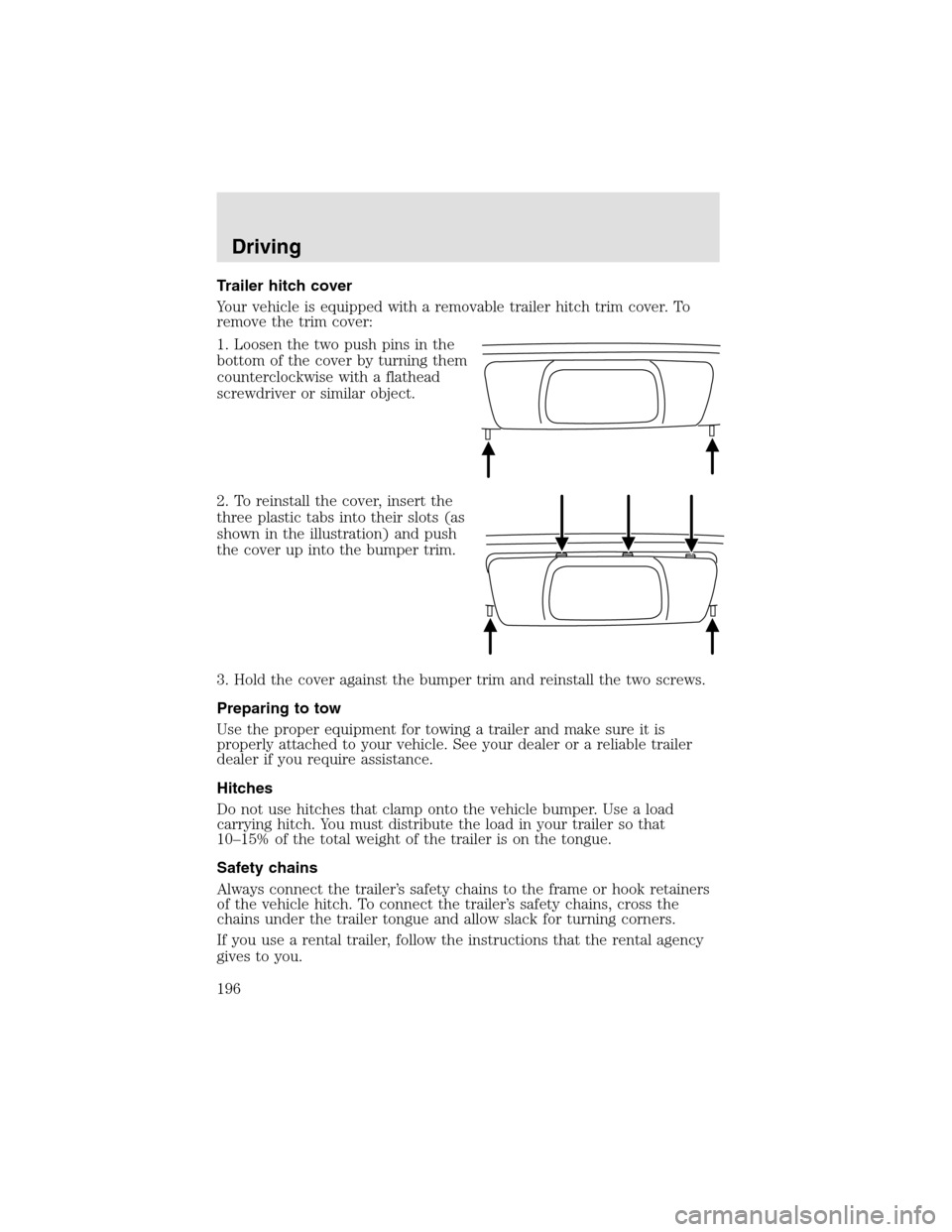

Page 196 of 288

LINCOLN AVIATOR 2003  Owners Manual Trailer hitch cover
Your vehicle is equipped with a removable trailer hitch trim cover. To
remove the trim cover:
1. Loosen the two push pins in the
bottom of the cover by turning them
counterclockwis

Page 197 of 288

LINCOLN AVIATOR 2003  Owners Manual Do not attach safety chains to the bumper.
Trailer brakes
Electric brakes and manual, automatic or surge-type trailer brakes are
safe if installed properly and adjusted to the manufacturer’s
specifi

Page 198 of 288

LINCOLN AVIATOR 2003  Owners Manual until the coolant temperature returns to the normal range. Refer to
Engine coolant temperature gaugein theInstrument cluster
chapter.
•Anticipate stops and brake gradually.
•Do not exceed the GCWR

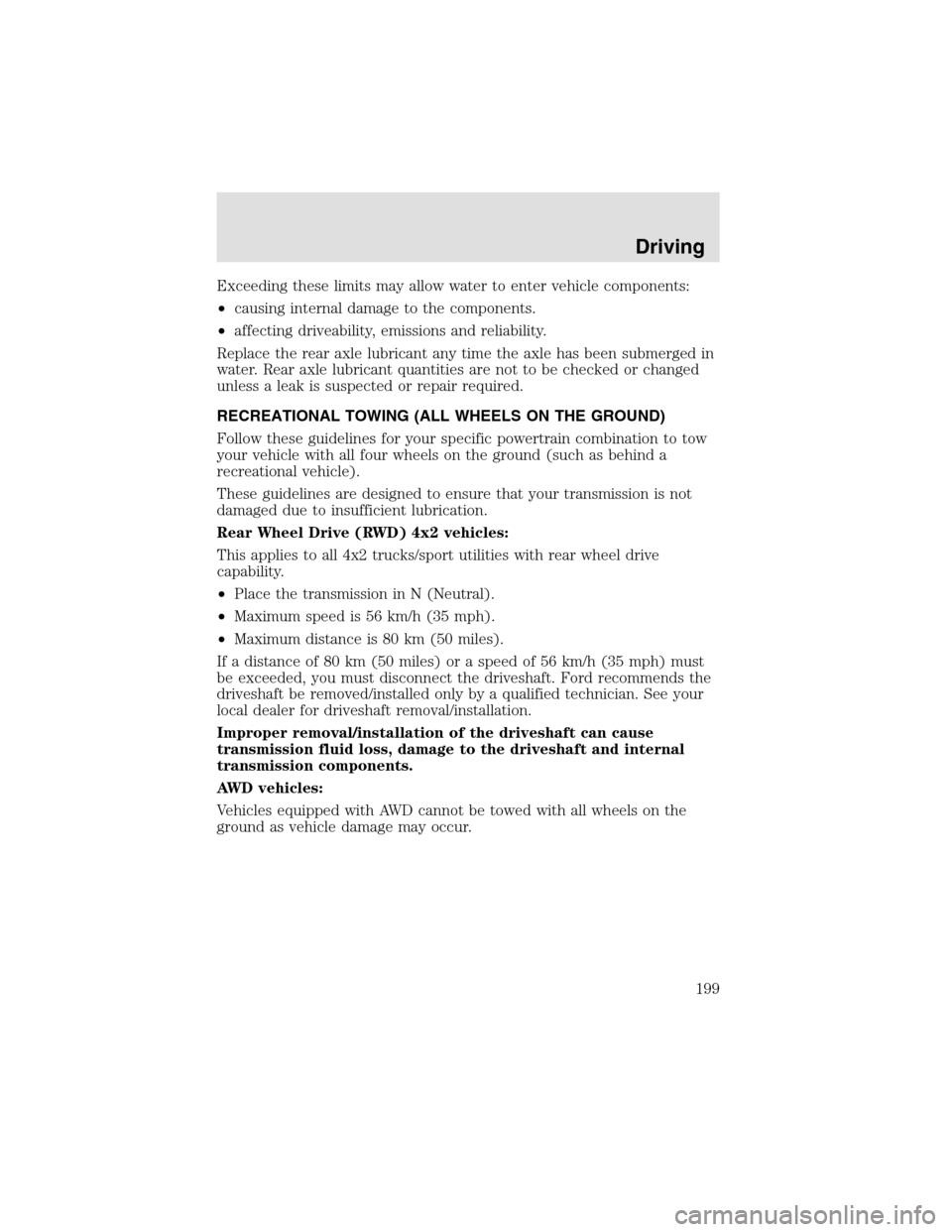

Page 199 of 288

LINCOLN AVIATOR 2003  Owners Manual Exceeding these limits may allow water to enter vehicle components:
•causing internal damage to the components.
•affecting driveability, emissions and reliability.
Replace the rear axle lubricant

Page 200 of 288

LINCOLN AVIATOR 2003  Owners Manual GETTING ROADSIDE ASSISTANCE
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle
