COMFORT ADJUSTMENT
140
 1 Hitting a curb, edge of pavement or hard material

2 Falling into or jumping over a deep hole

3 Landing hard or vehicle falling
The SRS airbags may also deploy if a serious impact
occurs to the underside of your vehicle. Some examples
are shown in the illustration.
16PY066

COMFORT ADJUSTMENT
141


1 Side and curtain shield airbag sensor assemblies

2 Airbag module for front passenger
(airbag and inflator)

3 Curtain shield airbag modules (airbag and inflater)

4 Side airbag modules (airbag and inflator)

5 Curtain shield airbag sensor assemblies

6 SRS warning light

7 Airbag module for driver (airbag and inflator)

8 Driver’s seat position sensor

9 Driver’s seat belt buckle switch

10 Front airbag sensors

11 Airbag sensor assembly
The SRS airbag system consists mainly of the above
components, and their locations are shown in the illustration.
The airbag sensor assembly consists of a safing sensor and
airbag sensor. The airbag sensors constantly monitor the forward
deceleration of the vehicle. In an impact results in a forward
deceleration beyond the designed threshold level, the system
triggers the airbag inflators. In a severe side impact, the side
and curtain shield airbag sensor and/or the curtain shield
airbag sensor trigger(s) the si
de and curtain shield airbag
inflators and/or the curtain shield airbag inflator. At this time a
chemical reaction in the inflators very quickly fills the airbags
with non −toxic gas to help restrain the forward or lateral motion
of the occupants. The front airbags then quickly deflate, so that
there is no obstruction of the driver’s vision should it be
necessary to continue driving.
When the airbags inflate, they produce a loud noise and
release some smoke and residue along with non −toxic gas.
This does not indicate a fire. This smoke may remain inside the
vehicle for some time, and may cause some minor irritation to
the eyes, skin or breathing. Be sure to wash off any residue as
soon as possible to prevent any potential skin irritation with
soap and water. If you can physically and safely exit the vehicle
after a collision, you should do so at the first opportunity.

COMFORT ADJUSTMENT
142Deployment of the airbags happens in a fraction of a second,
so the airbags must inflate with considerable force. While the
system is designed to reduce serious injuries, primarily to the
head and chest, it may also cause other, less severe injuries
to the face, chest, arms and hands. These are usually in the
nature of
minor burns or abrasions and swelling, but the force
of a deploying airbag can cause more serious injuries,
especially if an occupant’s hands, arms, chest or head are in
close proximity to the airbag module at the time of deployment.
This is why it is important for the occupant to: avoid placing any
object or part of the body between the occupant and the airbag
module; sit straight and well back into the seat; wear the
available seat belt properly; and sit as far as possible from the
airbag module, while still maintaining control of the vehicle.
Parts of the airbag module (steering wheel hub, airbag cover
and inflator) may be hot for several minutes after deployment,
so do not touch! The airbags inflate only once. The windshield
may be damaged by absorbing some of the force of the
inflating airbag.
CAUTION
 The SRS airbag system is designed only as a
supplement to the primary protection of the driver
side and front and second outside passenger side
seat belt systems. The front and second outside seat
occupants can be killed or seriously injured by the
inflating airbags if they do not wear the available seat
belts properly. During sudden braking just before a
collision, an unrestrained driver, front passenger or
second outside passenger can move forward or
sideways into direct contact with or close proximity
to the airbag which may then deploy during the
collision. To ensure maximum protection in an
accident, the driver and all passengers in the vehicle
must wear their seat belts properly. Wearing a seat
belt properly during an accident reduces the chances
of death or serious injury or being thrown out of the
vehicle. For instructions and precautions
concerning the seat belt system, see “Seat belts” on
page 123.

COMFORT ADJUSTMENT
143
Improperly seated and/or restrained infants and
children can be killed or seriously injured by the
deploying airbags. An infant or child who is too small
to use a seat belt should be properly secured using
a child restraint system. Lexus strongly
recommends that all infants and children be placed
in the second or third seat of the vehicle and properly
restrained. The second or third seat is the safest for
infants and children. For instructions concerning the
installation of a child restraint system, see “Child
restraint” on page 150.
 Never install a rearfacing child restraint system on
the front passenger seat because the force of the
rapid inflation of the front passenger airbag can
cause death or serious injury to the child.

COMFORT ADJUSTMENT
144
 Move seat fully back
 A forwardfacing child restraint system should be
allowed to be installed on the front passenger seat
only when it is unavoidable. Always move the seat
as far back as possible, because the force of the
deploying front passenger airbag could cause death
or serious injury to the child.
 Do not allow the child to lean against the front door
or around the front door even if the child is seated in
a child restraint system. It is dangerous if the side
airbag and curtain shield airbag inflate, because the
impact could cause death or serious injury to the
child.
 For instructions concerning the installation of a child
restraint system, see “Child restraint” on page 150.
Do not sit on the edge of the seat or lean over the
dashboard when the vehicle is in use, since the front
airbags inflate with considerable speed and force.
Otherwise, you may be killed or seriously injured. Sit
up straight and well back in the seat, and always use
your seat belt properly.

COMFORT ADJUSTMENT
145
Do not lean against the door when the vehicle is in
use, since the side airbag and curtain shield airbag
inflate with considerable speed and force.
Otherwise, you may be killed or seriously injured.
Special care should be taken especially when you
have a small child in the vehicle.
 Sit up straight and well back in the seat, distributing
your weight evenly in the seat. Do not apply
excessive weight to the outer side of the front seats
on vehicles with side airbags.Do not get your head closer to the area where the side
airbag and curtain shield airbag inflate, since these
airbags inflate with considerable speed and force;
you may be killed or seriously injured. Special care
should be taken especially when you have a small
child in the vehicle.
 Do not allow a child to kneel on the passenger seat
facing the passenger’s side door, since the side
airbag and curtain shield airbag inflate with
considerable speed and force. Otherwise, the child
may be killed or seriously injured.

COMFORT ADJUSTMENT
146

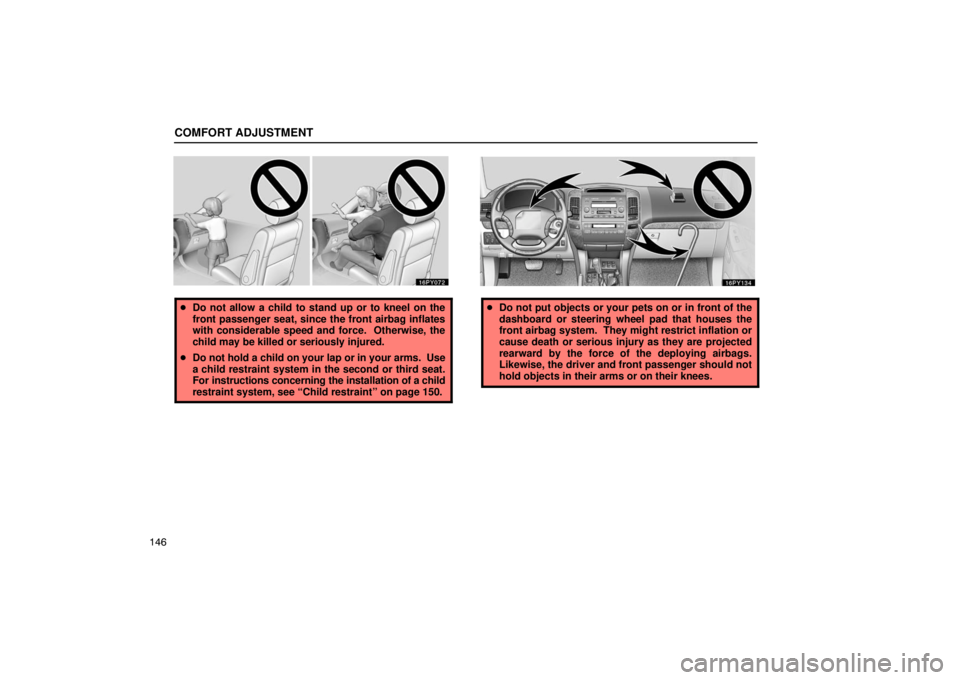

Do not allow a child to stand up or to kneel on the
front passenger seat, since the front airbag inflates
with considerable speed and force. Otherwise, the
child may be killed or seriously injured.
 Do not hold a child on your lap or in your arms. Use
a child restraint system in the second or third seat.
For instructions concerning the installation of a child
restraint system, see “Child restraint” on page 150.Do not put objects or your pets on or in front of the
dashboard or steering wheel pad that houses the
front airbag system. They might restrict inflation or
cause death or serious injury as they are projected
rearward by the force of the deploying airbags.
Likewise, the driver and front passenger should not
hold objects in their arms or on their knees.

COMFORT ADJUSTMENT
147
Do not attach a cup holder or any other device or
object on or around the door. When the side airbag
inflates, the cup holder or any other device or object
will be thrown with great force, or the side airbag may
not activate correctly, resulting in death or serious
injury. Likewise, the driver and front passenger
should not hold objects in their arms or on their
knees.Do not attach a microphone or any other device or
object around the part where the curtain shield airbag
activates such as on the windshield glass, side door
glass, front pillars and roof side or assist grips.
When the curtain shield airbag inflates, the
microphone or other device or object will be hurled
with great force or the curtain shield airbag may not
activate correctly, resulting in death or serious injury.
 Do not hook a hanger, heavy or sharp pointed objects
on the coat hook. If the curtain shield airbag inflates,
those items will be hurled away with great force or the
curtain shield airbag may not activate correctly.
When you hang clothes, hang them on the coat hook
directly.
