2003 HONDA ODYSSEY Owners Manual

The main air f low is divided
between the f loor vents and de-
froster vents at the base of the wind-
shield.
The main air f low is divided
between the dashboard vents and
the f loor vents. The main air flow comes
f rom the f loor vents.
The main air flow comes
f rom the dashboard vents.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures158

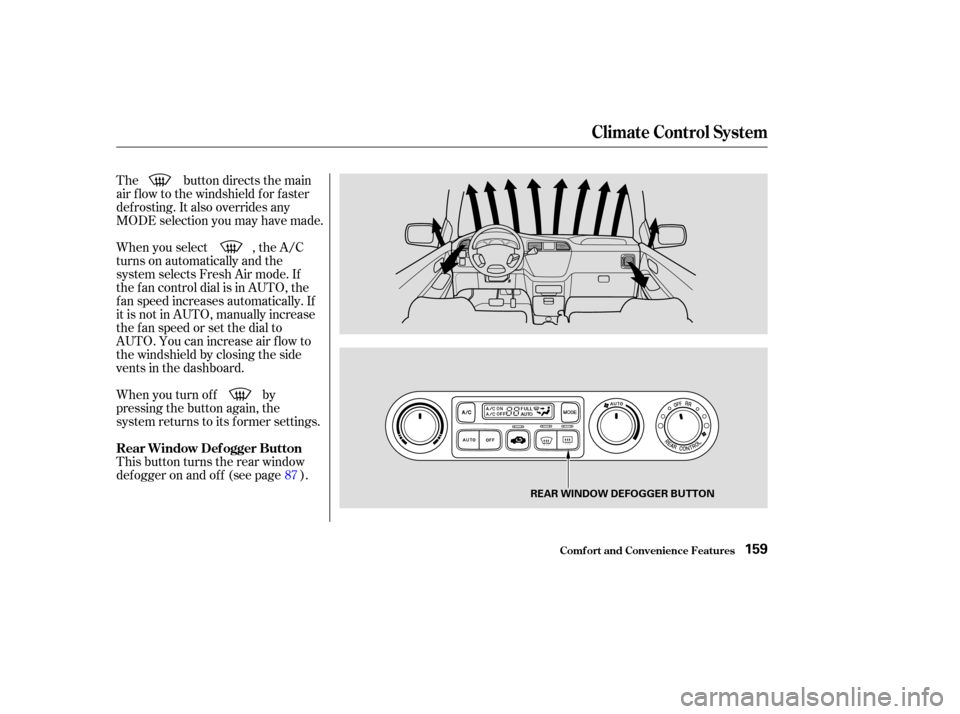

The button directs the main
air f low to the windshield f or f aster
def rosting. It also overrides any
MODE selection you may have made.
When you select , the A/C
turns on automatically and the
system selects Fresh Air mode. If
thefancontroldialisinAUTO,the
f an speed increases automatically. If
it is not in AUTO, manually increase
the f an speed or set the dial to
AUTO. You can increase air f low to
thewindshieldbyclosingtheside
vents in the dashboard.
When you turn of f by
pressing the button again, the
system returns to its former settings.
This button turns the rear window
def ogger on and of f (see page ).87
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Rear Window Def ogger Button
159
REAR WINDOW DEFOGGER BUTTON

Û
Ý

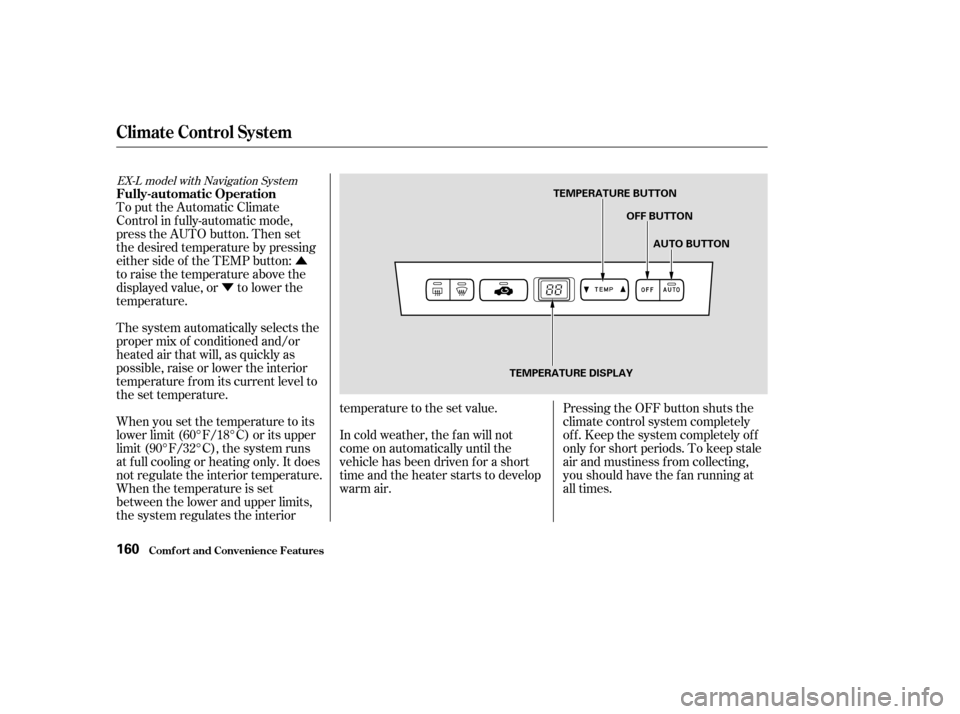

To put the Automatic Climate
Control in f ully-automatic mode,
press the AUTO button. Then set
the desired temperature by pressing
either side of the TEMP button:
to raise the temperature above the
displayed value, or to lower the
temperature.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature.
When you set the temperature to its
lower limit (60°F/18°C) or its upper
limit (90°F/32°C), the system runs
at f ull cooling or heating only. It does
not regulate the interior temperature.
When the temperature is set
between the lower and upper limits,
the system regulates the interior temperature to the set value.
In cold weather, the f an will not
come on automatically until the
vehicle has been driven f or a short
time and the heater starts to develop
warm air.
Pressing the OFF button shuts the
climate control system completely
of f . Keep the system completely of f
only f or short periods. To keep stale
air and mustiness f rom collecting,
you should have the f an running at
all times.
EX-L model with Navigation System
Climat e Cont rol Syst em
Fully-automatic Operation
Comf ort and Convenience Feat ures160
TEMPERATURE BUTTON
OFF BUTTON
AUTO BUTTON
TEMPERATURE DISPLAY

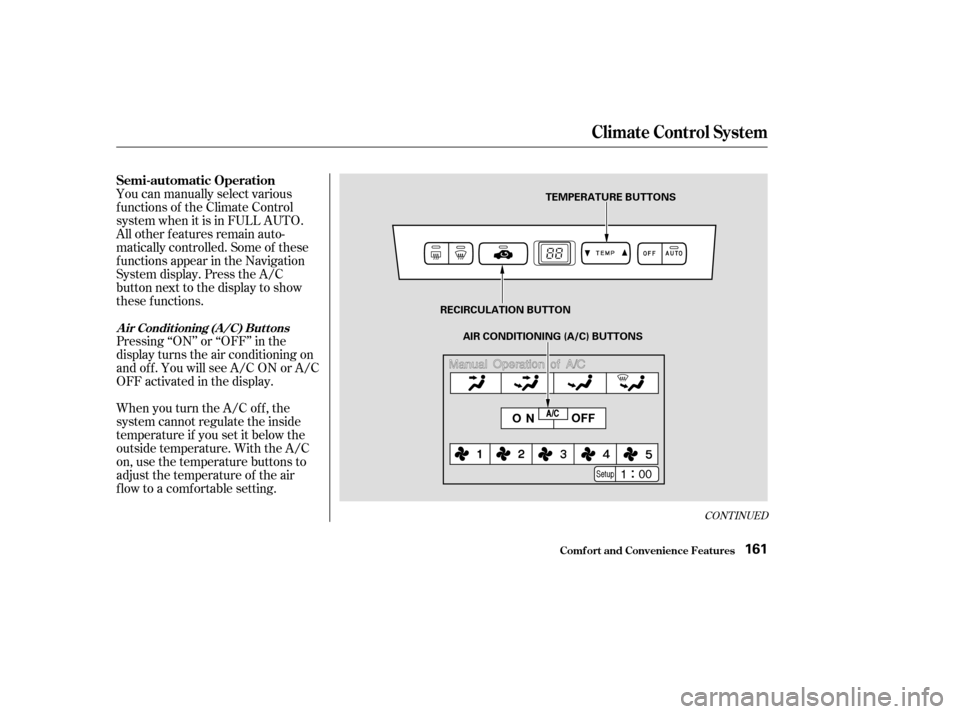

You can manually select various
f unctions of the Climate Control
system when it is in FULL AUTO.
All other f eatures remain auto-
matically controlled. Some of these
f unctions appear in the Navigation
System display. Press the A/C
button next to the display to show
these functions.
Pressing ‘‘ON’’ or ‘‘OFF’’ in the
display turns the air conditioning on
andoff.YouwillseeA/CONorA/C
OFF activated in the display.
When you turn the A/C of f , the
system cannot regulate the inside
temperature if you set it below the
outside temperature. With the A/C
on, use the temperature buttons to
adjust the temperature of the air
flow to a comfortable setting.
CONT INUED
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Semi-automatic Operation
A ir Condit ioning (A /C) But t ons
161
TEMPERATURE BUTTONS
RECIRCULATION BUTTON AIR CONDITIONING (A/C) BUTTONS

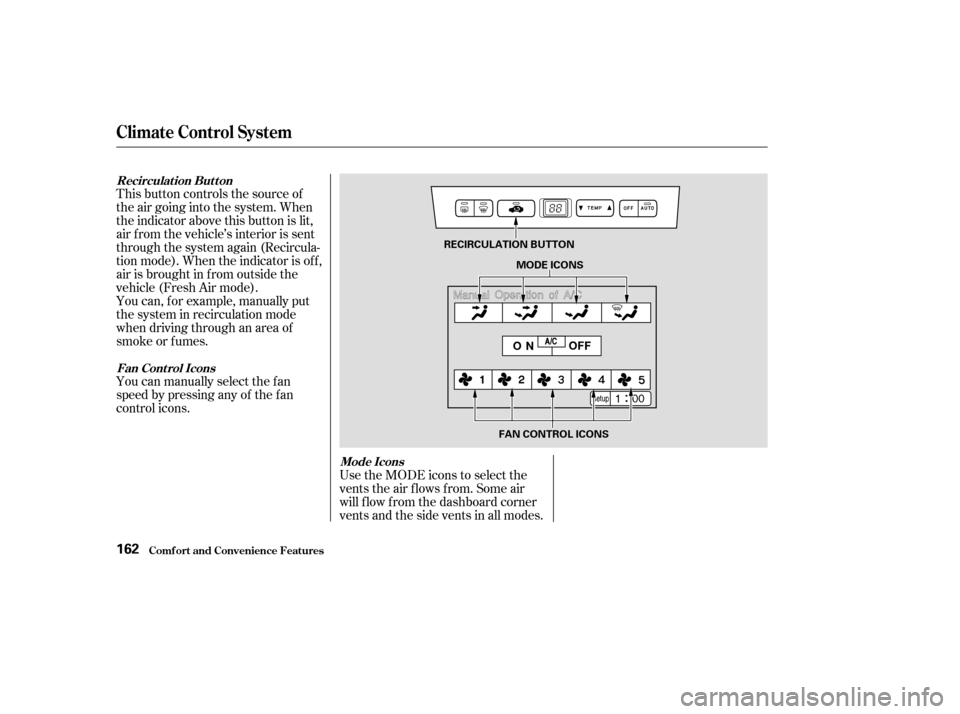

This button controls the source of
the air going into the system. When
the indicator above this button is lit,
air f rom the vehicle’s interior is sent
through the system again (Recircula-
tion mode). When the indicator is off,
air is brought in f rom outside the
vehicle (Fresh Air mode).
You can, f or example, manually put
the system in recirculation mode
when driving through an area of
smoke or f umes.
You can manually select the f an
speed by pressing any of the f an
control icons.Use the MODE icons to select the
vents the air flows from. Some air
will f low f rom the dashboard corner
vents and the side vents in all modes.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Recirculat ion But t on
Fan Cont rol Icons Mode Icons
162
RECIRCULATION BUTTONMODE ICONS
FAN CONTROL ICONS

CONT INUED

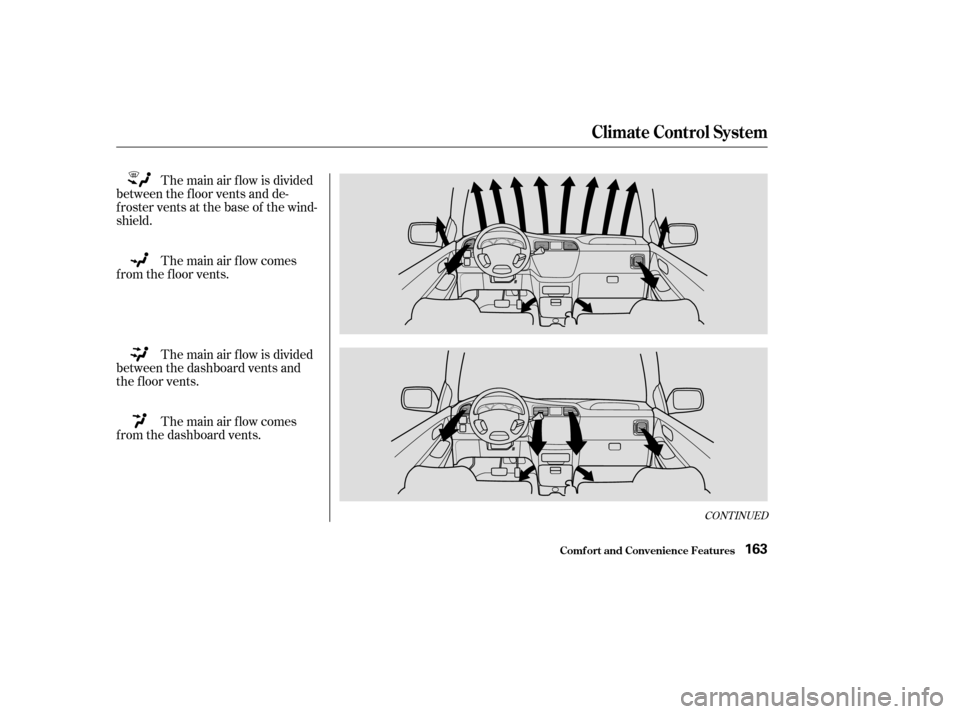

The main air f low is divided
between the f loor vents and de-
froster vents at the base of the wind-
shield.
The main air flow comes
f rom the f loor vents.
The main air f low is divided
between the dashboard vents and
the f loor vents.
The main air flow comes
f rom the dashboard vents.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures163

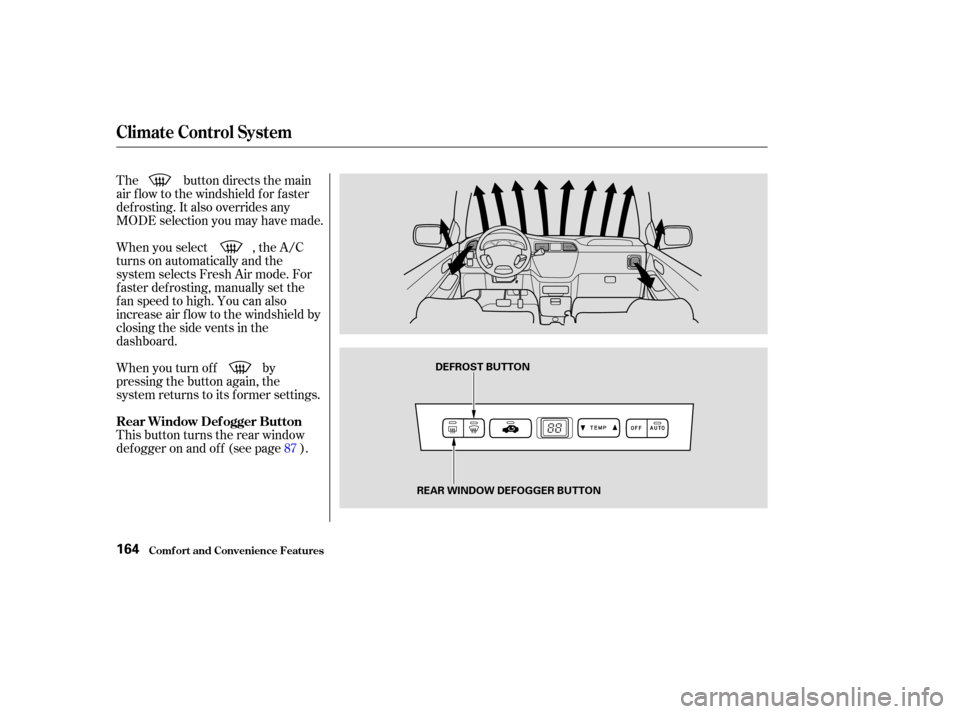

The button directs the main
air f low to the windshield f or f aster
def rosting. It also overrides any
MODE selection you may have made.
When you turn of f by
pressing the button again, the
system returns to its former settings. When you select , the A/C
turns on automatically and the
system selects Fresh Air mode. For
f aster def rosting, manually set the
fanspeedtohigh.Youcanalso
increase air f low to the windshield by
closing the side vents in the
dashboard.
This button turns the rear window
def ogger on and of f (see page ).87
Rear Window Def ogger Button
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures164
DEFROST BUTTON
REAR WINDOW DEFOGGER BUTTON

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is located
in the top of the dashboard and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them. Sunlight Sensor/T emperature
Sensor
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures165
SUNLIGHT SENSORTEMPERATURE SENSOR
