2003 HONDA INSIGHT Owners Manual

The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without af f ecting the metals.
The catalytic converter is ref erred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.
The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on f ire any
combustible materials that come
near it. Park your vehicle away from
high grass, dry leaves, or other
f lammables.The defective three way catalytic
converters contribute to air pollution,
and can impair your engine’s
perf ormance. Follow these
guidelines to protect your vehicle’s
three way catalytic converters. Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter inef f ective.
Keep the engine well maintained.
Have your vehicle diagnosed and
repaired if it is misf iring, back-
f iring, stalling, or otherwise not
running properly.
Three Way Catalytic Converter
T echnical Inf ormation
389

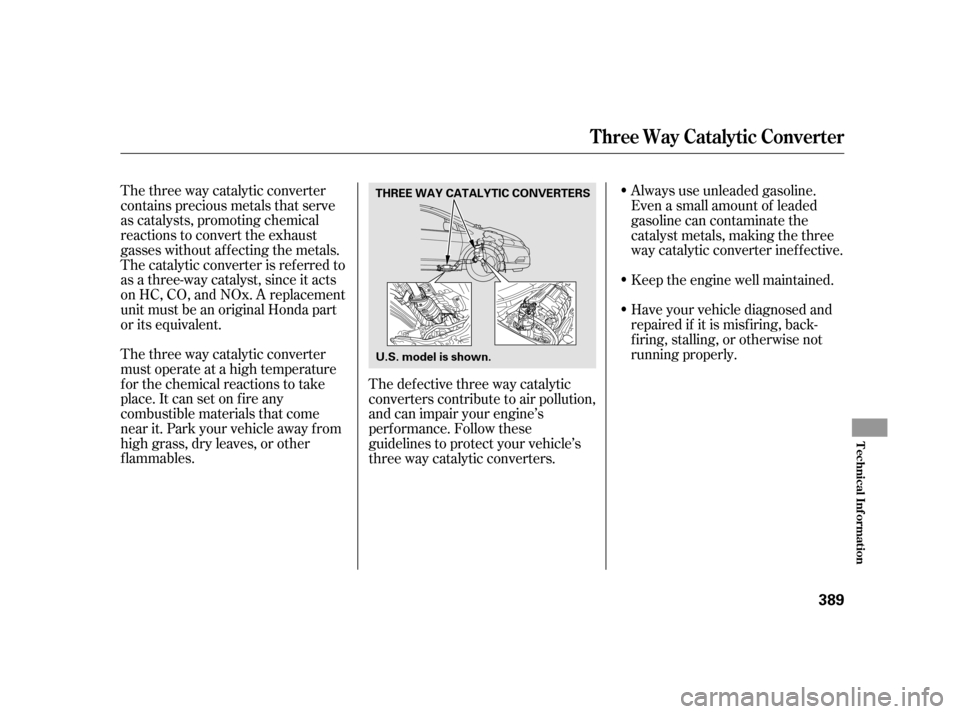

U.S. model is shown.
THREE WAY CATALYTIC CONVERTERS

If you take your vehicle f or an
emissions test shortly af ter the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics f or the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.Without touching the accelerator
pedal, start the engine, and let it
idle f or 20 seconds.
If the testing f acility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle retested within the
next two or three days, you can
condition the vehicle f or retesting by
doing the f ollowing.
Make sure the gas tank is nearly,
but not completely, f ull (around
3/4).
Make sure the vehicle has been
parked with the engine of f f or 6
hours or more.
Make sure the ambient
temperature is between 40° and
95°F (4° and 35°C). Keep the vehicle in Park. Increase
the engine speed to 2,000 rpm, and
hold it there f or about 3 minutes.
Without touching the accelerator
pedal, let the engine idle f or 20
seconds.
1.
2.
3. 4.
5.
6.
T esting of Readiness Codes
Emissions T est ing
390

Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
(80to97km/h)foratleast20
minutes. Drive on the highway in
D. Do not use the cruise control.
When traffic allows, drive for 90
seconds without moving the
accelerator pedal. (Vehicle speed
may vary slightly; this is okay.) If
you cannot do this f or a
continuous 90 seconds because of
traf f ic conditions, drive f or at least
30 seconds, then repeat it two
more times (for a total of 90
seconds).Then drive in city/suburban
traffic for at least 10 minutes.
When traf f ic conditions allow, let
the vehicle coast f or several
seconds without using the
accelerator pedal or the brake
pedal.
Make sure the vehicle has been
parked with the engine of f f or 30
minutes.
If the testing f acility determines the
readiness codes are still not set, see
your dealer.
7.
8.
9.
Emissions T est ing
T echnical Inf ormation
391

The f ollowing products and systems
on your vehicle emit radio waves
when in operation.
HandsFreeLink
Immobilizer System
Remote Transmitter
Tire Pressure Monitoring
System (TPMS)
Each of the above complies with the
appropriate requirements or the
required standards of FCC (Federal
Communications Commission) and
Industry Canada Standard, described
as f ollows:
Bluetooth As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-Gen/210/310.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence, includinginterf erence that may cause undesiredoperation of the device.
DevicesthatEmitRadioWaves
392

....
Customer Service Inf ormation . 394
....................
Warranty Coverages .395
.............
Reporting Saf ety Def ects . 396
.....................
Authorized Manuals .397
Warranty and Customer Relations
Warrant y and Cust omer Relat ions
393

Honda dealership personnel are
trained prof essionals. They should
be able to answer all your questions.
If you encounter a problem that your
dealership does not solve to your
satisf action, please discuss it with
the dealership’s management. The
service manager or general manager
can help. Almost all problems are
solved in this way.
If you are dissatisf ied with the
decision made by the dealership’s
management, contact Honda
Customer Service.
U.S. Owners:Canadian Owners:
When you call or write, please give
us this inf ormation:
Vehicle Identif ication Number
(see page )
Name and address of the dealer
who services your vehicle
Date of purchase
Odometer reading of your vehicle
Your name, address, and tele-
phone number
A detailed description of the
problem
Name of the dealer who sold the
vehicle to you
In Puerto Rico and the U.S. Virgin
Islands:
378
Cust omer Service Inf ormat ion
394
American Honda Motor Co., Inc.
Honda Automobile Customer Service
Mail Stop 500-2N-7A
1919 Torrance Boulevard
Torrance, California 90501-2746
Tel: (800) 999-1009Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-Mail: [email protected]
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-7546

µ
µ
µ
µ µ
µ
µ
µ
Your new vehicle is covered by these
warranties:
provides
coverageforaslongasthepur-
chaser of the muf f ler owns the
vehicle. provides prorated
coverage f or a replacement battery
purchased f rom your dealer.
a seat
belt that f ails to f unction properly is
covered by a limited warranty.
Please read your warranty booklet
f or details.
covers all Honda
replacement parts against defects in
materials and workmanship. Honda accessories are covered
under this warranty. Time and
mileage limits depend on the type of
accessory and other factors. Please
read your warranty booklet f or
details. all exterior body panels are
covered f or rust-through f rom the
inside f or the specif ied time period
with no mileage limit.
covers your new vehicle, except f or
the emissions control systems and
accessories, against def ects in
materials and workmanship.
these two
warranties cover your vehicle’s
emissions control systems. Time,
mileage, and coverage are
conditional. Please read your
warranty booklet f or exact
inf ormation.
Please ref er to the 2013 warranty
manual that came with your vehicle. Restrictions and exclusions apply to
all these warranties. Please read the
2013 Honda warranty inf ormation
booklet that came with your vehicle
f or precise inf ormation on warranty
coverages. Your vehicle’s original
tires are covered by their
manuf acturer. Tire warranty
inf ormation is in a separate booklet.
Warranty Coverages
U.S. Owners
Canadian Owners
Replacement Muf f ler L if et imeLimited Warranty
Replacement Bat t ery L imit ed
Warranty
Seat Belt Limited Warranty
Replacement Part s L imit edWarranty
Accessory Limited Warranty
Rust Perf orat ion L imit ed Warrant y
New Vehicle L imit ed Warrant y
Emissions Cont rol Syst ems Def ect sWarrant y and EmissionsPerf ormance Warranty
Warrant y and Cust omer Relat ions
395

If you believe that your vehicle has a def ect which
could cause a crash or could cause injury or death, you
should immediately inf orm the National Highway
Traf f ic Saf ety Administration (NHTSA), in addition to
notif ying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in
a group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or
American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety
Hotline toll-f ree at 1-888-327-4236
(TTY: 1-800-424-9153); go to; or write to: Administrator,
NHTSA, 1200 New Jersey Avenue, SE., Washington,
DC 20590.
You can also obtain other inf ormation about motor
vehicle safety from .If you believe that your vehicle has a def ect which could
cause a crash or could cause injury or death, you should
immediately inf orm Honda Canada Inc. and you may also
inform Transport Canada.
To contact Transport Canada’s Def ect Investigations and
Recalls Division, you may call 1-800-333-0510. For more
inf ormation on reporting saf ety def ects or about motor
vehicle saf ety, go to
.
If Transport Canada receives similar complaints, it may
open an investigation, and if it f inds that a saf ety def ect
exists in a group of vehicles, it may lead to a recall and
remedy campaign. However, Transport Canada cannot
become involved in individual problems between you,
your dealer, or Honda Canada Inc.
Reporting Saf ety Def ects
In the US
In Canada
396
http://www.saf ercar.gov
http://www.saf ercar.gov http://www.tc.gc.ca/roadsaf ety
