2003 HONDA INSIGHT Owners Manual

When the door is unlocked, you can
seetheredindicatoronthelocktab
above the inner door handle.You can customize the door lock/
unlock settings (see page ). All doors and the hatch can be
locked f rom the outside by using the
key in the driver’s door. To unlock
only the driver’s door, insert the key,
turn it clockwise, and release it. The
remaining doors and the hatch
unlock when you turn the key a
second time within a f ew seconds.
To lock all doors and the hatch, push
the front of the master door lock
switch on the driver’s door, pull the
locktabrearwardonthedriver’s
door, or use the key on the outside
lock on the driver’s door.
Pushing the rear of the master door
lock switch will unlock all doors and
the hatch. Pushing f orward the lock
tab on the driver’s door unlocks only
that door. The lock tab on each passenger’s
door locks and unlocks that door.
108
CONT INUED
Door L ocks
Inst rument s and Cont rols
133
Lock
Unlock LOCK TAB
MASTER DOOR LOCK SWITCH
To unlock
To lock

The childproof door locks are
designed to prevent children seated
in the rear f rom accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position (lever is
down), the door cannot be opened
f rom the inside regardless of the
position of the lock tab. To open the
door, push the lock tab f orward and
use the outside door handle.
To lock any passenger’s door when
getting out of the vehicle, pull the
lock tab rearward and close the door.
To lock the driver’s door, remove the
key f rom the ignition switch, pull the
locktabrearwardorpushthefront
of the master switch, then close the
door.
When the vehicle speed reaches
about 10 mph (U.S.)/15 km/h
(Canada) or more, all the doors and
the hatch lock automatically.
When you shif t to P af ter driving, the
driver’s door unlocks.
If you f orget and leave the key in the
ignition switch, lockout prevention
will not allow you to lock the driver’s
door. With any door or the hatch
open and the key in the ignition
switch, locking with master door
lock switch is disabled. If the driver’s
door is closed, the lock tab on the
driver’s door is not disabled. Pulling
the driver’s lock tab rearward will
lock all doors and the hatch. If you
try to lock an open driver’s door by
pulling the lock tab rearward, the
driver’s door lock tab pops out and
unlocks the driver’s door.
Def ault setting
L ockout Prevent ion
Childproof Door L ocks
Door L ocks
134
Unlock
Lock
LEVER

µµ
The ceiling light and the door
activated spotlights come on when
you press the UNLOCK button if the
lights are in the door activated
position. If you do not open any door
or the hatch within 30 seconds (or
whatever setting of the interior light
dimming time is set to), the light(s)
will f ade out. If you relock the doors
and the hatch with the remote
transmitter before 30 seconds have
elapsed, the light(s) will go of f
immediately.
To change the lock/unlock setting
and the relock timer setting, refer to
the customized settings on page . The keyless lock acknowledgment
beep and f lashing of the lights can
be deactivated (see page ).
Press this button once to
lock all doors and the hatch. Some
exterior lights will f lash once. When
you press LOCK twice within 5
seconds, the horn will sounds to
verif y that the doors are locked. You
cannot lock the doors if any door or
the hatch is not f ully closed or if the
key is in the ignition switch. If you press the LOCK button twice
within 5 seconds, you will hear a
horn to verify that the security
system has set.
Press this button once
to unlock the driver’s door (or all the
doors and the hatch depending on
the door lock setting). Press it twice
to unlock the remaining doors and
the hatch. Some exterior lights will
f lash twice when you press the
button the first time.
If you do not open any door or the
hatch within 30 seconds, they will
automatically relock, and the
security system (if equipped) will
reset. 114
108
CONT INUED
On LX and EX models
LOCK UNL OCK
Remote Transmitter
Inst rument s and Cont rols
135
LED
LOCK BUTTON
UNLOCK
BUTTON PANIC
BUTTON

µAvoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperatures.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer. If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Battery type: CR1616
Press and hold this
button for about 1 second to attract
attention; the horn will sound, and
the exterior lights will f lash f or about
30 seconds. To cancel panic mode,
press any other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position. Panic
mode does not work when the key is
in the ignition switch.Remote Transmitter CareReplacing the Transmitter
Battery
PA NIC
Remote Transmitter
136

´
Be caref ul when removing
this screw as the head of the screw
can strip out. Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver.
Remove the old battery and note
the polarity. Make sure the
polarity of the new battery is the
same ( side f acing down), then
insert it in the keypad.
To replace the battery:
Separate the keypad from the
transmitter by pushing any button
f rom outside. Place a cloth on the edge of the
keypad to prevent scratches, and
remove the upper half by carefully
prying on the edge with a coin.
Snap the two halves of the keypad,
then install the parts in reverse
order.
1.
2. 3.
4.
5.
CONT INUED
Remote Transmitter
Inst rument s and Cont rols
137
NOTE:
SCREW BATTERY
COIN
KEYPAD

An improperly disposed of battery
can hurt the environment.
Always conf irm local regulations f or
battery disposal.This device complies with the
appropriate requirements or the
required standards. See page f or
more inf ormation.
392
Remote Transmitter
138

The hatch will lock or unlock when
you lock/unlock the driver’s door
with the key, the remote transmitter,
the master door lock switch, or the
locktabonthedriver’sdoor.
To unlock the hatch, turn the key
clockwise twice, push the rear of the
master door lock switch, or push
UNLOCK twice on the remote
transmitter.Keep the hatch closed at all times
while driving to avoid damaging the
hatch and to prevent exhaust gas
f rom getting into the interior. Seeon page
.
To open the hatch, push the release,
and lif t up. To close the hatch, use
thehandletolowerit,thenpress
down on the back edge.
56
Carbon Monoxide Hazard
Hatch
Inst rument s and Cont rols
139
INNER HANDLE
RELEASE

If the power door lock system cannot
unlock the hatch, unlock it manually.If you need to unlock the hatch
manually, it means there is a
problem with the hatch. Have the
vehicle checked by your dealer.

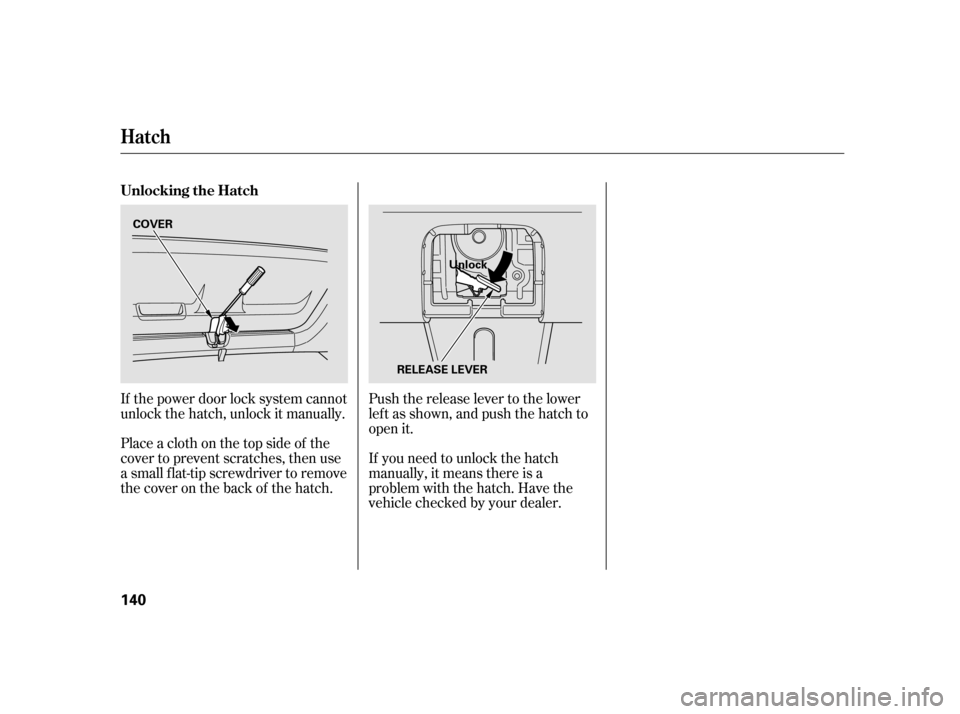

Placeaclothonthetopsideof the
cover to prevent scratches, then use
a small f lat-tip screwdriver to remove
the cover on the back of the hatch. Push the release lever to the lower
left as shown, and push the hatch to
open it.
Unlocking the Hatch
Hatch
140
Unlock
COVER
RELEASE LEVER
