2003 HONDA INSIGHT Owners Manual

ÛÝÛÝ

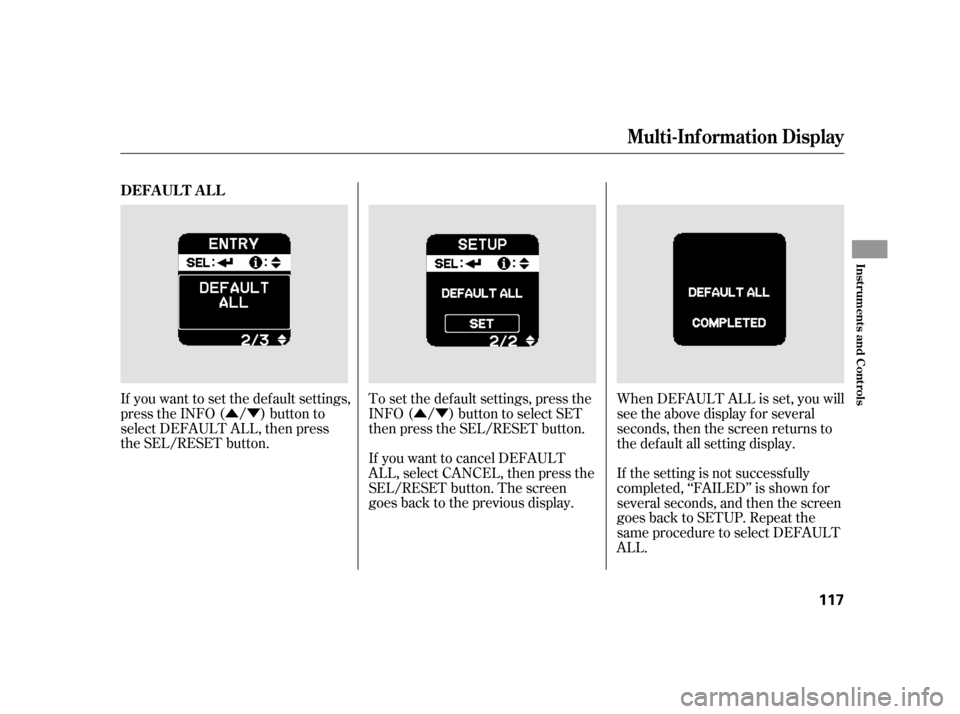

If you want to set the def ault settings,
press the INFO ( / ) button to
select DEFAULT ALL, then press
the SEL/RESET button.
If you want to cancel DEFAULT
ALL, select CANCEL, then press the
SEL/RESET button. The screen
goes back to the previous display. To set the def ault settings, press the
INFO ( / ) button to select SET
then press the SEL/RESET button.When DEFAULT ALL is set, you will
see the above display for several
seconds, then the screen returns to
the default all setting display.
If the setting is not successfully
completed, ‘‘FAILED’’ is shown f or
several seconds, and then the screen
goes back to SETUP. Repeat the
same procedure to select DEFAULT
ALL.
DEFA UL T A L L
Multi-Inf ormation Display
Inst rument s and Cont rols
117

Î
Î
Î
ÎÎ
Î Î
Î
Î Î
Î
Î
To use the horn, press the center pad of the steering wheel.
Only on vehicles equipped with navigation system. Ref er to the navigation system manual. If equipped
1:
2:
3:
Controls Near the Steering Wheel
118
HORN
EX model with navigation system is shown. HEADLIGHTS/TURN SIGNALS
REAR WINDOW DEFOGGER/
HEATED MIRROR
ACCESSORY POWER SOCKET
MULTI-INFORMATION
BUTTONS (P.76)
MULTI-INFORMATION BUTTONS (P.76)
REMOTE AUDIO
CONTROL BUTTONS
NAVIGATION SYSTEM VOICE
CONTROL BUTTONS (P.119)
(P.124) CRUISE CONTROL BUTTONS
INSTRUMENT PANEL BRIGHTNESS CONTROL KNOB WINDSHIELD
WIPERS/WASHERS
MIRROR CONTROLS
(P.147)
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH
STEERING WHEEL
ADJUSTMENTS (P.128)(P.126/
148)
NAVIGATION SYSTEM /
AUDIO SYSTEM
(P.120)
AUXILIARY INPUT JACK
(P.217)
(P.294)
BLUETOOTH
HANDS-FREE LINKSYSTEM VOICE CONTROL
BUTTONS (P.225) (P.218) (P.155)(P.168)
(P.222)1 2
2 2
2
3 2
3
2

µ
µ µ
µ µ
µ
µ
µ µ
Push the right lever up or down to
select a position.
The wipers run at high
speed until you release the lever.
The wipers are not activated. The wipers run at low speed.
The wipers run at high speed. Pull the
wiper control lever toward you, and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers The length of the wipe
interval is varied automatically
according to vehicle’s speed.
Vary the delay by turning the
adjustment ring. If you turn it to the
shortest delay ( position), the
wipers change to low speed
operation when the vehicle speed
exceeds 12 mph (20 km/h). The length of the wiper interval is
varied automatically according to the
vehicle’s speed.
1.
2.
3.
4.
5.
6.
EX models
MIST
OFF LO
HI
Windshield Washer
INT
Windshield Wipers and Washers
Inst rument s and Cont rols
119
ADJUSTMENT RING
EX model is shown.

Î
Î
Rotate the switch
counterclockwise also to spray the
window washer and turn the wiper
on.
Hold past ON to activate the rear
window wiper a f ew times and to
spray the rear window washer. Rotate the switch clockwise to
turn the rear window wiper ON.
The wiper operates every 7
seconds af ter completing two
sweeps. When you turn the wiper switch to
the ‘‘OFF’’ position, the wiper will
return to its parked position. OFF Therearwindowwasherusesthe
same f luid reservoir as the wind-
shield washer. When you shif t the transmission to
the reverse position with the f ront
windshield wiper activated, the rear
wiper operates automatically even if
the rear wiper switch is of f .
Turn Signal
OFF
Parking and interior lights
AUTO
Headlights on
High Beams
Flashhighbeams
4.
3. 1.
2. 1.
2.
3.
4.
5.
6.
7.
: EX models
Rear Window Wiper and Washer
Turn Signals and Headlights
Windshield Wipers and Washers, Turn Signals and Headlights
120

µµ µPush down on the
lef t lever to signal a lef t turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to the
center when you release it or
complete a turn. Turning the switch to
the ‘‘ ’’ position turns on the
parking lights, taillights, instrument
panel lights, side-marker lights, and
rear license plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights.
When the light switch is in the
‘‘ ’’ or ‘‘ ’’ position, the
lights on indicator comes on as a
reminder.
This indicator stays on if you leave
the lights on and turn the ignition
switch to the ACCESSORY (I) or
LOCK (0) position.
If you leave the lights on with the
key removed f rom the ignition
switch, you will hear a reminder
chime when you open the driver’s
door. Push the lef t lever
f orward until you hear a click. The
blue high beam indicator will come
on (see page ). Pull the lever back
to return to the low beams.
To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back. 69
Turn Signal
HeadlightsHigh Beams
Turn Signals and Headlights
Inst rument s and Cont rols
121

µThe automatic lighting f eature is
controlledbyasensorlocatedontop
of the dashboard. Do not cover this
sensor or spill liquids on it.
The automatic lighting
f eature turns on the headlights, all
other exterior lights, and the
instrument panel lights when it
senses low ambient light.
To turn on the automatic lighting,
turn the light switch to the AUTO
position. The lights will come on
automatically when the outside light
level becomes low (at dusk, f or
example). The lights on indicator
comesonasareminder.Thelights
and indicator turn off automatically
when the system senses high
ambient light.
The lights turn of f automatically
when you turn the ignition switch to
the LOCK (0) position. To turn them
on again, either turn the ignition
switch to the ON (II) position, or
turn the light switch to the position. Even with the automatic lighting
f eature turned on, we recommend
thatyouturnonthelightsmanually
when driving at night or in a dense
f og, or when you enter dark areas
such as long tunnels or parking
f acilities.
To change the ‘‘AUTO LIGHT
SENSITIVITY’’ setting, see page
.
106
On EX models
AUTO
Headlights
122
LIGHT SENSOR

With the headlight switch of f or in
the position, the high beam
headlights and the high beam
indicator come on with reduced
brightness when you turn the
ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch of f , even if you
set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem with the daytime running
light system. Take your vehicle to a
dealer to have it checked.
Daytime Running L ights
Headlights
Inst rument s and Cont rols
123

To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to theor position. Turning the
knob to the right until you hear a
tone will cancel the reduced
brightness.
The instrument panel will illuminate
with reduced brightness when you
unlock and open the driver’s door.
The brightness will increase slightly
when you insert the key in the
ignitionswitch,thengotonormal
brightness when you turn the
ignition switch to the ON (II)
position.
The knob on the instrument panel
controls the brightness of the
instrument panel lights. Turn the
knob to adjust the brightness with
the ignition switch in the ON (II)
position and the parking lights on. When you turn the knob, the multi-
inf ormation display changes to
vertical bars that show you the
current level.
You will hear a tone when you reach
the maximum or minimum
brightness. The brightness level
goes out about 5 seconds af ter you
stop adjusting.
Instrument Panel Brightness
124
INSTRUMENT PANEL BRIGHTNESS
CONTROL KNOB
BRIGHTNESS LEVEL
