2003 HONDA CIVIC Ignition switch

I
I
DTC 11-5: Short to Ground in Driver's Side
Airbag Inflator
Special Tools Required. SRS inflator simulator 07SM-T84011A' SRS simulator lead E o7XAZ-S140200
'1. Erase the DTC memory {see page 23-26).
2. Turn the ignition switch ON {ll), and check that the
SRS indicator comes on for about 6 seconds and
then goes off.
Does the SRS indicator stay on?
YES Go to step 3.
NO Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures (see
page 23-261.
3. Turn the ignition switch OFF. Disconnect the
battery negative cable, and wait for 3 minutes.
4. Disconnect the floor wire harness 2P connector (A)
from the driver's side airbag.
07saz-TB,r011A
Connect the SRS inflator simulator (2 Q connector)
and simulator lead E to the floor wire harness.
Reconnect the battery negative cable.
Erase the DTC memory.
6.
7.
I
8. Read the DTC.
ls DTC 11-5 ind icated?
YES Go to step 9.
NO Short to ground in the driver's side airbag
inflator; replace the driver's side airbag (see page
23-115).t
9. Turn the ignition switch OFF. Disconnect the
battery negative cable, and wait for 3 minutes.
10. Disconnect the front passenger's side airbag 2P
connector (see step 4 on page 23-21)and both seat
belt buckle tensioner 4P connectors (see step 6 onpage 23-221.
11. DisconnectSRS unitconnectorB (18P)fromthe
SRS unit (see step 7 on page 23-22).
'12. Check resistance between the No. 17 and No. 15
terminals of SRS unit connector B (18P). and
between the No. '17 and No. 16 terminals. Then
check resistance between the No. 17 terminal and
body ground. There should be an open circuit, or at
least 1 M 0.
SRS UNIT CONNECTOR B I18P)
WHT/BLK
Wire side of female terminals
ls the resistance as specified?
YES Faulty SRS unit; replace the SRS unit (see
page 23-122).a
NO-Short to ground in the floor wire harness;
replace the floor wire harness.I
23-85

sRs
DTC Troubleshooting (cont'd)

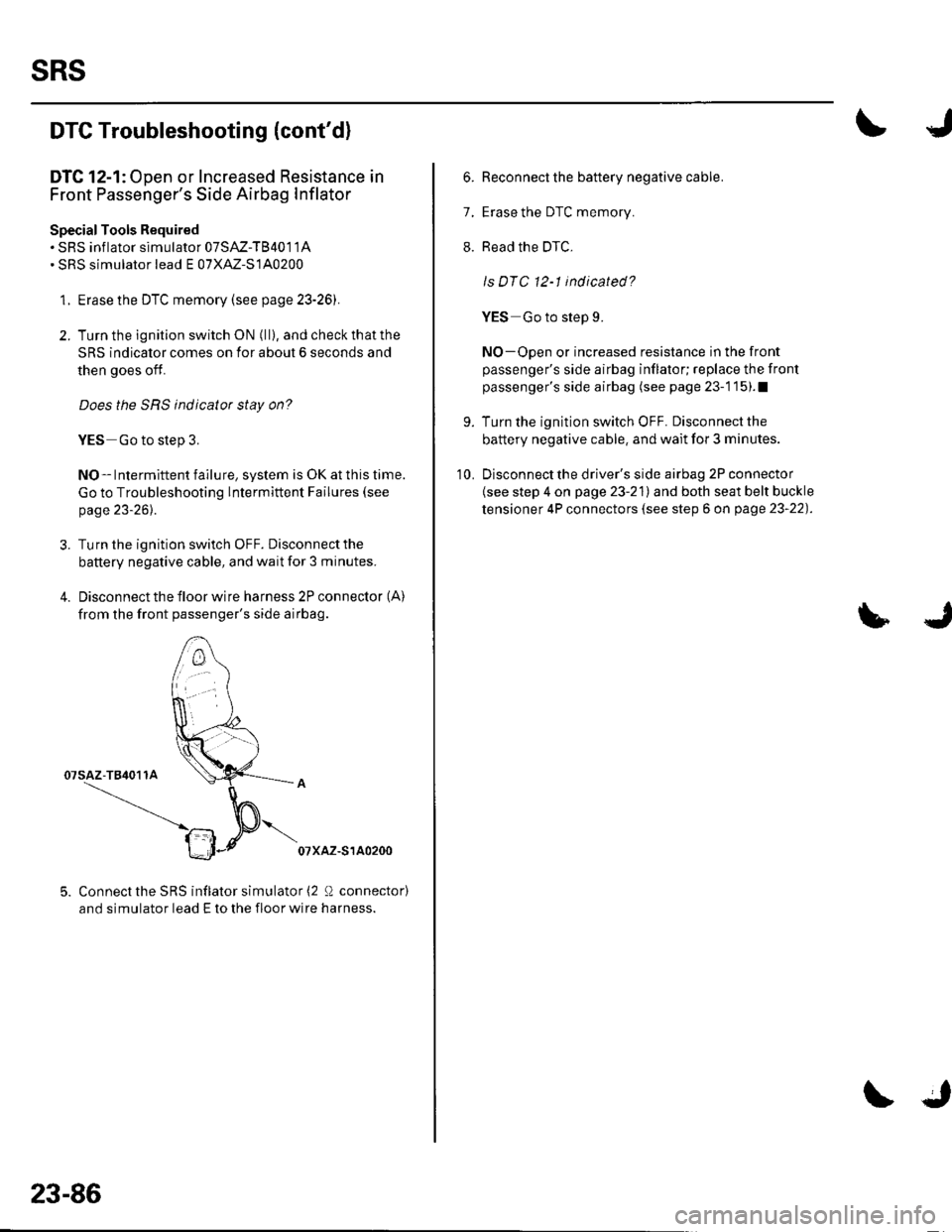

DTG 12-1: Open or Increased Resistance in
Front Passenger's Side Airbag Inflator
SpecialTools Required. SRS inflator simulator 07SAZ-T84011A. SRS simulator lead E o7XAZ-S140200
1. Erase the DTC memory (see page 23-26).
2. Turn the ignition switch ON (ll), and check that the
SRS indicator comes on for about 6 seconds and
then goes off.
Does the SBS indicator stay on?
YES Go to step 3.
NO - Intermittent failu re, system is OK at this time.
Go to Troubleshooting lntermittent Failures (see
page 23-26).
3. Turn the ignition switch OFF. Disconnectthe
battery negative cable, and wait for 3 minutes.
4. Disconnect the floor wire harness 2P connector (A)
from the front passenger's side airbag.
07xAz-s1A0200
5. Connect the SRS inflator simulator (2 Q connector)
and simulator lead E to the floor wire harness.
23-86
IJ
7.
'1 0.
9.
Reconnect the battery negative cable.
Erase the DTC memory.
Read the DTC.
ls DTC 12-l indicated?
YES Go to step L
NO-Open or increased resistance in the front
passenger's side airbag inflator; replace the front
passenger's side airbag (see page 23-1 15).1
Turn the ignition switch OFF. Disconnect the
battery negative cable. and wait for 3 minutes.
Disconnect the driver's side airbag 2P connector
{see step 4 on page 23-21)and both seat belt buckle
tensioner 4P connectors (see step 6 on page 23-22).

I
1't .
12.

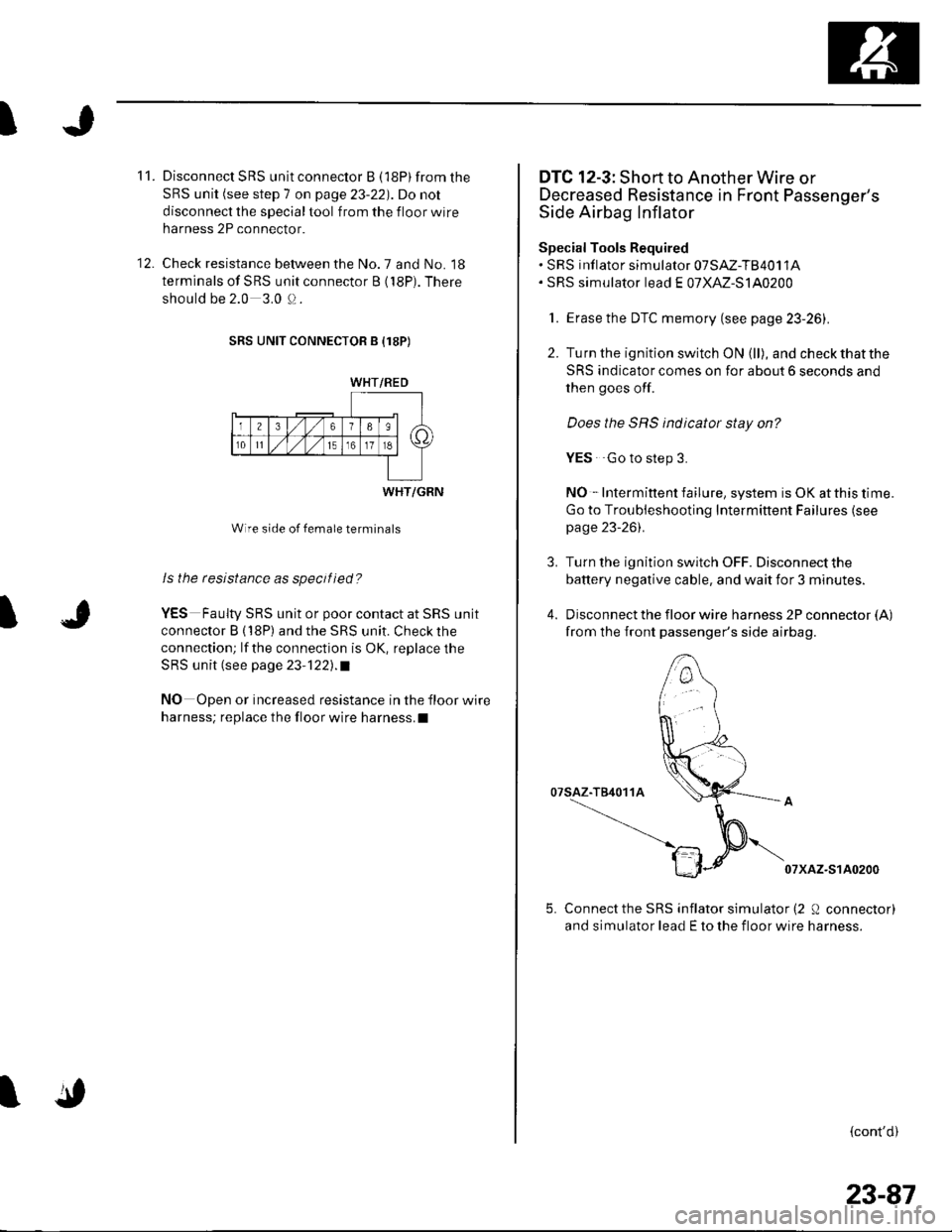

Disconnect SRS unit connector B ('l8P) from the
SRS unit (see step 7 on page 23-22). Do not
disconnect the special tool from the floor wire
harness 2P connector.
Check resistance between the No.7 and No. 18
terminals ofSRS unitconnector B (18P). There
should be 2.0 3.0 (J.
SRS UNIT CONNECTOR B {18P)
WHT/GRN
Wire side of female terminals
ls the resistance as specified?
YES Faulty SRS unit or poor contact at SRS unit
connector B ( l8P) and the SRS unit. Check the
connection; lf the connection is OK, replace the
SRS unit (see page 23-1221.a
NO Open or increased resistance in the floor wire
harness; replace the floor wire harness.I
I
WHT/RED
DTC 12-3: Short to Another Wire or
Decreased Resistance in Front Passenger's
Side Airbag Inflator
SpecialTools Required. SRS inflator simulator 07SAZ-T84011A. SRS simulator lead E o7XAZ-S140200
1. Erase the DTC memory (see p age 23-261.
2. Tu rn the ignition switch ON (ll), and check that the
SRS indicator comes on for about 6 seconds and
then goes off.
Does the SRS indicator stay on?
YES Go to step 3.
NO - Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures (see
page 23-26).
Turn the ignition switch OFF. Disconnect the
battery negative cable, and wait for 3 minutes.
Disconnect the floor wire harness 2P connector (A)
from the front passenger's side airbag.
4.
07xAz-s1A0200
5. Connect the SRS inflator simulator (2 0 connector)
and simulator lead E to the f loor wire harness.
(cont'd)
23-87

sRs
DTC Troubleshooting (cont'dl
6. Reconnect the battery negative cable.
7, Erase the DTC memory.
8. Read the DTC.
ls DTC 12-3 indicated?
YES-Go to step I
NO Short to another wire in the front passenger's
side airbag inflator; replace the front passenger's
side airbag (see page 23-ll5).1
9. Turn the ignition switch OFF. Disconnect the
battery negative cable, and wait for 3 minutes.
10. Disconnect the driver's side airbag 2P connector
(see step 4 on page 23-21) and both seat belt buckle
tensioner 4P connectors (see step 6 on page 23-22).
'!1. Disconnect the specialtoolfrom the floor wire
harness 2P connector.
12. Disconnect SRS unit connector B ('lSPlfrom the
SRS unit {see step 7 on page 23-221.
13. Check resistance between the No.7 and No. 18
terminals of sRS unit connector B (18P). There
should be an open circuit, or at least 1 M 0.
SRS UNIT CONNECTOR B I18P)
WHT/RED
-r-'r-Jl' 8lel n
i['tl,Bl S-T
236
10ll15
WHT/GRN
Wire side of {emale terminals
ls the resistance as specilied?
YES Faulty SRS unit; replace the SRS unit {seepage 23-1221.a
NO Short to anolher wire in the f loor wire
harness; replace the floor wire harness.I
23-88
\.J
DTC 12-4: Short to Power in Front Passenger's
Side Airbag Inf lator
Special Tools Required. sRS inflator simulator 07sAz-TB4011A. SRS simulator lead E 07XM-S140200
1. Erase the DTC memory (see page 23-26).
2. Turn the ignition switch ON (ll), and check thatthe
SRS indicator comes on for about 6 seconds and
then goes off.
Does the SRS indicator stay on?
YES-Go to step 3.
NO- Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures {see
page 23-26).
3. Turn the ignition switch OFF. Disconnect the
banery negative cable, and wait for 3 minutes.
4. Disconnect the floor wire harness 2P connector (A)
from the front passenger's side airbag.
07xAz-s1A0200
5. Connect the SRS inflator simulator (2 Q connector)
and simu lator lead E to the floor wire harness.

\

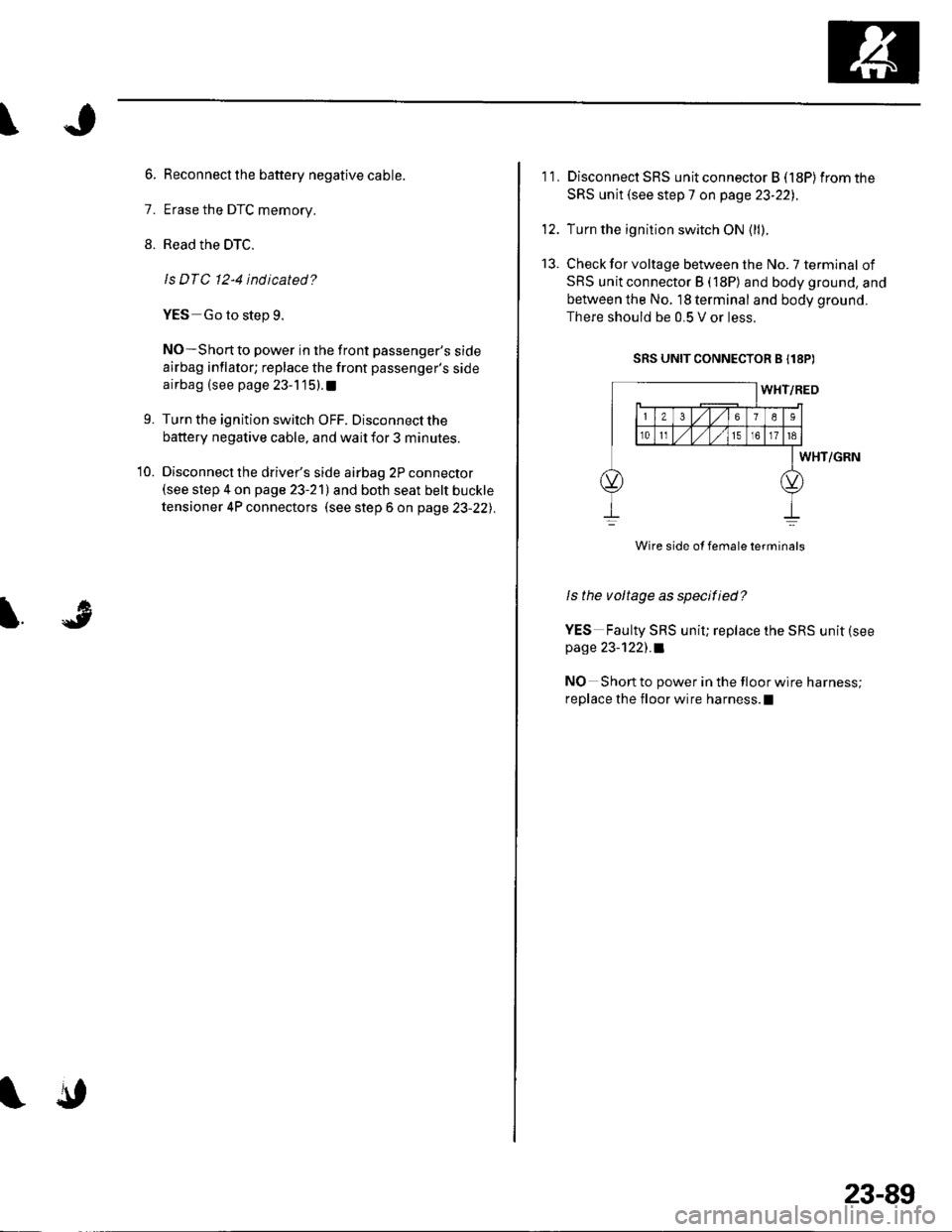

6. Reconnect the battery negative cable.
7. Erase the DTC memory.
8. Read the DTC.
ls DTC 12-4 indicated ?
YES Go to step 9.
NO-Short to power in the front passenger's side
airbag inflator; replace the front passenger's side
airbag (see page 23-115). t
9. Turn the ignition swilch OFF. Disconnectthe
battery negative cable, and wait for 3 minutes.
'10. Disconnect the driver's side airbag 2P connector(see step 4 on page 23-21) and both seat belt buckle
tensioner 4P connectors (see step 6 on page 23-22l,.
t
11.Disconnect SRS unit connector B (18P) from the
SRS unit (see step 7 on page 23-221.
Turn the ignition switch ON (ll).
Check for voltage between the No. 7 terminal of
SRS unit connector B ( l8P) and body ground, and
between the No. 18 terminal and body ground.
There should be 0.5 V or less.
SRS UNIT CONNECTOR B I18P)
WHT/GRN
ls the voltage as specified?
YES Faulty SRS unil; replace the SRS unit (see
page 23-1221 .a
NO Short to power in the floor wire harness;
replace the floor wire harness.l
1?
13.
23-89

sRs
DTC Troubleshooting (cont'dl
DTC 12-5: Short to Ground in Front
Passenger's Side Airbag Inflator
SpecialTools Required. SRS inflator simulator 07SAZ-T84011A. SRS simulator lead E o7XAZ-S140200
1. Erase the DTC memory (see page 23-26).
2. Turn the ignition switch ON (ll), and check that the
SRS indicator comes on for about 6 seconds and
then goes off.
Does the SRS indicator stay on?
YES-Go to step 3.
NO Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures (see
page 23-261.
3. Turn the ignition switch OFF. Disconnectthe
battery negative cable, and wait for 3 minutes.
4. Disconnect the floor wire harness 2P connector (A)
from the front passenger's side airbag.
07xAz-s1A0200
5. Connect the SRS inflator simulator (2 Q connector)
and simulator lead E to the floor wire harness.
23-90
.t
6. Reconnectthe battery negative cable.
7. Erase the DTC memory.
8. Read the DTC.
ls DTC 12-5 indicated?
YES Go to step 9.
NO-Short to ground in the front passenger's side
airbag inflator; replace the front passenger's side
airbag (see page 23-1 15).1
9. Turn the ignition switch OFF. Disconnect the
battery negative cable, and wait for 3 minutes.
10, Disconnectthe driver's side airbag 2P connector
(see step 4 on page 23-211 and both seat belt buckle
lensioner 4P connectors (see step 6 onpage23-22).
11. Disconnect SRS unit connector B (18P)from the
SRS unit (see step 7 on page 23-22).
12. Check resistance between the No. 15 and No. 18
terminals of SRS unit connector B (18P) and
between the No. 16 and No. 18 terminals. Then
check resistance between the No. 18 terminal and
body ground. There should be an open circuit, or at
least 1 M Q.
{
SRS UNIT CONNECTOR B {18PI
23678
1011t6171E
LT GRN/REDdi 116\l9Y9
GRY/RED
o
Wire side of female terminals
WHT/GRN
ls the resistance as specified?
YES Faulty SRS unit; replace the SRS unit (see
page 23-1221.a
NO-Short to ground in the floor wire harness;
replace the floor wire harness.l
I

)
)
DTC 13-3: No Signal from the Driver's Side
lmpact Sensor
Special Tools Required. sRs inflator simularor 07SAZ-TB4011A. SRS simulator lead H 07YM-S3AA100
1. Erasethe DTC memory (see p age 23-261.
2. Turn the ignition switch ON (ll), and check that the
SRS indicator comes on for about 6 seconds and
then goes off.
Does the SRS indicator stay on?
YES - Go to step 3.
NO Intermittent failure, system is OK at this time.
Go to Troubleshooting lntermittent Failures (see
page 23-261.
3. Turn the ignition switch OFF. Disconnect the
battery negative cable, and wait for 3 minutes.
4. Check the connection between the floor wire
harness 2P connector and the driver's side impact
sensor.
ls the connection OK?
YES Go to step 5.
NO-Replace the driver's side impact sensor and/
or the floor harness, as needed. I
)
5. Disconnectthe driver's side airbag and frontpassenger's side airbag 2P connectors (see step 4
on page 23-21). Also disconnect both seat belt
buckle tensioner 4P connectors (see step 6 on page
23-22).
6. Disconnect the floor wire harness 2P connector {A}from the driver's side impact sensor.
07sAz-TB4011A
7. Connect the SRS inflator simulator (2 Q connector)
and simulator lead H to the floor wire harness.
(cont'd)
23-91

sRs
DTC Troubleshooting {cont'd)
8. Disconnect SRS unit connector B ( 18P) from the
SRS unit (see step 7 on page 23-221.
9. Check resistance between the No. 8 and No. 15
terminals of sRS unit connector B ('l8P). There
should be 0 1.0 Q.
SRS UNIT CONNECTOR B I18P)
BRN/YEL
I:fr;f;l n3
10tlllro lrz lrs | \
LT GRN/RED
Wire side of temale terminals
Is the resistance as specitied?
YES Faulty driver's side impact sensor or SRS
unit; replace lhe driver's side impact sensor (see
page 23-123). lf the problem is still present, replace
the SRS unit (see page 23-122).1
NO Open in the floor wire harness; replace the
floor wire harness.l
23-92
DTC 13-4: Faulty Power Supply to the Driver's
Side lmpact Sensor
1. Erase the DTC memory {see page 23-261.
2. Turn the ignition switch ON (ll), and check that the
SRS lndicator comes on for about 6 seconds and
then goes off.
Does the SRS indicator stay on?
YES Go to step 3.
NO-lntermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures (see
page 23-26).
3. Turn the ignition switch OFF. Disconnectthe
battery negative cable, and wait for 3 minutes.
4. Disconnect the driver's side airbag and front
passenger's side airbag 2P connectors (see step 4
on page 23-21). Also disconnect both seat belt
buckle tensioner 4P connectors (see step 6 on page
23-22).
