2003 HONDA CIVIC Circuit

I
g]
3
1 1. Check resistance between the No. 2 terminal of the
floor wire harness 3P connector and body ground.
There should be an open circuit. or at least 1 fvl Q ,
FLOOR WIRE HARNESS 3P CONNECTOR
Wire side ot temale terminals
ls the resistance as specified?
YES-Go to step 12.
NO Short to ground in the floor wire harness or
multiplex control unit. Replace the faulty harness or
part.I
Check resistance between the No. 3 terminal of the
floor wire harness 3P connector and body ground.
There should be an open circuit, or at least 1 M Q.
FLOOR WIRE HARNESS 3P CONNECTOR
LT GRN
Wire side of female terminals
ls the resistance as specified?
YES Go to step 13.
NO-Short to ground in the floor wire
replace the floor wire harness.I
12.
13. Check resistance between the No. 8 terminal of
SRS unit connector C (8P) and the No. 3 terminal of
the floor wire harness 3P connector. There should
be0 1Q.
FLOORWIRE HARNESS SRS UNITCONNECTORC I8P}3P CONNECTOB
Wire side of female terminals
ls the resistance as specitied?
YES Go to step 14.
NO Open in the floor wire harness; replace the
floor wire harness.l
Check resistance between the No. 4 terminal of
SRS unit connector C (8P) and the No. 2 terminal of
the floor wire harness 3P connector. There should
be0-1 0.
14.
FLOOR WIRE HARNESS3P CONNECTORSRS UNIT CONNECTOR C IsPI
Wire side of female terminals
ls the resistance as specified?
YES Replace the SRS unit (see page 23-122).1
NO Open in the floor wire harness or multiplex
control unit, or poor connection at the floor wire
harness, the under-dash fuse/relay box, and the
multiplex control unit. Check the connection at the
floor wire harness, the under-dash fuse/relay box,
and the multiplex control unit. lf the connection is
OK, replace the faulty harness or part.l
harness;
23-73

SRS
DTC Troubleshooting (cont'dl
DTC 9-4: Faulty Front Passenger's Seat Belt
Buckle Switch
1. Erase the DTC memory {see page 23-26).
2. Turn the ignition switch ON {ll), then buckle and
unbuckle the front passenger's seat belt several
times.
3. Read the DTC.
ls DTC 9-4 indicated?
YES-Go to step 4.
NO Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermiftent Failures {seepage 23-26)'.
4. Turn the ignition switch OFF.
5. Disconnect the front passenger's seat belt buckle
switch 3P connector (A) from the floor wire harness.
23-74
J
6. Buckle the front passenger's seat belt.
Check resistance between the No. 1 and No.3
terminals of the front passenger's seat belt buckle
switch 3P connector. There should be 0- 1 Q.
Check resistance between the No. 1 and No.2
terminals of the same connector. There should be
an ooen circuit, or at least 1 M Q .
FRONT PASSENGER'S SEAT BELTBUCKLE SWITCH 3P CONNECTOR
BLU/RED
Terminal side of male terminals
Terminal side of male terminals
Is the rcsistance as specified?
YES-Go to step 7.
NO Replace the front passenger's seat belt buckle
assembly, then clear the DTC.I

7. Unbuckle the front passenger's seat belt.
Check resistance between the No. 1 and No. 2
terminals of the front passenger's seat belt buckle
switch 3P connector. There should be 0 1!).
Check resistance between the No. 1 and No. 3
terminals of the same connector. There should be
an oDen circuit, or at least 1 M Q
FRONT PASSENGER'S SEAT BELTBUCKLE SWITCH 3P CONNECTOR
Terminal side of male terminals
Terminal side of male terminals
ls the resistance as specilied?
YES Go to step 8.
NO-Replace the front passenger's seat belt buckle
assembly, then clear the DTC.I
9.
10.
8. Check resistance between the No. 1 terminal ofthe
floor wire harness 3P connector and body ground.
There should be 0 1Q.
FLOOR WIRE HARNESS 3P CONNECTOR
Wire side of female terminals
ls the tesistance as specified?
YES Go to step 9.
NO-Open in the floor wire harness or poor ground
connection at G551. lf G551 is OK, replace the floor
wire harness.I
Disconnect the negative cable from the battery,
Disconnect SRS unit connector C (8P) from the SRS
unit (see step 7 on page 23-22).
(cont'd)
23-75

sRs
DTC Troubleshooting (cont'dl
11. Check resistance between the No.2 terminal ofthe
floor wire harness 3P connector and body ground.
There should be an open circuit, or at least 1 M 0 .
FLOOR WIRE HARNESS 3P CONNECTOR
Wire side of female terminals
ls the resistance as specified?
YES-Go to step 12.
NO-Short to ground in the floor wire harness;
replace the floor wire harness.I
Check resistance between the No. 3 terminal of the
floor wire harness 3P connector and body ground.
There should be an open circuit, or at least 1 l\4 0 .
FLOOR WIRE HABNESS 3P CONNECTOR
Wire side of temale terminals
ls the resistance as specified?
YES-Go to step 13.
NO Short to ground in the floor wire harness;
replace the floor wire harness.I
23-76
\J
13. Check resistance between the No. 7 terminal of
SRS unit connector C (8P) and the No. 3 terminal of
the floor wire harness 3P connector.
There should be 0-1 Q.
FLOORWIRE HARNESS SRS UNITCONNECTOR C (8P)3P CONNECTOR
Wire side of female terminals
ls the tesistance as specified?
YES-Go to step 14.
NO Open in the floor wire harness; replace the
floor wire harness.I
Check resistance between the No, 3 terminal of
SRS unit connector C (8P) and the No. 2 terminal of
the floor wire harness 3P connectof
There should be 0 1Q.
LJ
14.
FLOOR WIRE HARNESS3P CONNECTORSRS UNIT CONNECTOR C ISPI
Wire side of female terminals
ls the resistance as specified?
YES Replace the SRS unit (see page 23-122).1
NO Open ln the floor wlre harness; replacethe
floor wire harness.l

DTC 9-6: Faulty Left Front lmpact Sensor
Special Tools Required. SRS inflator simulator 07SAZ-TB4011A. SRS simulator lead H 07YM-S3AA100
1. Erase the DTC memory (see page 23-26).
2. Turn the ignition switch ON (ll), and check that the
SRS indicator comes on for about 6 seconds and
then goes off.
Does the SRS indicator stay on?
YES-Go to step 3.
NO Intermiftent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures (see
page 23-26).
3. Turn the ignition switch OFF. Check the
connections between SRS unit connector A (18P)
and the SRS unit. between the engine
compartment wire harness 2P connector and the
left front impact sensor {see page 23-13), and at
connector C401.
Are the connections OK?
YES Go to step 4.
NO-Repair the poor connections and retest. lf DTC
9-6 is still present, go to step 4.
Turn the ignition switch OFF. Disconnect the
battery negative cable. and wait for 3 minutes.
Disconnect the driver's airbag 4P connector from
the cable reel (see step 2 on page 23-21).
Disconnect the front passenger's airbag 4P
connector from dashboard wire harness B {see step
3 on page 23-21).
Disconnect both seat belt tensioner 2P connectors
from the floor wire harness (see step 5 on page 23-
22).
7.
9.
10.
8. Disconnect the engine compartment wire harness
2P connector {A) from the left front impact sensor.
Disconnect SRS unit connector A {18P) from the
SRS unit (see step 7 on page 23-22J.
Check resistance between the No. 10 and No. 11
terminals of SRS unit connector A (18P). There
should be an oDen circuit. or at least 1 M 0 .
SRS UNIT CONNECTOR A (18PI
Wire side of female terminals
ls the resistance as specitied?
YES Go to step 1 1.
NO-Short in the engine companment wire
harness or dashboard wire harness B; replace the
faulty harness.I
Reconnect the battery negative cable.
Turn the ignition switch ON { ll).
{cont'd}
RED
11.
12.
2356789
10tl1Zt315161718
I
T
ILK
23-77

)
t
DTC 9-7: Faulty Right Front lmpact Sensor
Special Tools Bequired. SRS inflator simulator 07SAZ-TB4011A. SRS simulator lead H 07YM-S3AA100
1. Erase the DTC memory {see page 23-26).
2. Turn lhe ignition switch ON {ll), and checkthatthe
SRS indicator comes on for about 6 seconds and
then goes off.
Does the SRS indicator stay on?
YES-Go to step 3.
NO Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures (see
page 23-26).
3. Turn the ignition switch OFF. Check the
connections between SRS unit connectorA (18P)
and the SRS unit, between the engine
compartment wire harness 2P connector and the
right front impact sensor (see page 23-13), and at
connector C401.
Are the connections OK?
YES-Go to step 4.
NO Repair the poor connections and retest. lf DTC
9-7 is still present, go to step 4.
Turn the ignition switch OFF. Disconnect the
battery negative cable, and wait for 3 minutes.
Disconnect the driver's airbag 4P connector from
the cable reel {see step 2 on page 23-21).
Disconnect the front passenger's airbag 4P
connector from the dashboard wire harness (see
step 3 on page 23-21).
Disconnect both seat belt tensioner 2P connectors
from the floor wire harness (see step 5 on page 23-
22).
4.
5.
7.
I
'10.
Disconnect the engine compartment wire harness
2P connector (A) from the right front impact sensor.
Disconnect SRS unit connector A (18P) from the
SRS unit (see step 7 on page 23-221.
Check resistance between the No. 1 and No. 12
terminals of SRS unit connector A (18P). There
should be an open circuit, or at least 1 M 0.
SRS UNIT CONNECTOR A (18PI
GRN
11.
Wire side ol female terminals
ls the resistance as specified?
YES Go to step 11.
NO-Short in the engine companment wire
harness or dashboard wire harness B; replace the
faulty harness,I
Reconnect the battery negative cable.
Turn the ignition switch ON (ll).
(cont'd)
IF!-t1t2)l
Irolrlr
56I6
13161718
SLK
23-79

I
I
8. Read the DTC.
ls DTC 11-3 indicated?
YES-Go to step 9.
NO*Shon to another wire in the driver's side
airbag inflator; replace the driver's side airbag (see
page 23-115).I
9. Turn the ignition switch OFF. Disconnect the
battery negative cable. and wait for 3 minutes.
10. Disconnectthe front passenger's side airbag 2P
connector (see step 4 on page 23-21) and both seat
belt buckle tensioner 4P connectors (see step 6 on
page 23-22l,.
11. Disconnect the special tool from the floor wire
harness 2P connector.
12. Disconnect SRS unit connector B {18P)from the
SRS unit {see step 7 on page 23-221.
13. Check resistance between the No.6 and No. 17
terminals of SRS unit connector B (18P), There
should be an open circuit, or at least 1 M 0.
SRS UNIT CONNECTOR B {18PI
Wire side of female terminals
ls the resistance as specified?
YES Faulty SRS unit; replace the SRS unit {seepage 23-'t221 .a
NO Shon to another wire in the floor wire
harness; replace the floor wire ha rness.I
WHT/BLU
WHT/BLK
DTG 11-4: Short to Power in Driver's Side
Airbag Inflator
Special Tools Required. SRS inflator simulator 07SAZ-T84011A. SRS simulator lead E o7XAZ-S140200
1. Erase the DTC memory {see page 23-261.
2. Turn the ignition switch ON (ll), and check thatthe
SRS indicator comes on for about 6 seconds and
then goes off.
Does the SBS indicator stay on?
YES Go to step 3.
NO Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures (see
page 23-26l,.
3. Turn the ignition switch OFF. Disconnect the
battery negative cable, and wait for 3 minutes.
4. Disconnect the floor wire harness 2P connector (A)
from the driver's side airbag.
07sAz-TB4011A
5. Connect the SRS inflator simulator (2 0 connector)
and simulator lead E to the floor wire harness.
(cont'd)
23-83

I
I

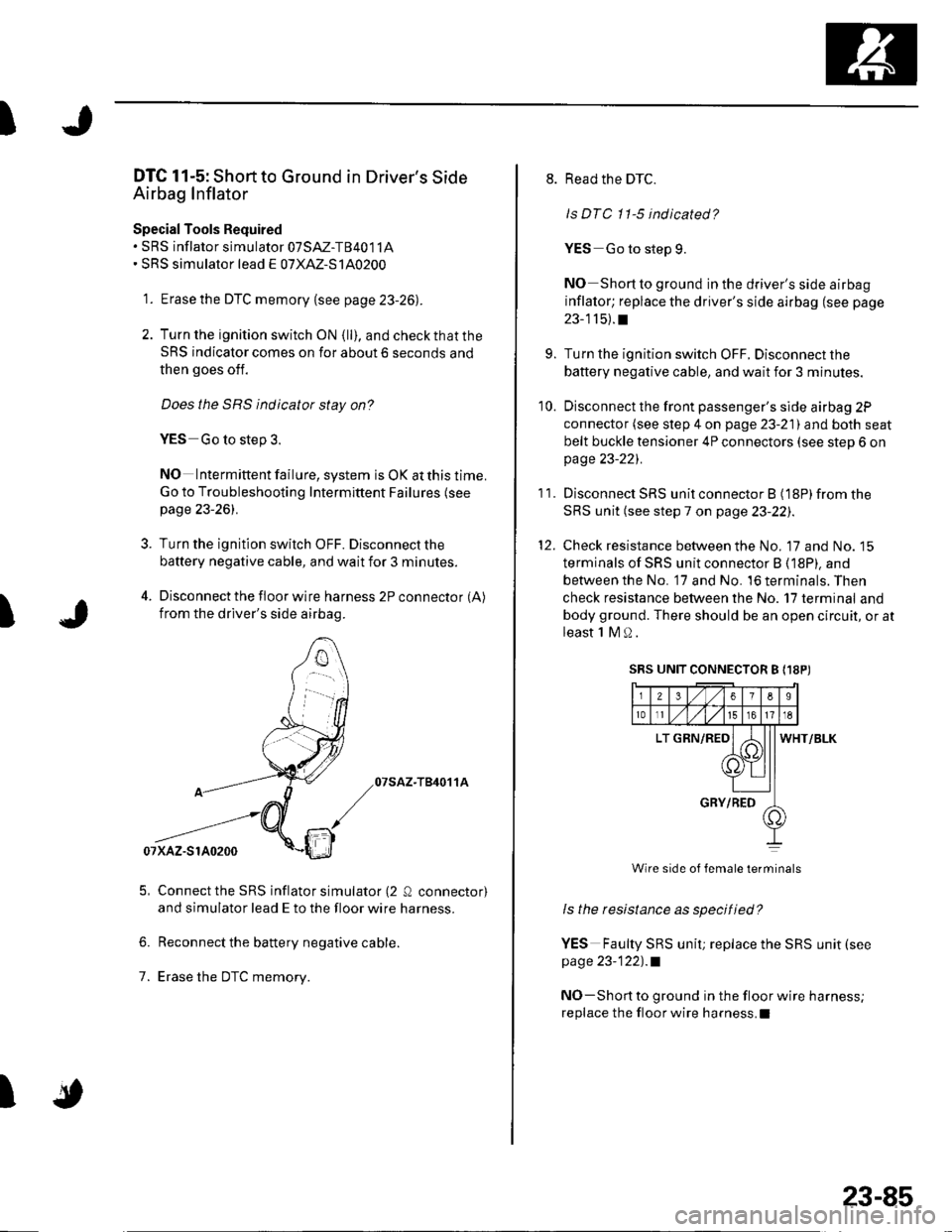

DTC 11-5: Short to Ground in Driver's Side
Airbag Inflator
Special Tools Required. SRS inflator simulator 07SM-T84011A' SRS simulator lead E o7XAZ-S140200
'1. Erase the DTC memory {see page 23-26).
2. Turn the ignition switch ON {ll), and check that the
SRS indicator comes on for about 6 seconds and
then goes off.
Does the SRS indicator stay on?
YES Go to step 3.
NO Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures (see
page 23-261.
3. Turn the ignition switch OFF. Disconnect the
battery negative cable, and wait for 3 minutes.
4. Disconnect the floor wire harness 2P connector (A)
from the driver's side airbag.
07saz-TB,r011A
Connect the SRS inflator simulator (2 Q connector)
and simulator lead E to the floor wire harness.
Reconnect the battery negative cable.
Erase the DTC memory.
6.
7.
I
8. Read the DTC.
ls DTC 11-5 ind icated?
YES Go to step 9.
NO Short to ground in the driver's side airbag
inflator; replace the driver's side airbag (see page
23-115).t
9. Turn the ignition switch OFF. Disconnect the
battery negative cable, and wait for 3 minutes.
10. Disconnect the front passenger's side airbag 2P
connector (see step 4 on page 23-21)and both seat
belt buckle tensioner 4P connectors (see step 6 onpage 23-221.
11. DisconnectSRS unitconnectorB (18P)fromthe
SRS unit (see step 7 on page 23-22).
'12. Check resistance between the No. 17 and No. 15
terminals of SRS unit connector B (18P). and
between the No. '17 and No. 16 terminals. Then
check resistance between the No. 17 terminal and
body ground. There should be an open circuit, or at
least 1 M 0.
SRS UNIT CONNECTOR B I18P)
WHT/BLK
Wire side of female terminals
ls the resistance as specified?
YES Faulty SRS unit; replace the SRS unit (see
page 23-122).a
NO-Short to ground in the floor wire harness;
replace the floor wire harness.I
23-85
