2003 HONDA ACCORD SEDAN Owner's Manual (in English)

For saf ety, make sure you have a
clear view through all the windows
bef ore driving away.To shut of f the system temporarily,
turn the fan speed and temperature
control dials all the way to the lef t.
You should shut the system
completely of f only f or the f irst f ew
minutes of driving in cold weather,
until the engine coolant warms up
enough to operate the heater. Keep
the fan on at all other times so stale
air does not build up in the interior.
These settings direct all the air f low
to the defroster vents at the base of
the windshield and the side window
def roster vents. The air f low will get
warmer and clear the windows faster
as the engine warms up. You can
close the side vents with the dial
underneath each vent. This will send
more warm air to the windshield
defroster vents.
To remove exterior f rost or ice f rom
the windshield and side windows
after the car has been sitting out in
cold weather:
Start the engine.
Select .
When you select , the
system automatically switches to
Fresh Air mode and turns on the
A/C. (The indicator above the
A/C button stays off.)
Set the f an and temperature
controls to maximum.
To rapidly remove exterior f rost or
ice f rom the windshield (on very cold
days), f irst select the Recirculation
mode. Once the windshield is clear,
select the Fresh Air mode to avoid
f ogging the windows. 1.
2.
3.
Heating and Cooling
Comf ort and Convenience Feat ures
To Turn Everything Of f
118

CONT INUED
To adjust the air f low f rom the
center vent, move the tab up-and-
down and side-to-side.Thesideventscanbeopenedand
closed with the dials underneath
them.
For the climate control system to
provide heating and cooling, the
engine must be running. The climate control system draws air
through the exterior vents at the
bottom of the windshield. Keep
these vents clear of leaves and other
debris. The direction of air f low f rom the
vents in the center and each side of
the dashboard is adjustable. The automatic climate control
system in your Honda picks the
proper combination of air condi-
tioning, heating, and ventilation to
maintain the interior temperature
you select. The system also adjusts
the fan speed and air flow levels.
On 4-cylinder EX models with lether interior and EX-V6 models only
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures119
CENTER VENTS TAB
TABS
Close
Open
SIDE VENT

Climat e Cont rol Syst em
Comf ort and Convenience Feat ures120

Pressing the OFF button shuts the
climate control system completely
of f . Keep the system completely of f
only f or short periods. To keep stale
air and mustiness f rom collecting,
you should have the f an running at
all times.
To put the Automatic Climate
Control in f ully-automatic mode,
press the AUTO button, then set the
desired temperature by turning the
driver’s temperature control dial.
You will see AUTO in the system’s
display.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature.
When you set the temperature to its
lower limit ‘‘ ’’ or its upper
limit ‘‘ ’’, the system runs at
f ull cooling or heating only. It does
not regulate the interior temperature.
In cold weather, the f an will not
come on automatically until the car
has been driven f or a short time and
the heater starts to develop warm air.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Fully-automatic Operation
Without Navigation System
121
RECIRCULATION BUTTON
OFF BUTTON TEMPERATURE DISPLAY
FAN CONTROL
BUTTONS
AUTO BUTTON DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL

Press the A/C button to turn the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display. You can manually select various
f unctions of the Climate Control
system when it is in f ully automatic
mode. All other f eatures remain
automatically controlled. Making any
manual selection causes the word
AUTO in the display to go out.
When you turn the A/C of f , the sys-
tem cannot regulate the inside tem-
perature if you set the dial below the
outside temperature. With the A/C
of f , use the temperature control dial
to adjust the temperature of the air
flow to a comfortable setting. Semi-automatic Operation
A ir Condit ioning (A /C) But t on
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures122
RECIRCULATION BUTTON
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL
PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
AIR CONDITIONING
(A/C) BUTTON

ÛÝ
CONT INUED
You can manually select the f an
speed by pressing the f an control
buttons: to increase the f an’s
speed, or to decrease the f an’s
speed. Use the MODE button to select the
vents the air flows from. Some air
will f low f rom the dashboard corner
vents in all modes; you can turn it of f
with the dial below each vent. Each
time you press the MODE button,
the display shows the mode selected.
Press the button four times to see allthe modes.
This button controls the source of air
going into the system. When the
indicator above this button is lit, air
from the car’s interior is sent
through the system again (Recircula-
tion mode). When the indicator is off,
air is brought in f rom outside the car
(Fresh Air mode).
You can, f or example, manually put
the system in recirculation mode
when driving through an area of
smoke or f umes.
Mode Button
Recirculat ion But t on
Fan Control Buttons
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures123
MODE BUTTON
FAN CONTROL BUTTONS
RECIRCULATION BUTTON

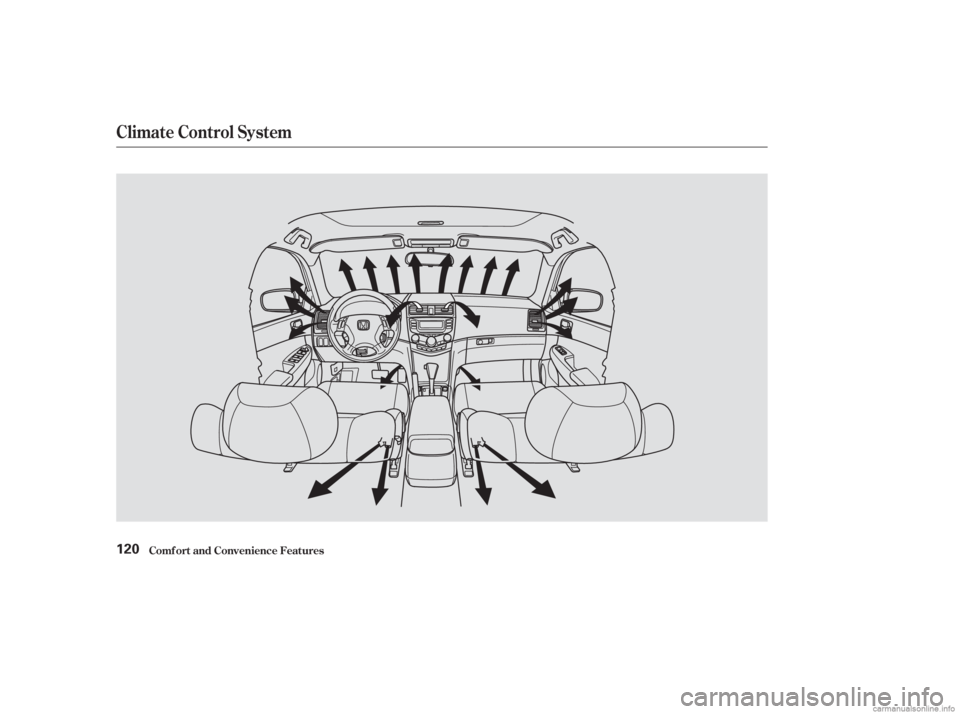

The main air f low is divided
between the dashboard vents and
the f loor vents. The main air flow comes
f rom the f loor vents.
The main air flow comes
f rom the dashboard vents. The main air f low is divided
between the f loor vents and de-
froster vents at the base of the wind-
shield.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures124

The button directs the main
air f low to the windshield f or f aster
def rosting. It also overrides any
MODE selection you may have made.
When you turn of f by
pressing the button again, the
system returns to its former settings. When you select , the A/C
turns on automatically and the
system selects Fresh Air mode. For
f aster def rosting, manually set the
fanspeedtohigh.Youcanalso
increase air f low to the windshield by
closing the side vents in the
dashboard.
This button turns the rear window
def ogger on and of f (see page ).72
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Rear Window Def ogger But t on
125
REAR WINDOW DEFOGGER BUTTON
DUAL BUTTON PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
