2003 GMC SIERRA DENALI tailgate

Section 2 Features and Controls
Keys ............................................................... 2-2
Remote Keyless Entry System
......................... 2-3
Remote Keyless Entry System Operation
........... 2-4
Doors and Locks
............................................. 2-6
Door Locks
.................................................... 2-6
Power Door Locks
.......................................... 2-7
Rear Doors
................................................... 2-8
Tailgate
........................................................ 2-8
Windows
........................................................ 2-10
Power Windows
............................................ 2-11
Swing-Out Windows
...................................... 2-11
Sun Visors
................................................... 2-12
Theft-Deterrent Systems
.................................. 2.13
Content Theft-Deterrent
................................. 2.13
Passlock@
.................................................... 2.14
Starting and Operating Your Vehicle
................ 2.15
New Vehicle Break-In
.................................... 2.15
Ignition Positions
.......................................... 2.15
Starting Your Engine
..................................... 2.16
Engine Coolant Heater
.................................. 2.17
Automatic Transmission Operation
................... 2.18
All-Wheel Drive
............................................ 2-21
Parking Brake
.............................................. 2-22
Shifting Into Park
(P) ..................................... 2-23 Shifting
Out
of Park (P) ................................. 2-25
Parking Over Things That Burn
....................... 2-26
Engine Exhaust
............................................ 2-26
Running Your Engine While You Are Parked
.... 2-27
Mirrors
........................................................... 2-28
Automatic Dimming Rearview Mirror with
OnStap, Compass and Temperature
Display
.................................................... 2-28
Outside Power Mirrors
................................... 2-31
Outside Power Foldaway Mirrors
..................... 2-31
Outside Automatic Dimming Mirror
.................. 2-31
Outside Curb View Assist Mirrors
.................... 2-32
Outside Convex Mirror
................................... 2-32
Outside Heated Mirrors
.................................. 2-32
Onstar@ System
............................................. 2-33
HomeLink@ Transmitter
................................... 2-35
Programming the HomeLink Transmitter
........... 2-35
Storage Areas
................................................ 2-39
Glove Box
................................................... 2-39
Cupholder(s)
................................................ 2-39
Center Console Storage Area
......................... 2-39
Tonneau Cover
............................................ 2-39
Vehicle Personalization
................................... 2-42
Memory Seat
............................................... 2-42
2- 1

Rear Doors
Your vehicle is equipped with rear access doors that
allow easier access to the rear area of the extended cab.
To open a rear access
door from the outside, first
open the front door.
Then, use the handle
located on the front edge
of the rear access door
to open it.
Tailgate
You must fully close a rear access door before you can
close the front door. To open a rear access
door from the inside, the
front door must be opened
first. Then, use the
handle located on the
inside of the rear access
door to open it.
You can open the tailgate by lifting up on its handle
while pulling the tailgate toward you.
To shut the tailgate, firmly push it upward until it
latches.
After you put the tailgate back up, pull it back towards
you to be sure it latches securely.
2-8

Tailgate Removal
The tailgate on your vehicle can be removed to allow for
different loading situations. Although the tailgate can
be removed without assistance, you may want someone
to assist you with the removal to avoid possible
damage to the vehicle.
To remove the tailgate, do the following:
1. Raise the tailgate
slightly and release
both retaining
cable clips. To release
the retaining cable clips, lift the cable
so it
points straight out
and push the cable clip
forward.
2. With the tailgate at a
slight upward angle,
pull back on the tailgate
at the right edge and
then move the
tailgate to the right to
release the left edge.
Reverse the above procedure to reinstall. Make sure the
tailgate is secure.
2-9

Pickup Box Identification and
Fender Marker Lamps
1.
2.
3.
4.
5.
6.
Remove the screws and lamp assembly.
Unplug the lamp assembly harness.
Gently pry the individual lamp from the lamp
housing.
Unplug the lamp.
Plug in a new lamp and snap it into the housing.
Reinstall the lamp housing.
Taillamps
1. Open the tailgate.
A. Stoplamp
B. Turn Signal
C. Back-up Lamp
2, Remove the two rear
lamp assembly screws
near the tailgate latch and pull out the
lamp assembly.
5-58

3. Press the release tab and turn the bulb socket
counterclockwise to remove it from the taillamp
housing.
4. Pull the old bulb straight out from the socket.
5. Press a new bulb into the socket and turn the socket
clockwise into the taillamp housing until it clicks.
6. Reinstall the rear lamp assembly.
7. Close the tailgate.
Replacement Bulbs
For anv bulb not listed here contact your dealer.
5-59

At Least Twice a Year
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages
are working properly. Look for any other loose or
damaged safety belt system parts.
If you see anything
that might keep a safety belt system from doing its
job, have it repaired. Have any torn or frayed safety belts
replaced.
Also look for any opened or broken air bag coverings,
and have them repaired or replaced. (The air bag
system does not need regular maintenance.)
Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace
blade inserts that appear worn or damaged or that
streak or miss areas of the windshield.
Also see
Cleaning the Outside of Your Vehicle on page 5-88.
Spare Tire Check
At least twice a year, after the monthly inflation check of
the spare tire determines that the spare is inflated to
the correct tire inflation pressure, make sure that
the spare tire is stored securely. Push, pull, and then try
to rotate or turn the tire. If it moves, use the wheel
wrenchhatchet to tighten the cable. See
Changing a Flat
Tire on page 5-69.
Weatherstrip
Silicone grease on
longer, seal better,
Lubrication
weatherstrips will make them last
and not stick or squeak. Apply
silicone grease with a clean cloth. During very -cold,
damp weather more frequent application may be
required. See
Part D: Recommended Fluids and
lubricants on page
6- 16.
Automatic Transmission Check
Check the transmission fluid level; add if needed. See
Automatic Transmission Fluid on page 5-27. A fluid loss
may indicate a problem. Check the system and repair
if needed.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in Part D.
Body Lubrication Service
Lubricate all body door hinges, hood latch assembly,
secondary latch, pivots, spring anchor, release
pawl, tailgate hinge, tailgate linkage, tailgate handle
pivot points, latch bolt, fuel door hinge, locks and folding
seat hardware. Part
D tells you what to use. More
frequent lubrication may be required when exposed to a
corrosive environment.
6-1 1

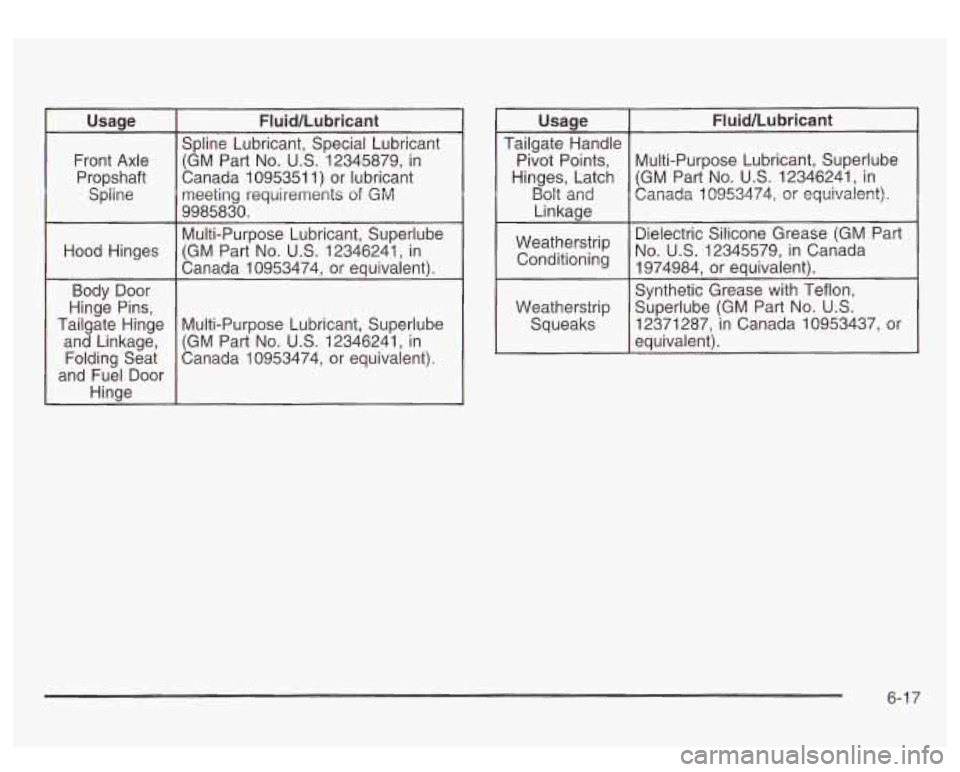

Usage
Front Axle
Propshaft Spline
Hood Hinges Body Door
Hinge Pins,
Tailgate Hinge
and Linkage, Folding Seat
and Fuel Door
Hinge
-
FluidlLubricant ~
Spline Lubricant, Special Lubricant
(GM Part
No. U.S. 12345879, in
Canada 1095351 1) or lubricant
meeting
requirements of GM
9985830.
Multi-Purpose Lubricant, Superlube
(GM Part
No. U.S. 12346241, in
Canada 10953474,
or equivalent).
Multi-Purpose Lubricant, Superlube
(GM Part
No. U.S. 12346241, in
Canada 10953474, or equivalent). Weatherstrip
Shperlube (GM Part
No. U.S.
Squeaks 12371287, in Canada 10953437, or
eauivalent).
6-1
7

Securing a Child Restraint
Center Rear Seat Position
............................ 1-48
Designed for the LATCH System
................... 1-46
Rear Outside Seat Position
........................... 1-46
Select Button
................................................. 3-53
Service
........................................................... 5-3
Vehicle
..................................................... 5-4
Doing Your Own Work
................................... 5-4
Engine Soon Light
....................................... 3-38
Publications Ordering Information
................... 7-10
Right Front Seat
Position
.............................. 1-50
Adding Equipment to the Outside
of Your
SERVICE
4 WHEEL STEER ............................. 3-58
SERVICE 4WD
............................................... 3-56
SERVICE AIR SUSPENSION
........................... 3-56
SERVICE AIRBAG
.......................................... 3-55
SERVICE BRAKE BOOSTER
........................... 3-55
SERVICE BRAKE SYSTEM
............................. 3-55
Service Bulletins
............................................. 7-1 0
Service Manuals ............................................. 7-10
Setting the Time
............................................. 3-61
Sheet Metal Damage
.................................... 5-91
Shifting Into Park (P)
.................................... 2-23
Setting Preset PTYs (RDS Only)
....................... 3-67
Setting Preset Stations
.................................... 3-65
Setting the Tone (Bassnreble)
.......................... 3-66
Shifting Out of Park (P)
................................... 2-25 Skidding
........................................................ 4-1 5
Some Other Rainy Weather Tips ....................... 4-32
Spare Tire
..................................................... 5-85
Spare Tire Check
............................................ 6-11
Specifications. Capacities
............................... 5-1 04
Speedometer .................................................. 3-26
Starter Switch Check
....................................... 6-12
Starting Your Engine
....................................... 2-16
Steering
.......................................................... 4-9
Steering and Suspension Inspection
.................. 6-14
Steering in Emergencies
.................................... 4-9
Steering Tips
................................................... 4-9
Center Console Storage Area
.... ............ 2-39
Cupholder(s)
............................................... 2-39
Glove Box
.................................................. 2-39
Steering
Wheel Controls, Audio
......................... 3-81
Storage Areas
Storing a Flat or Spare Tire and
Tools ............... 5-83
Stuck in Sand, Mud, Ice or Snow
...................... 4-42
Sun Visors
..................................................... 2-12
Swing-Out Windows
........................................ 2-11
Tachometer
................................................ 3-26
Tailgate
........................................................... 2-8
Tailgate Removal
.............................................. 2-9
13
