2003 FORD MUSTANG engine

REMOVAL AND INSTALLATION
Wiring Harness
Removal
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable mixtures are always present
and can ignite. Failure to follow these instructions can result in personal injury.
1. With the vehicle in neutral, position it on a hoist. For additional information, refer to Section 100 -
02 .
2. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
3. Remove the upper intake manifold. For additional information, refer to Section 303 - 01D .
4. Disconnect the following connectors: zThe 42 pin engine bulkhead electrical connector.
z The 16 pin electrical connector.
5. Separate the wiring harness from the dash panel.
6. Remove the RH ignition coil cover. zRemove the bolts.
z Remove the coil cover.
SECTION 303-
04D: Fuel Charging and Controls — Mach I 4.6L (4V) 2003 Mustang Workshop Manual Klj . 1 ba
112003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

11. Disconnect the transmission main control harness electrical connector.
12. Disconnect the engine control jumper harness electrical connector.
13. Remove the wiring harness bracket bolt.
14. Disconnect the RH heated oxygen sensor (HO2S) electrical connector. Klj . 3 ba
112003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

18. Disconnect the electrical connector.
19. Disconnect the following generator electrical connectors:
zBattery power supply wire.
z Voltage regulator.
20. Disconnect the camshaft position (CMP) sensor electrical connector.
21. Disconnect the engine coolant temperature (ECT) sensor electrical connector. Klj . 5 ba
112003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

8.
NOTE: LH side is shown, RH side is similar.
Connect the two radio ignition interference capacitor electrical connectors.
9. Connect the RH HO2S electrical connector.
10. Install the wiring harness bracket bolt.
11. Connect the engine control jumper harness electrical connector. Klj . 8 ba
112003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

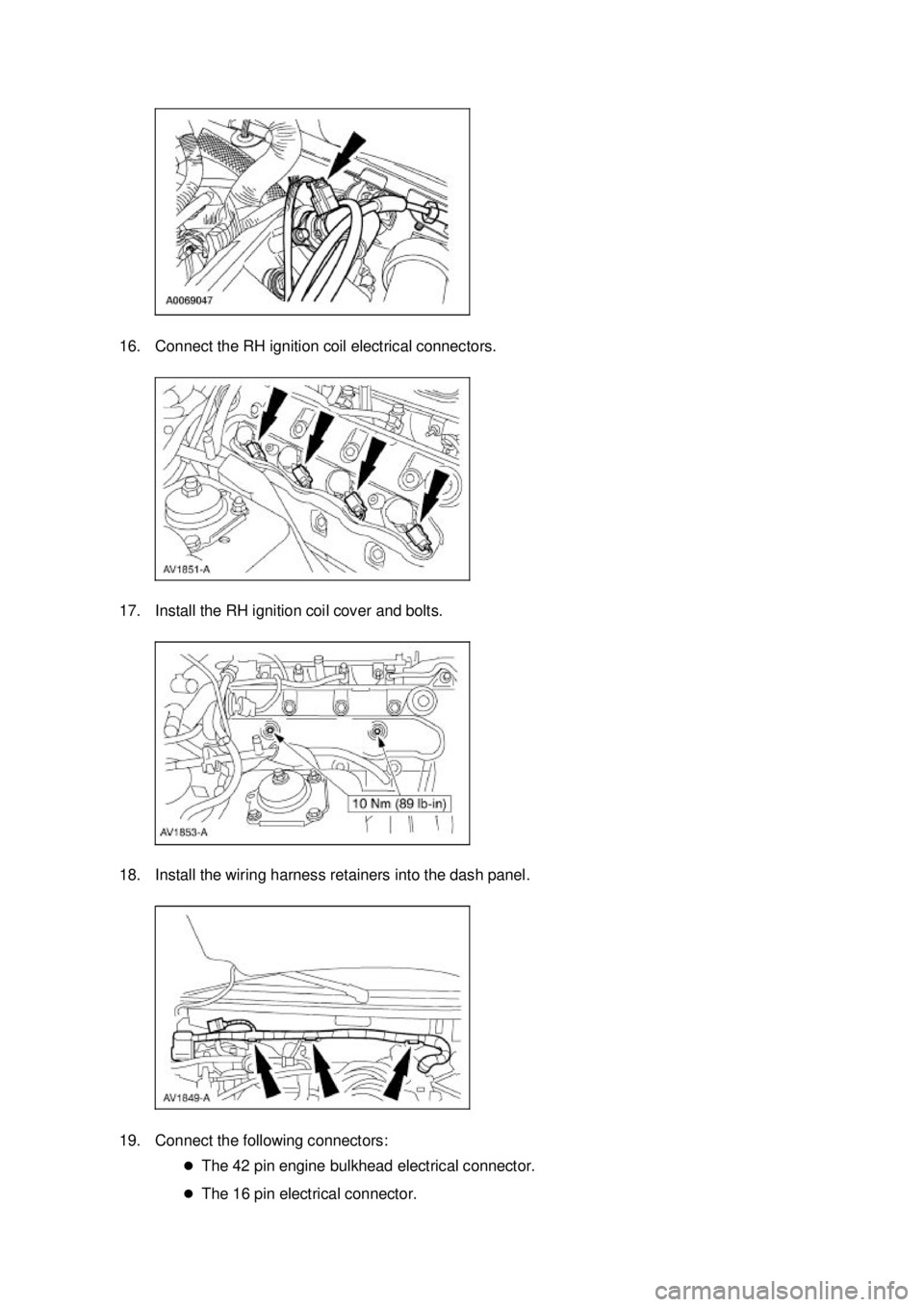

16. Connect the RH ignition coil electrical connectors.
17. Install the RH ignition coil cover and bolts.
18. Install the wiring harness retainers into the dash panel.
19. Connect the following connectors:
zThe 42 pin engine bulkhead electrical connector.
z The 16 pin electrical connector. Klj . 10 ba
112003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Supply Manifold
Removal
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable mixtures are always present
and can ignite. Failure to follow these instructions can result in personal injury.
WARNING: Fuel in the fuel system remains under high pressure even when the engine is
not running. Before working on or disconnecting any of the fuel lines or fuel system
components, the fuel system pressure must be relieved. Failure to follow these instructions
can result in personal injury.
1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Remove the upper intake manifold. For additional information, refer to Section 303 - 01D .
3. Relieve the fuel pressure. For additional information, refer to Section 310 - 00 .
4. Disconnect the fuel line. For additional information, refer to Section 310 - 00 .
5. Position the wiring harness aside. zDisconnect the RH fuel injector electrical connectors.
z Separate the harness from the RH fuel supply manifold stud bolt.
6. Disconnect the fuel pressure sensor. zDisconnect the electrical connector.
z Disconnect the vacuum hose.
SECTION 303-
04D: Fuel Charging and Controls — Mach I 4.6L (4V) 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

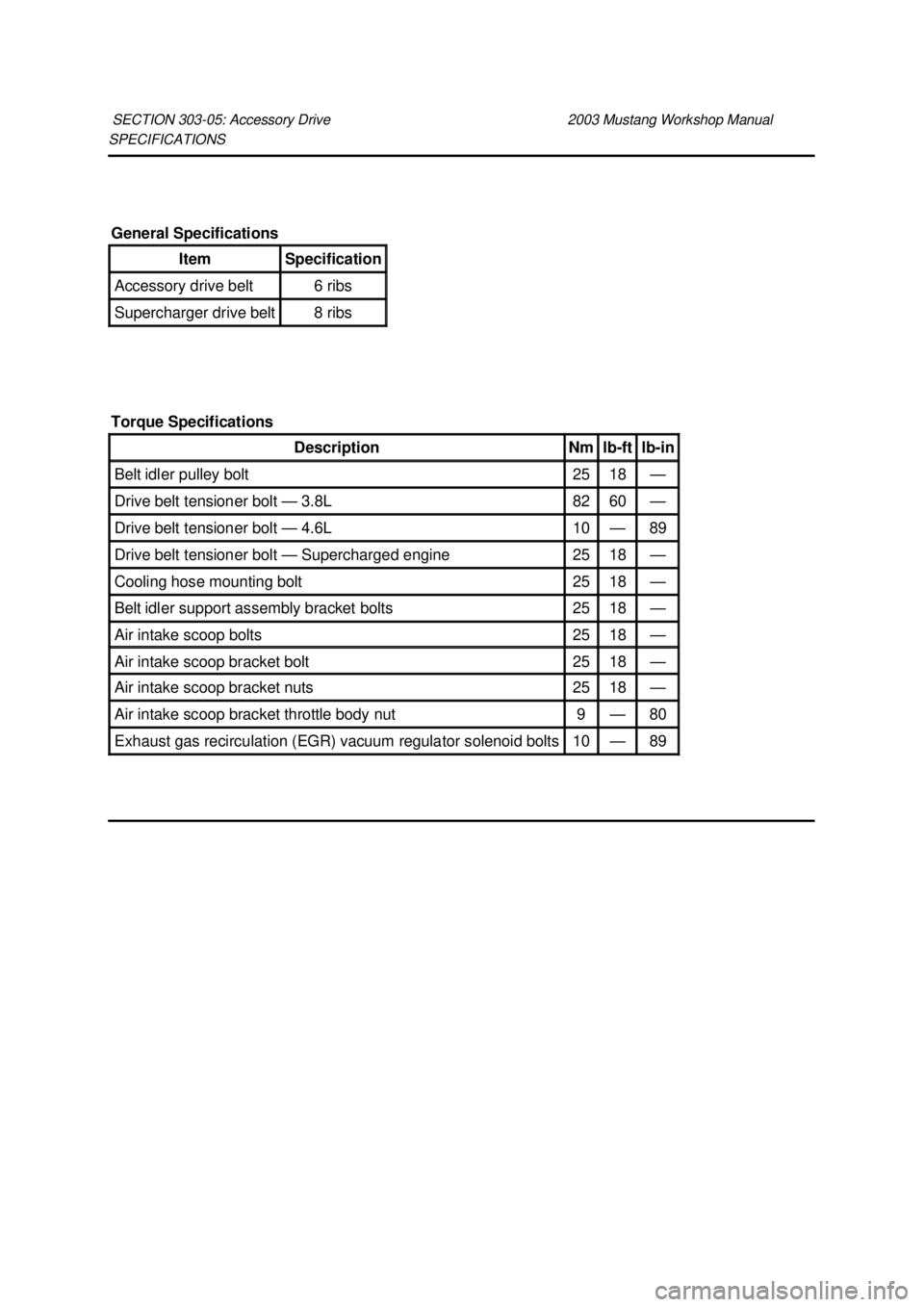

SPECIFICATIONS
SECTION 303-
05: Accessory Drive 2003 Mustang Workshop Manual General Specifications
Item Specification
Accessory drive belt 6 ribs
Supercharger drive belt 8 ribs
Torque Specifications Description Nm lb-
ft lb-
in Belt idler pulley bolt 25 18 —
Drive belt tensioner bolt —
3.8L 82 60 —
Drive belt tensioner bolt —
4.6L 10 — 89
Drive belt tensioner bolt —
Supercharged engine 25 18 —
Cooling hose mounting bolt 25 18 —
Belt idler support assembly bracket bolts 25 18 —
Air intake scoop bolts 25 18 —
Air intake scoop bracket bolt 25 18 —
Air intake scoop bracket nuts 25 18 —
Air intake scoop bracket throttle body nut 9 — 80
Exhaust gas recirculation (EGR) vacuum regulator solenoid bolts 10 — 89 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Accessory Drive
Inspection and Verification
1. Verify customer concern by running the engine.
2. Inspect the drive belt for chunking, fraying and wear.
3. Check the drive belt for correct routing.
Drive Belt Cracking/Chunking/Wear
V Ribbed Serpentine Drive Belt With Cracks Across Ribs
The accessory drive:
zhas a single serpentine drive belt.
z has an automatic drive belt tensioner.
z does not require adjustment.
V Ribbed Belt With Chunks of Rib Missing
Symptom Chart SECTION 303-
05: Accessory Drive 2003 Mustang Workshop Manual Klj . 1 ba
42003 Mustang Workshop Manual
