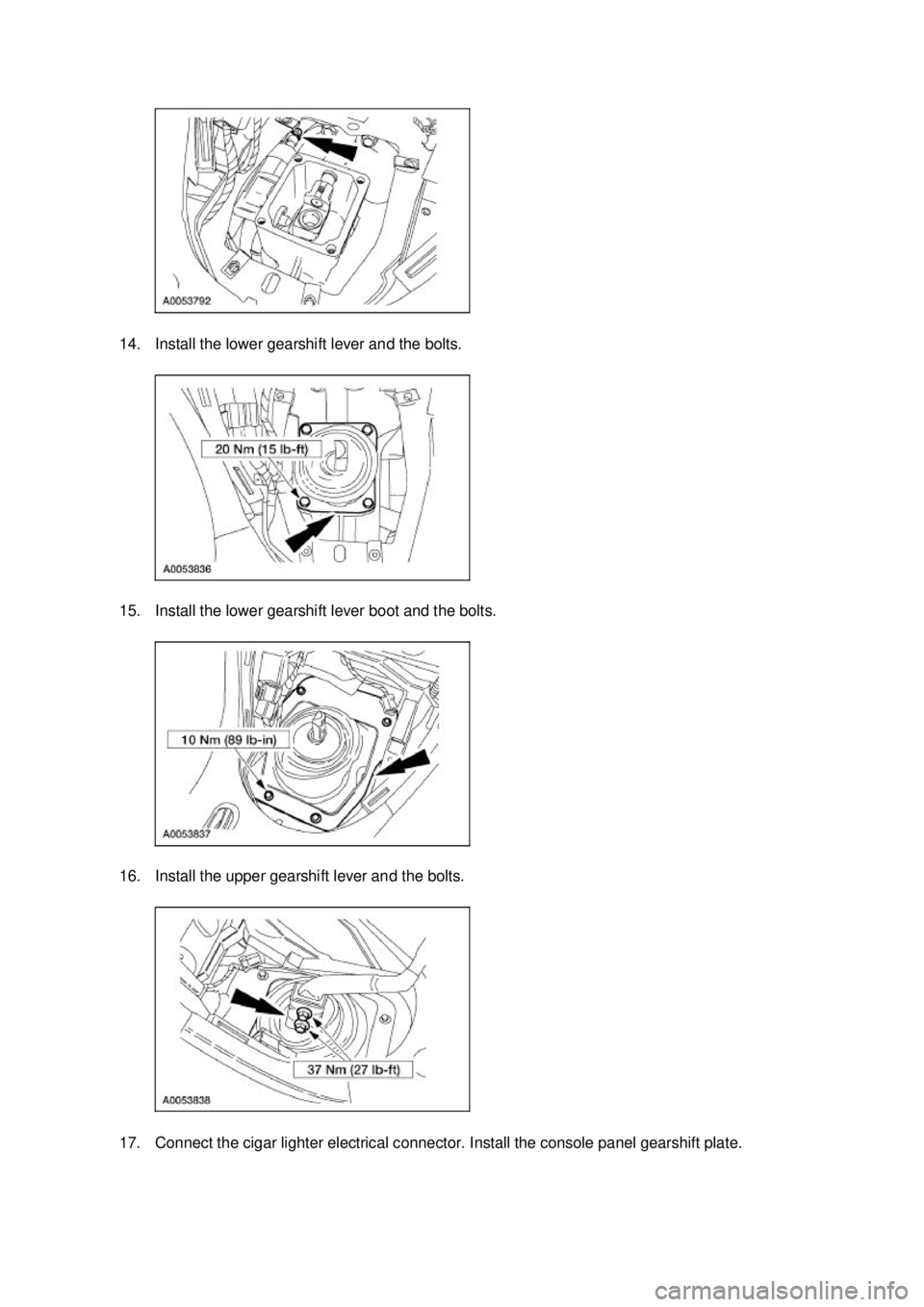

14. Install the lower gearshift lever and the bolts.
15. Install the lower gearshift lever boot and the bolts.
16. Install the upper gearshift lever and the bolts.
17. Connect the cigar lighter electrical connector. Install the console panel gearshift plate. Klj . 4 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
REMOVAL AND INSTALLATION

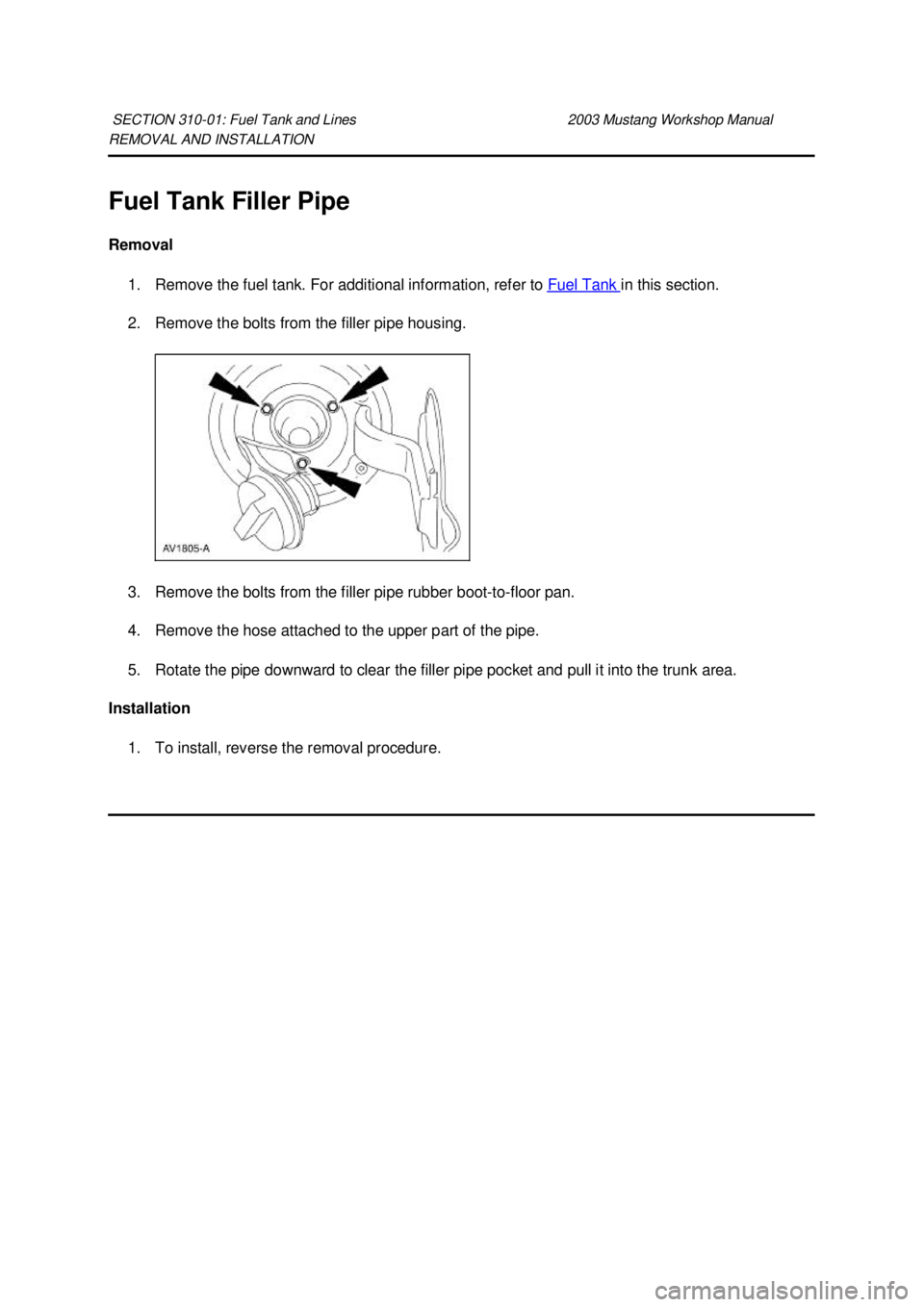

Fuel Tank Filler Pipe
Removal
1. Remove the fuel tank. For additional information, refer to Fuel Tank in this section.
2. Remove the bolts from the filler pipe housing.
3. Remove the bolts from the filler pipe rubber boot- to-floor pan.
4. Remove the hose attached to the upper part of the pipe.
5. Rotate the pipe downward to clear the filler pipe pocket and pull it into the trunk area.
Installation
1. To install, reverse the removal procedure.
SECTION 310-
01: Fuel Tank and Lines 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
