DIAGNOSIS AND TESTING
Anti-
Theft — Passive Anti- Theft System (PATS)
Refer to Wiring Diagrams Cell 112 , Anti-
Theft for schematic and connector information.
Refer to Wiring Diagrams Cell 60 , Instrument Cluster for schematic and connector information.
Inspection and Verification
NOTE: PATS must be reconfigured upon installment of a new instrument cluster. Refer to Section 418 -
00 .
1. Verify the customer concern by duplicating the condition.
2. Visually inspect for obvious signs of mechanical and electrical damage.
3. If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the
diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
SECTION 419-
01: Anti-Theft — PATS 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter
105-
R0057 or equivalent Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent
diagnostic tool
Visual Inspection Chart Mechanical Electrical
z
Ignition lock cylinder
z Encoded ignition key (PATS key)
z Use of non- encoded ignition key (key without the molded plastic
head, non- PATS key)
z Use of a non- programmed encoded ignition key z
Central junction box
fuses:
„5 (15A)
„ 21 (5A)
„ 34 (20A)
z PATS transceiver
z Connectors
z Ignition switch Klj . 1 ba
182003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Symptom Chart B2139 PCM ID Does Not Match Between Instrument Cluster and
PCM ICM GO to
Pinpoint Test J .
B2141 NVM Configuration Failure (No PCM ID Exchange
Between Instrument Cluster and PCM) ICM GO to
Pinpoint Test K .
B2143 NVM Memory Failure ICM REFER to
Section 413
- 01
C1284 Oil Pressure Switch Failure ICM REFER to
Section 413
- 01 .
U1147 SCP Invalid or Missing Data for Vehicle Security PCM/SCP GO to
Pinpoint Test C .
U1262 Missing SCP Message J1850 REFER to
Section 418
- 00 .
Symptom Chart Condition
Possible Sources Action
z No communication
with the instrument
cluster z
Central junction box
Fuses:
„5 (15A)
„ 21 (5A)
„ 34 (20A)
z Circuitry
z Instrument cluster z
GO to Pinpoint Test A .
z The anti- theft
indicator is
always/never on —
no three second
theft indicator prove
out z
Instrument cluster
z Theft indicator z
GO to Pinpoint Test B .
z The vehicle does not
start — theft
indicator proves out
for three seconds as
normal z
Less than two keys
programmed to the
system
z Transceiver not
connected/defective
z Circuitry
z Transceiver internal
antenna damaged
z NON- PATS key,
damaged key or no
code received
z Partial key read of
PATS key
z Unprogrammed
PATS key z
CARRY OUT Instrument
Cluster On- Demand
Self- Test. RETRIEVE
DTCs. If DTCs are
present, GO to
Instrument Cluster
Diagnostics Trouble
Code (DTC) Index. If no
DTCs are retrieved,
CHECK for other
possible no- start
causes.
z No PCM ID stored in
PATS
z PATS/PCM ID do not
match
z Problem with SCP
link z
CLEAR the stored
DTCs. CYCLE the
ignition key from OFF to
RUN. RETRIEVE
continuous DTCs. If
DTCs are present, GO
to Instrument Cluster
Diagnostics Trouble
Code (DTC) Index. If no Klj . 3 ba
182003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Rear View Mirrors
Refer to Wiring Diagrams Cell
124 , Power Mirrors for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern is not visually evident, verify the symptom and refer to the Symptom Chart.
Symptom Chart
Refer to the Wiring Diagrams for connector numbers stated in the pinpoint tests. SECTION 501-
09: Rear View Mirrors 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter
105-
R0057 or equivalent Flex Probe Kit
105-
R025B or equivalent
Visual Inspection Chart Mechanical Electrical
z
Exterior rear view mirrors
z Interior rear view mirror z
Central junction box (CJB) fuse 19 (15A)
z Wiring harness
z Connections
z Exterior rear view mirror control
z Exterior rear view mirror motor
SYMPTOM CHART Condition
Possible Sources Action
z The mirrors are inoperative zExterior rear view
mirror control. z
Go To Pinpoint Test A . Klj . 1 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

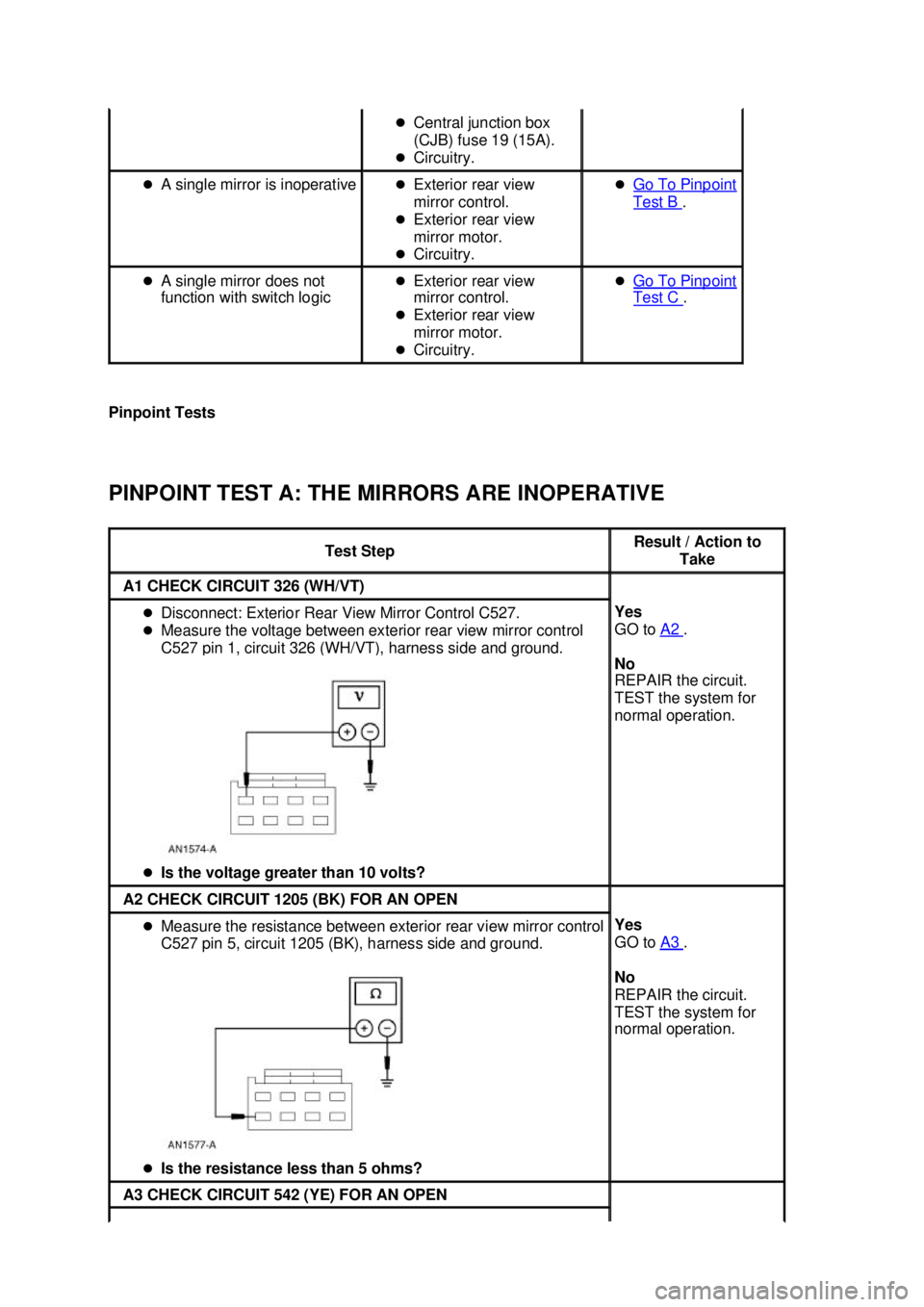

Pinpoint Tests
PINPOINT TEST A: THE MIRRORS ARE INOPERATIVE z
Central junction box
(CJB) fuse 19 (15A).
z Circuitry.
z A single mirror is inoperative zExterior rear view
mirror control.
z Exterior rear view
mirror motor.
z Circuitry. z
Go To Pinpoint Test B .
z A single mirror does not
function with switch logic z
Exterior rear view
mirror control.
z Exterior rear view
mirror motor.
z Circuitry. z
Go To Pinpoint Test C .
Test Step Result / Action to
Take A1 CHECK CIRCUIT 326 (WH/VT)
z
Disconnect: Exterior Rear View Mirror Control C527.
z Measure the voltage between exterior rear view mirror control
C527 pin 1, circuit 326 (WH/VT), harness side and ground.
z Is the voltage greater than 10 volts? Yes
GO to
A2 .
No
REPAIR the circuit.
TEST the system for
normal operation. A2 CHECK CIRCUIT 1205 (BK) FOR AN OPEN
z
Measure the resistance between exterior rear view mirror control
C527 pin 5, circuit 1205 (BK), harness side and ground.
z Is the resistance less than 5 ohms? Yes
GO to
A3 .
No
REPAIR the circuit.
TEST the system for
normal operation. A3 CHECK CIRCUIT 542 (YE) FOR AN OPEN Klj . 2 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Seats
Refer to Wiring Diagrams Cell
120 , Power Seats for schematic and connector information.
Refer to Wiring Diagrams Cell 122 , Power Lumbar Seats for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern is not visually evident, verify the symptom. GO to Symptom Chart .
Symptom Chart
Refer to the Wiring Diagram manual for the connector numbers cited in the pinpoint tests. SECTION 501-
10: Seating 2003 Mustang Workshop Manual Special Tool(s)
73 III Automotive Meter
105-
R0057
Visual Inspection Chart Mechanical Electrical
z
Front seat track.
z Seat at limit(s) of travel. z
Battery junction box (BJB) Fuse Power Seat (25A).
z Loose, corroded or damaged connectors.
z Seat regulator control switch.
z Lumbar seat control switch.
z Lumbar motor.
z Bolster and lumbar control switches (cobra)
SYMPTOM CHART Condition
Possible Sources Action
z The power seat is
inoperative z
BJB Fuse Power Seat
(25A).
z Seat regulator control
switch.
z Circuitry. z
Go To Pinpoint Test
A . Klj . 1 ba
152003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Inspection and Verification
1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the diagnostic tool does not communicate with the vehicle, refer to the diagnostic tool manual.
5. Carry out the DATA LINK DIAGNOSTIC TEST. If the diagnostic tool responds with: zCKT 914, CKT 915 or CKT70 - ALL ECUS NO RESP/NOT EQUIP, refer to Section 418 -
00 .
z NO RESP/NOT EQUIP for the generic electronic module (GEM), go to Pinpoint Test A.
z NO RESP/NOT EQUIP for the instrument cluster module (ICM), refer to Section 413 - 01 .
z System passed, retrieve and record the continuous diagnostic trouble codes (DTCs),
erase the continuous DTCs and carry out self- test diagnostics for the GEM or ICM.
6. If the GEM or ICM DTCs retrieved are related to the concern, go to the GEM or ICM Diagnostic Trouble Code (DTC) Index.
7. If no DTCs related to the concern are retrieved, proceed to the Symptom Chart to continue diagnostics.
GEM DIAGNOSTIC TROUBLE CODE (DTC) INDEX Visual Inspection Chart Mechanical Electrical
z
Power window
regulator
z Window run
weatherstrip
z Door window glass z
Central junction box (CJB) circuit breaker 43 (20A), fuse 39
(5A) or 23 (15A)
z Battery junction box (BJB) fuse HTD BL (40A)
z Generic electronic module (GEM)
z Window regulator control switch
z Window regulator motor
z Instrument cluster module (ICM)
z Heated rear window relay
z Rear window defrost switch
z Heated rear window grid
z Circuitry DTC Description Source Action
B1217 Horn Relay Output Driver
Circuit Failure GEM GO to
Section 501 - 14B .
B1218 Horn Relay Output Driver
Short to Battery GEM GO to
Section 501 - 14B .
B1312 Lamp Headlamp Input Circuit GEM GO to
Section 413 - 09 . Klj . 2 ba
322003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Symptom Chart
Refer to the Wiring Diagrams for the connector numbers stated in pinpoint tests.
Symptom Chart Condition
Possible Sources Action
z No communication with the
generic electronic module
(GEM) z
Central junction box
(CJB) fuse 39 (5A).
z GEM.
z Circuitry. z
GO to Pinpoint Test A .
z All power windows are
inoperative — convertible z
Circuitry.
z CJB circuit breaker
43 (20A).
z Window regulator
control switch. z
GO to Pinpoint Test B .
z All power windows are
inoperative — coupe z
Circuitry.
z CJB circuit breaker
43 (20A).
z Window regulator
control switch. z
GO to Pinpoint Test C .
z A single power window is
inoperative — driver,
convertible z
Circuitry.
z CJB fuse 43 (20A).
z Ignition switch.
z Window regulator
motor.
z Window regulator
control switch.
z GEM. z
GO to Pinpoint Test D .
z A single power window is
inoperative — driver, coupe z
Circuitry.
z CJB fuse 43 (20A).
z Ignition switch.
z Window regulator
motor.
z Window regulator
control switch.
z GEM. z
GO to Pinpoint Test E .
z The one- touch down feature
is inoperative z
Circuitry.
z CJB fuse 43 (20A).
z Ignition switch.
z Window regulator
motor.
z Window regulator
control switch.
z GEM. z
For convertible,
GO to Pinpoint Test D .
z For coupe, GO to
Pinpoint Test E .
z A single power window is
inoperative — passenger z
Circuitry.
z Driver window
regulator control
switch.
z Window regulator
motor.
z Passenger window
regulator control
switch. z
GO to Pinpoint Test F .
z A single power window is zCircuitry. zGO to Pinpoint Klj . 5 ba
322003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Convertible Top
Refer to Wiring Diagrams Cell
103 , for schematic and connector information.
Principles of Operation
The convertible top will only operate with the parking brake engaged and the ignition switch in the RUN
position. When the parking brake is engaged, the raise and lower relay coils are grounded through the
parking brake switch. The convertible top switch supplies power to the raise or lower relay coil when
raise or lower is selected. This power energizes the coil causing the relay contacts to close which
supplies battery power to the convertible top motor/pump assembly. The normal state of the relay is
connected to ground. When the raise or lower relay is operating, the other relay remains in its normal
state supplying the motor/pump ground.
Convertible Top Adjustments
The convertible top adjustments must be made by a qualified technician.
Inspection and Verification 1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern is not visually evident, verify the symptom and refer to the Symptom Chart.
SECTION 501-
18: Convertible Top 2003 Mustang Workshop Manual Special Tool(s)
73 III Automotive Meter
105-
R0057 or equivalent
Visual Inspection Chart Mechanical Electrical
z
Convertible top brackets and
frame
z Hydraulic motor and pump
z Hydraulic lift cylinders
z Door and quarter window glass
adjustment z
Central junction box (CJB) Fuse 20 (15A)
z Battery junction box (BJB) circuit breaker
CONV TOP (30A)
z Wiring harness
z Loose or corroded connections
z Raise or lower relays
z Parking brake switch
z Convertible top switch Klj . 1 ba
102003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
