DIAGNOSIS AND TESTING
External Controls
Refer to Wiring Diagrams Cell
37 , Shift Lock for schematic and connector information.
Refer to Wiring Diagrams Cell 29 , Transmission Control for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the transmission external control.
2. Visually inspect for obvious signs of mechanical and electrical damage; refer to the following chart:
3. If the concern is not visually evident, determine the symptom. GO to Symptom Chart .
Symptom Chart SECTION 307-
05: Automatic Transaxle/Transmission External Controls 2003 Mustang Workshop Manual Special Tool(s)
73 Digital Multimeter
105-
R0051 or equivalent
Visual Inspection Chart Mechanical Electrical
z
Shift control linkage binding.
z Shift lock actuator.
z Shift control cable.
z Interlock cable. z
Circuitry.
z Central junction box (CJB) fuse:
„17 (15A)
„ 28 (15A)
„ 35 (15A)
z Brake pedal position (BPP) switch.
z Wiring harness.
z Loose or corroded connections.
z Bulb.
SYMPTOM CHART Condition
Possible Sources Action
z The shift interlock
system does not
release/lock correctly z
Circuitry.
z CJB Fuse 17 (15A)
or Fuse 35 (15A).
z Shift lock actuator.
z Brake pedal position
(BPP) switch. z
Go To Pinpoint Test A . Klj . 1 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

z
speed control actuator switches.
z brake pedal position (BPP) switch.
z clutch pedal position (CPP) switch.
z deactivator switch.
The output of the speed control servo is the:
zspeed control actuator cable controlling the throttle position.
Inspection and Verification
NOTE: If any concerns are noted with the speedometer, stoplamps, or horn, address those concerns
by referring to their associated sections before continuing speed control diagnosis.
1. Verify the customer concern by operating the speed control system.
2. Visually inspect for obvious signs of mechanical and electrical damage.
3. If the fault is not visually evident, verify the symptom and GO to the Symptom chart.
Symptom Chart
NOTE: New speed control diagnostic software is available in Version 12 or higher for the diagnostic
tool. When using this software, it is necessary to use Next Generation Speed Control Adapter 007-
00586 with the diagnostic tool.
NOTE: Refer to the Wiring Diagrams for connector numbers stated in the Pinpoint Test.
Visual Inspection Chart Mechanical Electrical
z
Deactivator switch
z Speed control actuator cable not attached to throttle
z Speed control actuator cable not fully seated to the
engine bracket z
Central junction box (CJB)
Fuse:
„15 (15A)
„ 33 (15A)
„ 35 (15A)
z Battery junction box (BJB)
fuse:
„HORN (20A)
z Wiring harness
z Loose or corroded
connections
z Speed control actuator
switches
Symptom Chart Condition
Possible Sources Action
z The speed control is zCentral junction zGo To Pinpoint Test A . Klj . 2 ba
132003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

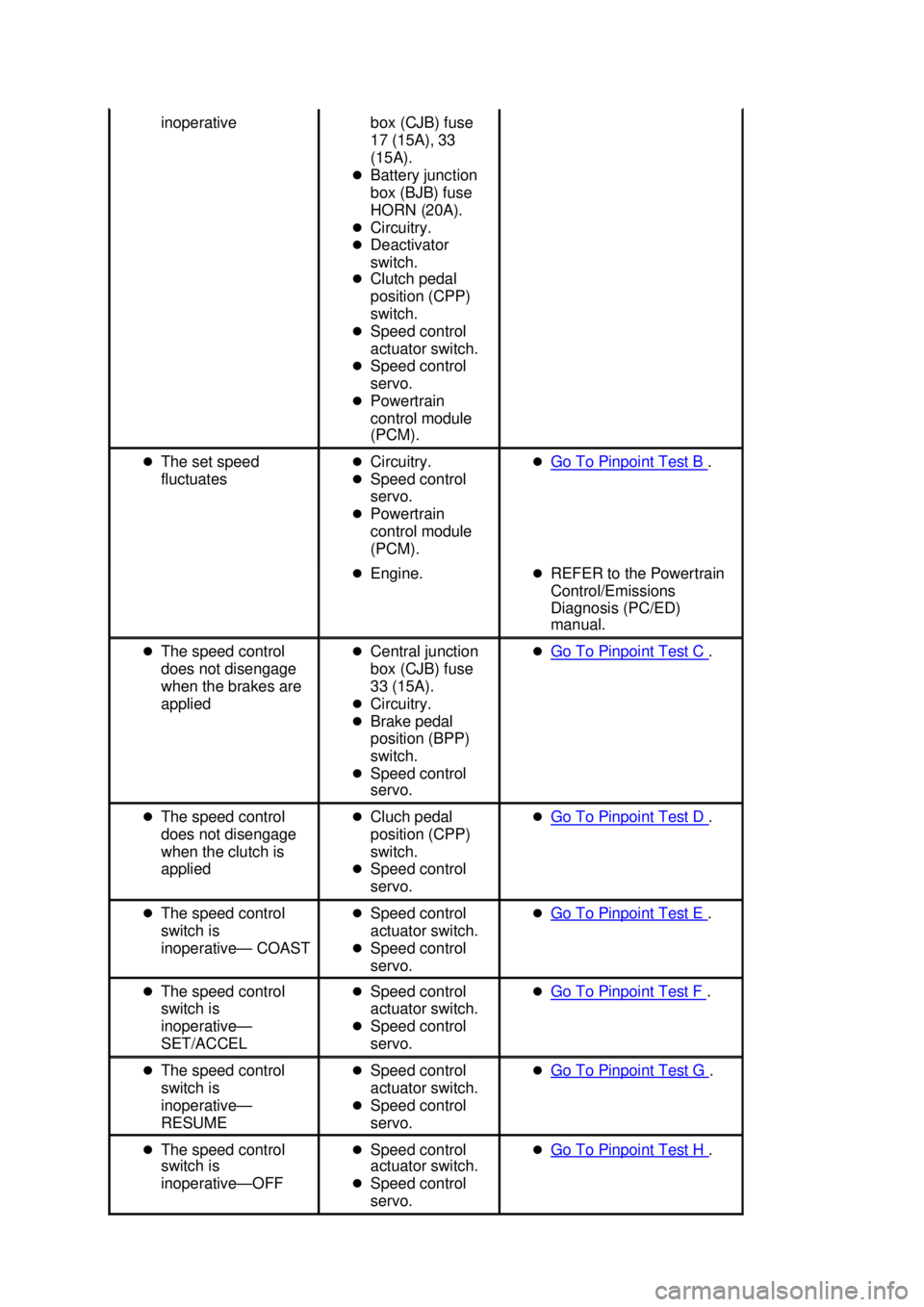

inoperative
box (CJB) fuse
17 (15A), 33
(15A).
z Battery junction
box (BJB) fuse
HORN (20A).
z Circuitry.
z Deactivator
switch.
z Clutch pedal
position (CPP)
switch.
z Speed control
actuator switch.
z Speed control
servo.
z Powertrain
control module
(PCM).
z The set speed
fluctuates z
Circuitry.
z Speed control
servo.
z Powertrain
control module
(PCM). z
Go To Pinpoint Test B .
z Engine. zREFER to the Powertrain
Control/Emissions
Diagnosis (PC/ED)
manual.
z The speed control
does not disengage
when the brakes are
applied z
Central junction
box (CJB) fuse
33 (15A).
z Circuitry.
z Brake pedal
position (BPP)
switch.
z Speed control
servo. z
Go To Pinpoint Test C .
z The speed control
does not disengage
when the clutch is
applied z
Cluch pedal
position (CPP)
switch.
z Speed control
servo. z
Go To Pinpoint Test D .
z The speed control
switch is
inoperative— COAST z
Speed control
actuator switch.
z Speed control
servo. z
Go To Pinpoint Test E .
z The speed control
switch is
inoperative—
SET/ACCEL z
Speed control
actuator switch.
z Speed control
servo. z
Go To Pinpoint Test F .
z The speed control
switch is
inoperative—
RESUME z
Speed control
actuator switch.
z Speed control
servo. z
Go To Pinpoint Test G .
z The speed control
switch is
inoperative— OFF z
Speed control
actuator switch.
z Speed control
servo. z
Go To Pinpoint Test H . Klj . 3 ba
132003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

z

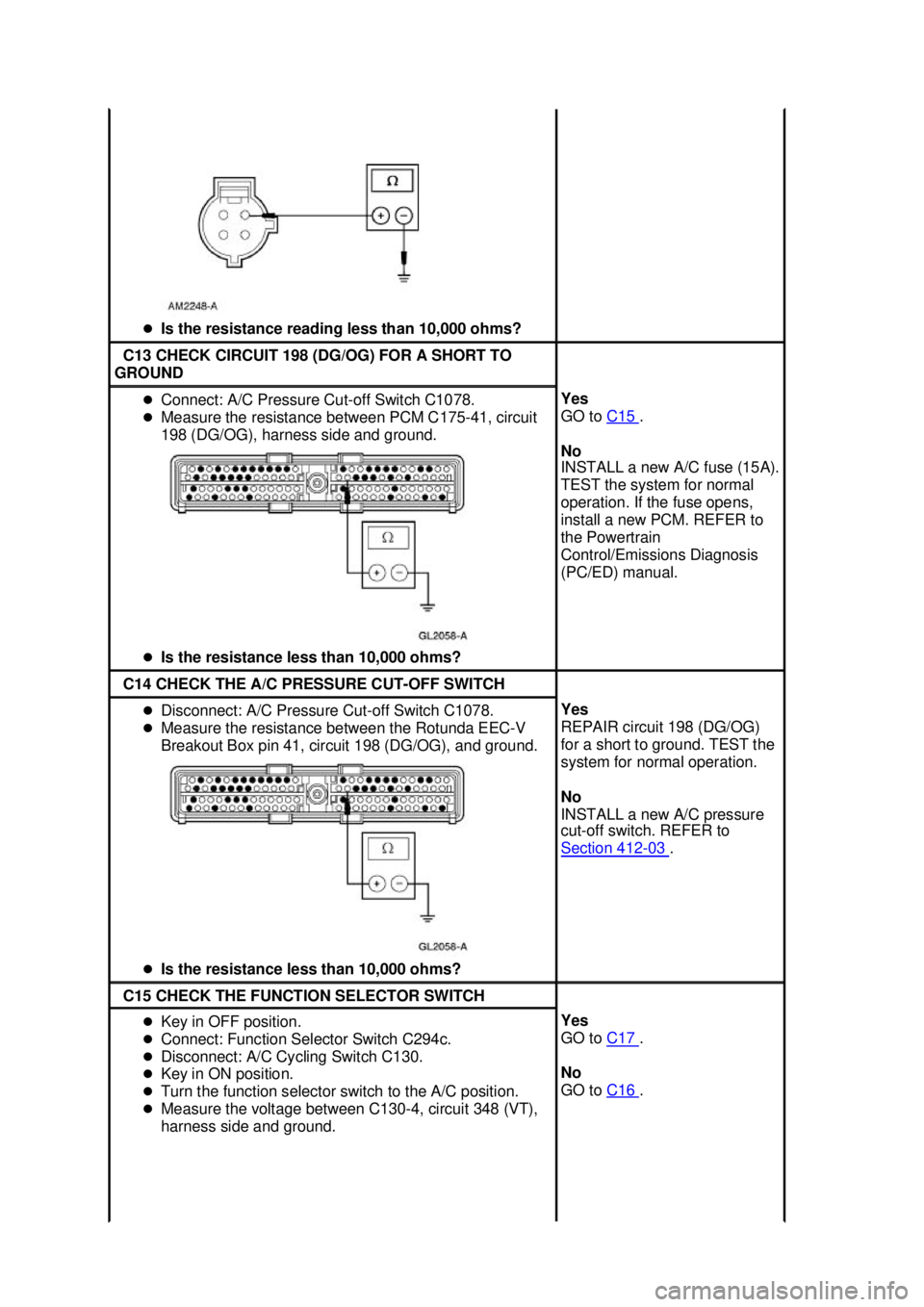

Is the resistance reading less than 10,000 ohms? C13 CHECK CIRCUIT 198 (DG/OG) FOR A SHORT TO
GROUND z
Connect: A/C Pressure Cut- off Switch C1078.
z Measure the resistance between PCM C175- 41, circuit
198 (DG/OG), harness side and ground.
z Is the resistance less than 10,000 ohms? Yes
GO to
C15 .
No
INSTALL a new A/C fuse (15A).
TEST the system for normal
operation. If the fuse opens,
install a new PCM. REFER to
the Powertrain
Control/Emissions Diagnosis
(PC/ED) manual. C14 CHECK THE A/C PRESSURE CUT-
OFF SWITCH z
Disconnect: A/C Pressure Cut-off Switch C1078.
z Measure the resistance between the Rotunda EEC- V
Breakout Box pin 41, circuit 198 (DG/OG), and ground.
z Is the resistance less than 10,000 ohms? Yes
REPAIR circuit 198 (DG/OG)
for a short to ground. TEST the
system for normal operation.
No
INSTALL a new A/C pressure
cut-
off switch. REFER to
Section 412 - 03 .
C15 CHECK THE FUNCTION SELECTOR SWITCH
z
Key in OFF position.
z Connect: Function Selector Switch C294c.
z Disconnect: A/C Cycling Switch C130.
z Key in ON position.
z Turn the function selector switch to the A/C position.
z Measure the voltage between C130- 4, circuit 348 (VT),
harness side and ground. Yes
GO to
C17 .
No
GO to C16 . Klj . 19 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Instrument Cluster and Panel Illumination
Refer to Wiring Diagrams Cell
71 , Instrument Illumination for schematic and connector information.
Inspection and Verification
NOTE: A new instrument cluster must be reconfigured. Refer to Section 418 - 01 .
NOTE: The instrument panel dimmer switch is a part of the headlamp switch.
1. Verify the customer concern.
2. Visually inspect for obvious signs of electrical damage.
3. If the fault is not visually evident, determine the symptom and proceed to the Symptom Chart.
Symptom Chart SECTION 413-
00: Instrument Cluster and Panel Illumination 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter
105-
R0057 or equivalent
Visual Inspection Chart Electrical
z
Central junction box (CJB) fuses:
„5 (15A)
„ 21 (5A)
„ 34 (20A)
„ 37 (5A)
„ 32 (15A)
„ 27 (20A)
z Circuitry
z Damaged switch
Symptom Chart Condition
Possible Sources Action
z The control illumination is
inoperative z
Central junction box
(CJB) fuse 37 (5A).
z Circuitry.
z Headlamp switch. z
Go To Pinpoint Test A .
z The instrument cluster
illumination is inoperative z
Circuitry.
z Instrument cluster. z
Go To Pinpoint Test B . Klj . 1 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Pinpoint Tests
PINPOINT TEST A: THE CONTROL ILLUMINATION IS INOPERATIVE
PINPOINT TEST B: THE INSTRUMENT CLUSTER ILLUMINATION IS
INOPERATIVE z
Bulb(s).
z The climate control
illumination is inoperative z
Circuitry.
z Bulb(s). z
Go To Pinpoint Test C .
z The audio system
illumination is inoperative z
Circuitry.
z Audio unit. z
Go To Pinpoint Test D .
z A single illumination source
is inoperative z
Circuitry.
z Switch. z
Go To Pinpoint Test E .
Test Step Result / Action to Take
A1 CHECK PARKING LAMPS
z
Place the headlamp switch in the ON
position.
z Are the exterior lamps on? Yes
Place the headlamp switch in the OFF position.
GO to
A2 .
No
REFER to Section 417 - 01 .
A2 CHECK HEADLAMP SWITCH
z
Key in OFF position.
z Carry out the headlamp switch
components test;
Refer to Wiring Diagrams Cell 149 for
schematic and connector information.
.
z Is the headlamp switch OK? Yes
RECONNECT the headlamp switch. GO to
A3 .
No
INSTALL a new headlamp switch. REFER to
Section 417 - 01 . TEST the system for normal
operation. A3 CHECK CIRCUIT 1045 (DB/WH)
z
Place the headlamp switch in the ON
position.
z Rotate the instrument panel dimmer
switch to the full illumination position.
z Measure voltage between central
junction box (CJB) fuse 37 (5A) and
ground.
z Is the voltage greater than 10 volts? Yes
REPAIR circuit 19 (LB/RD). TEST the system for
normal operation.
No
REPAIR circuit 1045 (DB/WH). TEST the system
for normal operation.
Test Step Result / Action to Take
B1 CHECK VOLTAGE TO INSTRUMENT CLUSTER
ILLUMINATION z
Disconnect: Instrument Cluster .
z Place the headlamp switch in the ON position.
z Rotate the instrument panel dimmer switch to the full Yes
GO to
B2 . Klj . 2 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

The right and left turn indicators will illuminate when the steering column multifunction switch is in
either turn signal position or hazard lamps position by sending a battery signal to the instrument
cluster.
AIR BAG Warning Indicator
The AIR BAG warning indicator will be illuminated when the restraint control module (RCM) sends a
ground signal to the instrument cluster. The prove-
out of the AIR BAG warning indicator is controlled
by the RCM.
THEFT Indicator
The THEFT indicator provides a passive anti- theft system (PATS) prove-out. The THEFT indicator will
prove out for three seconds following the ignition switch cycle and will flash following an ignition switch
OFF transition to indicate that PATS is active.
Charging System Indicator
The charging system indicator will be illuminated when the generator provides a ground signal to the
instrument cluster. The instrument cluster provides a prove- out when the ignition switch is in the RUN
position with the engine off. When the engine is started, the generator removes the ground to the
instrument cluster and extinguishes the charging system indicator.
Overdrive Off (O/D OFF) Indicator
The O/D OFF indicator is controlled by the off/on message sent from the PCM over the SCP network.
The instrument cluster does not provide a prove- out for the O/D OFF indicator, but will remain
illuminated if the overdrive has been commanded off following the instrument cluster prove- out.
Traction Control Indicator
During initialization, the instrument cluster will receive the traction control system state status message
from the traction control module to determine if the vehicle is equipped with traction control. If the
vehicle is equipped with traction control, this information will be stored in random access memory
(RAM) and the indicator will prove out for three seconds during each ignition cycle. If this message is
not received, the instrument cluster will assume that the vehicle is not traction control equipped and
the indicator will remain off. When the traction control is active, the traction control module sends the
instrument cluster a traction control active signal and the instrument cluster illuminates the traction
control indicator. When the traction control is inactive, the traction control module removes the traction
control active signal and the instrument cluster turns off the indicator.
In the event of a traction control failure, the traction control indicator will remain off and the ABS
indicator will illuminate.
Inspection and Verification 1. Verify the customer concern.
2. Visually inspect for obvious signs of mechanical and electrical damage.
Visual Inspection Chart Mechanical Electrical
z
Fuel tank z
Central junction box (CJB) fuse(s): Klj . 4 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Symptom Chart B1446 Wiper Park Sense Circuit
Failure GEM REFER to
Section 501 - 16 .
B1448 Wiper Park Sense Circuit Short
to Battery GEM REFER to
Section 501 - 16 .
B1450 Wiper Wash/Delay Switch
Circuit Failure GEM REFER to
Section 501 - 16 .
B1453 Wiper Wash/Delay Switch
Circuit Short to Ground GEM REFER to
Section 501 - 16 .
B1458 Wiper Washer Pump Motor
Relay Circuit Failure GEM REFER to
Section 501 - 16 .
B1460 Wiper Washer Pump Motor
Relay Coil Circuit Short to Battery GEM REFER to
Section 501 - 16 .
B1462 Safety Belt Switch Circuit
Failure GEM REFER to
Section 413 - 09 .
B1466 Wiper Hi/Low Speed Not
Switching GEM REFER to
Section 501 - 16 .
B1473 Wiper Low Speed Circuit Motor
Failure GEM REFER to
Section 501 - 16 .
B1476 Wiper High Speed Circuit Motor
Failure GEM REFER to
Section 501 - 16 .
B1551 Decklid Release Circuit Failure GEM REFER to
Section 501 - 14B .
B1553 Decklid Release Circuit Short to
Battery GEM REFER to
Section 501 - 14B .
B1555 Ignition Run/Start Circuit
Failure GEM REFER to
Section 211 - 05 .
B1687 Lamp Dome Input Circuit Short
to Battery GEM REFER to
Section 417 - 02 .
B2486 Parklamp Output Relay Driver
Circuit Failure GEM REFER to
Section 419 - 01 .
B2488 Parklamp Output Relay Driver
Short to Battery GEM REFER to
C1189 Brake Fluid Level Sensor Input
Short Circuit to Ground GEM Go To Pinpoint Test O .
C1223 Lamp Brake Warning Output
Circuit Failure GEM Go To Pinpoint Test O .
C1225 Lamp Brake Warning Output
Circuit Short to Battery GEM Go To Pinpoint Test O .
Symptom Chart Condition
Possible Sources Action
z No communication with
the generic electronic
module (GEM) z
Central junction
box (CJB) fuse
(s):
„7 (15A).
„ 39 (5A).
„ 43 z
Go To Pinpoint Test W Klj . 9 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
