3. Install the bolts.
4.
CAUTION: Timing marks must be at 12 o'clock and indexed at 6 o'clock.
Install the camshaft sprockets and the chain as an assembly.
5. Remove the lockpin from the chain tensioner. Klj . 5 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Exhaust Manifold LH
Removal and Installation 1. Position the steering wheel straight ahead and lock the column.
2. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
3. Raise the vehicle. For additional information, refer to Section 100 - 02 .
4. Remove the dual converter Y- pipe. For additional information, refer to Section 309 - 00 .
5. Remove and discard the pinch bolt.
6. Separate the steering coupler.
7. Disconnect the exhaust gas recirculation (EGR) tube at the exhaust manifold.
SECTION 303-
01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

22.
NOTE: Be careful when removing the oil pan gasket. It is reusable.
Remove the oil pan and gasket. zInspect the oil pan gasket for damage.
Installation 1. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other
abrasive means to clean the sealing surfaces. These tools cause scratches and gouges
which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
Clean and inspect the mating surfaces.
2. NOTE: If the oil pan is not secured within four minutes, the sealant must be removed and the
sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness,
or four minutes, whichever is longer. Failure to follow this procedure may result in future oil
leakage.
Apply silicone gasket and sealant at the engine front cover- to-cylinder block mating surface.
3. NOTE: If the oil pan is not secured within four minutes, the sealant must be removed and the
sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, Klj . 5 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

or four minutes, whichever is longer. Failure to follow this procedure may result in future oil
leakage.
Apply silicone gasket and sealant at the rear oil seal retainer-
to-cylinder block sealing surface.
4. Install the oil pan and gasket and loosely install the bolts.
5. Tighten the bolts in the sequence shown in three stages. zStage 1: Tighten to 2 Nm (18 lb- in).
z Stage 2: Tighten to 20 Nm (15 lb- ft).
z Stage 3: Tighten an additional 60 degrees. Klj . 6 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

12. Disconnect the throttle position (TP) sensor and the idle air control (IAC) valve electrical
connectors.
13. Disconnect the vacuum hose.
14. Disconnect the A/C pressure switch electrical connector.
15. Disconnect the fuel tube spring lock coupling. For additional information, refer to Section 310 -
00 . Klj . 3 ba
172003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

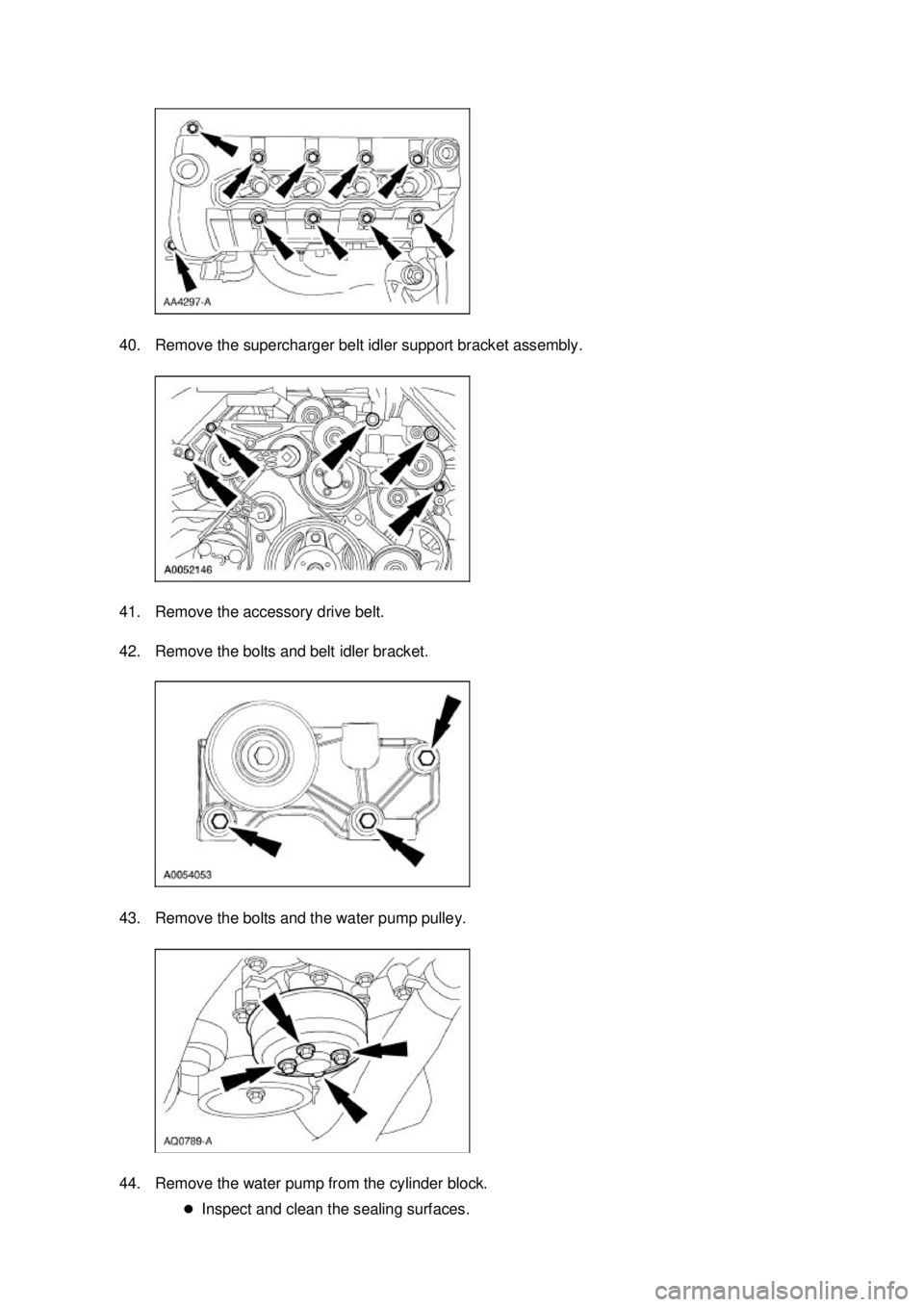

40. Remove the supercharger belt idler support bracket assembly.
41. Remove the accessory drive belt.
42. Remove the bolts and belt idler bracket.
43. Remove the bolts and the water pump pulley.
44. Remove the water pump from the cylinder block.
zInspect and clean the sealing surfaces. Klj . 12 ba
232003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

72.
CAUTION: Do not stamp the top of pistons, as ring land damage can occur.
NOTE: Connecting rods and rod caps should be numbered to keep the correct orientation in the
following sequence.
Remove the connecting rod caps for pistons number 1 and 6.
zDiscard the bolts.
73. CAUTION: Do not scratch the cylinder walls or crankshaft journals with the
connecting rod.
NOTE: Before removing pistons, inspect the top of the cylinder bores. If necessary, remove the
ridge or carbon deposits from each cylinder using a cylinder ridge reamer. Follow
manufacturer's instructions.
Using the special tool, push pistons number 1 and 6 through the top of the cylinder block.
74. To remove pistons number 3 and 5, 4 and 7, 2 and 8, turn the crankshaft 90 degrees and repeat the previous two steps.
75. Remove the side bolts. Klj . 20 ba
232003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

76. Remove and discard the bolts.
77. Remove the main bearing caps and the crankshaft lower main bearings from the cylinder block. Klj . 21 ba
232003 Mustang Workshop Manual
