2003 FORD MUSTANG diagram

DEFOGGERS

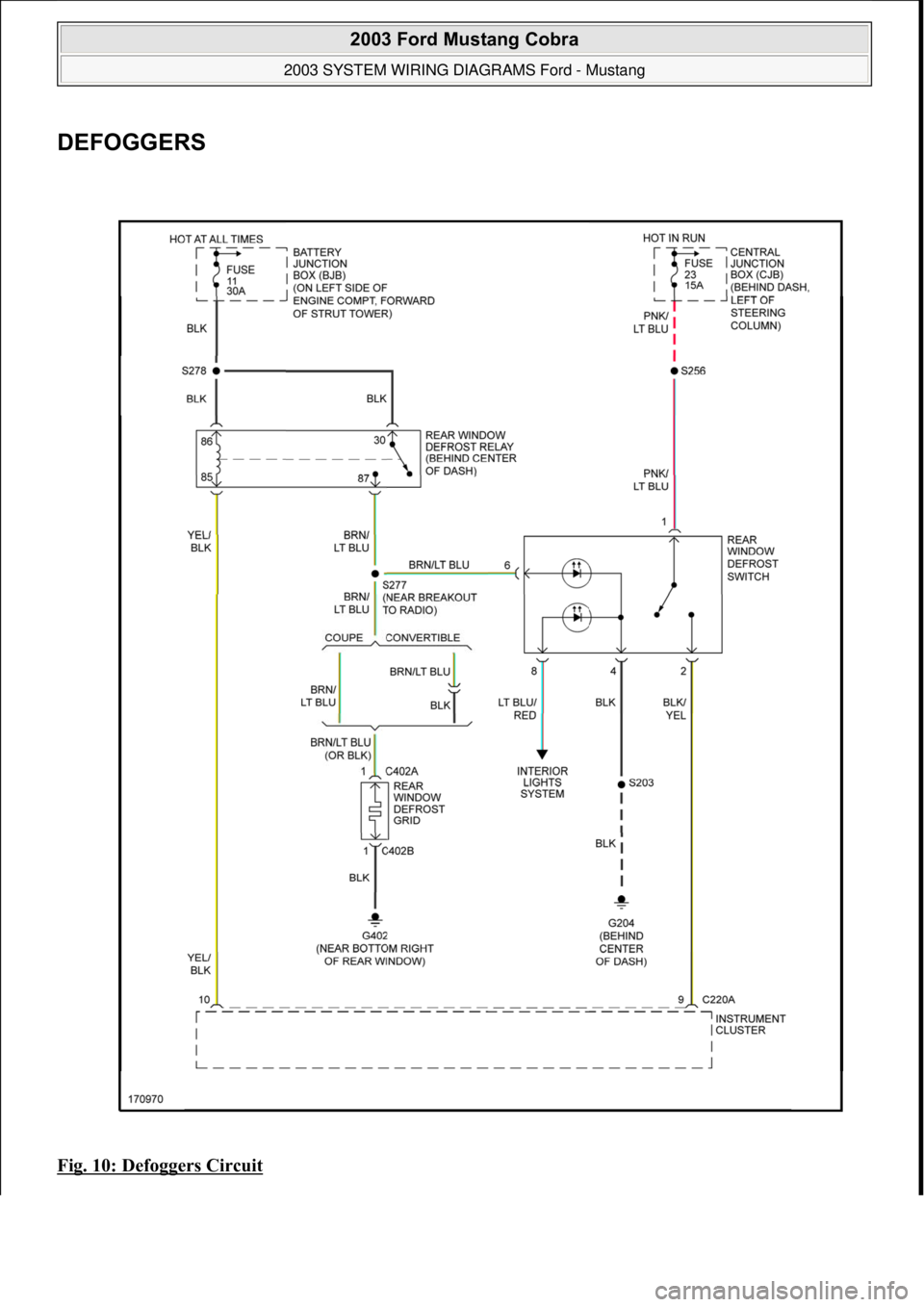

Fig. 10: Defoggers Circuit

2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 11 © 2006 Mitchell Repair Information Company, LLC.

ENGINE PERFORMANCE
3.8L

2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 12 © 2006 Mitchell Repair Information Company, LLC.

Fig. 11: 3.8L, Engine Performance Circuit (1 of 3)
Fig. 12: 3.8L, Engine Performance Circuit (2 of 3)

2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 13 © 2006 Mitchell Repair Information Company, LLC.

Fig. 13: 3.8L, Engine Performance Circuit (3 of 3)
4.6L DOHC

2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 14 © 2006 Mitchell Repair Information Company, LLC.

Fig. 14: 4.6L DOHC, Engine Performance Circuit (1 of 3)

2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 15 © 2006 Mitchell Repair Information Company, LLC.

Fig. 15: 4.6L DOHC, Engine Performance Circuit (2 of 3)

2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 16 © 2006 Mitchell Repair Information Company, LLC.

Fig. 16: 4.6L DOHC, Engine Performance Circuit (3 of 3)
4.6L SC

2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 17 © 2006 Mitchell Repair Information Company, LLC.

Fig. 17: 4.6L SC, Engine Performance Circuit (1 of 3)

2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 18 © 2006 Mitchell Repair Information Company, LLC.
