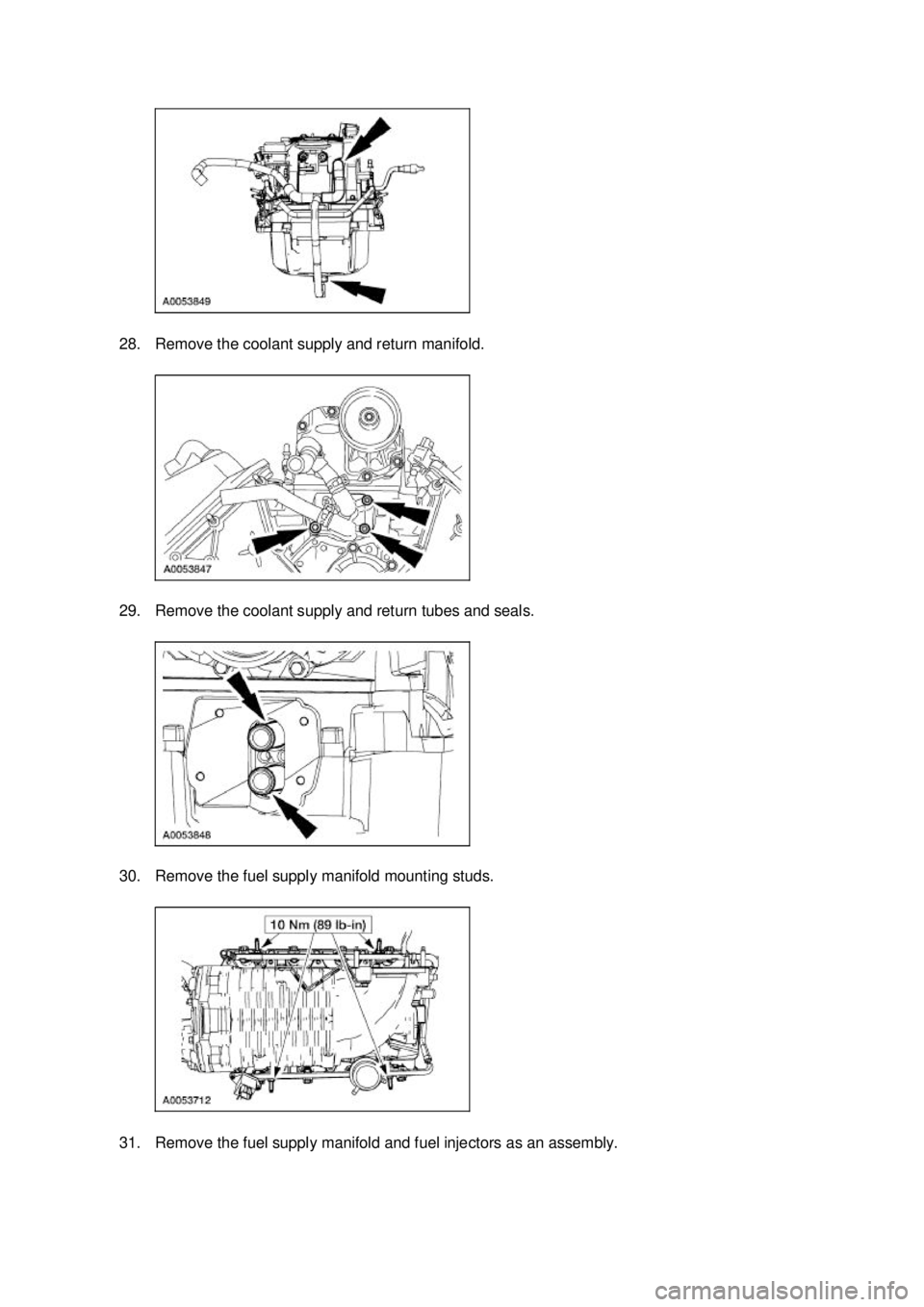

28. Remove the coolant supply and return manifold.
29. Remove the coolant supply and return tubes and seals.
30. Remove the fuel supply manifold mounting studs.
31. Remove the fuel supply manifold and fuel injectors as an assembly. Klj . 7 ba
102003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

37.
NOTE: Once the torque procedure has been started, final tightening must be finished within five
minutes maximum.
Tighten the CAC bolts in the sequence shown in two stages. 1. Tighten to 2 Nm (18 lb- in).
2. Tighten to 6 Nm (53 lb- in).
38. Tighten the supercharger and CAC cooler assembly- to-lower intake manifold bolts in the
sequence shown in three stages.
1. Tighten to 2 Nm (18 lb- in).
2. Tighten to 25 Nm (18 lb- ft).
3. Tighten an additional 90 degrees.
39. Tighten the coolant supply and return manifold in two stages. 1. Tighten to 10 Nm (89 lb- ft).
2. Tighten an additional 90 degrees. Klj . 9 ba
102003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricants
Super premium SAE 5W-
20 Engine Oil XO-5W20-DSP WSS-
M2C914- A Penetrating and Lock Lubricant E8AZ-19A501-
B N/A
Pipe Sealant with Teflon D8AZ-19554-
A WSK-
M26350- A2
Torque Specifications Description Nm lb-
ft lb-
in Cylinder head temperature (CHT) sensor —
3.8L 10 — 89
Engine coolant temperature (ECT) sensor —
4.6L (2V) 20 — 15
Engine coolant temperature (ECT) sensor —
4.6L (4V) 24 18 —
Heated oxygen sensors (HO2S) 41 30 —
Catalyst monitor sensors 41 30 —
Crankshaft position (CKP) sensor bolts —
3.8L 6 — 53
Crankshaft position (CKP) sensor bolts —
4.6L 10 — 89
Power steering reservoir bolts 10 — 89
Camshaft position (CMP) sensor bolt —
4.6L 10 — 89
PCM connector to module bolt 6 — 53
Idle air control (IAC) valve bolts 10 — 89
Camshaft synchronizer housing bolt 25 18 —
Throttle position (TP) sensor screws 3 — 27
Fuel pressure sensor bolts 4 — 35
Air intake scoop bolts 25 18 —
Air intake scoop bracket bolt 25 18 —
Air intake scoop bracket nuts 25 18 —
Air intake scoop bracket throttle body nut 9 — 80
Exhaust gas recirculation (EGR) vacuum regulator solenoid bolts 10 — 89 Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Electronic Engine Controls
The electronic engine controls consist of the following:
zpowertrain control module (PCM)
z throttle position (TP) sensor
z idle air control (IAC) valve
z engine coolant temperature (ECT) sensor
z cylinder head temperature sensor
z camshaft position (CMP) sensor
z crankshaft position (CKP) sensor
z mass air flow (MAF) sensor
z intake air temperature (IAT) sensor
z heated oxygen sensor (HO2S) — front
z catalyst monitor sensor — rear
z wheel speed sensor
The powertrain control module needs the following inputs to calibrate the engine correctly:
zcrankshaft position
z engine rpm
z engine load (manifold pressure)
z atmospheric (barometric) pressure
z engine coolant temperature
The throttle position sensor:
zsends the powertrain control module a signal indicating the throttle plate angle.
z is the main input to the powertrain control module from the driver.
The idle air control valve:
zcontrols bypass air around the throttle plate at low speeds.
z is controlled by the powertrain control module.
The cylinder head temperature sensor:
zprovides a gauge signal for coolant temperature.
z is mounted on rear of LH cylinder head.
z sends the powertrain control module a signal indicating engine temperature.
z resistance decreases as coolant temperature increases.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Electronic Engine Controls —
Cobra
Most of the Cobra engine electronic controls are similar to that of the non- supercharged 4.6L (2V)
engine. These components are as follows:
zCrankshaft position (CKP) sensor
z Throttle position (TP) sensor
z Idle air control (IAC) valve
z Mass air flow (MAF) sensor
z Heated oxygen sensors (HO2S)
z Engine coolant temperature (ECT) sensor
There are also three controls that are unique to the Cobra engine. These are as follows:
zIntegrated temperature and manifold absolute pressure (T- MAP) sensor
z Supercharger bypass vacuum solenoid
z Supercharger bypass vacuum solenoid — actuator
Supercharger Bypass Vacuum Solenoid and Actuator
The Supercharger bypass vacuum solenoid will bleed off boost under the following conditions:
zheavy engine misfire
z engine coolant over- temperature
z loss of intercooler fluid
z pump failure
This prevents damage that can occur if boost were allowed under these conditions. The solenoid is
located on the upper LH side of the engine. The solenoid uses engine vacuum to operate a actuator
and linkage that connects to the pressure bleed off valve. The actuator is located near the solenoid
and is connected to it by a vacuum line.
Integrated Temperature and Manifold Absolute Pressure (TMAP) Sensor
The TMAP sensor is located on the upper LH side of the engine and is used to measure current
manifold absolute pressure and manifold air charge temperature. SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Intake Manifold Runner Control (IMRC) Actuator —
3.8L
Removal and Installation 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Drain the cooling system. For additional information, refer to Section 303 - 03A .
3. Remove the upper intake manifold. For additional information, refer to Section 303 - 01A .
4. Remove the fuel injector supply manifold. For additional information, refer to Section 303 - 04A .
5. Remove the coolant bypass tube. For additional information, refer to Section 303 - 03A .
6. Remove the bolt and heater water inlet tube at the back of the lower intake.
7. Remove the two stud bolts and one bolt. Position the actuator aside.
8. Disconnect the linkage and remove the actuator.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

9.
NOTE: New plastic IMRC retainers must be installed any time an IMRC rod is removed.
NOTE: Before installing the IMRC actuator, be sure to rotate the motor driver plate until the
levers make contact with the set screws, then rotate the motor until the motor bracket bolt holes
line up with the tapped holes in the lower intake manifold.
NOTE: Discard O- ring and install a new O- ring on the heater inlet tube. Lubricate the O- ring
with engine coolant prior to installation.
To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Engine Coolant Temperature (ECT) Sensor —
4.6L (2V)
Removal 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Partially drain the cooling system. For additional information, refer to Section 303 - 03A .
3. Disconnect the engine coolant temperature (ECT) sensor (12A648) connector.
4. Remove the ECT sensor.
Installation 1. To install, reverse the removal procedure.
