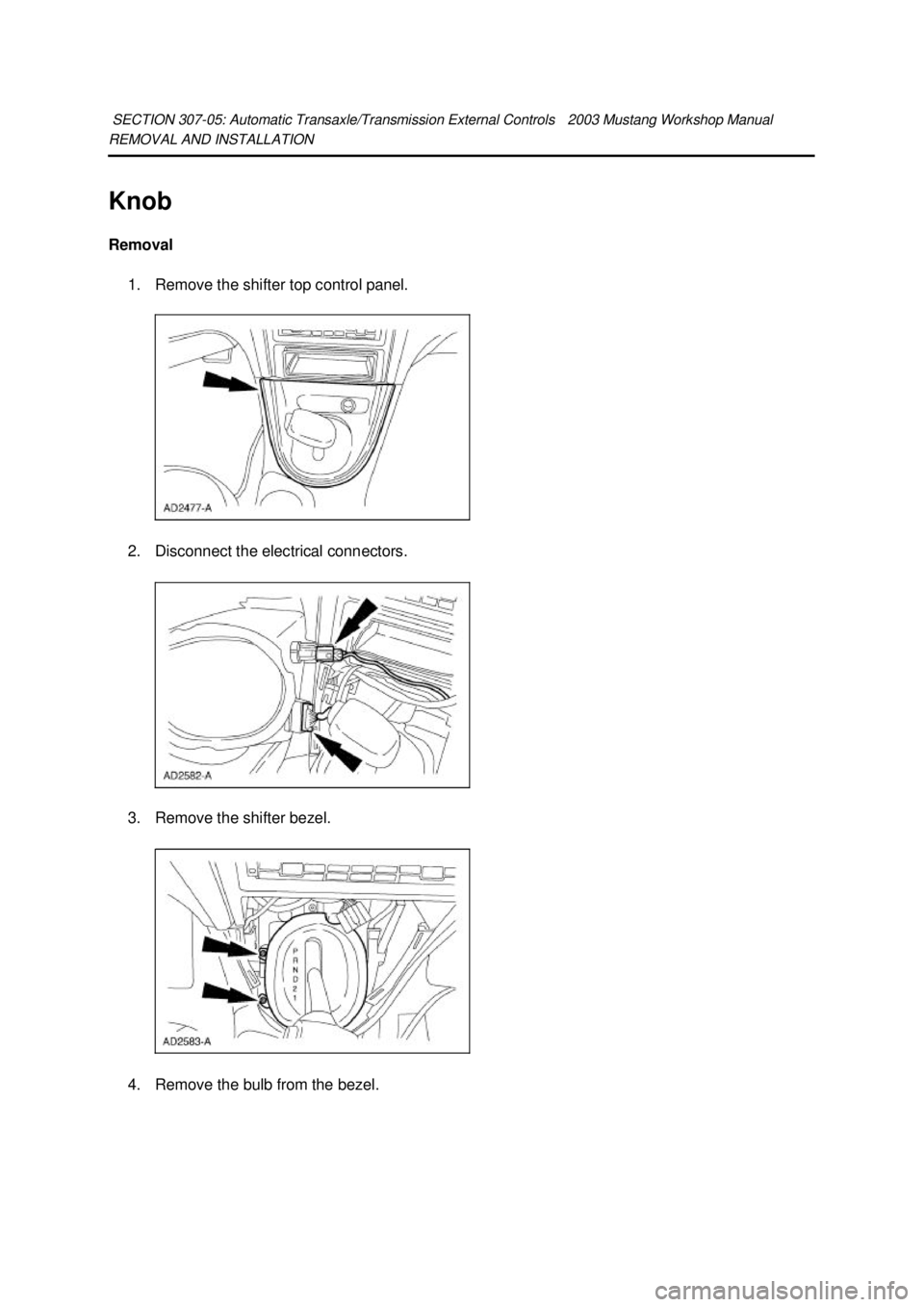

2003 FORD MUSTANG bulb

REMOVAL AND INSTALLATION
Knob
Removal
1. Remove the shifter top control panel.
2. Disconnect the electrical connectors.
3. Remove the shifter bezel. 4. Remove the bulb from the bezel. SECTION 307-
05: Automatic Transaxle/Transmission External Controls 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Instrument Cluster and Panel Illumination
The instrument cluster and panel illumination system illuminates the following components:
zinstrument cluster (10849)
z audio unit (18806)
z A/C- heater control
z fog lamp switch
z transmission range indicator
z traction control switch
z rear window defrost control switch
The instrument cluster is a hybrid electronic cluster (HEC), which uses both hardwired circuitry and the
standard corporate protocol (SCP) communication network to transmit and receive information. The
Mustang instrument cluster backlighting has illumination bulbs that are installed separately from the
instrument cluster. The Cobra instrument cluster has a laminated, electroluminescent applique to
backlight the cluster . The electroluminescent applique and instrument cluster must be installed as an
assembly. SECTION 413-
00: Instrument Cluster and Panel Illumination 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Pinpoint Tests
PINPOINT TEST A: THE CONTROL ILLUMINATION IS INOPERATIVE
PINPOINT TEST B: THE INSTRUMENT CLUSTER ILLUMINATION IS
INOPERATIVE z
Bulb(s).
z The climate control
illumination is inoperative z
Circuitry.
z Bulb(s). z
Go To Pinpoint Test C .
z The audio system
illumination is inoperative z
Circuitry.
z Audio unit. z
Go To Pinpoint Test D .
z A single illumination source
is inoperative z
Circuitry.
z Switch. z
Go To Pinpoint Test E .
Test Step Result / Action to Take
A1 CHECK PARKING LAMPS
z
Place the headlamp switch in the ON
position.
z Are the exterior lamps on? Yes
Place the headlamp switch in the OFF position.
GO to
A2 .
No
REFER to Section 417 - 01 .
A2 CHECK HEADLAMP SWITCH
z
Key in OFF position.
z Carry out the headlamp switch
components test;
Refer to Wiring Diagrams Cell 149 for
schematic and connector information.
.
z Is the headlamp switch OK? Yes
RECONNECT the headlamp switch. GO to
A3 .
No
INSTALL a new headlamp switch. REFER to
Section 417 - 01 . TEST the system for normal
operation. A3 CHECK CIRCUIT 1045 (DB/WH)
z
Place the headlamp switch in the ON
position.
z Rotate the instrument panel dimmer
switch to the full illumination position.
z Measure voltage between central
junction box (CJB) fuse 37 (5A) and
ground.
z Is the voltage greater than 10 volts? Yes
REPAIR circuit 19 (LB/RD). TEST the system for
normal operation.
No
REPAIR circuit 1045 (DB/WH). TEST the system
for normal operation.
Test Step Result / Action to Take
B1 CHECK VOLTAGE TO INSTRUMENT CLUSTER
ILLUMINATION z
Disconnect: Instrument Cluster .
z Place the headlamp switch in the ON position.
z Rotate the instrument panel dimmer switch to the full Yes
GO to
B2 . Klj . 2 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST D: THE AUDIO SYSTEM ILLUMINATION IS
INOPERATIVE z
Measure the resistance between the function selector switch
C294b pin 1, circuit 1205 (BK), harness side and ground.
z Is the resistance less than 5 ohms? Yes
INSTALL new
illumination bulb(s).
REFER to
Section 412 -
04 .
No
REPAIR the circuit.
TEST the system for
normal operation. Test Step Result / Action to Take
D1 CHECK VOLTAGE TO AUDIO UNIT
z
Disconnect: Audio Unit C290a.
z Place the headlamp switch in the ON position.
z Rotate the instrument panel dimmer switch to the full
illumination position.
z Measure the voltage between the audio unit C290a pin
1, circuit 19 (LB/RD), harness side and ground.
z Is the voltage greater than 10 volts? Yes
GO to
D2 .
No
REPAIR the circuit. TEST the
system for normal operation. D2 CHECK GROUND TO AUDIO UNIT
z
Measure the resistance between the audio unit C290a
pin 2, circuit 1205 (BK), harness side and ground.
z Is the resistance less than 5 ohms? Yes
REMOVE the audio unit and
SEND it to an authorized Ford
audio systems repair facility.
TEST the system for normal
operation.
No
REPAIR the circuit. TEST the
system for normal operation. Klj . 4 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Instrument Cluster Bulb
Removal and Installation
1. Remove the instrument cluster. For additional information, refer to Section 413 - 01 .
2. Remove the necessary instrument cluster bulbs by rotating the bulb one quarter turn counterclockwise and lifting straight out of the instrument cluster.
3. To install, reverse the removal procedure.
SECTION 413-
00: Instrument Cluster and Panel Illumination 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Instrument Cluster
Refer to Wiring Diagrams Cell
60 , Instrument Cluster for schematic and connector information.
Principles of Operation
NOTE: A new instrument cluster must be reconfigured. Refer to Section 418 - 01 .
The instrument cluster is a hybrid electronic cluster (HEC). The instrument cluster uses both hardwired
and the standard corporate protocol (SCP) communication network to transmit and receive
information. As a technician it is very important to understand:
zwhere the input originates from.
z all information necessary in order for a feature to operate.
z which module(s) receive(s) the input or command message.
z does the module which received the input control the output of the feature, or does it output a
message over the SCP network to another module?
z which module controls the output of the feature.
The instrument cluster carries out a display prove- out to verify that the warning/indicator miniature
bulbs for monitored systems are functioning correctly. When the ignition switch is in the ON position
with the engine off, the following warning indicators will prove out:
zanti- lock brake (ABS) warning indicator
SECTION 413-
01: Instrument Cluster 2003 Mustang Workshop Manual Special Tool(s)
Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent
diagnostic tool Instrument Gauge System
Tester
014-
R1063 or equivalent 73III Automotive Meter
105-
R0057 or equivalent Klj . 1 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Odometer
Display Description
GAGE Activates gauge sweep of all gauges, then displays present gauge values. Also
carries out the checksum tests on ROM and EE. All segments
illuminated Illuminates all odometer segments.
bulb Illuminates all micro-controlled indicators and LEDs. Install a new indicator or LED as
necessary. r Returns to normal operation of all micro-
controlled indicators and LEDs and displays
hexadecimal value for ROM level (used when requesting assistance from the hotline). EE Displays hexadecimal value for EE level (used when requesting assistance from the
hotline). dt Displays hexadecimal coding of final manufacturing test date (used when requesting
assistance from the hotline). dtc Displays continuous DTCs in hexadecimal format. Pressing the SELECT/RESET
button will display any DTCs stored before proceeding to the next step. enG Displays the English speed in mph. Speedometer will indicate present speed within
tolerances. Display will show 0 if input is not received, if input received is invalid for one second or more, or if speed is 0. m Displays the metric speed data (km/h). Speedometer will indicate present speed
within tolerances. Display will show 0 if input is not received, if input received is invalid for one second or more, or if speed is 0. tAc Displays the tachometer data received from the PCM via the SCP network within
tolerances. Tachometer will indicate present rpm. Display will show 0 if input is not received, if input received is invalid for one second or more, or if engine rpm is 0. FUEL Displays the code (0-255) for the fuel sender input to the instrument cluster. The fuel
gauge will display a filtered fuel level value. This filter will keep the pointer from moving suddenly or erratically.
z255 = open send +/- 0
z 232 = full stop +/- 0
z 215 = full mark +/- 10
z 178 = 3/4 mark +/- 8
z 138 = 1/2 mark +/- 7
z 93 = 1/4 mark +/- 5
z 41 = E mark +/- 4
z 54=LOW FUEL (0- 59)
z 0-18=short (0- 20 max) OIL Displays the code (0-
250) for the oil pressure switch input to the instrument cluster.
Oil pressure gauge will indicate present oil pressure. Normal oil pressure (greater
than 6 psi) will display a value between 000 and 176. A low oil pressure or an
inoperative engine oil pressure switch (less than 6 psi) will display a value greater
than 176. dEGC Display of engine temperature in degrees C input from cylinder head temperature
sensor.
z 49 C = "C" mark
z 60 C = normal band start
z 120 C = normal band end
z -40 C = no SCP message for 5 seconds bAtt Displays the code (0-255) for the battery voltage input to the instrument cluster.
Battery voltage gauge will indicate present battery voltage. Klj . 6 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

indication—
Cobra only zInstrument
cluster.
z The LOW FUEL warning
indicator is never/always
on z
LOW FUEL
warning
indicator bulb.
z Standard
corporate
protocol (SCP)
network.
z Instrument
cluster. z
Go To Pinpoint Test H .
z Oil gauge reads normal
with engine off z
Instrument
cluster. z
INSTALL a new instrument
cluster. REFER to
Instrument Cluster in this
section. TEST the system
for normal operation.
z The speedometer is
inoperative z
Standard
corporate
protocol (SCP)
network.
z Powertrain
control module
(PCM).
z Instrument
cluster. z
Go To Pinpoint Test I .
z The odometer is
inoperative z
Circuitry.
z Powertrain
control module
(PCM).
z Instrument
cluster. z
Go To Pinpoint Test J .
z The safety belt warning
indicator is inoperative
(chime is
operative)/does not
operate correctly z
Circuitry.
z Generic
electronic
module (GEM).
z Instrument
cluster. z
Go To Pinpoint Test K .
z Inaccurate speedometer
reading z
Instrument
cluster.
z Powertrain
control module
(PCM). z
Go To Pinpoint Test L .
z The O/D OFF indicator
is never on z
Circuitry.
z O/D cancel
switch.
z O/D OFF
indicator bulb.
z Standard
corporate
protocol (SCP)
network.
z Powertrain
control module
(PCM).
z Instrument
cluster. z
Go To Pinpoint Test M .
z The O/D OFF indicator
is always on z
Circuitry.
z O/D cancel
switch. z
REFER to the Powertrain
Control/Emissions
Diagnosis (PC/ED) Klj . 11 ba
412003 Mustang Workshop Manual
