2003 FORD MUSTANG diagram

Fig. 18: 4.6L SC, Engine Performance Circuit (2 of 3)

2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 19 © 2006 Mitchell Repair Information Company, LLC.

Fig. 19: 4.6L SC, Engine Performance Circuit (3 of 3)
4.6L SOHC

2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 20 © 2006 Mitchell Repair Information Company, LLC.

Fig. 20: 4.6L SOHC, Engine Performance Circuit (1 of 3)

2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 21 © 2006 Mitchell Repair Information Company, LLC.

Fig. 21: 4.6L SOHC, Engine Performance Circuit (2 of 3)

2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 22 © 2006 Mitchell Repair Information Company, LLC.

Fig. 22: 4.6L SOHC, Engine Performance Circuit (3 of 3)
EXTERIOR LIGHTS

2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 23 © 2006 Mitchell Repair Information Company, LLC.

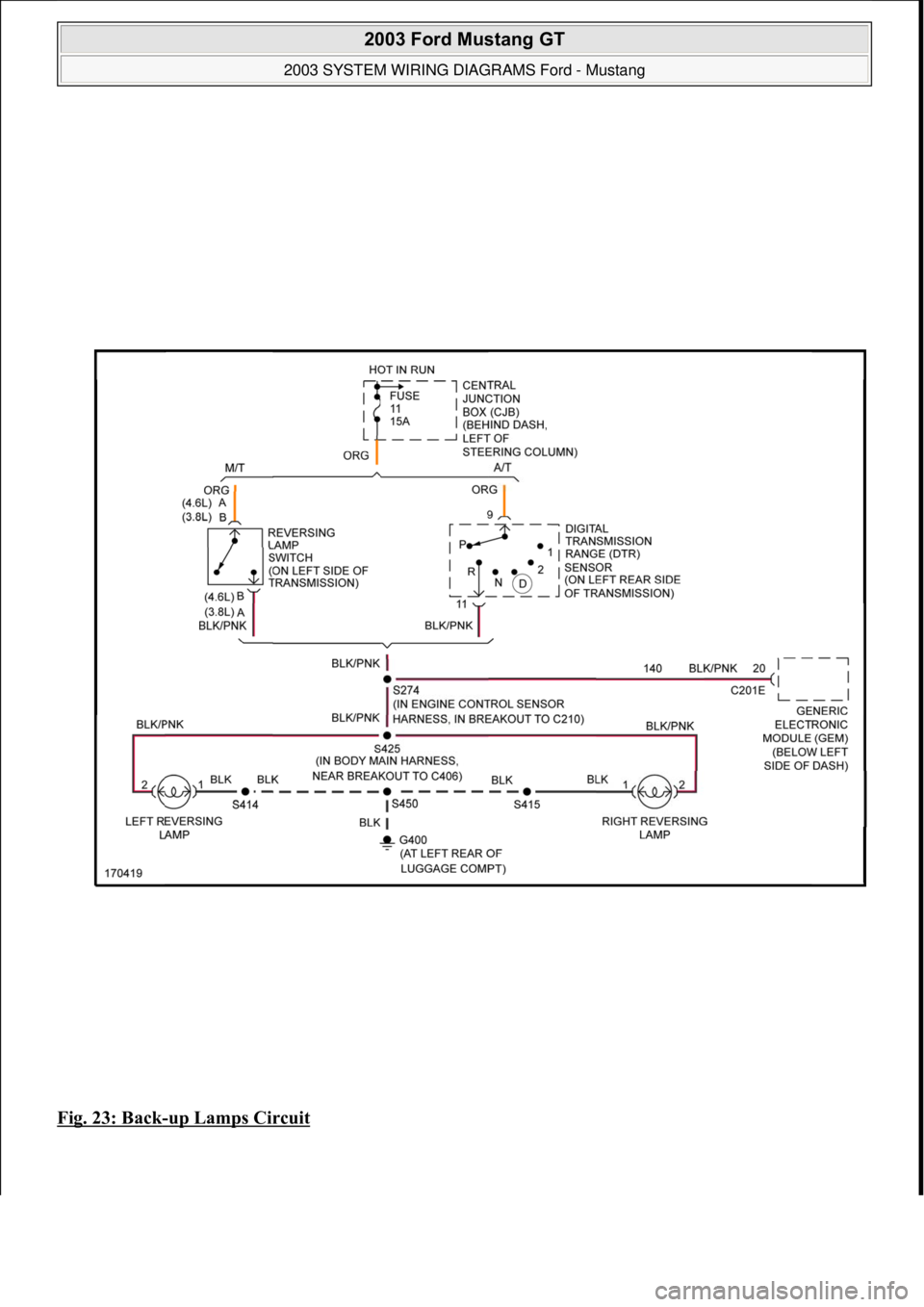

Fig. 23: Back-up Lamps Circuit

2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 24 © 2006 Mitchell Repair Information Company, LLC.

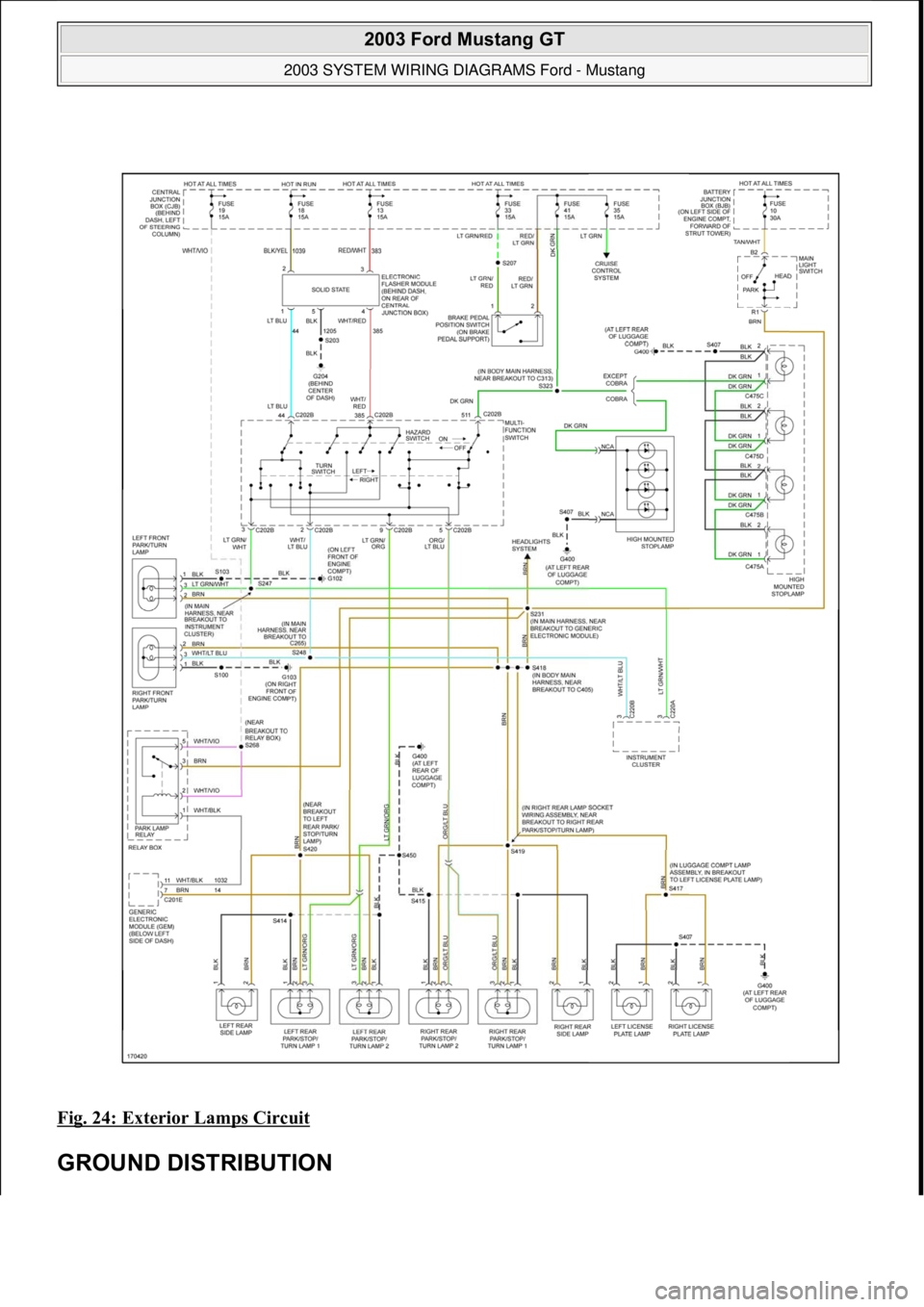

Fig. 24: Exterior Lamps Circuit
GROUND DISTRIBUTION

2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 25 © 2006 Mitchell Repair Information Company, LLC.

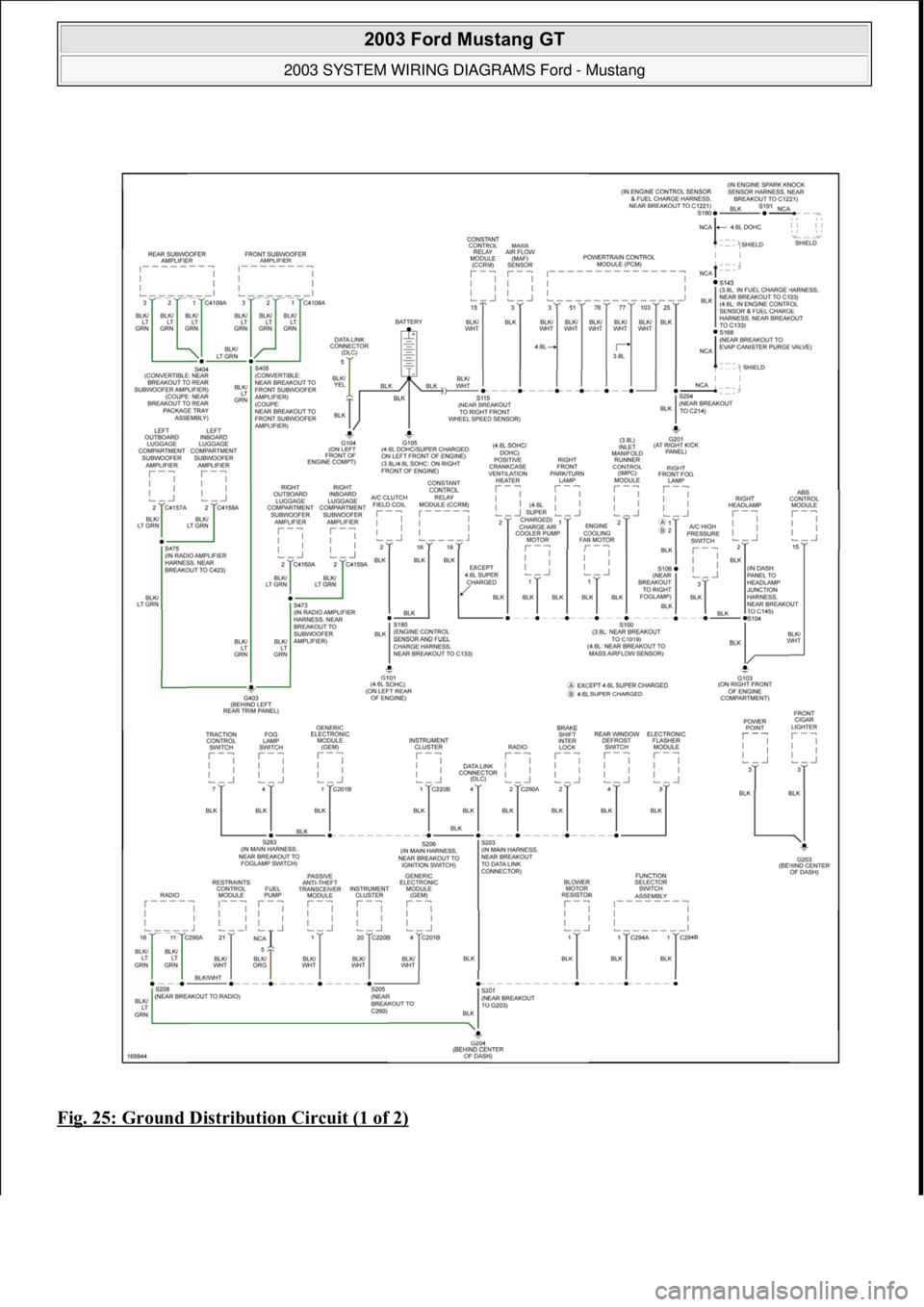

Fig. 25: Ground Distribution Circuit (1 of 2)

2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 26 © 2006 Mitchell Repair Information Company, LLC.
