2003 FORD MUSTANG steering

12. Remove the steering gear.
Installation 1. To install, reverse the removal procedure. zUsing the special tool, install a new seal ring.
z Install a new pinch bolt. Klj . 3 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

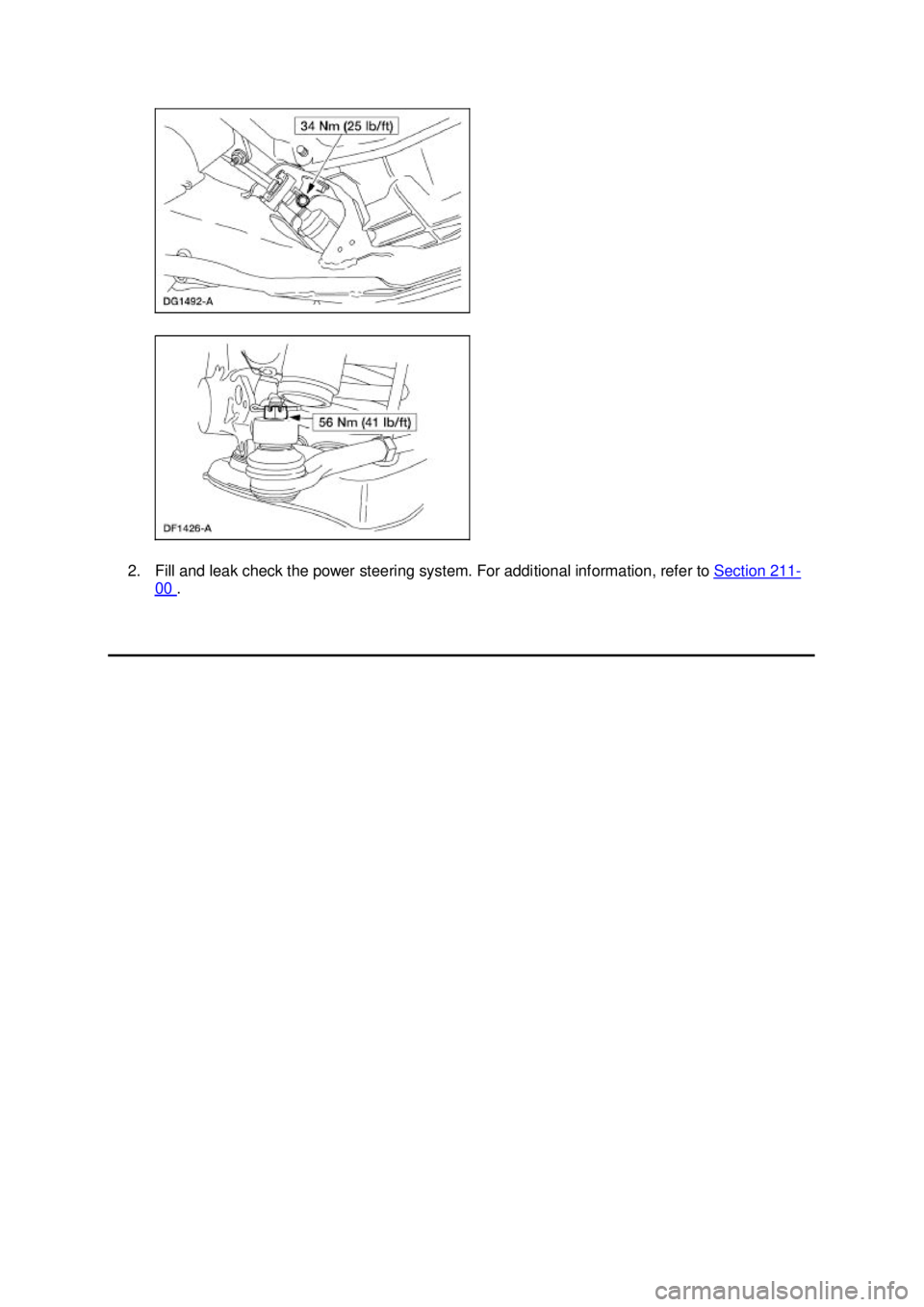

2. Fill and leak check the power steering system. For additional information, refer to
Section 211 -
00 . Klj . 4 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DISASSEMBLY AND ASSEMBLY
Gear
Disassembly
NOTE:
The steering gear is serviceable as either a long or short rack assembly. This procedure covers
the removal and installation of the components not supplied with a short rack assembly. On short rack
assembly only the front wheel spindle tie- rods and front suspension steering ball stud dust seals are
serviced separately.
All steering gears
1. Remove the steering gear mounting bracket housing insulators. zDiscard worn or damaged steering gear mounting bracket housing insulators.
SECTION 211-
02: Power Steering 2003 Mustang Workshop Manual Special Tool(s)
Head Mounting Fixture
303-
D041 (D83L-500- B1) or
Equivalent Inner Tie Rod Socket Tool
211-
D025 (D90P-3290- A) or
Equivalent Steering Gear Holding Fixture
211-
D011 (D87P-3504- B) or
Equivalent
Material Item Specification
Multi-
Purpose Grease
XG- 4 ESR-
M1C159-
A Silicone Brake Caliper Grease
and Dielectric Compound
D7AZ-
19A331- A ESE-
M1C171-
A Klj . 1 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

2. Install the steering gear into the special tools.
3. Clean the exterior of the steering gear with solvent. If necessary, drain any excess power
steering fluid.
4. Inspect the steering gear housing for cracks and other damage. If necessary, install a new steering gear.
5. Verify the power steering gear input shaft bearing rotates freely. If necessary, install a new steering gear.
6. Place an alignment mark on the tie- rod ends, nuts and front wheel spindle tie- rods. Remove the
tie- rod ends and nuts.
7. CAUTION: Use care not to damage the front suspension steering ball stud dust
seals. If the front suspension steering ball stud dust seals are damaged, this will allow
contamination into the steering gear and cause leakage.
Remove the clamps and the two front suspension steering ball stud dust seals.
zDiscard any clamps that are damaged or excessively corroded.
z Discard any front suspension steering ball stud dust seals that are damaged. Klj . 2 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

8.
CAUTION: Place the steering gear at the center position. Use a crowfoot on the flat
of the rack gear to resist rotation and prevent damage to the steering gear during
removal and installation of the front wheel spindle tie- rods.
Place the steering gear at the center position. Install a crowfoot on the flat of the steering gear.
Using the special tool remove the front wheel spindle tie- rods.
Steering gears equipped with travel restrictors 9. NOTE: Some steering gears may contain one or two rack travel restrictors on each side of the
steering gear. The restrictors are split washers and can be removed if necessary.
Remove the travel restrictors.
zDiscard any travel restrictors that are heavily worn.
All steering gears 10. Remove the steering gear from the special tools.
Assembly
All steering gears 1. Install the steering gear in the special tools.
Steering gears equipped with travel restrictors 2. Install the travel restrictors. zInstall new travel restrictors as necessary. All steering gears Klj . 3 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

3.
CAUTION: Place the steering gear at the center position. Use a crowfoot on the flat
of the rack gear to resist rotation and prevent damage to the steering gear during
removal and installation of the front wheel spindle tie- rods.
Place the steering gear at the center position. Install a crowfoot on the flat of the steering gear.
Using the special tool install the front wheel spindle tie- rods.
4. Thoroughly clean the steering gear of any foreign material.
5. CAUTION: Use care not to damage the front suspension steering ball stud dust
seals. If the front suspension steering ball stud dust seals are damaged, this will allow
contamination into the steering gear and cause leakage.
Install the front suspension steering ball stud dust seals and clamps.
zPosition the front suspension steering ball stud seals and steering gear rack tubes as
shown.
z Install new front suspension steering ball stud dust seals and clamps as necessary.
z To prevent the front suspension steering ball stud dust seals from twisting during toe
adjustment, apply grease to the groove in the front wheel spindle tie- rods and uniformly
to the inner- diameter of the front suspension steering ball stud dust seals. Klj . 4 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

6. Install the nut and the tie-
rods ends. Align the marks.
z Apply silicone dielectric compound to the front wheel spindle tie- rod threads.
7. Remove the steering gear from the special tools.
8. Install the steering gear mounting bracket housing insulators. zInstall new steering gear mounting bracket housing insulators as necessary.
z The large end of the metal sleeve must be positioned downward.
z Check that the mounting surfaces are clean and free of foreign material. Klj . 5 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 211-
04: Steering Column 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricant
Ignition Lock Grease FOAZ-19584-
A ESA-
M1C232- A
Torque Specifications Description Nm lb-
ft lb-
in Lock cylinder housing screws 22 17 —
Steering column lower bearing retainer bolts 9 — 80
Ignition switch screws 6 — 53
Multi-
function switch screws 3 — 27
Steering wheel bolt 38 28 —
Steering column retaining nuts 15 12 —
Intermediate shaft coupler-
to-steering column shaft bolt 25 19 — Klj . 1 ba
