2003 FORD MUSTANG key

PINPOINT TEST C: THE ENGINE CRANKS SLOWLY
PINPOINT TEST D: UNUSUAL STARTER NOISE z
Measure the resistance between the starter motor relay pin 86,
circuit 1205 (BK) and ground.
z Is the resistance less than 5 ohms? Test Step Result / Action to Take
NOTE:
Before beginning this test, be sure that the battery is tested and fully charged. C1 CHECK THE VOLTAGE TO THE STARTER
z
Key in OFF position.
z Measure the voltage between the starter motor
solenoid positive terminal and ground.
z Is the voltage 12.5 volts or greater? Yes
GO to
C2 .
No
REPAIR the circuit between the
battery and the starter solenoid.
CLEAN and TIGHTEN the
connections at the battery terminals.
TEST the system for normal
operation. C2 CHECK MOTOR GROUND CIRCUIT
z
Carry out the Motor Ground Circuit test; refer to
Component Tests in this section.
z Is the ground OK? Yes
INSTALL a new starter motor.
REFER to
Starter Motor — 3.8L or
Starter Motor — 4.6L . TEST the
system for normal operation.
No
REPAIR the ground circuit as
necessary. TEST the system for
normal operation. Test Step Result / Action to Take
D1 CHECK THE STARTER MOTOR
MOUNTING z
Inspect the starter motor mounting Yes Klj . 7 ba
112003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

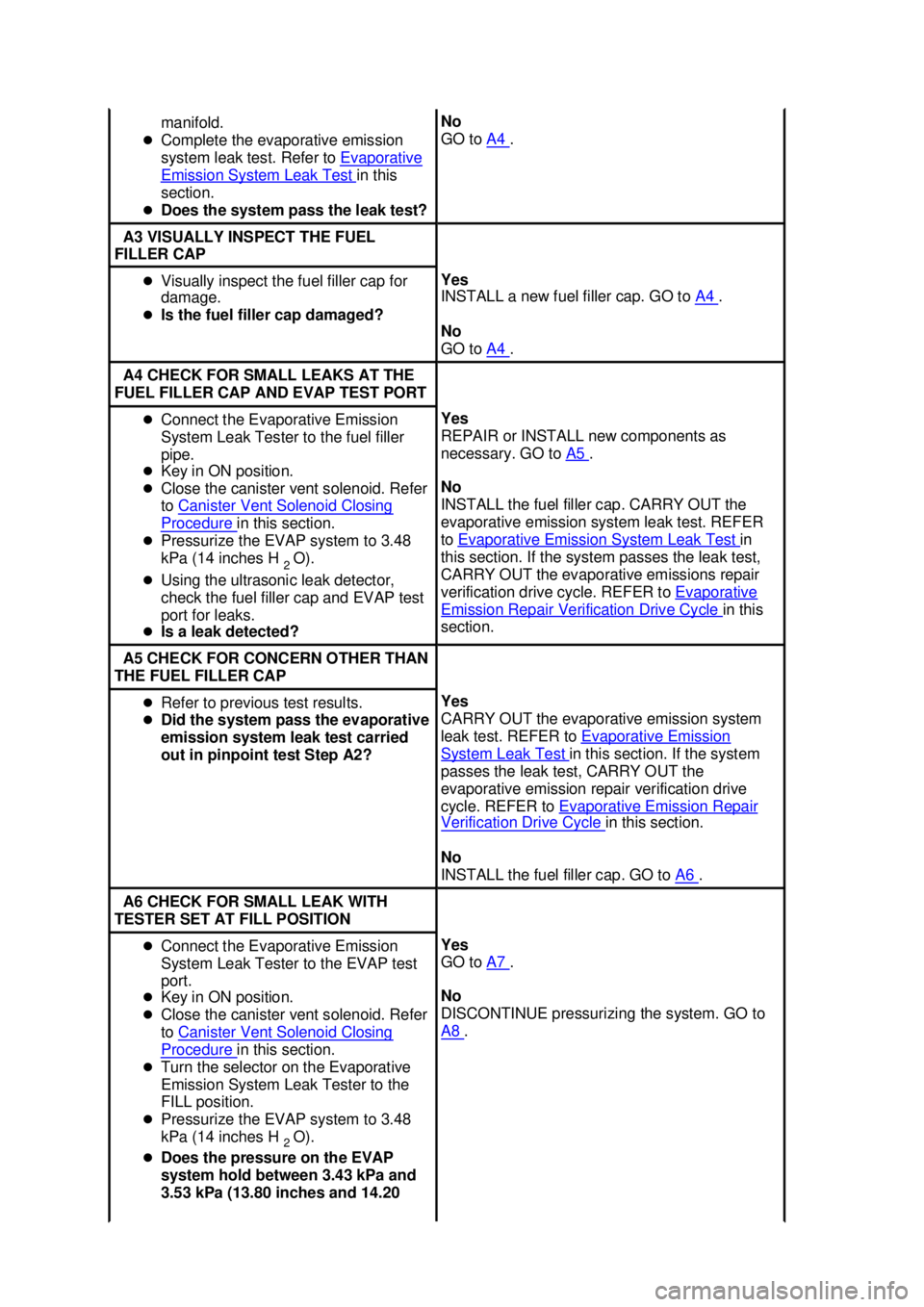

manifold.
z Complete the evaporative emission
system leak test. Refer to Evaporative Emission System Leak Test in this
section.
z Does the system pass the leak test? No
GO to
A4 .
A3 VISUALLY INSPECT THE FUEL
FILLER CAP z
Visually inspect the fuel filler cap for
damage.
z Is the fuel filler cap damaged? Yes
INSTALL a new fuel filler cap. GO to
A4 .
No
GO to A4 .
A4 CHECK FOR SMALL LEAKS AT THE
FUEL FILLER CAP AND EVAP TEST PORT z
Connect the Evaporative Emission
System Leak Tester to the fuel filler
pipe.
z Key in ON position.
z Close the canister vent solenoid. Refer
to Canister Vent Solenoid Closing Procedure in this section.
z Pressurize the EVAP system to 3.48
kPa (14 inches H
2 O).
z Using the ultrasonic leak detector,
check the fuel filler cap and EVAP test
port for leaks.
z Is a leak detected? Yes
REPAIR or INSTALL new components as
necessary. GO to
A5 .
No
INSTALL the fuel filler cap. CARRY OUT the
evaporative emission system leak test. REFER
to Evaporative Emission System Leak Test in
this section. If the system passes the leak test,
CARRY OUT the evaporative emissions repair
verification drive cycle. REFER to Evaporative Emission Repair Verification Drive Cycle in this
section. A5 CHECK FOR CONCERN OTHER THAN
THE FUEL FILLER CAP z
Refer to previous test results.
z Did the system pass the evaporative
emission system leak test carried
out in pinpoint test Step A2? Yes
CARRY OUT the evaporative emission system
leak test. REFER to
Evaporative Emission System Leak Test in this section. If the system
passes the leak test, CARRY OUT the
evaporative emission repair verification drive
cycle. REFER to Evaporative Emission Repair Verification Drive Cycle in this section.
No
INSTALL the fuel filler cap. GO to A6 .
A6 CHECK FOR SMALL LEAK WITH
TESTER SET AT FILL POSITION z
Connect the Evaporative Emission
System Leak Tester to the EVAP test
port.
z Key in ON position.
z Close the canister vent solenoid. Refer
to Canister Vent Solenoid Closing Procedure in this section.
z Turn the selector on the Evaporative
Emission System Leak Tester to the
FILL position.
z Pressurize the EVAP system to 3.48
kPa (14 inches H
2 O).
z Does the pressure on the EVAP
system hold between 3.43 kPa and
3.53 kPa (13.80 inches and 14.20 Yes
GO to
A7 .
No
DISCONTINUE pressurizing the system. GO to
A8 . Klj . 6 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

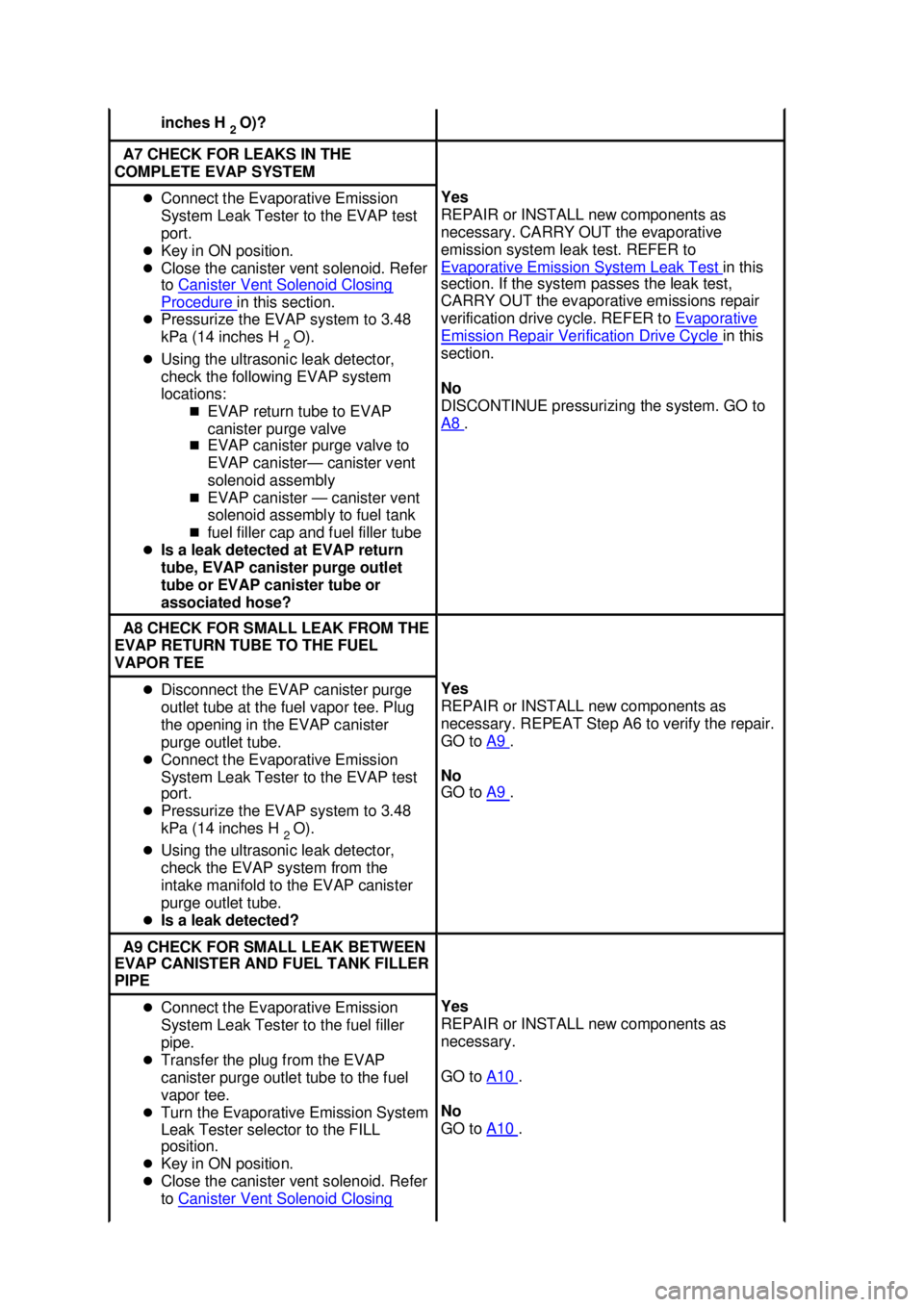

inches H
2 O)? A7 CHECK FOR LEAKS IN THE
COMPLETE EVAP SYSTEM z
Connect the Evaporative Emission
System Leak Tester to the EVAP test
port.
z Key in ON position.
z Close the canister vent solenoid. Refer
to Canister Vent Solenoid Closing Procedure in this section.
z Pressurize the EVAP system to 3.48
kPa (14 inches H
2 O).
z Using the ultrasonic leak detector,
check the following EVAP system
locations:
„EVAP return tube to EVAP
canister purge valve
„ EVAP canister purge valve to
EVAP canister— canister vent
solenoid assembly
„ EVAP canister — canister vent
solenoid assembly to fuel tank
„ fuel filler cap and fuel filler tube
z Is a leak detected at EVAP return
tube, EVAP canister purge outlet
tube or EVAP canister tube or
associated hose? Yes
REPAIR or INSTALL new components as
necessary. CARRY OUT the evaporative
emission system leak test. REFER to
Evaporative Emission System Leak Test
in this
section. If the system passes the leak test,
CARRY OUT the evaporative emissions repair
verification drive cycle. REFER to Evaporative Emission Repair Verification Drive Cycle in this
section.
No
DISCONTINUE pressurizing the system. GO to
A8 .
A8 CHECK FOR SMALL LEAK FROM THE
EVAP RETURN TUBE TO THE FUEL
VAPOR TEE z
Disconnect the EVAP canister purge
outlet tube at the fuel vapor tee. Plug
the opening in the EVAP canister
purge outlet tube.
z Connect the Evaporative Emission
System Leak Tester to the EVAP test
port.
z Pressurize the EVAP system to 3.48
kPa (14 inches H
2 O).
z Using the ultrasonic leak detector,
check the EVAP system from the
intake manifold to the EVAP canister
purge outlet tube.
z Is a leak detected? Yes
REPAIR or INSTALL new components as
necessary. REPEAT Step A6 to verify the repair.
GO to
A9 .
No
GO to A9 .
A9 CHECK FOR SMALL LEAK BETWEEN
EVAP CANISTER AND FUEL TANK FILLER
PIPE z
Connect the Evaporative Emission
System Leak Tester to the fuel filler
pipe.
z Transfer the plug from the EVAP
canister purge outlet tube to the fuel
vapor tee.
z Turn the Evaporative Emission System
Leak Tester selector to the FILL
position.
z Key in ON position.
z Close the canister vent solenoid. Refer
to Canister Vent Solenoid Closing Yes
REPAIR or INSTALL new components as
necessary.
GO to
A10 .
No
GO to A10 . Klj . 7 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

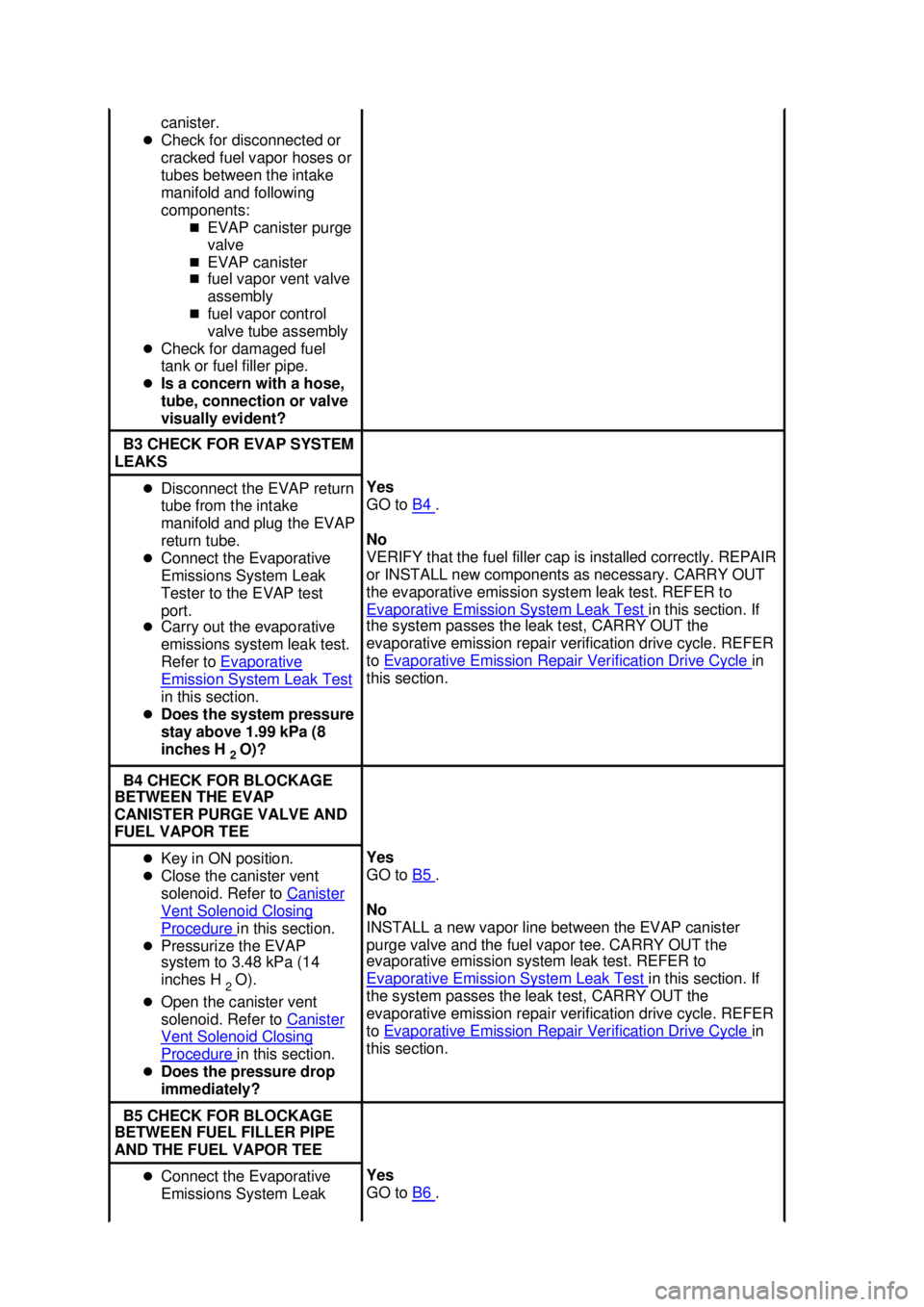

canister.
z Check for disconnected or
cracked fuel vapor hoses or
tubes between the intake
manifold and following
components:
„EVAP canister purge
valve
„ EVAP canister
„ fuel vapor vent valve
assembly
„ fuel vapor control
valve tube assembly
z Check for damaged fuel
tank or fuel filler pipe.
z Is a concern with a hose,
tube, connection or valve
visually evident? B3 CHECK FOR EVAP SYSTEM
LEAKS z
Disconnect the EVAP return
tube from the intake
manifold and plug the EVAP
return tube.
z Connect the Evaporative
Emissions System Leak
Tester to the EVAP test
port.
z Carry out the evaporative
emissions system leak test.
Refer to Evaporative Emission System Leak Test
in this section.
z Does the system pressure
stay above 1.99 kPa (8
inches H
2 O)? Yes
GO to
B4 .
No
VERIFY that the fuel filler cap is installed correctly. REPAIR
or INSTALL new components as necessary. CARRY OUT
the evaporative emission system leak test. REFER to
Evaporative Emission System Leak Test in this section. If
the system passes the leak test, CARRY OUT the
evaporative emission repair verification drive cycle. REFER
to Evaporative Emission Repair Verification Drive Cycle in
this section. B4 CHECK FOR BLOCKAGE
BETWEEN THE EVAP
CANISTER PURGE VALVE AND
FUEL VAPOR TEE z
Key in ON position.
z Close the canister vent
solenoid. Refer to Canister Vent Solenoid Closing
Procedure in this section.
z Pressurize the EVAP
system to 3.48 kPa (14
inches H
2 O).
z Open the canister vent
solenoid. Refer to Canister Vent Solenoid Closing
Procedure in this section.
z Does the pressure drop
immediately? Yes
GO to
B5 .
No
INSTALL a new vapor line between the EVAP canister
purge valve and the fuel vapor tee. CARRY OUT the
evaporative emission system leak test. REFER to
Evaporative Emission System Leak Test in this section. If
the system passes the leak test, CARRY OUT the
evaporative emission repair verification drive cycle. REFER
to Evaporative Emission Repair Verification Drive Cycle in
this section. B5 CHECK FOR BLOCKAGE
BETWEEN FUEL FILLER PIPE
AND THE FUEL VAPOR TEE z
Connect the Evaporative
Emissions System Leak Yes
GO to
B6 . Klj . 9 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

PINPOINT TEST D: HISSING SOUND WHEN REMOVING FUEL CAP z
Pressurize the EVAP system to 3.48 kPa (14
inches H
2 O).
z Does the pressure drop immediately? GO to
Pinpoint Test D .
C3 CHECK FOR BLOCKAGE BETWEEN THE FUEL
FILLER PIPE AND THE FUEL VAPOR TEE z
Connect the Evaporative Emission System Leak
Tester to the fuel filler pipe.
z Pressurize the EVAP system to 3.48 kPa (14
inches H
2 O).
z Does the pressure drop immediately? Yes
GO to
C4 .
No
GO to Pinpoint Test D .
C4 CHECK FOR FUEL TANK PRESSURE SENSOR
PID WITHOUT PRESSURE APPLIED z
Disconnect the EVAP canister outlet tube at the
EVAP canister.
z Key in ON position.
z Access PCM PID FTP V.
z Record the reading.
z Is PID FTP V reading between 2.40 and 2.80
volts? Yes
GO to
C5 .
No
REFER to Powertrain
Control/Emissions Diagnosis (PC/ED)
manual to continue diagnosis. C5 CHECK FOR STUCK OPEN EVAP CANISTER
PURGE VALVE CONDITION AT IDLE z
Connect the EVAP canister outlet tube.
z Remove the plug from the EVAP return tube and
reconnect the tube to the intake manifold.
z Verify that the fuel filler cap is correctly installed.
z Key in ON position.
z Access PCM PIDs FTP V and EVAPPDC.
z Start the engine and allow to idle.
z Monitor the FTP V and EVAPPDC PIDs.
z When PID EVAPPDC is zero, is PID FTP V
reading below 2.40 volts? Yes
INSTALL a new EVAP canister purge
valve. REFER to
Evaporative Emission Canister Purge Valve in this section.
CARRY OUT an EVAP system leak
test. REFER to Evaporative Emission System Leak Test in this section. If the
system passes the leak test, CARRY
OUT an evaporative emissions repair
verification drive cycle. REFER to
Evaporative Emission Repair Verification Drive Cycle in this section.
No
CARRY OUT the EVAP system leak
test. REFER to Evaporative Emission System Leak Test in this section. If the
system passes the leak test, CARRY
OUT the evaporative emissions repair
verification drive cycle. REFER to
Evaporative Emission Repair Verification Drive Cycle in this section. Klj . 11 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

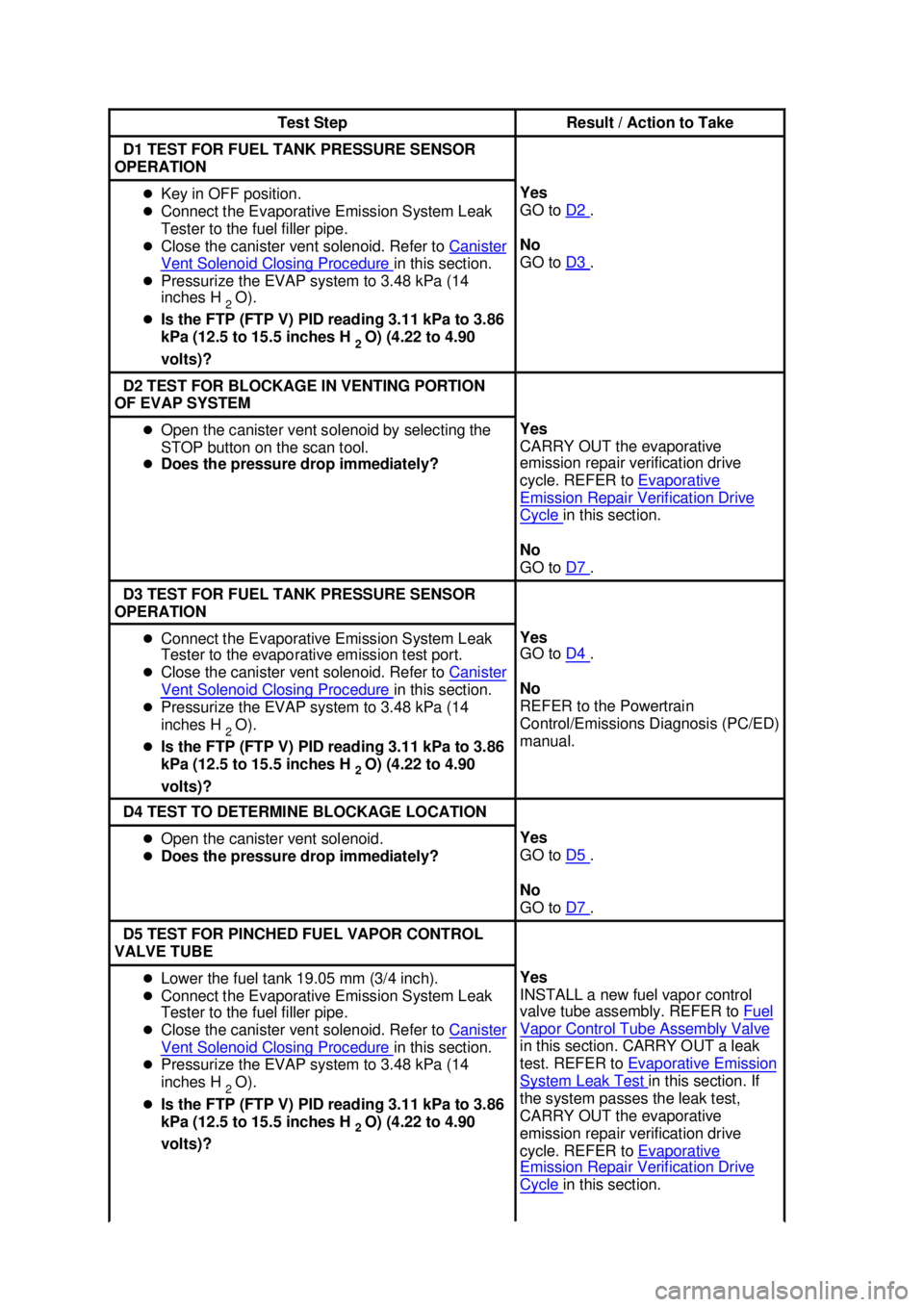

Test Step Result / Action to Take
D1 TEST FOR FUEL TANK PRESSURE SENSOR
OPERATION z
Key in OFF position.
z Connect the Evaporative Emission System Leak
Tester to the fuel filler pipe.
z Close the canister vent solenoid. Refer to Canister Vent Solenoid Closing Procedure in this section.
z Pressurize the EVAP system to 3.48 kPa (14
inches H
2 O).
z Is the FTP (FTP V) PID reading 3.11 kPa to 3.86
kPa (12.5 to 15.5 inches H
2 O) (4.22 to 4.90
volts)? Yes
GO to
D2 .
No
GO to D3 .
D2 TEST FOR BLOCKAGE IN VENTING PORTION
OF EVAP SYSTEM z
Open the canister vent solenoid by selecting the
STOP button on the scan tool.
z Does the pressure drop immediately? Yes
CARRY OUT the evaporative
emission repair verification drive
cycle. REFER to
Evaporative Emission Repair Verification Drive
Cycle in this section.
No
GO to D7 .
D3 TEST FOR FUEL TANK PRESSURE SENSOR
OPERATION z
Connect the Evaporative Emission System Leak
Tester to the evaporative emission test port.
z Close the canister vent solenoid. Refer to Canister Vent Solenoid Closing Procedure in this section.
z Pressurize the EVAP system to 3.48 kPa (14
inches H
2 O).
z Is the FTP (FTP V) PID reading 3.11 kPa to 3.86
kPa (12.5 to 15.5 inches H
2 O) (4.22 to 4.90
volts)? Yes
GO to
D4 .
No
REFER to the Powertrain
Control/Emissions Diagnosis (PC/ED)
manual. D4 TEST TO DETERMINE BLOCKAGE LOCATION
z
Open the canister vent solenoid.
z Does the pressure drop immediately? Yes
GO to
D5 .
No
GO to D7 .
D5 TEST FOR PINCHED FUEL VAPOR CONTROL
VALVE TUBE z
Lower the fuel tank 19.05 mm (3/4 inch).
z Connect the Evaporative Emission System Leak
Tester to the fuel filler pipe.
z Close the canister vent solenoid. Refer to Canister Vent Solenoid Closing Procedure in this section.
z Pressurize the EVAP system to 3.48 kPa (14
inches H
2 O).
z Is the FTP (FTP V) PID reading 3.11 kPa to 3.86
kPa (12.5 to 15.5 inches H
2 O) (4.22 to 4.90
volts)? Yes
INSTALL a new fuel vapor control
valve tube assembly. REFER to
Fuel Vapor Control Tube Assembly Valve
in this section. CARRY OUT a leak
test. REFER to
Evaporative Emission System Leak Test in this section. If
the system passes the leak test,
CARRY OUT the evaporative
emission repair verification drive
cycle. REFER to Evaporative Emission Repair Verification Drive
Cycle in this section. Klj . 12 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Evaporative Emission Repair Verification Drive Cycle
Drive Cycle Recommendations
NOTE:
The following procedure is designed to execute and complete the evaporative emission repair
verification drive cycle and to clear the Ford P1000, inspection and maintenance (I/M) readiness code.
When the ambient air temperature is below 4.4°C (40°F) or above 37.8°C (100°F), or the altitude is
above 2,438 meters (8,000 feet), the EVAP monitor will not run. If the P1000 must be cleared in these
conditions, the powertrain control module (PCM) must detect them once (twice on some applications)
before the EVAP monitor can be bypassed and the P1000 cleared. The EVAP bypassing procedure is
described in the following drive cycle.
1. Most OBD II monitors will complete more readily using a steady foot driving style during cruise or acceleration modes. Operating the throttle in a smooth fashion will minimize the time
necessary for monitor completion.
2. Fuel tank level should be between one- half and three-quarters full with three- quarters full being
the most desirable.
3. The evaporative monitor can only operate during the first 30 minutes of engine operation. When executing the procedure for this monitor, stay in part throttle mode and drive in a smooth
fashion to minimize fuel slosh.
Drive Cycle Preparation
NOTE: For best results, follow each of the following steps as accurately as possible.
4. NOTE: This step bypasses the engine soak timer and resets OBD II monitor status.
Install the scan tool. Turn the key ON with the engine OFF. Cycle the key off, then on. Select
the appropriate vehicle and engine qualifier. Clear all diagnostic trouble codes (DTCs) and carry
out a PCM reset.
5. Begin to monitor the following PIDs: ECT, EVAPDC, FLI (if available) and TP MODE. Press Diagnostic Data Link, PCM, PID/Data monitor and record, press trigger to select each PID, then
start.
6. Start the engine without returning the key to the OFF position.
Preparation for Monitor Entry
WARNING: Strict observance of posted speed limits and attention to driving conditions
SECTION 303-
13: Evaporative Emissions 2003 Mustang Workshop Manual Special Tool(s)
Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent scan
tool Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

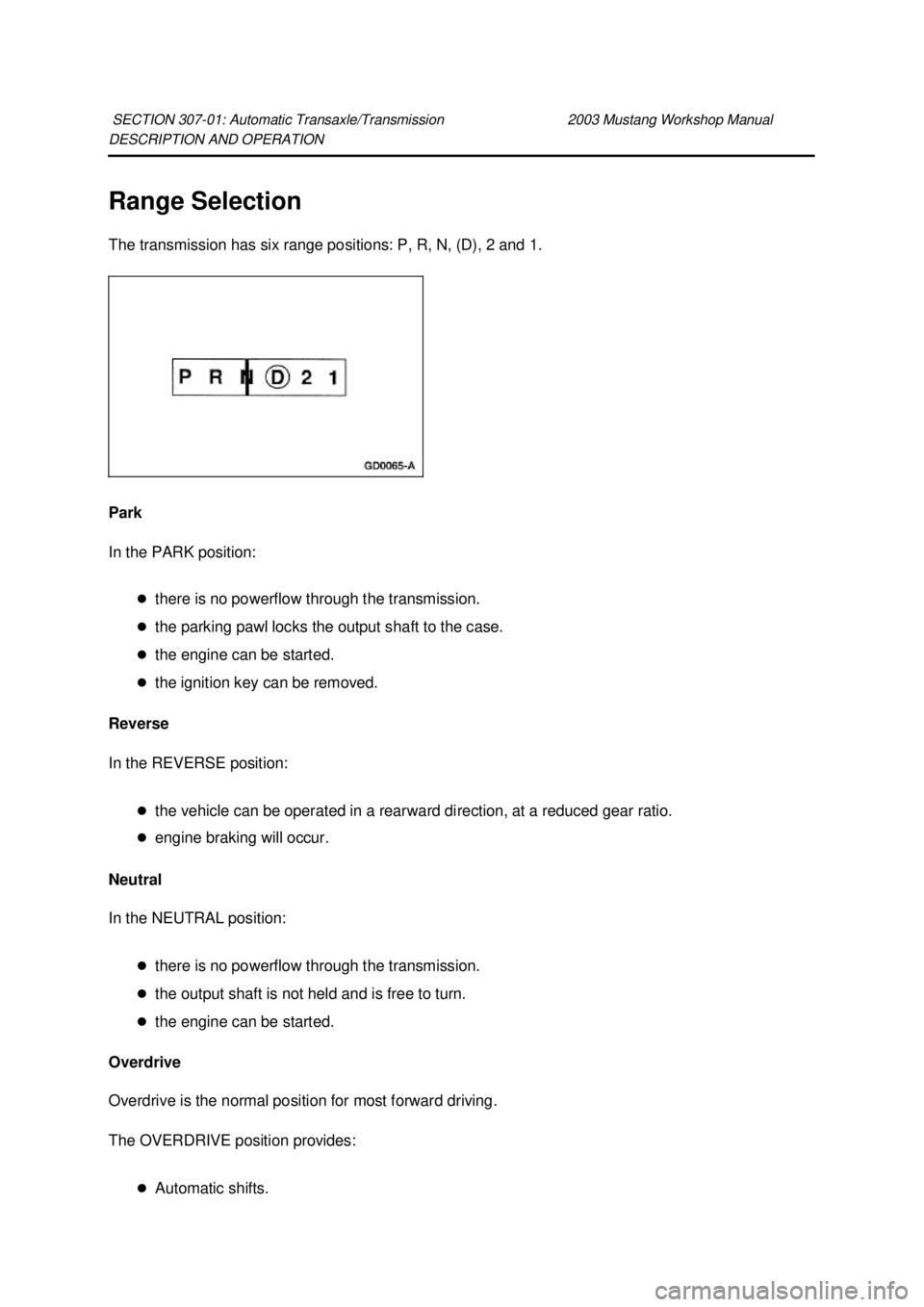

DESCRIPTION AND OPERATION
Range Selection
The transmission has six range positions: P, R, N, (D), 2 and 1.
Park
In the PARK position:
zthere is no powerflow through the transmission.
z the parking pawl locks the output shaft to the case.
z the engine can be started.
z the ignition key can be removed.
Reverse
In the REVERSE position:
zthe vehicle can be operated in a rearward direction, at a reduced gear ratio.
z engine braking will occur.
Neutral
In the NEUTRAL position:
zthere is no powerflow through the transmission.
z the output shaft is not held and is free to turn.
z the engine can be started.
Overdrive
Overdrive is the normal position for most forward driving.
The OVERDRIVE position provides:
zAutomatic shifts.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
