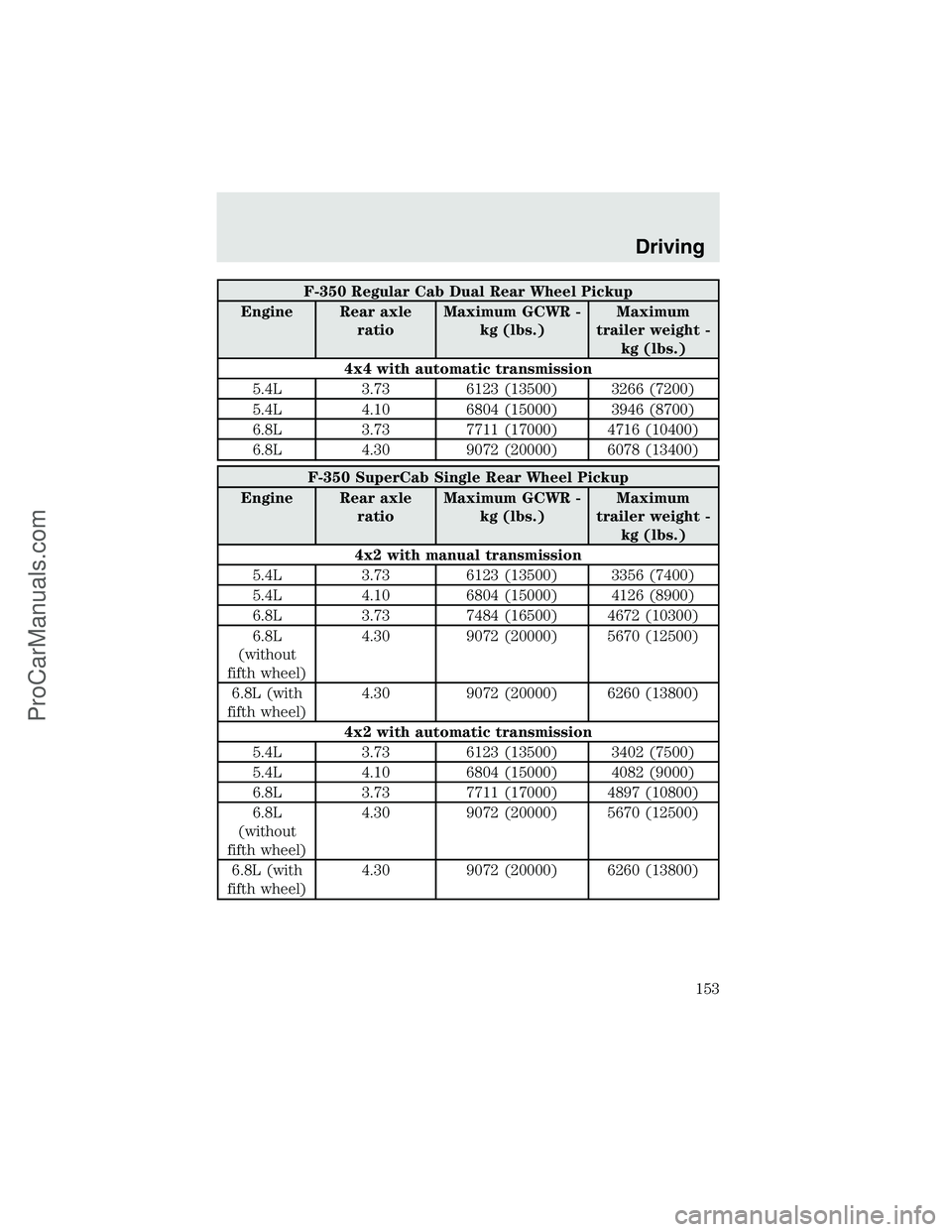

Page 153 of 280
F-350 Regular Cab Dual Rear Wheel Pickup
Engine Rear axle
ratioMaximum GCWR -
kg (lbs.)Maximum
trailer weight -
kg (lbs.)
4x4 with automatic transmission
5.4L 3.73 6123 (13500) 3266 (7200)
5.4L 4.10 6804 (15000) 3946 (8700)
6.8L 3.73 7711 (17000) 4716 (10400)
6.8L 4.30 9072 (20000) 6078 (13400)
F-350 SuperCab Single Rear Wheel Pickup
Engine Rear axle
ratioMaximum GCWR -
kg (lbs.)Maximum
trailer weight -
kg (lbs.)
4x2 with manual transmission
5.4L 3.73 6123 (13500) 3356 (7400)
5.4L 4.10 6804 (15000) 4126 (8900)
6.8L 3.73 7484 (16500) 4672 (10300)
6.8L
(without
fifth wheel)4.30 9072 (20000) 5670 (12500)
6.8L (with
fifth wheel)4.30 9072 (20000) 6260 (13800)
4x2 with automatic transmission
5.4L 3.73 6123 (13500) 3402 (7500)
5.4L 4.10 6804 (15000) 4082 (9000)
6.8L 3.73 7711 (17000) 4897 (10800)
6.8L
(without
fifth wheel)4.30 9072 (20000) 5670 (12500)
6.8L (with
fifth wheel)4.30 9072 (20000) 6260 (13800)
Driving
153
ProCarManuals.com

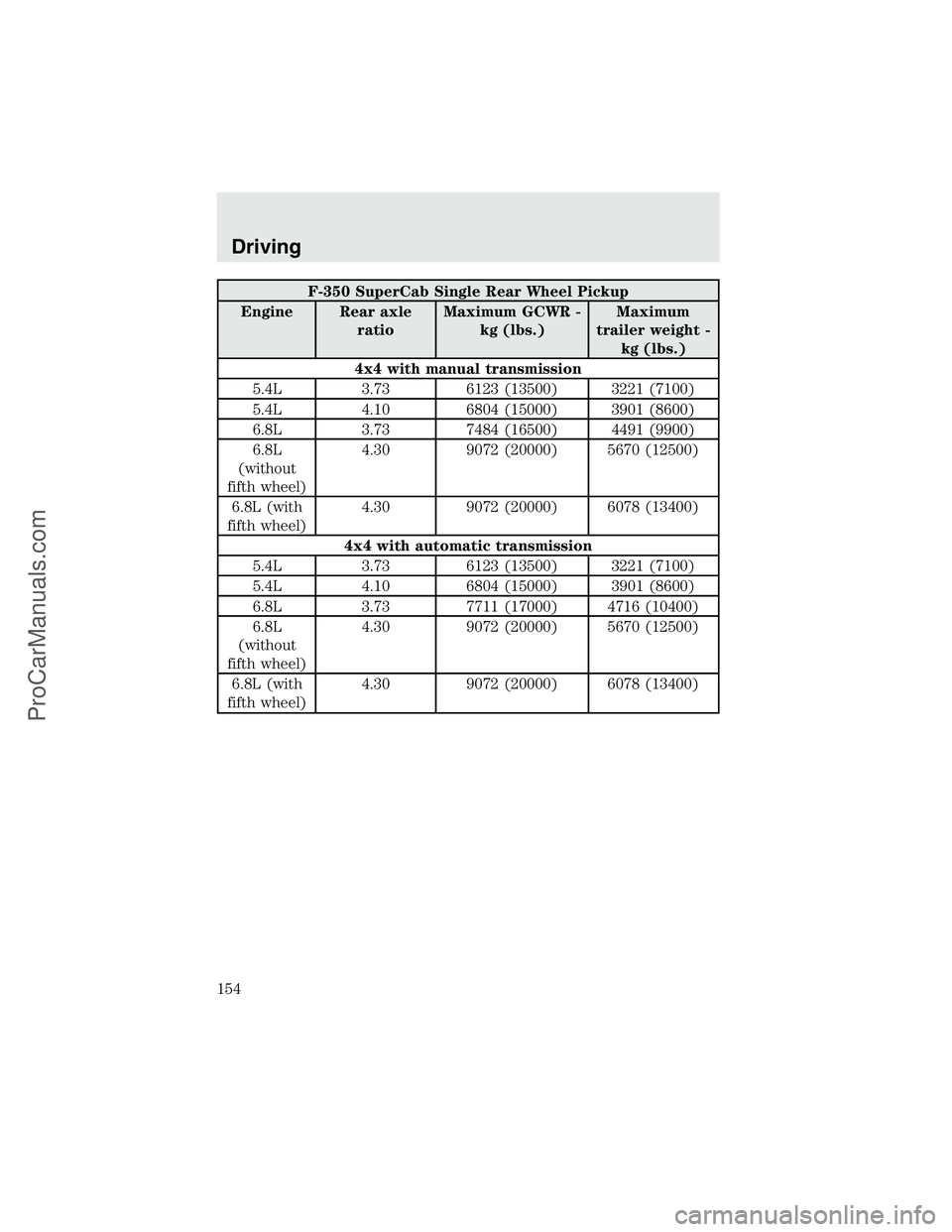

Page 154 of 280
F-350 SuperCab Single Rear Wheel Pickup
Engine Rear axle
ratioMaximum GCWR -
kg (lbs.)Maximum
trailer weight -
kg (lbs.)
4x4 with manual transmission
5.4L 3.73 6123 (13500) 3221 (7100)
5.4L 4.10 6804 (15000) 3901 (8600)
6.8L 3.73 7484 (16500) 4491 (9900)
6.8L
(without
fifth wheel)4.30 9072 (20000) 5670 (12500)
6.8L (with
fifth wheel)4.30 9072 (20000) 6078 (13400)
4x4 with automatic transmission
5.4L 3.73 6123 (13500) 3221 (7100)
5.4L 4.10 6804 (15000) 3901 (8600)
6.8L 3.73 7711 (17000) 4716 (10400)
6.8L
(without
fifth wheel)4.30 9072 (20000) 5670 (12500)
6.8L (with
fifth wheel)4.30 9072 (20000) 6078 (13400)
Driving
154
ProCarManuals.com

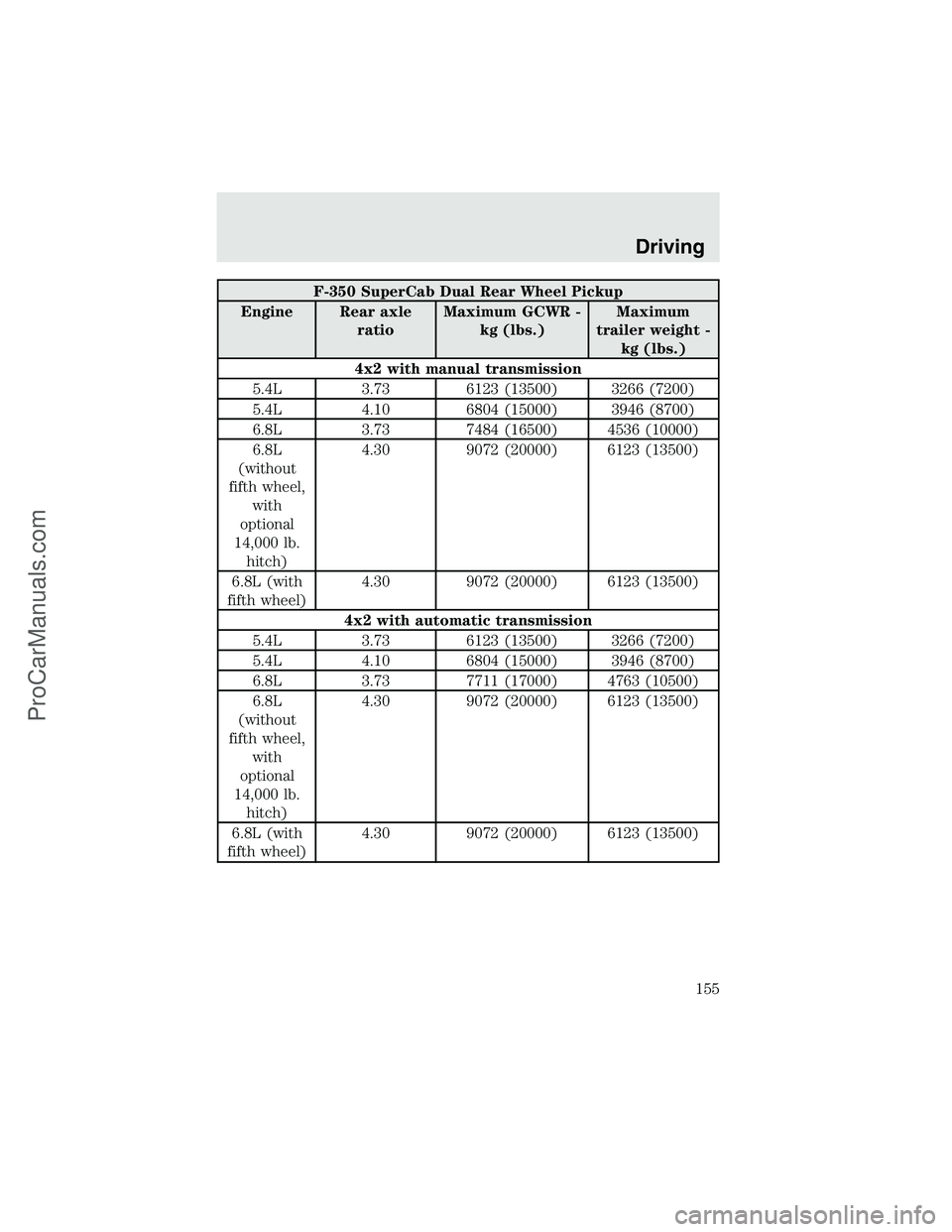

Page 155 of 280
F-350 SuperCab Dual Rear Wheel Pickup
Engine Rear axle
ratioMaximum GCWR -
kg (lbs.)Maximum
trailer weight -
kg (lbs.)
4x2 with manual transmission
5.4L 3.73 6123 (13500) 3266 (7200)
5.4L 4.10 6804 (15000) 3946 (8700)
6.8L 3.73 7484 (16500) 4536 (10000)
6.8L
(without
fifth wheel,
with
optional
14,000 lb.
hitch)4.30 9072 (20000) 6123 (13500)
6.8L (with
fifth wheel)4.30 9072 (20000) 6123 (13500)
4x2 with automatic transmission
5.4L 3.73 6123 (13500) 3266 (7200)
5.4L 4.10 6804 (15000) 3946 (8700)
6.8L 3.73 7711 (17000) 4763 (10500)
6.8L
(without
fifth wheel,
with
optional
14,000 lb.
hitch)4.30 9072 (20000) 6123 (13500)
6.8L (with
fifth wheel)4.30 9072 (20000) 6123 (13500)
Driving
155
ProCarManuals.com

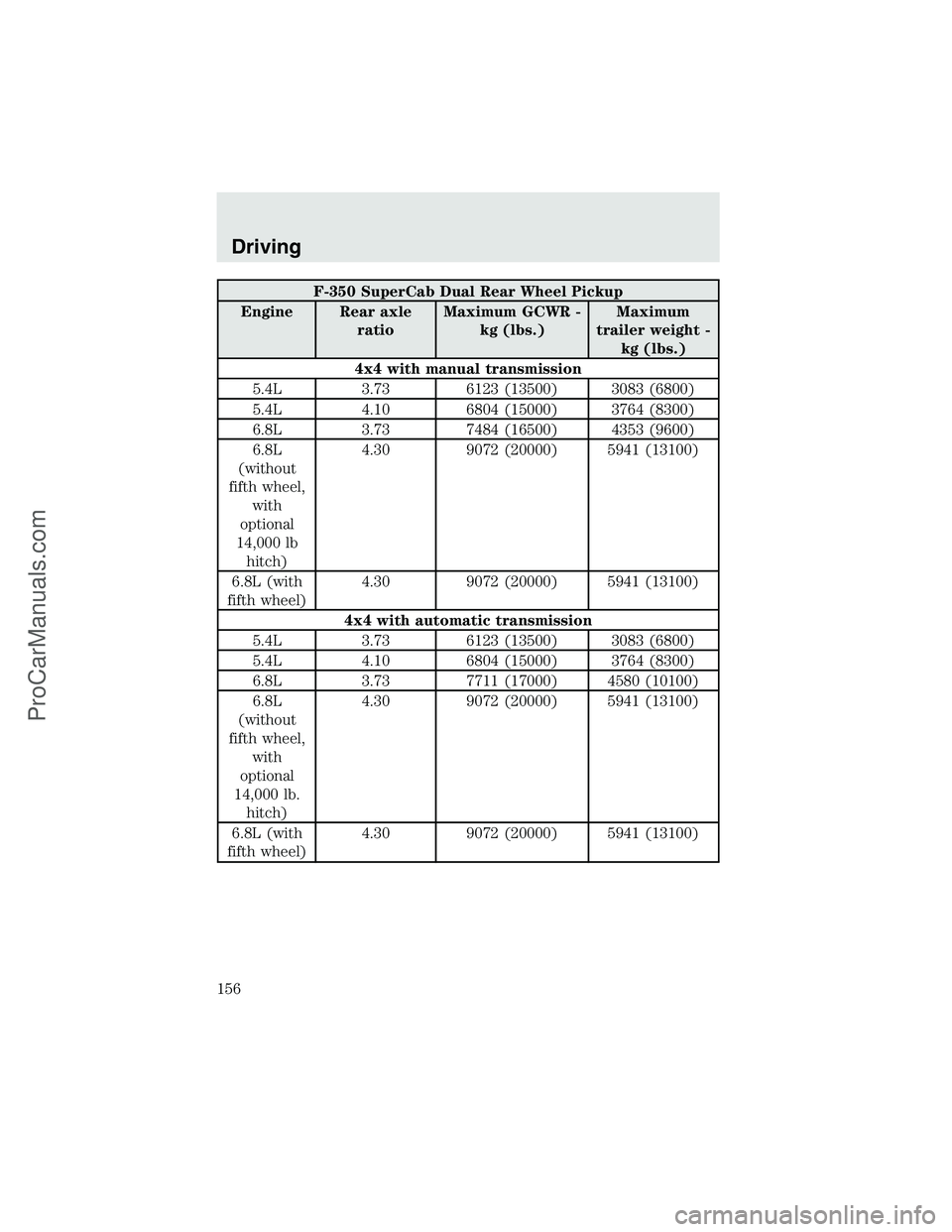

Page 156 of 280
F-350 SuperCab Dual Rear Wheel Pickup
Engine Rear axle
ratioMaximum GCWR -
kg (lbs.)Maximum
trailer weight -
kg (lbs.)
4x4 with manual transmission
5.4L 3.73 6123 (13500) 3083 (6800)
5.4L 4.10 6804 (15000) 3764 (8300)
6.8L 3.73 7484 (16500) 4353 (9600)
6.8L
(without
fifth wheel,
with
optional
14,000 lb
hitch)4.30 9072 (20000) 5941 (13100)
6.8L (with
fifth wheel)4.30 9072 (20000) 5941 (13100)
4x4 with automatic transmission
5.4L 3.73 6123 (13500) 3083 (6800)
5.4L 4.10 6804 (15000) 3764 (8300)
6.8L 3.73 7711 (17000) 4580 (10100)
6.8L
(without
fifth wheel,
with
optional
14,000 lb.
hitch)4.30 9072 (20000) 5941 (13100)
6.8L (with
fifth wheel)4.30 9072 (20000) 5941 (13100)
Driving
156
ProCarManuals.com

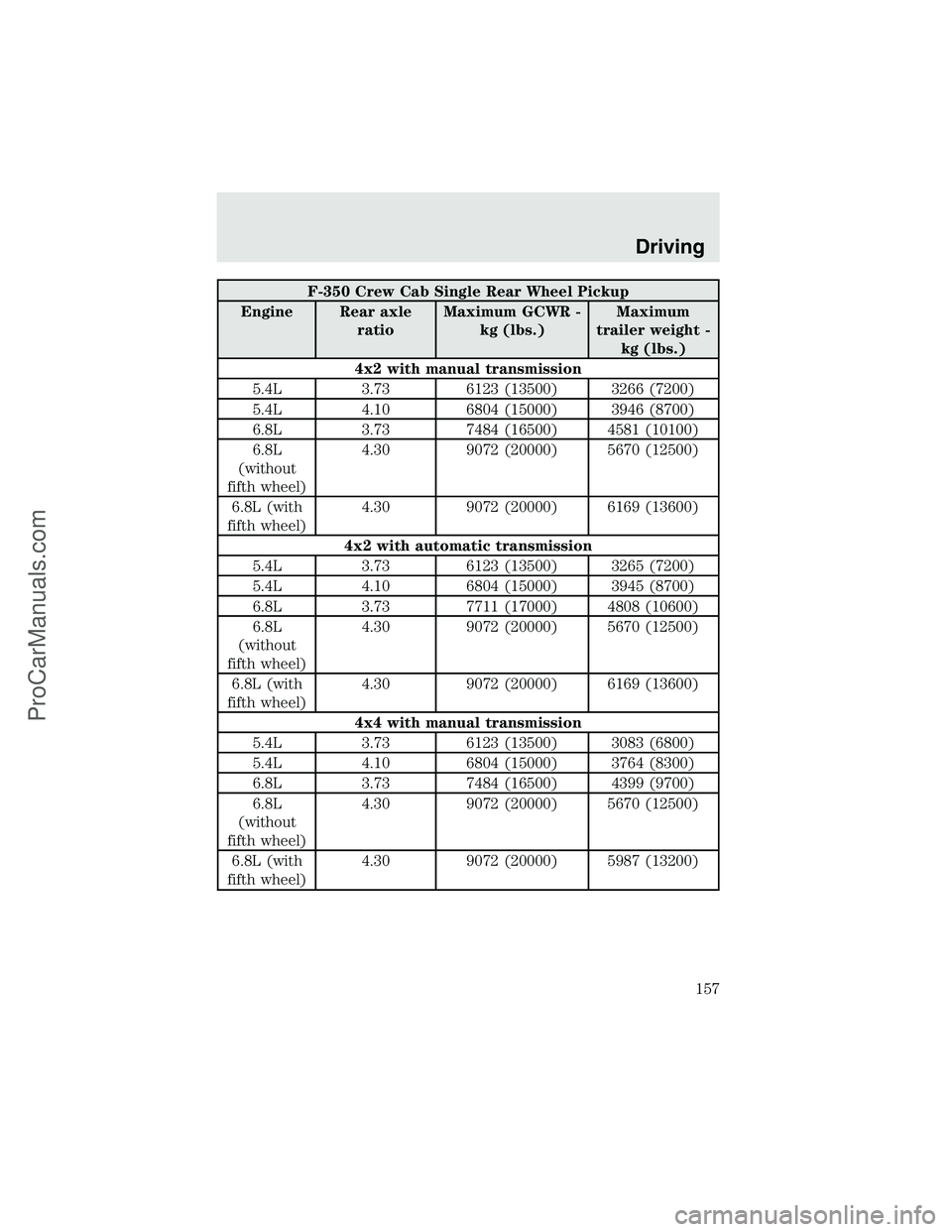

Page 157 of 280
F-350 Crew Cab Single Rear Wheel Pickup
Engine Rear axle
ratioMaximum GCWR -
kg (lbs.)Maximum
trailer weight -
kg (lbs.)
4x2 with manual transmission
5.4L 3.73 6123 (13500) 3266 (7200)
5.4L 4.10 6804 (15000) 3946 (8700)
6.8L 3.73 7484 (16500) 4581 (10100)
6.8L
(without
fifth wheel)4.30 9072 (20000) 5670 (12500)
6.8L (with
fifth wheel)4.30 9072 (20000) 6169 (13600)
4x2 with automatic transmission
5.4L 3.73 6123 (13500) 3265 (7200)
5.4L 4.10 6804 (15000) 3945 (8700)
6.8L 3.73 7711 (17000) 4808 (10600)
6.8L
(without
fifth wheel)4.30 9072 (20000) 5670 (12500)
6.8L (with
fifth wheel)4.30 9072 (20000) 6169 (13600)
4x4 with manual transmission
5.4L 3.73 6123 (13500) 3083 (6800)
5.4L 4.10 6804 (15000) 3764 (8300)
6.8L 3.73 7484 (16500) 4399 (9700)
6.8L
(without
fifth wheel)4.30 9072 (20000) 5670 (12500)
6.8L (with
fifth wheel)4.30 9072 (20000) 5987 (13200)
Driving
157
ProCarManuals.com

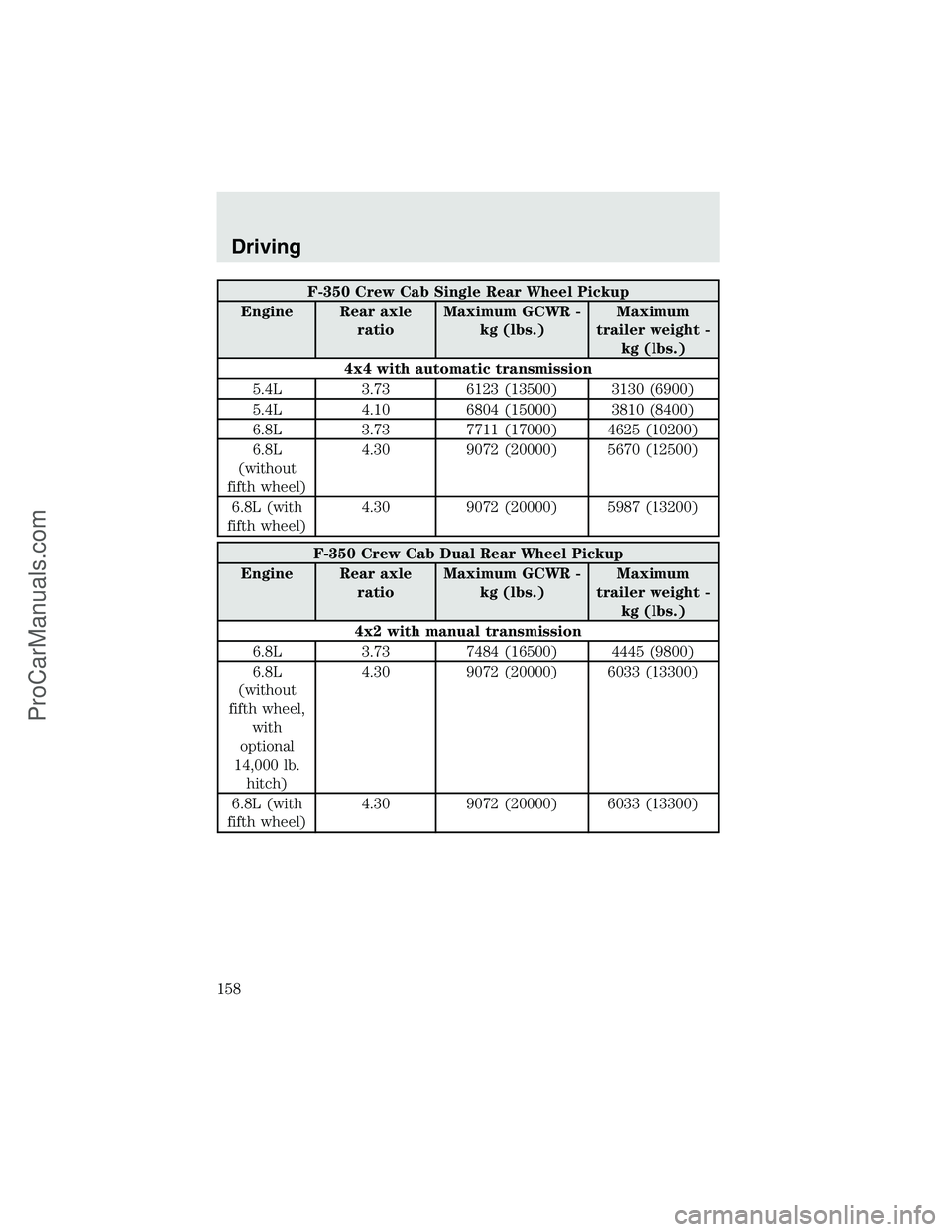

Page 158 of 280
F-350 Crew Cab Single Rear Wheel Pickup
Engine Rear axle
ratioMaximum GCWR -
kg (lbs.)Maximum
trailer weight -
kg (lbs.)
4x4 with automatic transmission
5.4L 3.73 6123 (13500) 3130 (6900)
5.4L 4.10 6804 (15000) 3810 (8400)
6.8L 3.73 7711 (17000) 4625 (10200)
6.8L
(without
fifth wheel)4.30 9072 (20000) 5670 (12500)
6.8L (with
fifth wheel)4.30 9072 (20000) 5987 (13200)
F-350 Crew Cab Dual Rear Wheel Pickup
Engine Rear axle
ratioMaximum GCWR -
kg (lbs.)Maximum
trailer weight -
kg (lbs.)
4x2 with manual transmission
6.8L 3.73 7484 (16500) 4445 (9800)
6.8L
(without
fifth wheel,
with
optional
14,000 lb.
hitch)4.30 9072 (20000) 6033 (13300)
6.8L (with
fifth wheel)4.30 9072 (20000) 6033 (13300)
Driving
158
ProCarManuals.com

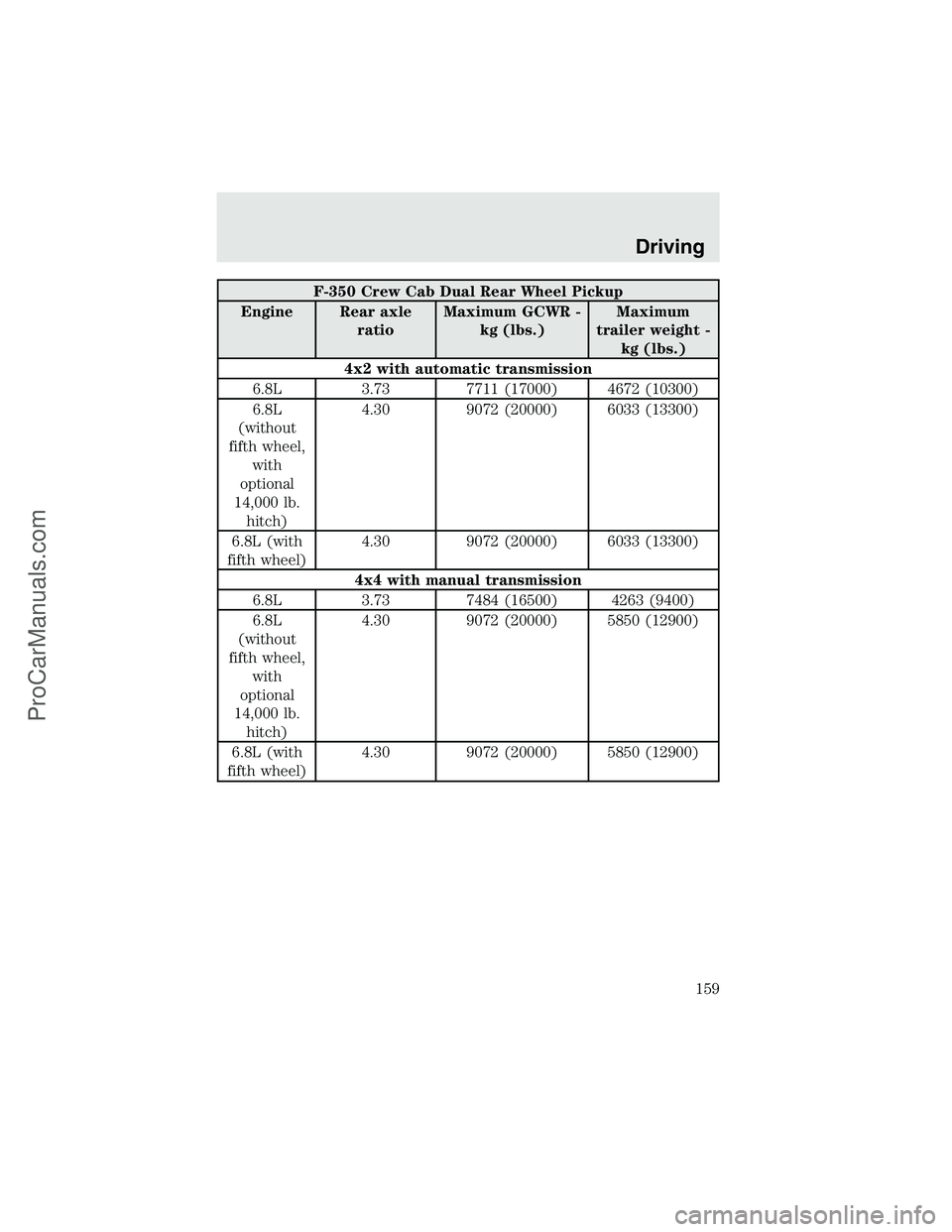

Page 159 of 280
F-350 Crew Cab Dual Rear Wheel Pickup
Engine Rear axle
ratioMaximum GCWR -
kg (lbs.)Maximum
trailer weight -
kg (lbs.)
4x2 with automatic transmission
6.8L 3.73 7711 (17000) 4672 (10300)
6.8L
(without
fifth wheel,
with
optional
14,000 lb.
hitch)4.30 9072 (20000) 6033 (13300)
6.8L (with
fifth wheel)4.30 9072 (20000) 6033 (13300)
4x4 with manual transmission
6.8L 3.73 7484 (16500) 4263 (9400)
6.8L
(without
fifth wheel,
with
optional
14,000 lb.
hitch)4.30 9072 (20000) 5850 (12900)
6.8L (with
fifth wheel)4.30 9072 (20000) 5850 (12900)
Driving
159
ProCarManuals.com

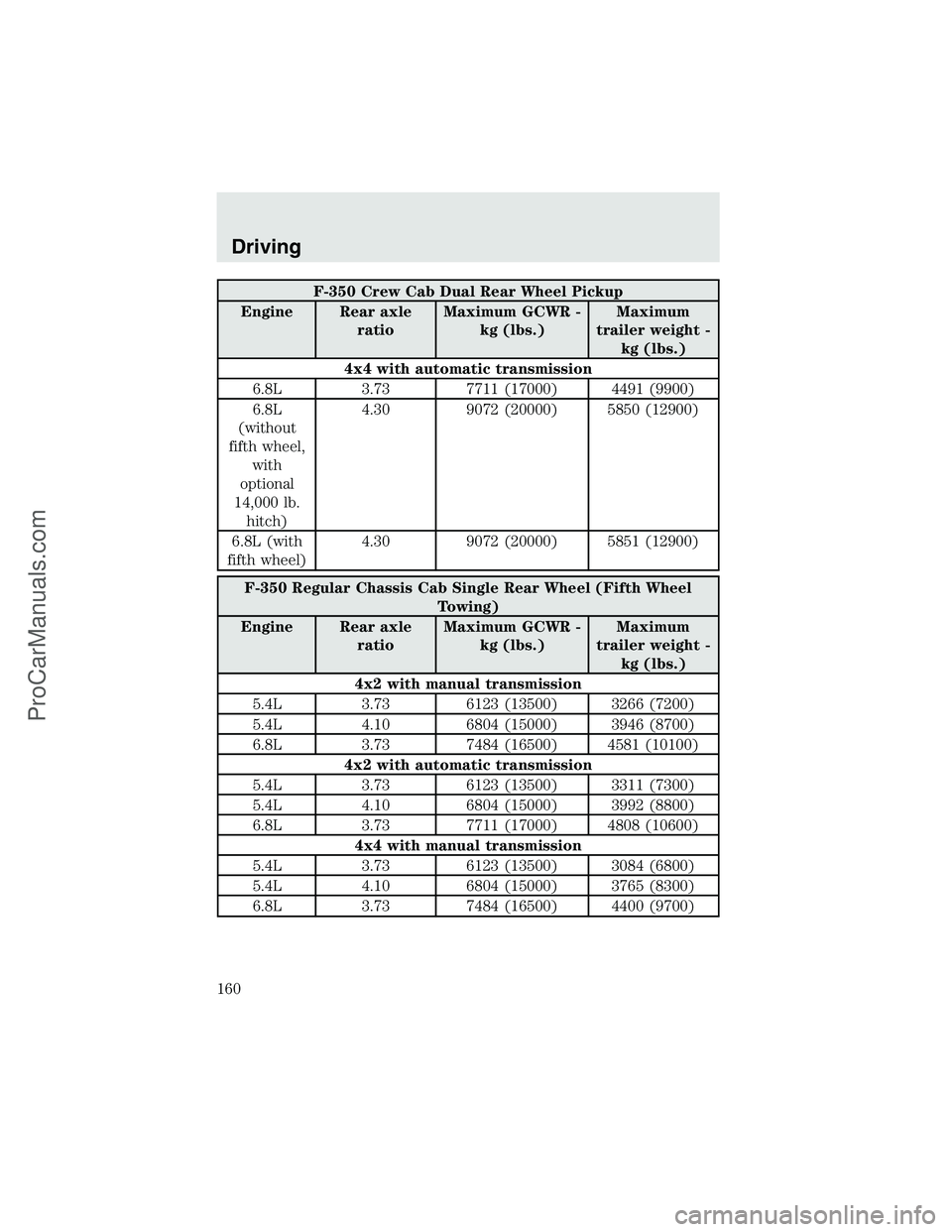

Page 160 of 280
F-350 Crew Cab Dual Rear Wheel Pickup
Engine Rear axle
ratioMaximum GCWR -
kg (lbs.)Maximum
trailer weight -
kg (lbs.)
4x4 with automatic transmission
6.8L 3.73 7711 (17000) 4491 (9900)
6.8L
(without
fifth wheel,
with
optional
14,000 lb.
hitch)4.30 9072 (20000) 5850 (12900)
6.8L (with
fifth wheel)4.30 9072 (20000) 5851 (12900)
F-350 Regular Chassis Cab Single Rear Wheel (Fifth Wheel
Towing)
Engine Rear axle
ratioMaximum GCWR -
kg (lbs.)Maximum
trailer weight -
kg (lbs.)
4x2 with manual transmission
5.4L 3.73 6123 (13500) 3266 (7200)
5.4L 4.10 6804 (15000) 3946 (8700)
6.8L 3.73 7484 (16500) 4581 (10100)
4x2 with automatic transmission
5.4L 3.73 6123 (13500) 3311 (7300)
5.4L 4.10 6804 (15000) 3992 (8800)
6.8L 3.73 7711 (17000) 4808 (10600)
4x4 with manual transmission
5.4L 3.73 6123 (13500) 3084 (6800)
5.4L 4.10 6804 (15000) 3765 (8300)
6.8L 3.73 7484 (16500) 4400 (9700)
Driving
160
