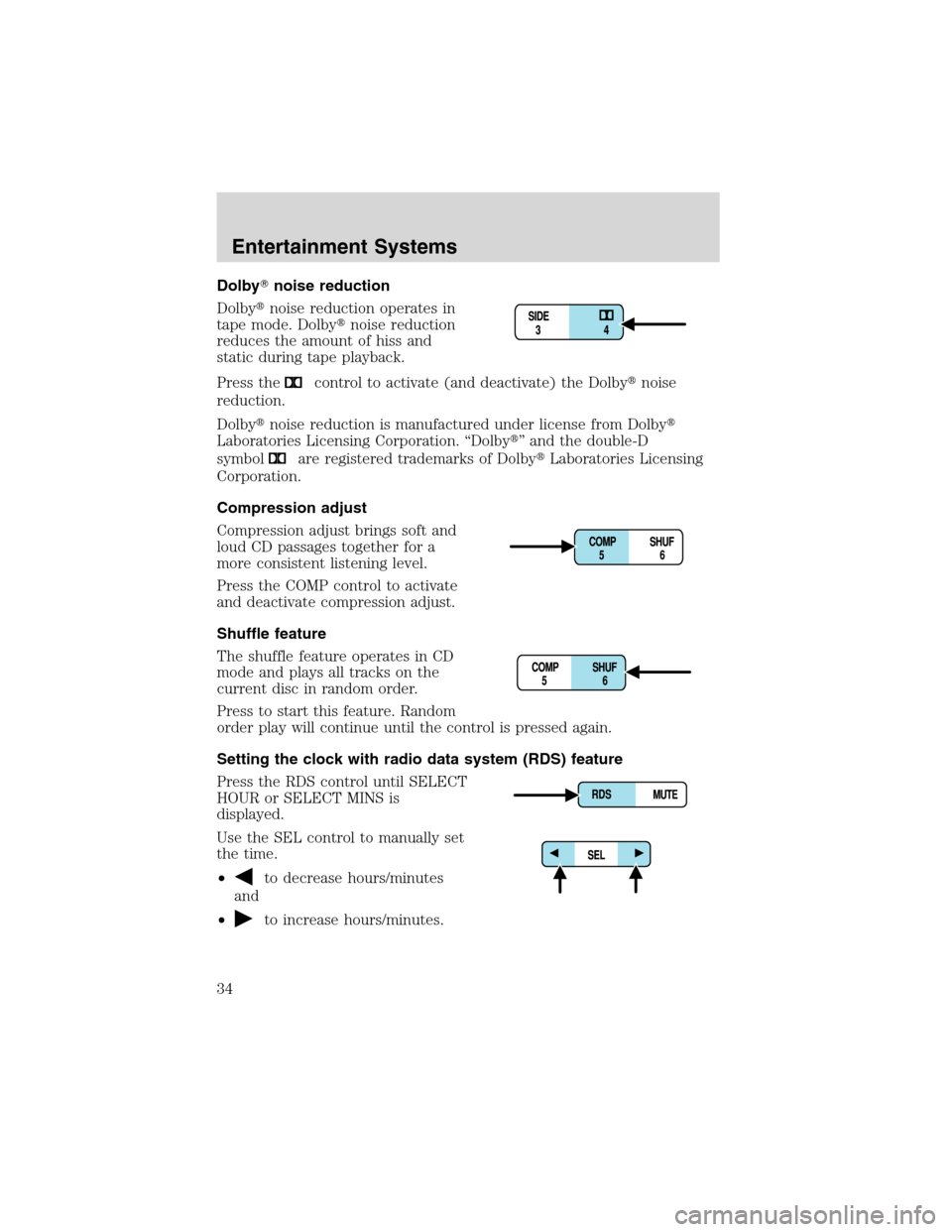

Dolbynoise reduction
Dolbynoise reduction operates in
tape mode. Dolbynoise reduction
reduces the amount of hiss and
static during tape playback.
Press the
control to activate (and deactivate) the Dolbynoise
reduction.
Dolbynoise reduction is manufactured under license from Dolby
Laboratories Licensing Corporation.“Dolby”and the double-D
symbol
are registered trademarks of DolbyLaboratories Licensing
Corporation.
Compression adjust
Compression adjust brings soft and
loud CD passages together for a
more consistent listening level.
Press the COMP control to activate
and deactivate compression adjust.
Shuffle feature
The shuffle feature operates in CD
mode and plays all tracks on the
current disc in random order.
Press to start this feature. Random
order play will continue until the control is pressed again.
Setting the clock with radio data system (RDS) feature
Press the RDS control until SELECT
HOUR or SELECT MINS is
displayed.
Use the SEL control to manually set
the time.
•
to decrease hours/minutes
and
•
to increase hours/minutes.
Entertainment Systems
34

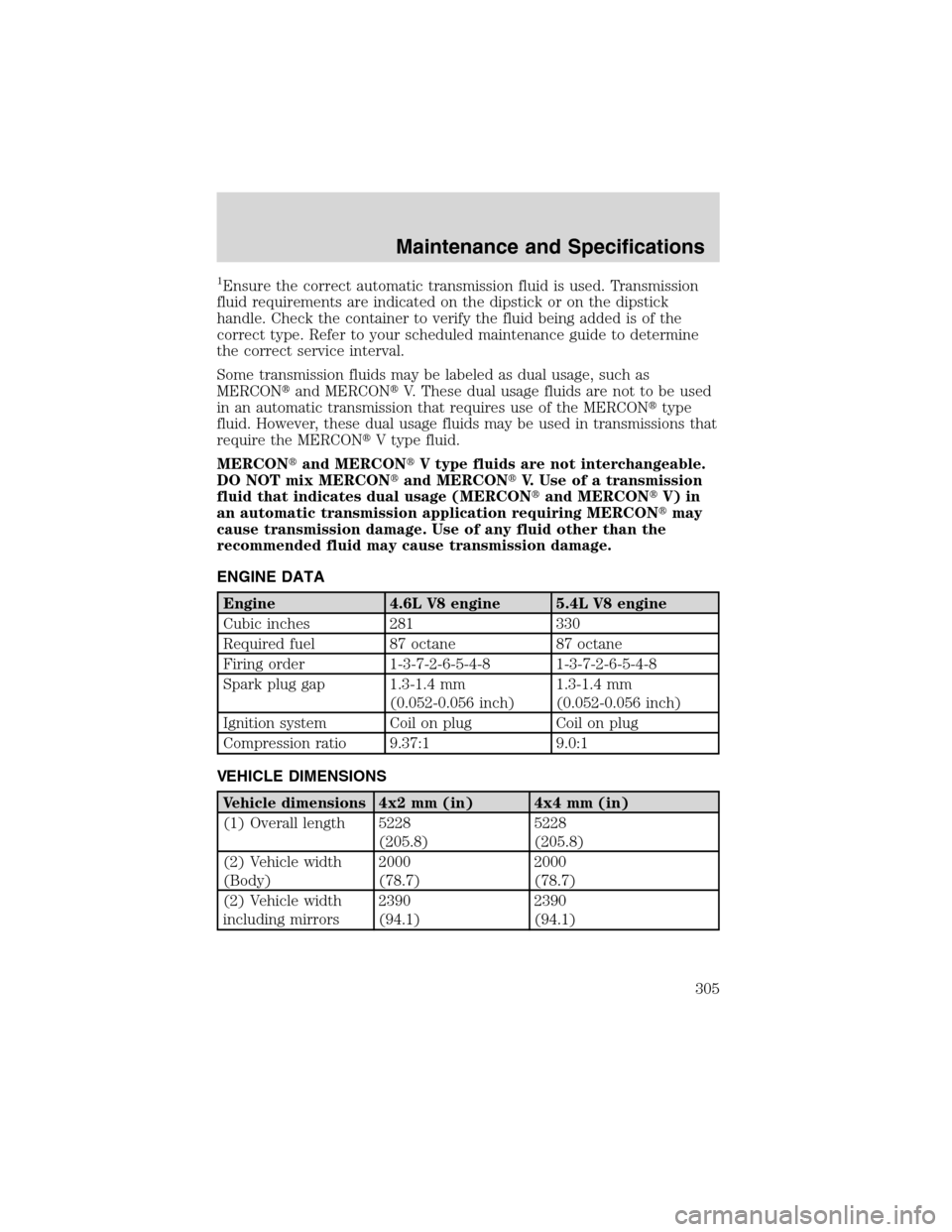

1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
ENGINE DATA
Engine 4.6L V8 engine 5.4L V8 engine
Cubic inches 281 330
Required fuel 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Spark plug gap 1.3-1.4 mm
(0.052-0.056 inch)1.3-1.4 mm
(0.052-0.056 inch)
Ignition system Coil on plug Coil on plug
Compression ratio 9.37:1 9.0:1
VEHICLE DIMENSIONS
Vehicle dimensions 4x2 mm (in) 4x4 mm (in)
(1) Overall length 5228
(205.8)5228
(205.8)
(2) Vehicle width
(Body)2000
(78.7)2000
(78.7)
(2) Vehicle width
including mirrors2390
(94.1)2390
(94.1)
Maintenance and Specifications
305
