POWERTRAIN CONTROL MODULE C4 (NGC) - GREEN 38 WAY
CAV CIRCUIT FUNCTION
1 T60 18BR (4.7L) OVERDRIVE SOLENOID CONTROL
2 T159 18DG/WT (4.7L) 4C SOLENOID CONTROL
3 Y207 18RD/WT (5.7L) TPS NO. 1 OUTPUT
4 T140 18VT/LG (4.7L) PRESSURE CONTROL SOLENOID CONTROL
5 Y208 18DB/YL (5.7L) APPS NO. 1 OUTPUT
6 T119 18WT/DB (4.7L) 2C SOLENOID CONTROL
7 T10 18YL/DG (5.7L) TORQUE MANAGEMENT REQUEST SENSE
8 T59 18PK (4.7L) UNDERDRIVE SOLENOID CONTROL
9 Y209 18TN/BK (5.7L) SENSOR GROUND
10 T120 18LG (4.7L) LR SOLENOID CONTROL
11 T118 18YL/DB (4.7L) PRESSURE CONTROL SOLENOID CONTROL
11 Y210 18YL/RD (5.7L EATX) RPM SIGNAL
12 Z13 16BK/RD (4.7L) GROUND
13 Z13 16BK/RD (4.7L) GROUND
14 Z13 16BK/RD (4.7L) GROUND
15 T1 18LG/BK (4.7L) TRS T1 SENSE
16 T3 18VT (4.7L) TRS T3 SENSE
17 T6 18OR/WT (4.7L) OVERDRIVE OFF SWITCH SENSE
18 K30 18PK (4.7L) TRANSMISSION CONTROL RELAY CONTROL
19 T16 16RD (4.7L) TRANSMISSION CONTROL RELAY OUTPUT
20 T48 18DB (4.7L) 4C PRESSURE SWITCH SENSE
21 T29 18GY (4.7L) UNDERDRIVE PRESSURE SWITCH SENSE
22 T9 18OR/BK (4.7L) OVERDRIVE PRESSURE SWITCH SENSE
23 - -
24 - -
25 - -
26 T4 18PK/OR (4.7L) TRS T2 SENSE
27 - -
28 T16 16RD (4.7L) TRANSMISSION CONTROL RELAY OUTPUT
29 T50 18DG (4.7L) LOW/REVERSE PRESSURE SWITCH SENSE
30 T147 18LB (4.7L) 2C PRESSURE SWITCH SENSE
31 T38 18VT/TN (4.7L) LINE PRESSURE SENSOR SIGNAL
32 T14 18LG/WT (4.7L) OUTPUT SPEED SENSOR SIGNAL
33 T52 18RD/BK (4.7L) INPUT SPEED SENSOR SIGNAL
34 T13 18DB/BK (4.7L) SPEED SENSOR GROUND
35 T54 18VT (4.7L) TRANSMISSION TEMPERATURE SENSOR SIGNAL
36 - -
37 T42 18VT/WT (4.7L) TRS T42 SENSE
38 T16 16RD (4.7L) TRANSMISSION CONTROL RELAY OUTPUT
DR8W-80 CONNECTOR PIN-OUTS 8W - 80 - 93

RECIRCULATION DOOR ACTUATOR-2WAY
CAV CIRCUIT FUNCTION
1 C34 20DB/WT COMMON DOOR DRIVER
2 C32 20GY/DB RECIRCULATION DOOR DRIVER
REMOTE RADIO SWITCH-LEFT - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X20 22GY (EXCEPT ETC) RADIO CONTROL MUX
1 X20 22RD/BK (ETC) RADIO CONTROL MUX
2 Z5 22BK/LB GROUND
REMOTE RADIO SWITCH-RIGHT - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X20 22GY (EXCEPT ETC) RADIO CONTROL MUX
1 X20 22RD/BK (ETC) RADIO CONTROL MUX
2 Z5 22BK/LB GROUND
SEAT HEATER INTERFACE MODULE - GREEN 14 WAY
CAV CIRCUIT FUNCTION
1 P133 20TN/DG DRIVER SEAT HEATER MUX SWITCH
2 P86 20PK/BK SEAT HEATER DRIVER
3 P142 18TN/DB PASSENGER SEAT TEMPERATURE SENSOR INPUT
4 F235 18RD FUSED B(+)
5 P141 18TN/LB DRIVER SEAT TEMPERATURE SENSOR INPUT
6 F235 18RD FUSED B(+)
7 P144 20BK/LG PASSENGER SEAT TEMPERATURE 5 VOLT SUPPLY
8 P143 20BK/DG DRIVER SEAT TEMPERATURE 5 VOLT SUPPLY
9 P134 20TN/LG PASSENGER SEAT HEATER MUX SWITCH
10 P138 20VT/LG PASSENGER SEAT LOW HEAT LED DRIVER
11 P140 20VT/BK PASSENGER SEAT HIGH HEAT LED DRIVER
12 P137 20VT/DG DRIVER SEAT LOW HEAT LED DRIVER
13 Z121 20BK/LG GROUND
14 P139 20VT/WT DRIVER SEAT HIGH HEAT LED DRIVER
DR8W-80 CONNECTOR PIN-OUTS 8W - 80 - 95

SPEED CONTROL SWITCH-LEFT (ETC) - WHITE 3 WAY
CAV CIRCUIT FUNCTION
1 V38 20VT/OR S/C SWITCH NO.2 SIGNAL
2 Y215 20BK/LB S/C SWITCH RETURN
3 V37 20RD/LG S/C SWITCH NO.1 SIGNAL
SPEED CONTROL SWITCH-LEFT (EXCEPT ETC) - GREEN 2 WAY
CAV CIRCUIT FUNCTION
A V37 20RD/LG S/C SWITCH NO.1 SIGNAL
B K4 20BK/LB SENSOR GROUND
SPEED CONTROL SWITCH-RIGHT (ETC) - WHITE 3 WAY
CAV CIRCUIT FUNCTION
1 V38 20VT/OR S/C SWITCH NO.2 SIGNAL
2 Y215 20BK/LB S/C SWITCH RETURN
3 V37 20RD/LG S/C SWITCH NO.1 SIGNAL
SPEED CONTROL SWITCH-RIGHT (EXCEPT ETC) - GREEN 2 WAY
CAV CIRCUIT FUNCTION
A V37 20RD/LG S/C SWITCH NO.1 SIGNAL
B K4 20BK/LB SENSOR GROUND
SWITCH-DRIVER SEAT BELT - DK GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 Z237 20BK/OR GROUND
2 G10 20LG/RD SEAT BELT SWITCH SENSE
8W - 80 - 98 8W-80 CONNECTOR PIN-OUTSDR

TENSIONER-LEFT SEAT BELT - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R54 18LB/YL LEFT SEAT BELT TENSIONER LINE 2
2 R56 18LB/DG LEFT SEAT BELT TENSIONER LINE 1
TENSIONER-RIGHT SEAT BELT - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R53 18LG/YL RIGHT SEAT BELT TENSIONER LINE 2
2 R55 18LG/DG RIGHT SEAT BELT TENSIONER LINE 1
THROTTLE POSITION SENSOR - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 K7 18OR 5 VOLT SUPPLY
2 K22 18OR/DB (4.7L/5.9L) TP NO.1 SIGNAL
2 K4 18BK/LB (3.7L) SENSOR GROUND
3 K4 18BK/LB (4.7L/5.9L) SENSOR GROUND
3 K22 18OR/DB (3.7L) TP NO.1 SIGNAL
THROTTLE POSITION SENSOR (DIESEL)-6WAY
CAV CIRCUIT FUNCTION
1 K104 18RD/WT SENSOR GROUND
2 K101 18WT THROTTLE POSITION SENSOR RETURN
3 K232 18YL THROTTLE POSITION SIGNAL
4 K56 18LG/OR SUPPLY VOLTAGE
5 K900 18DB/DG SENSOR GROUND
6 K49 18VT/BK No Function Defined
8W - 80 - 100 8W-80 CONNECTOR PIN-OUTSDR

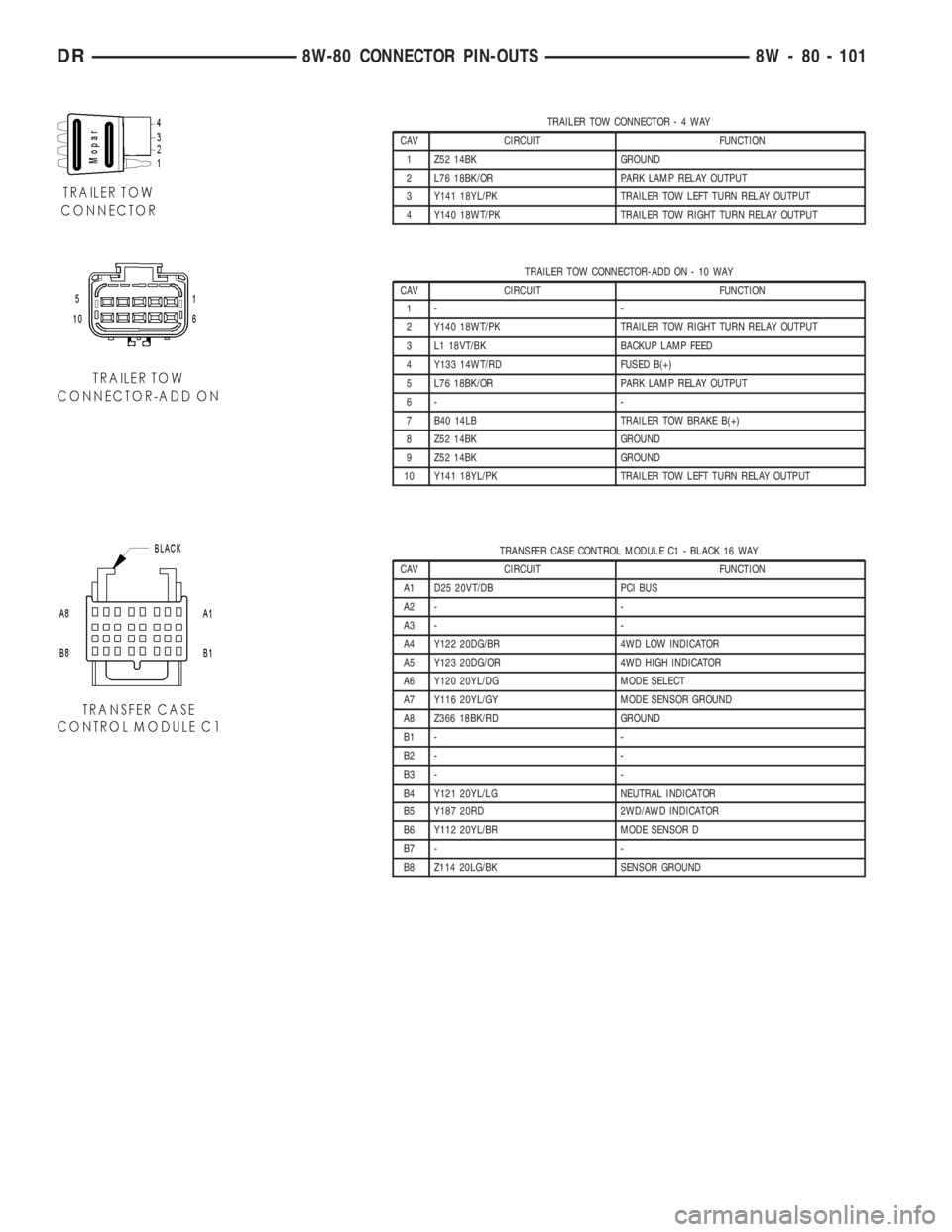

TRAILER TOW CONNECTOR-4WAY
CAV CIRCUIT FUNCTION
1 Z52 14BK GROUND
2 L76 18BK/OR PARK LAMP RELAY OUTPUT
3 Y141 18YL/PK TRAILER TOW LEFT TURN RELAY OUTPUT
4 Y140 18WT/PK TRAILER TOW RIGHT TURN RELAY OUTPUT
TRAILER TOW CONNECTOR-ADD ON - 10 WAY
CAV CIRCUIT FUNCTION
1- -
2 Y140 18WT/PK TRAILER TOW RIGHT TURN RELAY OUTPUT
3 L1 18VT/BK BACKUP LAMP FEED
4 Y133 14WT/RD FUSED B(+)
5 L76 18BK/OR PARK LAMP RELAY OUTPUT
6- -
7 B40 14LB TRAILER TOW BRAKE B(+)
8 Z52 14BK GROUND
9 Z52 14BK GROUND
10 Y141 18YL/PK TRAILER TOW LEFT TURN RELAY OUTPUT
TRANSFER CASE CONTROL MODULE C1 - BLACK 16 WAY
CAV CIRCUIT FUNCTION
A1 D25 20VT/DB PCI BUS
A2 - -
A3 - -
A4 Y122 20DG/BR 4WD LOW INDICATOR
A5 Y123 20DG/OR 4WD HIGH INDICATOR
A6 Y120 20YL/DG MODE SELECT
A7 Y116 20YL/GY MODE SENSOR GROUND
A8 Z366 18BK/RD GROUND
B1 - -
B2 - -
B3 - -
B4 Y121 20YL/LG NEUTRAL INDICATOR
B5 Y187 20RD 2WD/AWD INDICATOR
B6 Y112 20YL/BR MODE SENSOR D
B7 - -
B8 Z114 20LG/BK SENSOR GROUND
DR8W-80 CONNECTOR PIN-OUTS 8W - 80 - 101

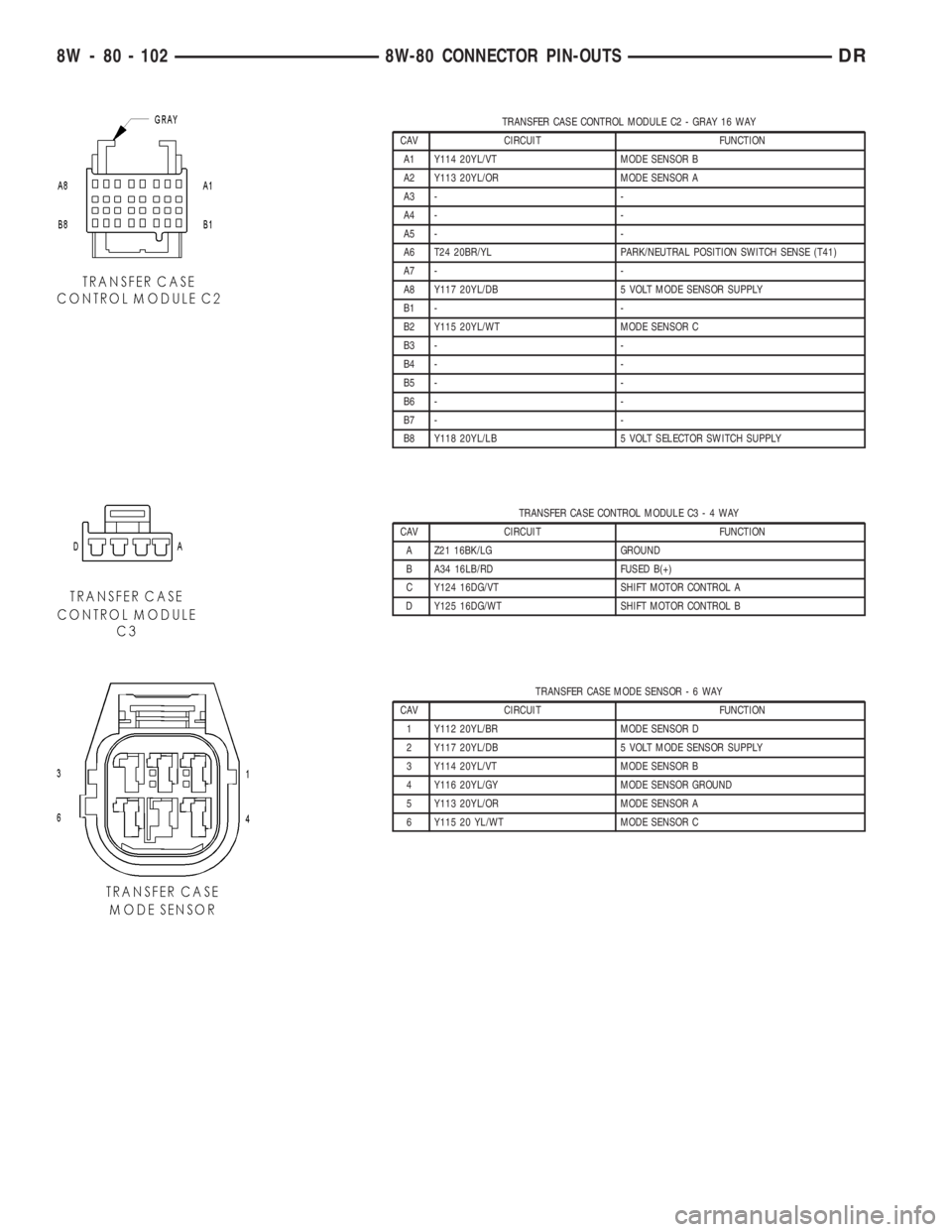

TRANSFER CASE CONTROL MODULE C2 - GRAY 16 WAY
CAV CIRCUIT FUNCTION
A1 Y114 20YL/VT MODE SENSOR B
A2 Y113 20YL/OR MODE SENSOR A
A3 - -
A4 - -
A5 - -
A6 T24 20BR/YL PARK/NEUTRAL POSITION SWITCH SENSE (T41)
A7 - -
A8 Y117 20YL/DB 5 VOLT MODE SENSOR SUPPLY
B1 - -
B2 Y115 20YL/WT MODE SENSOR C
B3 - -
B4 - -
B5 - -
B6 - -
B7 - -
B8 Y118 20YL/LB 5 VOLT SELECTOR SWITCH SUPPLY
TRANSFER CASE CONTROL MODULE C3-4WAY
CAV CIRCUIT FUNCTION
A Z21 16BK/LG GROUND
B A34 16LB/RD FUSED B(+)
C Y124 16DG/VT SHIFT MOTOR CONTROL A
D Y125 16DG/WT SHIFT MOTOR CONTROL B
TRANSFER CASE MODE SENSOR-6WAY
CAV CIRCUIT FUNCTION
1 Y112 20YL/BR MODE SENSOR D
2 Y117 20YL/DB 5 VOLT MODE SENSOR SUPPLY
3 Y114 20YL/VT MODE SENSOR B
4 Y116 20YL/GY MODE SENSOR GROUND
5 Y113 20YL/OR MODE SENSOR A
6 Y115 20 YL/WT MODE SENSOR C
8W - 80 - 102 8W-80 CONNECTOR PIN-OUTSDR

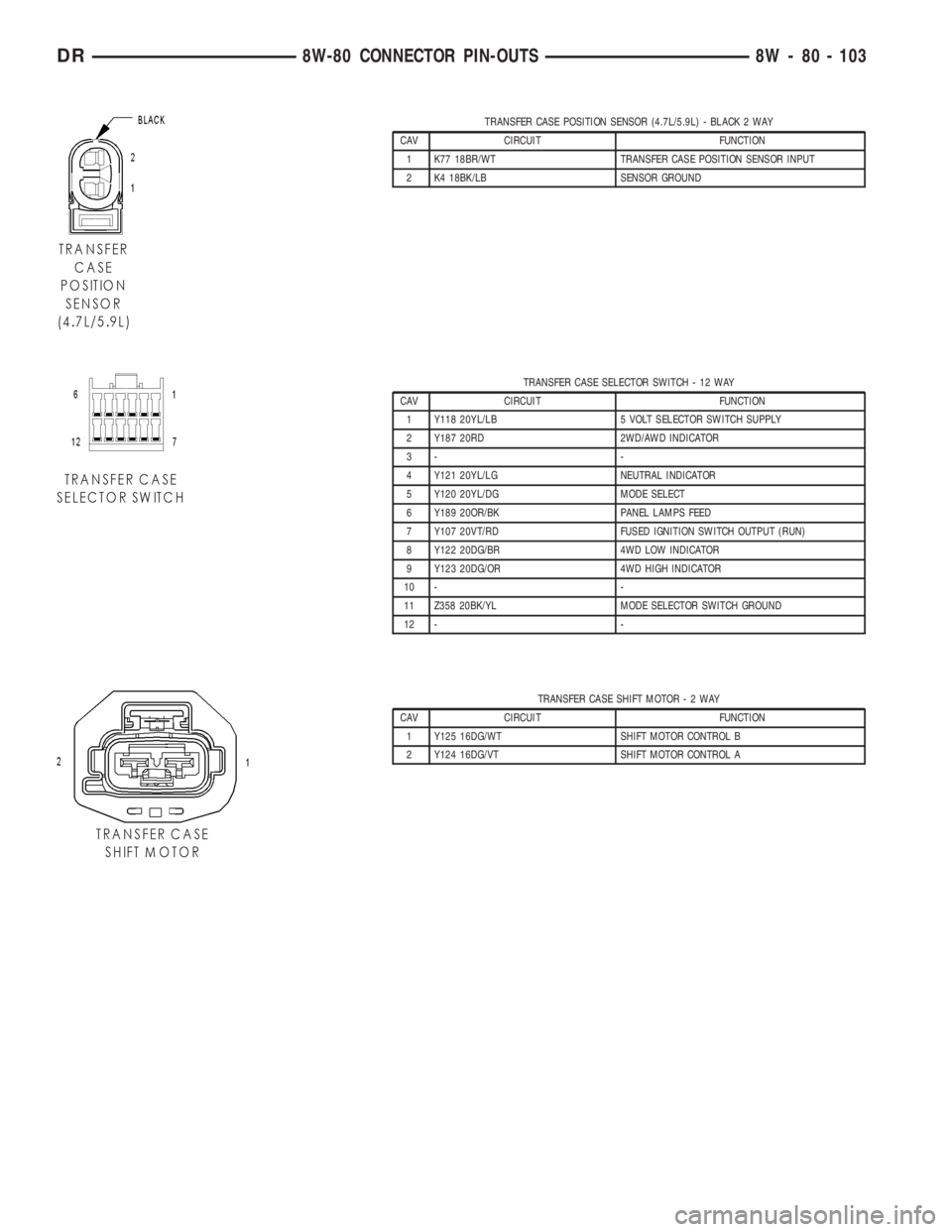

TRANSFER CASE POSITION SENSOR (4.7L/5.9L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K77 18BR/WT TRANSFER CASE POSITION SENSOR INPUT
2 K4 18BK/LB SENSOR GROUND
TRANSFER CASE SELECTOR SWITCH - 12 WAY
CAV CIRCUIT FUNCTION
1 Y118 20YL/LB 5 VOLT SELECTOR SWITCH SUPPLY
2 Y187 20RD 2WD/AWD INDICATOR
3- -
4 Y121 20YL/LG NEUTRAL INDICATOR
5 Y120 20YL/DG MODE SELECT
6 Y189 20OR/BK PANEL LAMPS FEED
7 Y107 20VT/RD FUSED IGNITION SWITCH OUTPUT (RUN)
8 Y122 20DG/BR 4WD LOW INDICATOR
9 Y123 20DG/OR 4WD HIGH INDICATOR
10 - -
11 Z358 20BK/YL MODE SELECTOR SWITCH GROUND
12 - -
TRANSFER CASE SHIFT MOTOR-2WAY
CAV CIRCUIT FUNCTION
1 Y125 16DG/WT SHIFT MOTOR CONTROL B
2 Y124 16DG/VT SHIFT MOTOR CONTROL A
DR8W-80 CONNECTOR PIN-OUTS 8W - 80 - 103

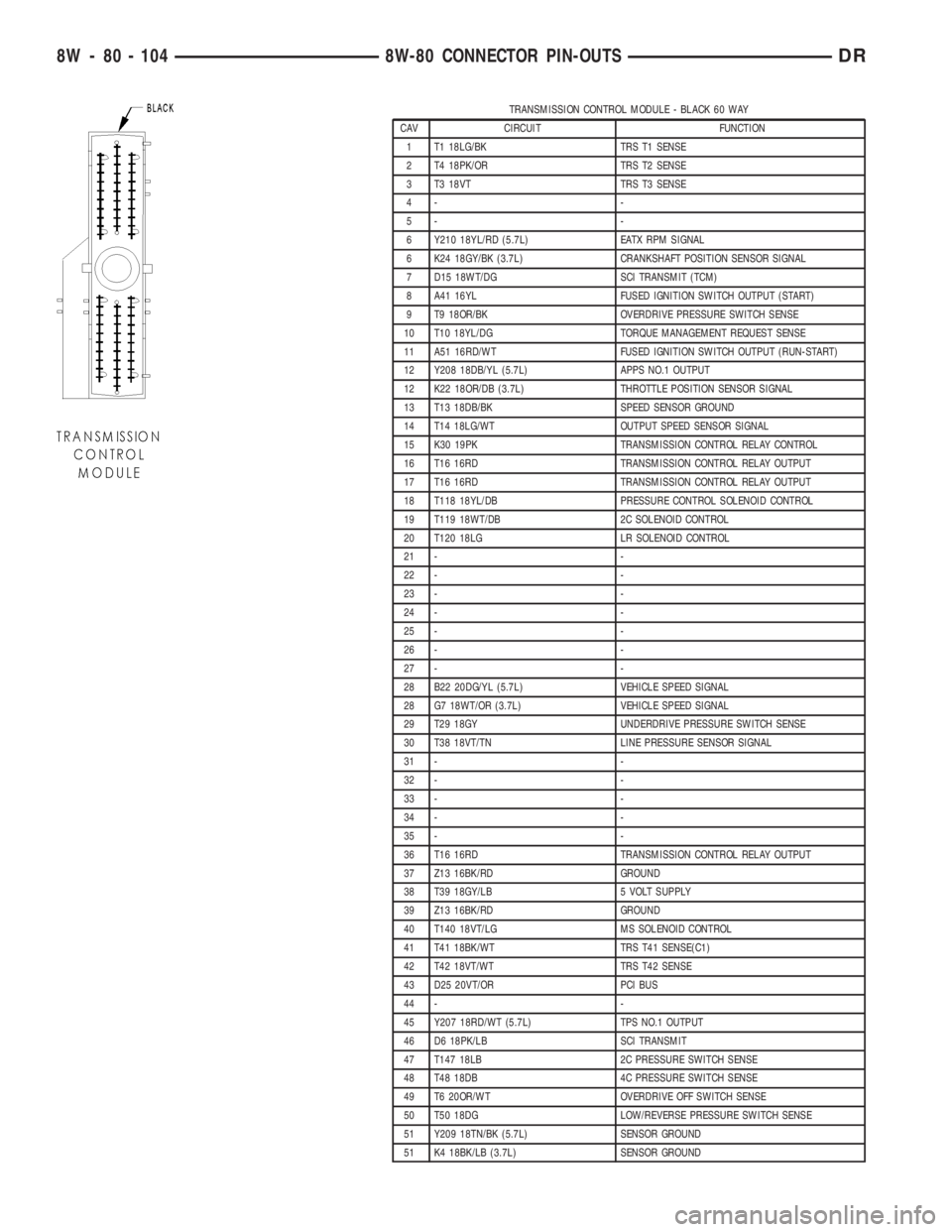

TRANSMISSION CONTROL MODULE - BLACK 60 WAY
CAV CIRCUIT FUNCTION
1 T1 18LG/BK TRS T1 SENSE
2 T4 18PK/OR TRS T2 SENSE
3 T3 18VT TRS T3 SENSE
4- -
5- -
6 Y210 18YL/RD (5.7L) EATX RPM SIGNAL
6 K24 18GY/BK (3.7L) CRANKSHAFT POSITION SENSOR SIGNAL
7 D15 18WT/DG SCI TRANSMIT (TCM)
8 A41 16YL FUSED IGNITION SWITCH OUTPUT (START)
9 T9 18OR/BK OVERDRIVE PRESSURE SWITCH SENSE
10 T10 18YL/DG TORQUE MANAGEMENT REQUEST SENSE
11 A51 16RD/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
12 Y208 18DB/YL (5.7L) APPS NO.1 OUTPUT
12 K22 18OR/DB (3.7L) THROTTLE POSITION SENSOR SIGNAL
13 T13 18DB/BK SPEED SENSOR GROUND
14 T14 18LG/WT OUTPUT SPEED SENSOR SIGNAL
15 K30 19PK TRANSMISSION CONTROL RELAY CONTROL
16 T16 16RD TRANSMISSION CONTROL RELAY OUTPUT
17 T16 16RD TRANSMISSION CONTROL RELAY OUTPUT
18 T118 18YL/DB PRESSURE CONTROL SOLENOID CONTROL
19 T119 18WT/DB 2C SOLENOID CONTROL
20 T120 18LG LR SOLENOID CONTROL
21 - -
22 - -
23 - -
24 - -
25 - -
26 - -
27 - -
28 B22 20DG/YL (5.7L) VEHICLE SPEED SIGNAL
28 G7 18WT/OR (3.7L) VEHICLE SPEED SIGNAL
29 T29 18GY UNDERDRIVE PRESSURE SWITCH SENSE
30 T38 18VT/TN LINE PRESSURE SENSOR SIGNAL
31 - -
32 - -
33 - -
34 - -
35 - -
36 T16 16RD TRANSMISSION CONTROL RELAY OUTPUT
37 Z13 16BK/RD GROUND
38 T39 18GY/LB 5 VOLT SUPPLY
39 Z13 16BK/RD GROUND
40 T140 18VT/LG MS SOLENOID CONTROL
41 T41 18BK/WT TRS T41 SENSE(C1)
42 T42 18VT/WT TRS T42 SENSE
43 D25 20VT/OR PCI BUS
44 - -
45 Y207 18RD/WT (5.7L) TPS NO.1 OUTPUT
46 D6 18PK/LB SCI TRANSMIT
47 T147 18LB 2C PRESSURE SWITCH SENSE
48 T48 18DB 4C PRESSURE SWITCH SENSE
49 T6 20OR/WT OVERDRIVE OFF SWITCH SENSE
50 T50 18DG LOW/REVERSE PRESSURE SWITCH SENSE
51 Y209 18TN/BK (5.7L) SENSOR GROUND
51 K4 18BK/LB (3.7L) SENSOR GROUND
8W - 80 - 104 8W-80 CONNECTOR PIN-OUTSDR
