2003 BMW MOTORRAD R 850 R Rider's Manual (in English)

21
7
General information and controls1Telltale light, left turn
indicator green
s
2 Warning light fuel level/
when approx. 5 litres left in
tank orange
m (b 25, 62)
3 Telltale light,
neutral green
k (b 59)
4 Telltale light, high-beam
headlight blue
q
5 Telltale light, right turn indi-
cator green
t
OEOptional extra
6Warning light, battery
charge current red
r
(
b 63)
7 Warning light,
ABS red
\bOE (b 63)
8 Warning light, general
red
e (b 63)
9 Warning light, engine oil
pressure red
p (b 62)
( ) Figure in brackets
bpage number for description
Telltale and warning lights
12435
9
8
6
7
10Classic1g.book Seite 7 Freitag, 27. Januar 2006 2:01 14

21
8
General information and controls
KeysYou will receive two master
keys and one spare key.
The key number is on the plas-
tic tag accompanying the keys.
d Warning:
If the motorcycle is fitted with
BMW Integral ABS
OE, only a
RESIDUAL BRAKING FUNC-
TION is available when the ig-
nition is switched off (b 71)
OEOptional extra
\f Note:
Ignition switch and steering
lock, tank filler cap lock, and
helmet/seat lock are all operat-
ed with the same key. System
cases
OA with locks for the same
key can be ordered on request.
OAOptional accessory
Ignition switch and steering lock
10Classic1g.book Seite 8 Freitag, 27. Januar 2006 2:01 14

21
9
General information and controls
Key positions
d Warning:
Never turn the key to OFF or
I
while riding the motorcycle!
ON Operating position,
ignition, lights and all
electrical circuits
switched on
R * Ignition and lights off,
steering not locked
(handlebars can be turned
freely to left or right)
* The key can be removed in these
positions
Turn the handlebars to full left
lock.
e Attention:
Engage the steering lock with the
handlebars in this position only.
OFF * Ignition and lights off,
steering locked
I * Parking light on,
steering locked
\f Note:
Switch the parking light on for
limited periods only. Note state
of battery charge.
Ignition switch and steering lock
10Classic1g.book Seite 9 Freitag, 27. Januar 2006 2:01 14

21
10
General information and controls
Trip meterResetting:
Turn knob 2 in the direction
indicated by the arrow until
all the trip-meter readings
show "0"Clock Setting the time:
 Press and hold down button 1
 Release button 1 as soon as
the clock shows the right time
Trip meter/clock
2
1
10Classic1g.book Seite 10 Freitag, 27. Januar 2006 2:01 14

21
11
General information and controls
Hazard warning flashers
\f Note:
You cannot activate the hazard
warning flashers if the ignition is
switched off.
Do not use the hazard warning
flashers for longer than abso-
lutely necessary.
Note battery charge state
Switching on the hazard
warning flashers
 Switch on the ignition
– Hazard warning flasher
switch 1 lights up
 Operate hazard warning
flasher switch 1 –
Hazard warning flashers in
operation
– Left/right flashing turn indica-
tor telltale light in the telltale
light panel (
b 7) flashes
 Switch off the ignition
– The hazard warning flashers
continue to operate
– The light in the hazard warn-
ing flasher switch goes out
Switching off the hazard
warning flashers:
Operate hazard warning
flasher switch 1
– Hazard warning flashers
cease to operate
– Left/right flashing turn indica-
tor telltale light in the telltale
light panel (
b 7) off
Hazard warning flashers
1
10Classic1g.book Seite 11 Freitag, 27. Januar 2006 2:01 14

21
12
General information and controls
1
2
534
d Warning:
To prevent air from entering
the clutch system:
 Do not turn the fitting on the
handlebar.
 Do not turn the handlebars
in the clamping blocks.
1 Lever for cold start
(fast idle) (
b 61)
2 Hazard warning flasher
switch (
b 11) 3
Horn push
4 Left flashing turn indicator
switch
Press
– Turn indicators operate
To switch off turn indicators:
 Press turn indicator cancel
switch 9
5 High-beam/low-beam
headlight switch
FHigh-beam headlight
GLow-beam headlight
FHeadlight flasher
Left handlebar fitting
10Classic1g.book Seite 12 Freitag, 27. Januar 2006 2:01 14

21
13
General information and controlsd Warning:
To prevent air from entering
the brake system:
 Do not turn the fitting on the
handlebar.
 Do not turn the handlebars
in the clamping blocks.

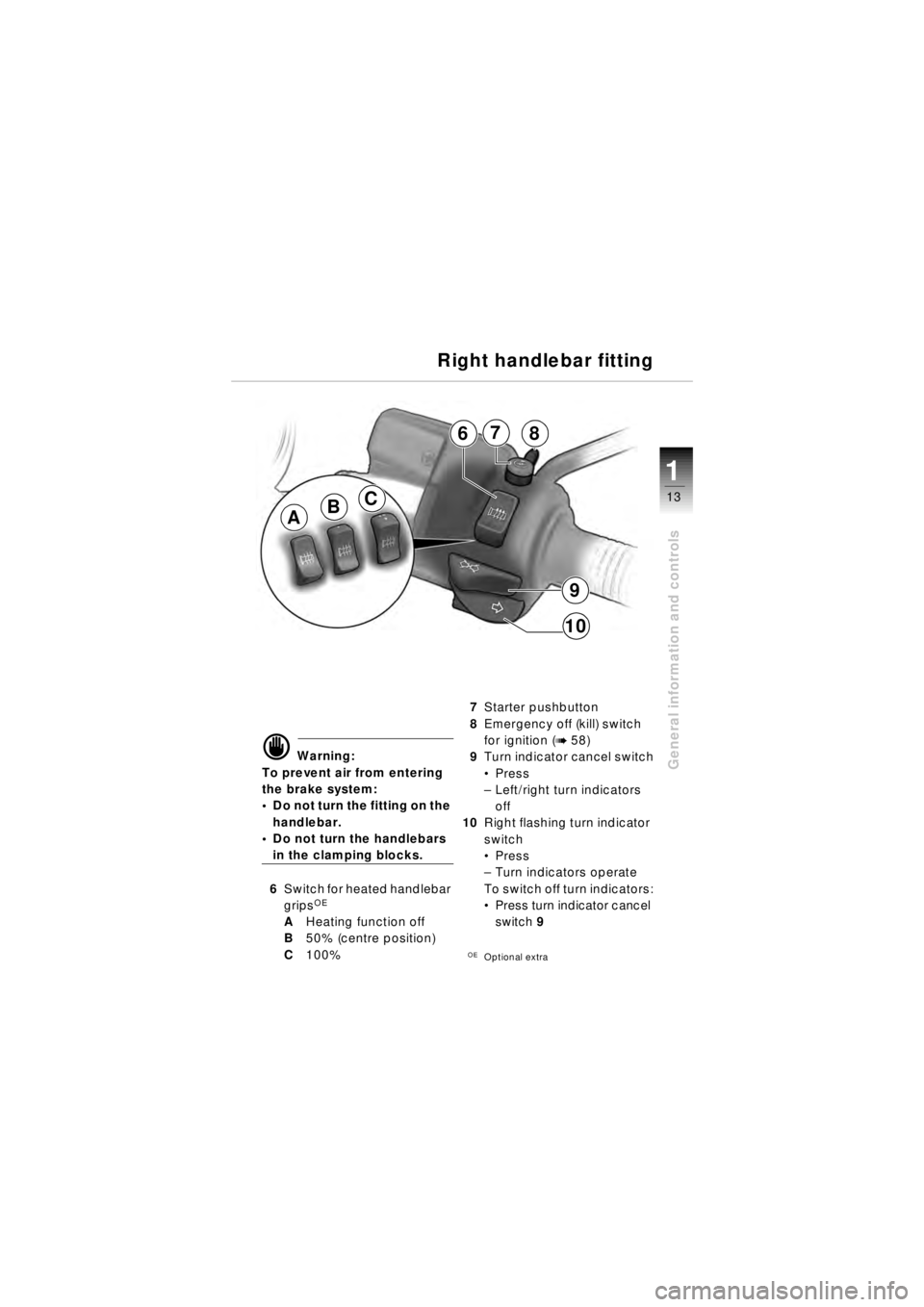

6 Switch for heated handlebar
grips
OE
A Heating function off
B 50% (centre position)
C 100% 7
Starter pushbutton
8 Emergency off (kill) switch
for ignition (
b 58)
9 Turn indicator cancel switch
Press
– Left/right turn indicators
off
10 Right flashing turn indicator
switch
Press
– Turn indicators operate
To switch off turn indicators:
 Press turn indicator cancel
switch 9
OEOptional extra
Right handlebar fitting
BA
C
9
10
876
10Classic1g.book Seite 13 Freitag, 27. Januar 2006 2:01 14

21
14
General information and controls
Removing seat:Turn the key in seat lock 1 to
position A
 Remove the front seat
– Fuses are accessible
(
b Maintenance
Instructions, Chapter 2)
 Pull the rear seat forward and
up to remove
– Toolkit is accessible
Locking seat:
e Attention:
When installing, make sure that
the seat is correctly secured.
 Push the rear seat back
into catch 2 and lower it into
position
 Push the front seat into
locks 3 and 4 on left and right
 Apply light pressure at posi-
tion B to engage the seat lock
Seat
A
3
B
2
1
4
