2003 BMW MOTORRAD F 650 GS Rider's Manual (in English)

111
7
General information and controls
1Repeater,
flashing turn indicators left/
right green
J
2Warning light, ABS checkOE
red
D (b65)
3 Telltale light, high-beam
headlight, blue
q
4Warning light, engine oil
pressure, red
p (b59)
5 Warning light, coolant
temperature red
j (b58) 6
Telltale light,
neutral green
k
7Warning light, fuel
level down to approx.
4 litres (0.9 Imp. gal)
reserve, yellow
m
OEOptional extra
( ) Figure in brackets
bpage number for
description
Telltale and warning lights
13542
76
10r1301g4.fm Seite 7 Dienstag, 30. September 2003 1:36 13

11
8
General information and controls

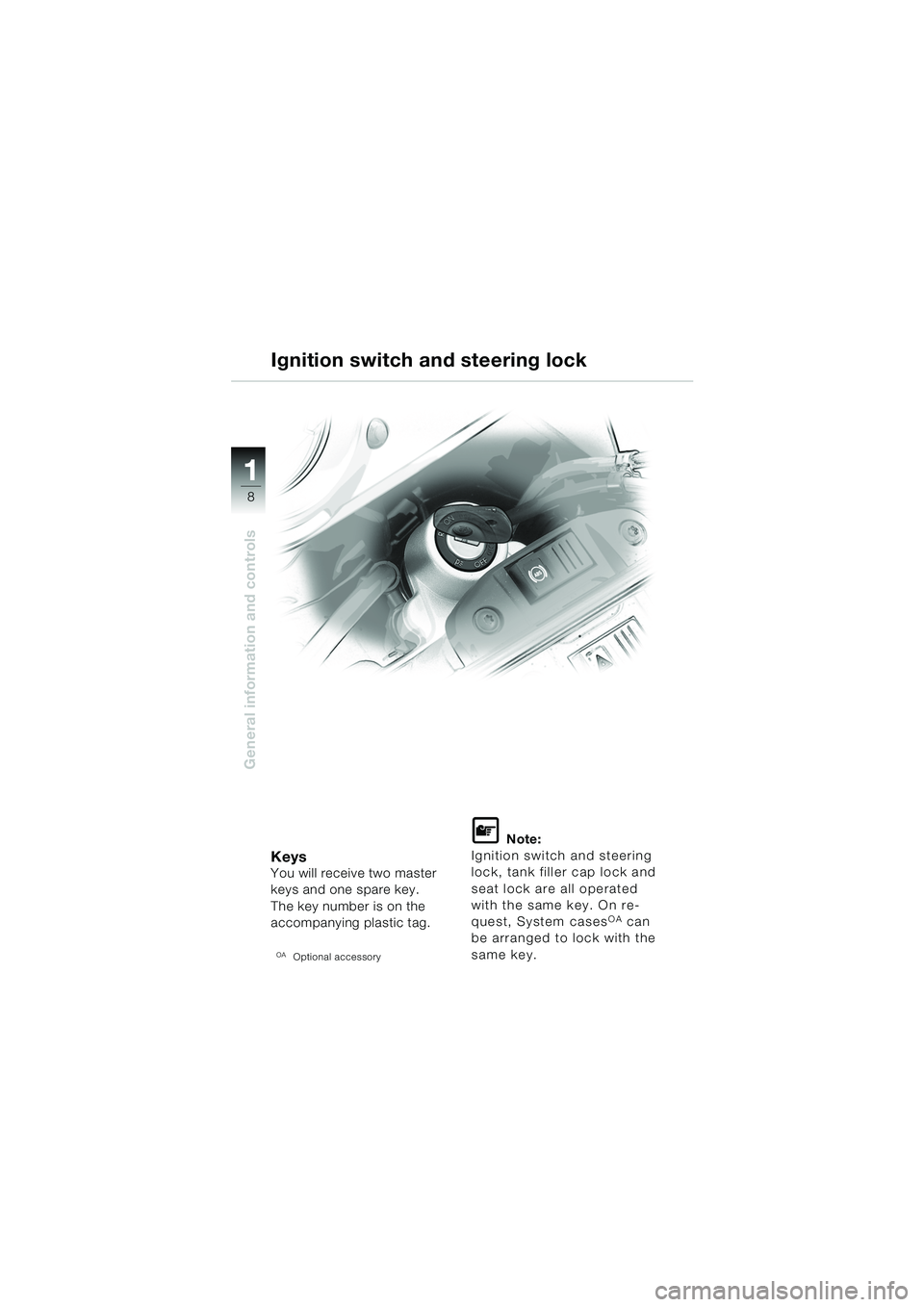

KeysYou will receive two master
keys and one spare key.
The key number is on the
accompanying plastic tag.
OAOptional accessory
L Note:
Ignition switch and steering
lock, tank filler cap lock and
seat lock are all operated
with the same key. On re-
quest, System cases
OA can
be arranged to lock with the
same key.
Ignition switch and steering lock
10R13bkg4.book Seite 8 Montag, 22. September 2003 4:26 16

111
9
General information and controls
Ignition switch and steering lock

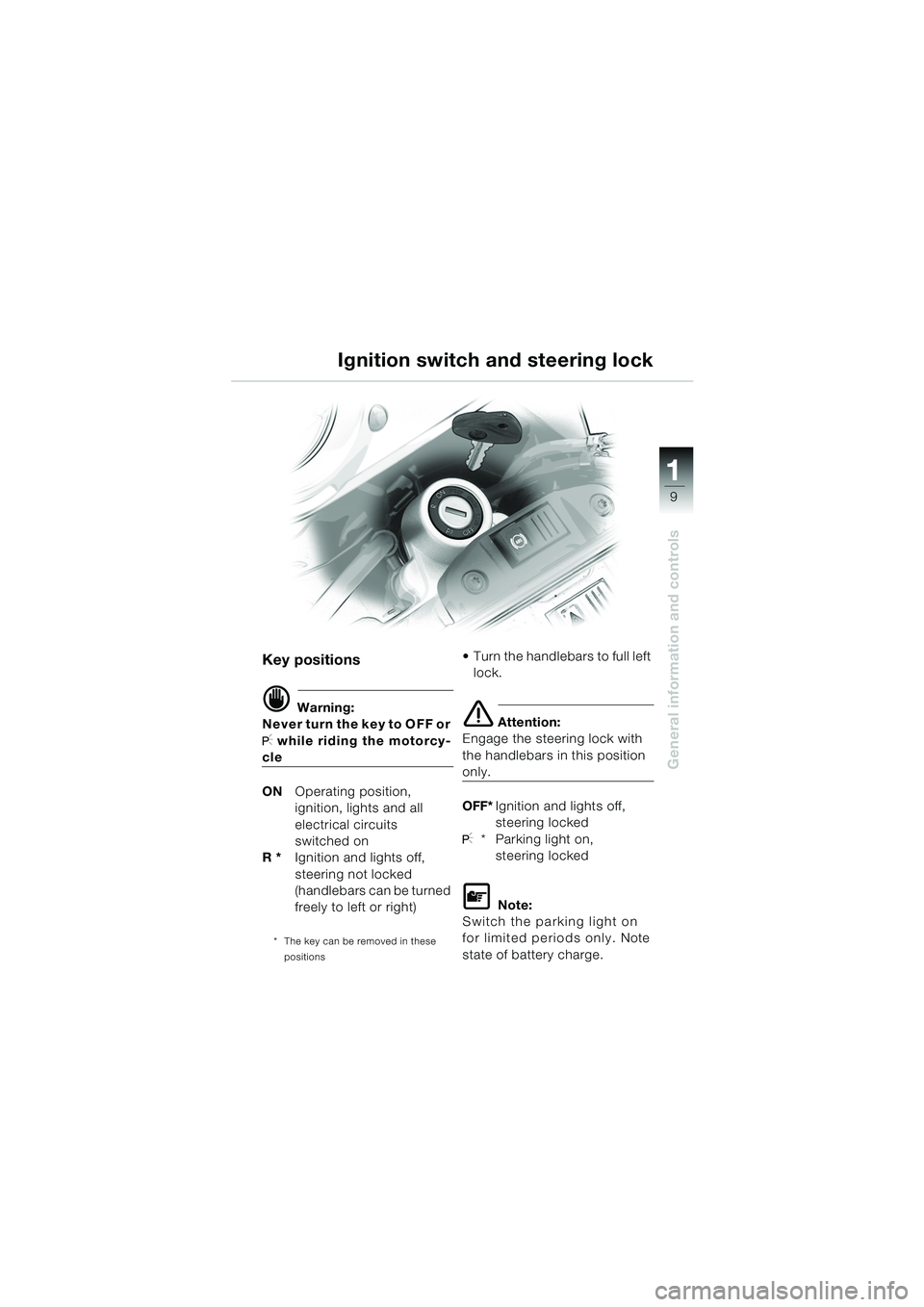

Key positions
d Warning:
Never turn the key to OFF or
I while riding the motorcy-
cle
ON Operating position,
ignition, lights and all
electrical circuits
switched on
R * Ignition and lights off,
steering not locked
(handlebars can be turned
freely to left or right)
* The key can be removed in these
positions
 Turn the handlebars to full left lock.
e Attention:
Engage the steering lock with
the handlebars in this position
only.
OFF* Ignition and lights off,
steering locked
I * Parking light on,
steering locked
L Note:
Switch the parking light on
for limited periods only. Note
state of battery charge.
10R13bkg4.book Seite 9 Montag, 22. September 2003 4:26 16

11
10
General information and controls

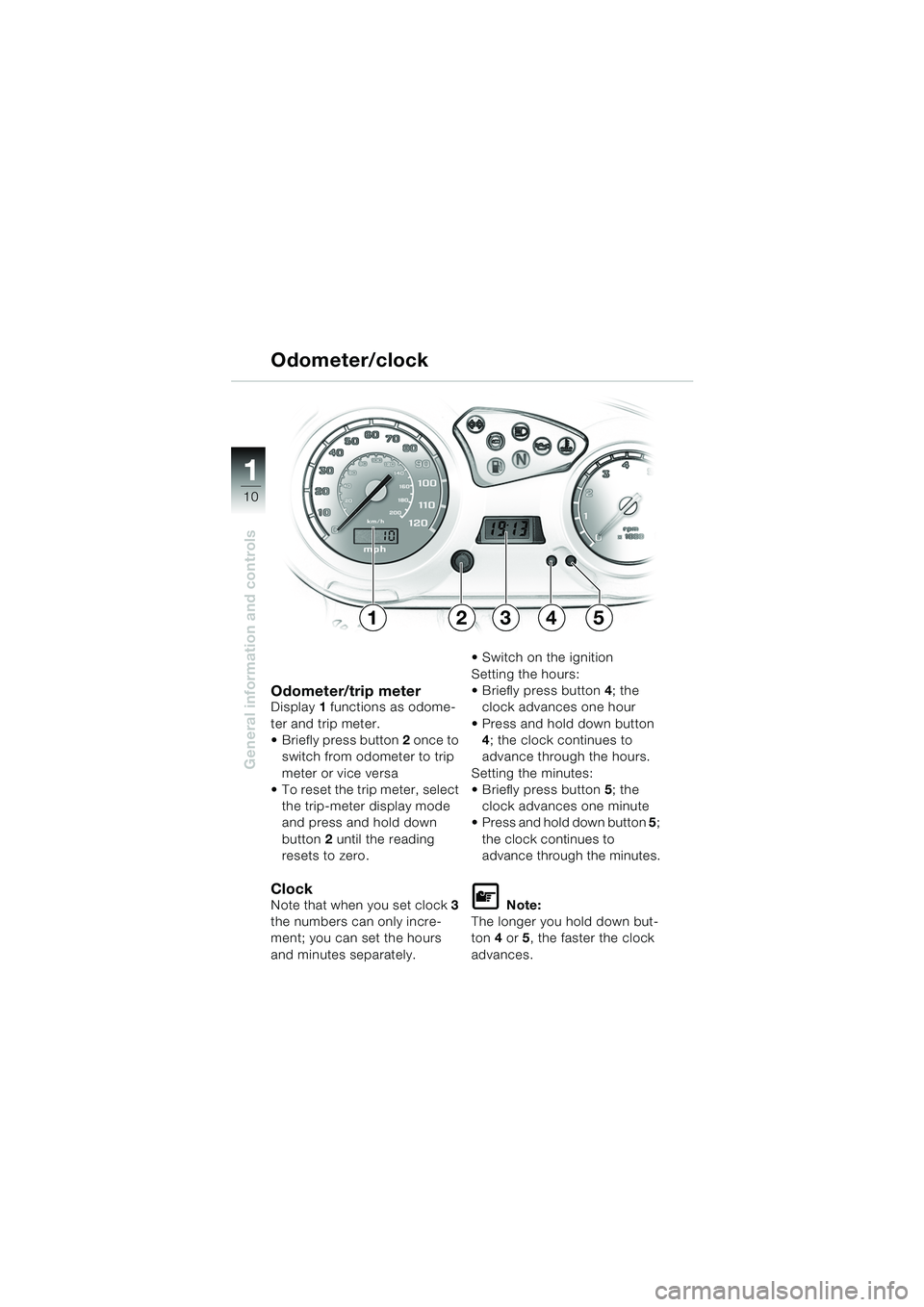

Odometer/trip meterDisplay 1 functions as odome-
ter and trip meter.
 Briefly press button 2 once to
switch from odometer to trip
meter or vice versa
 To reset the trip meter, select
the trip-meter display mode
and press and hold down
button 2 until the reading
resets to zero.
ClockNote that when you set clock 3
the numbers can only incre-
ment; you can set the hours
and minutes separately.  Switch on the ignition
Setting the hours:
 Briefly press button
4; the
clock advances one hour
 Press and hold down button 4; the clock continues to
advance through the hours.
Setting the minutes:
 Briefly press button 5 ; the
clock advances one minute
 Press and hold down button 5;
the clock continues to
advance through the minutes.L Note:
The longer you hold down but-
ton 4 or 5, the faster the clock
advances.
Odometer/clock
12345
10R13bkg4.book Seite 10 Montag, 22. September 2003 4:26 16

111
11
General information and controls

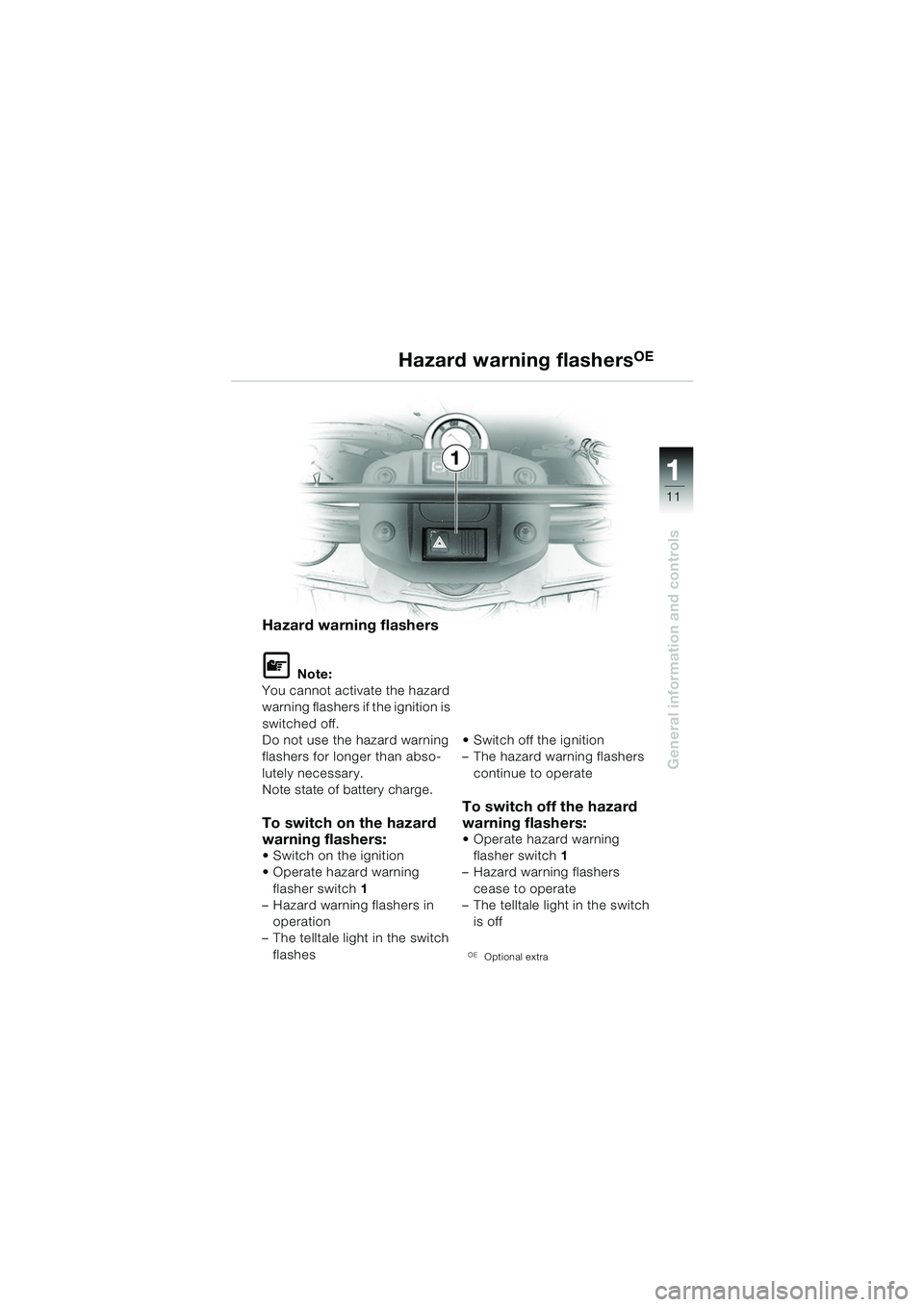

Hazard warning flashersOE
Hazard warning flashers
L Note:
You cannot activate the hazard
warning flashers if the ignition is
switched off.
Do not use the hazard warning
flashers for longer than abso-
lutely necessary.
Note state of battery charge.
To switch on the hazard
warning flashers:
 Switch on the ignition
 Operate hazard warning flasher switch 1
– Hazard warning flashers in
operation
– The telltale light in the switch
flashes  Switch off the ignition
– The hazard warning flashers
continue to operate
To switch off the hazard
warning flashers:
 Operate hazard warning flasher switch 1
– Hazard warning flashers
cease to operate
– The telltale light in the switch
is off
OEOptional extra
1
10R13bkg4.book Seite 11 Montag, 22. September 2003 4:26 16

11
12
General information and controls

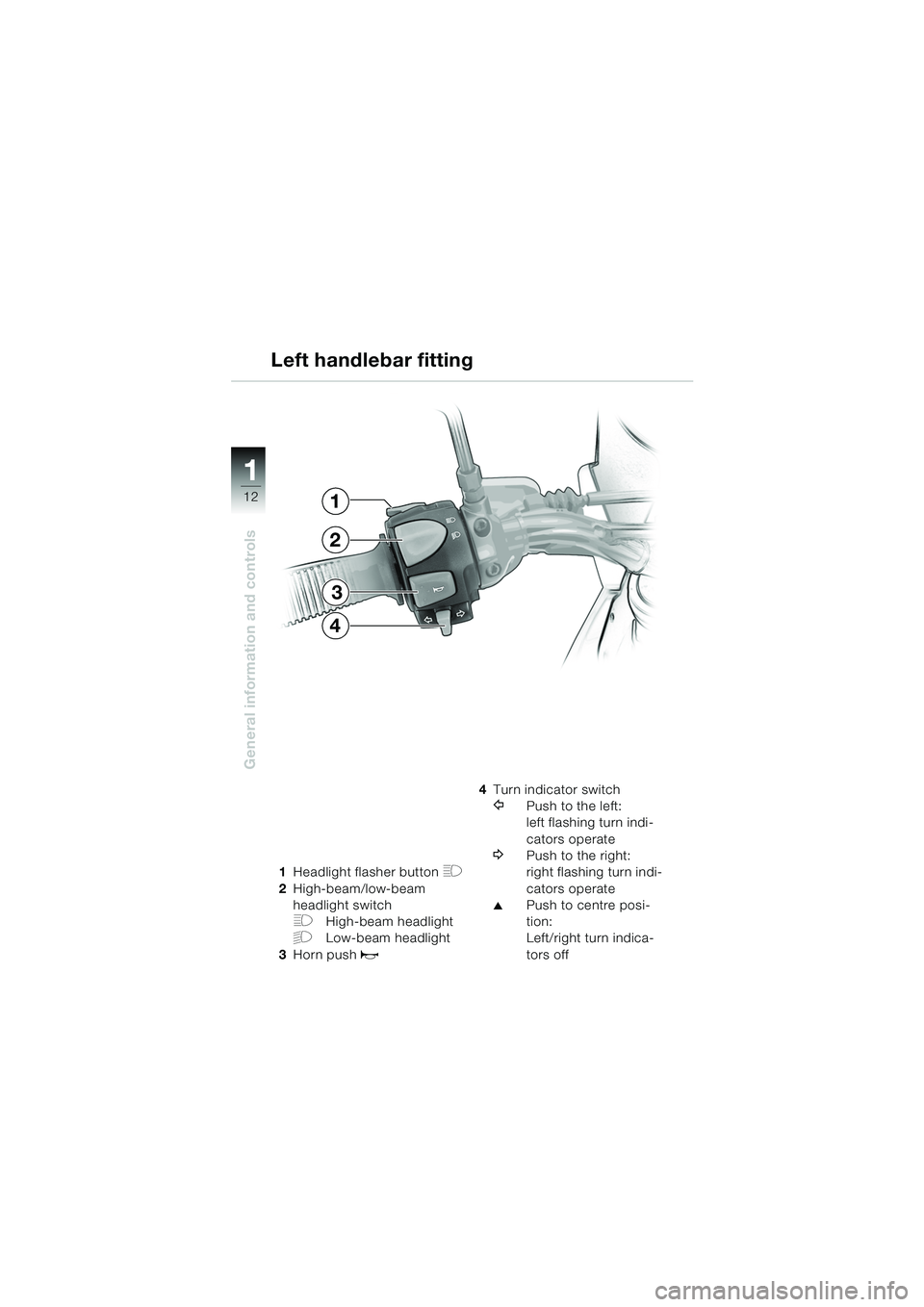

1Headlight flasher button H
2High-beam/low-beam
headlight switch
FHigh-beam headlight
GLow-beam headlight
3 Horn push
z
4Turn indicator switch
YPush to the left:
left flashing turn indi-
cators operate
WPush to the right:
right flashing turn indi-
cators operate
▲Push to centre posi-
tion:
Left/right turn indica-
tors off
Left handlebar fitting
1
2
3
4
10R13bkg4.book Seite 12 Montag, 22. September 2003 4:26 16

111
13
General information and controls
5
7
6

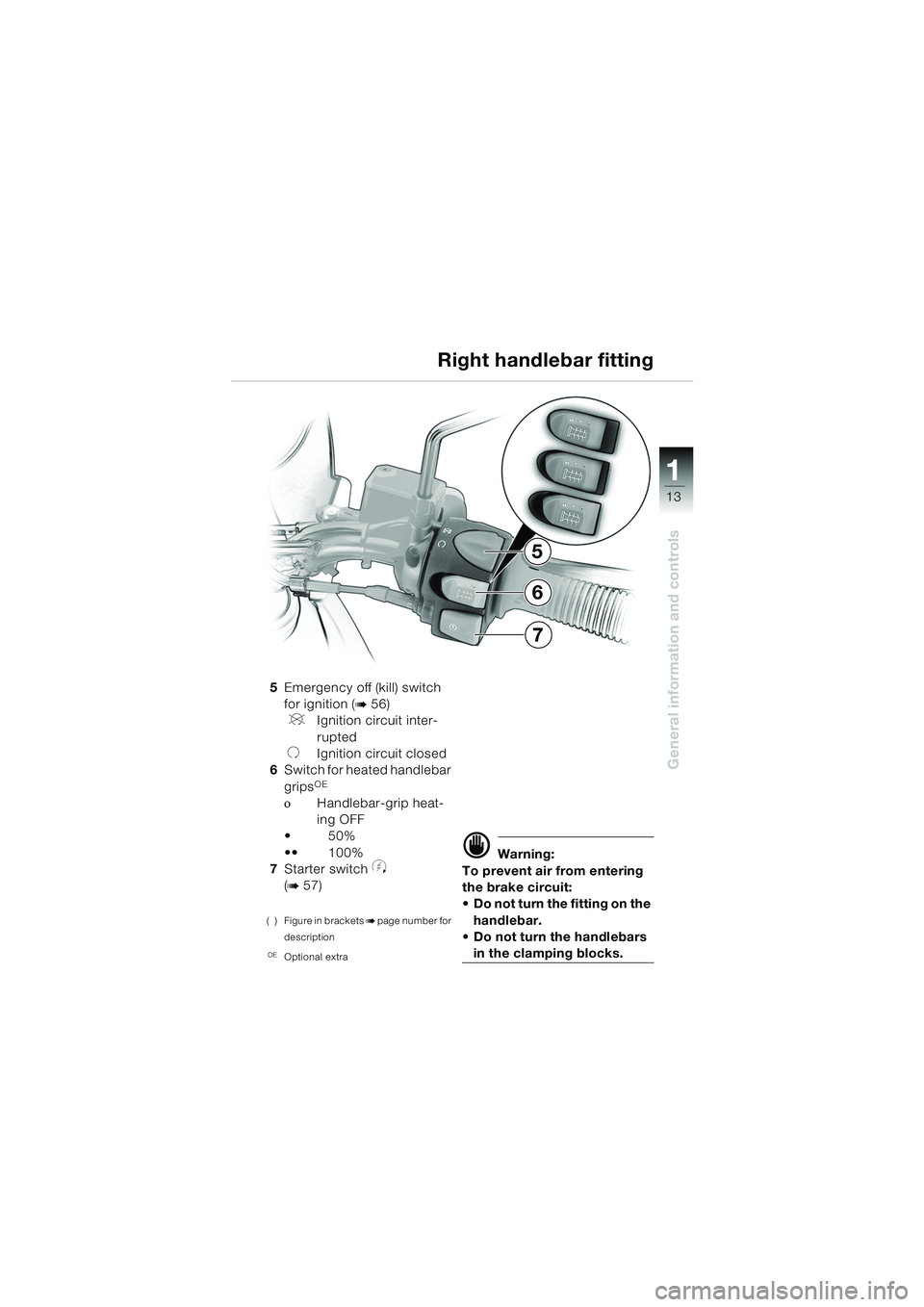

5Emergency off (kill) switch
for ignition (
b56)
VIgnition circuit inter-
rupted
UIgnition circuit closed
6 Switch for heated handlebar
grips
OE
οHandlebar-grip heat-
ing OFF
50%
 100%
7 Starter switch
y
(b57)
( ) Figure in bracketsbpage number for
description
OEOptional extra
d Warning:
To prevent air from entering
the brake circuit:
 Do not turn the fitting on the handlebar.
 Do not turn the handlebars
in the clamping blocks.
Right handlebar fitting
10R13bkg4.book Seite 13 Montag, 22. September 2003 4:26 16

11
14
General information and controlsSeat,

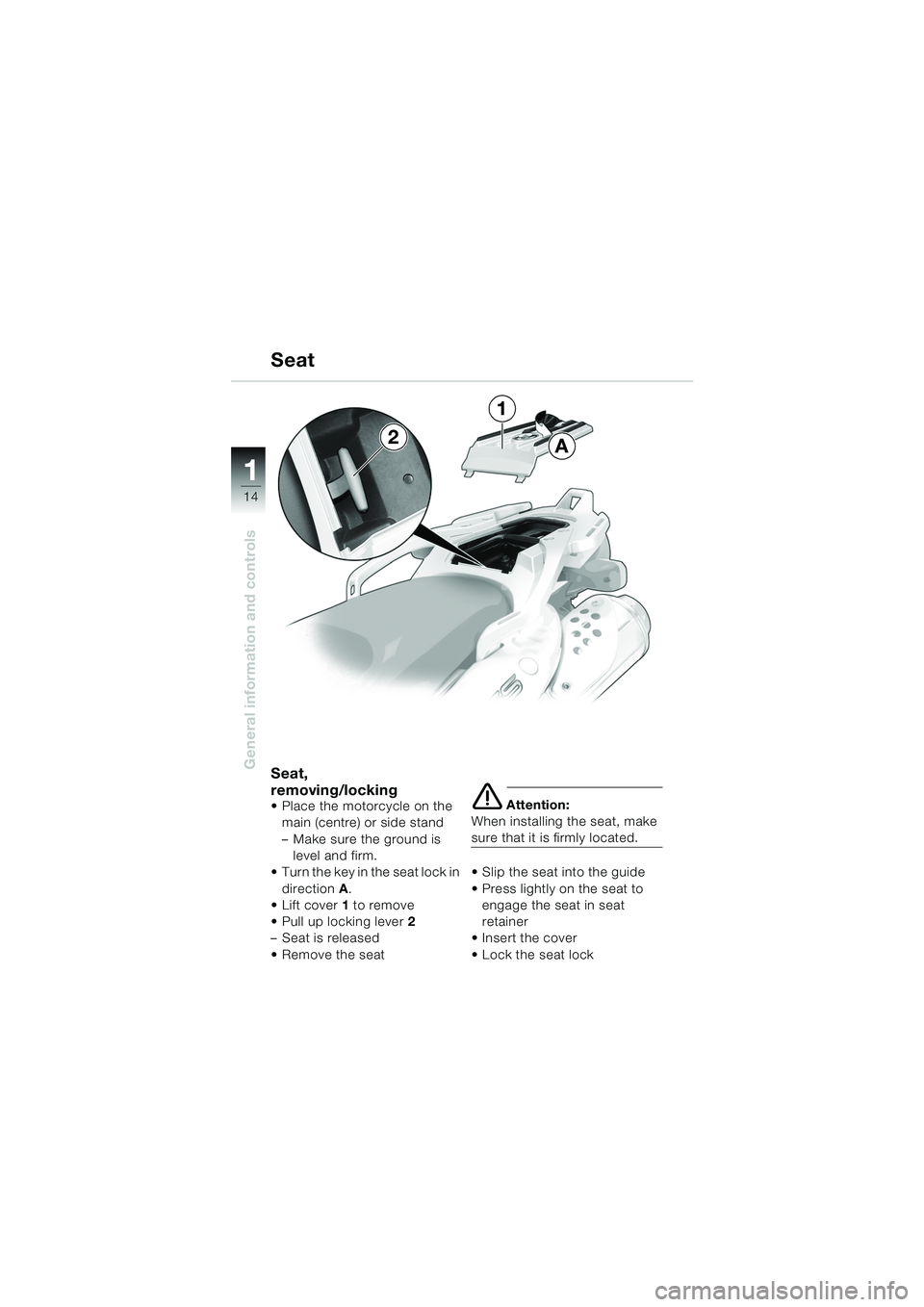

removing/locking
 Place the motorcycle on the main (centre) or side stand
– Make sure the ground is
level and firm.
 Turn the key in the seat lock in
direction A.
Lift cover 1 to remove
 Pull up locking lever 2
– Seat is released
 Remove the seate Attention:
When installing the seat, make
sure that it is firmly located.
 Slip the seat into the guide
 Press lightly on the seat to engage the seat in seat
retainer
 Insert the cover
 Lock the seat lock
Seat
A
1
