General information and controls
General view, right side
7Fuel tank/fuel filler cap
(
b 26, 27)
8 Toolkit storage space
9 Fuse box
10 Air filter (
b Maintenance
Instructions)
11 Brake-fluid reservoir for
front brake (
b33)
12 Type plate 13
Primary spark plug
14 Secondary spark plug
15 Adjusting knob for spring
preload, rear suspension
(
b36)
16 Shock-absorber setting
(
b35)
17 Brake fluid reservoir, rear
brake (
b34)
( ) Figure in bracketsbpage number for
description
91011712
1716151413
8
10R13bkg4.book Seite 5 Montag, 22. September 2003 4:26 16

1
27
Safety check
2
 Place the motorcycle on the main (centre) or side stand
– Make sure the ground is level and firm.
 Open the fuel filler cap
Refuel
e Attention:
Always stop filling the fuel tank
when the refuelling nozzle auto-
matically shuts off the supply.
– Always use regular unleaded fuel to DIN 51607 or equiva-
lent standard, min. octane
number 91 (RON) or 81 (MON)
e Attention:
Always use the key to close the
fuel filler cap.
 Close the fuel filler cap
Capacity
– Total capacity: 17.3 litres (5.28 Imp. gal)
–A yellow warning light 1
comes on when there are
approximately 4 litres
(0.9 Imp. gal) of fuel left in the
tank
1 Fuel
10R13bkg4.book Seite 27 Montag, 22. September 2003 4:26 16

ii
78

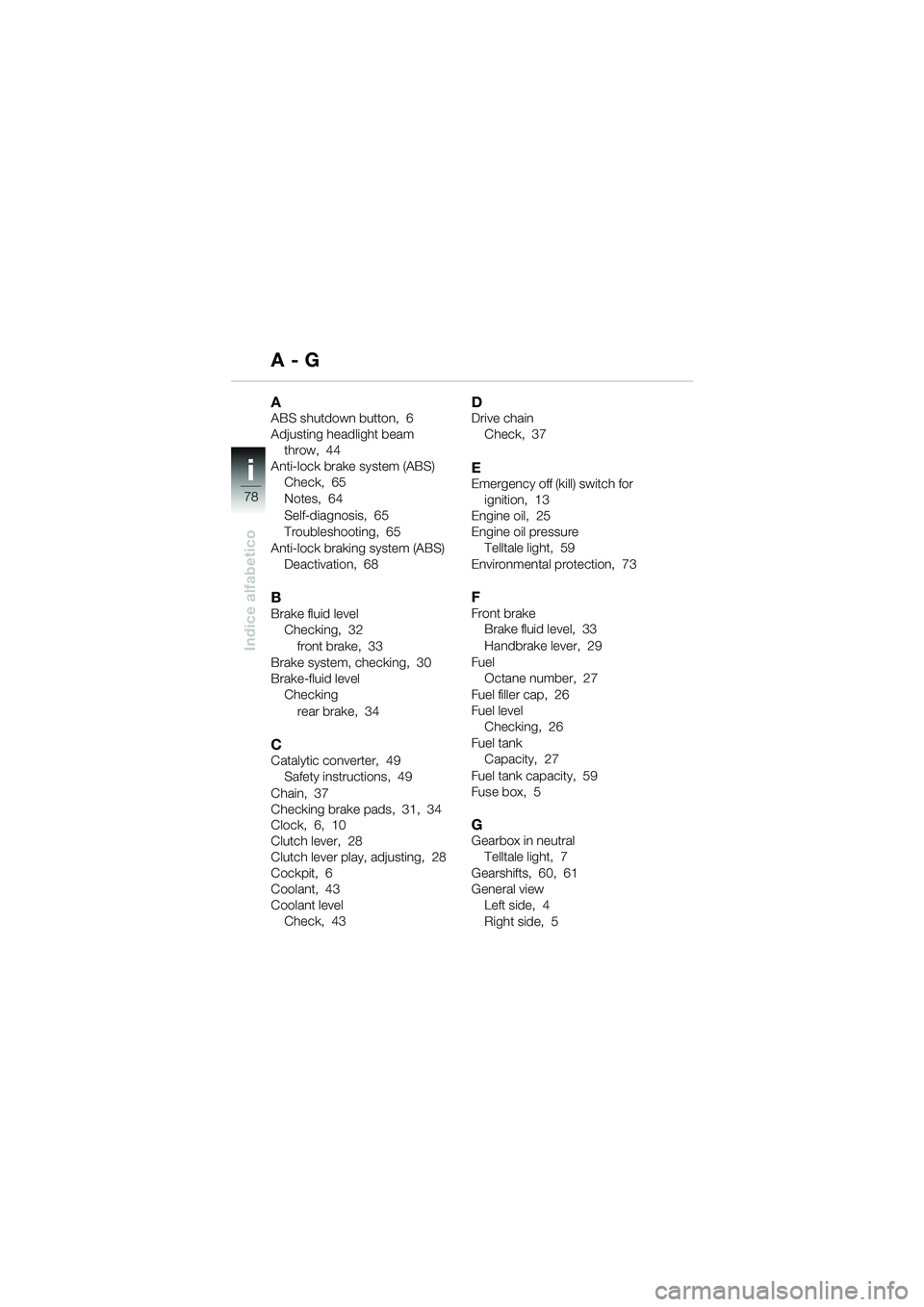

Indice alfabetico
