2003 BMW MOTORRAD F 650 GS Rider's Manual (in English)

111
15
General information and controls
d Warning:
After an accident or if the
motorcycle has fallen over,
check that the topcase is cor-
rectly secured.
Max. load in topcase: 5 kg
(11 lbs)
With the topcase installed, it
is advisable not to exceed
130km/h (80mph).

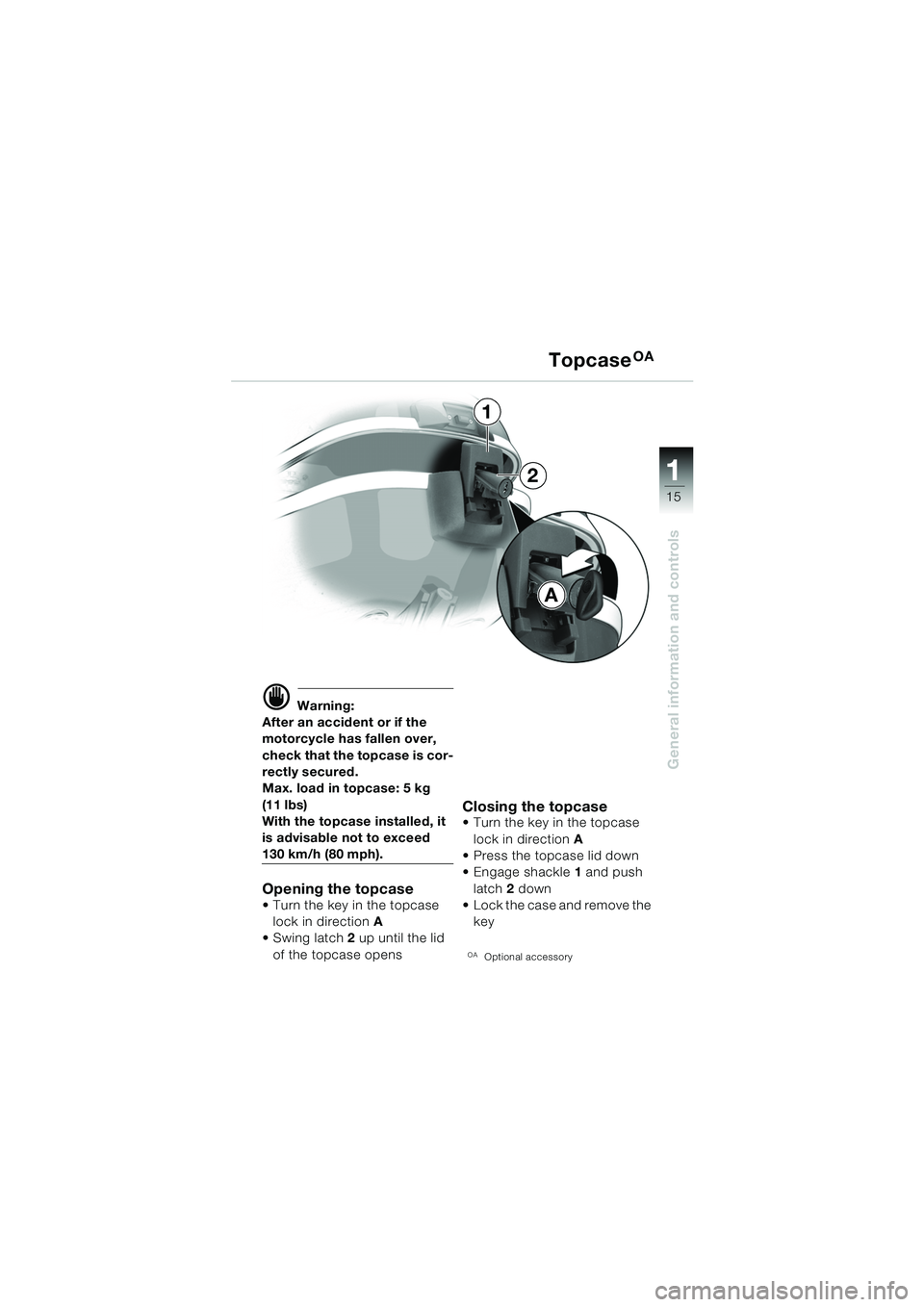

Opening the topcase Turn the key in the topcase lock in direction A
Swing latch 2 up until the lid
of the topcase opens
Closing the topcase Turn the key in the topcase lock in direction A
 Press the topcase lid down
 Engage shackle 1 and push
latch 2 down
 Lock the case and remove the
key
OAOptional accessory
TopcaseOA
A
2
1
10R13bkg4.book Seite 15 Montag, 22. September 2003 4:26 16

11
16
General information and controls
A
32

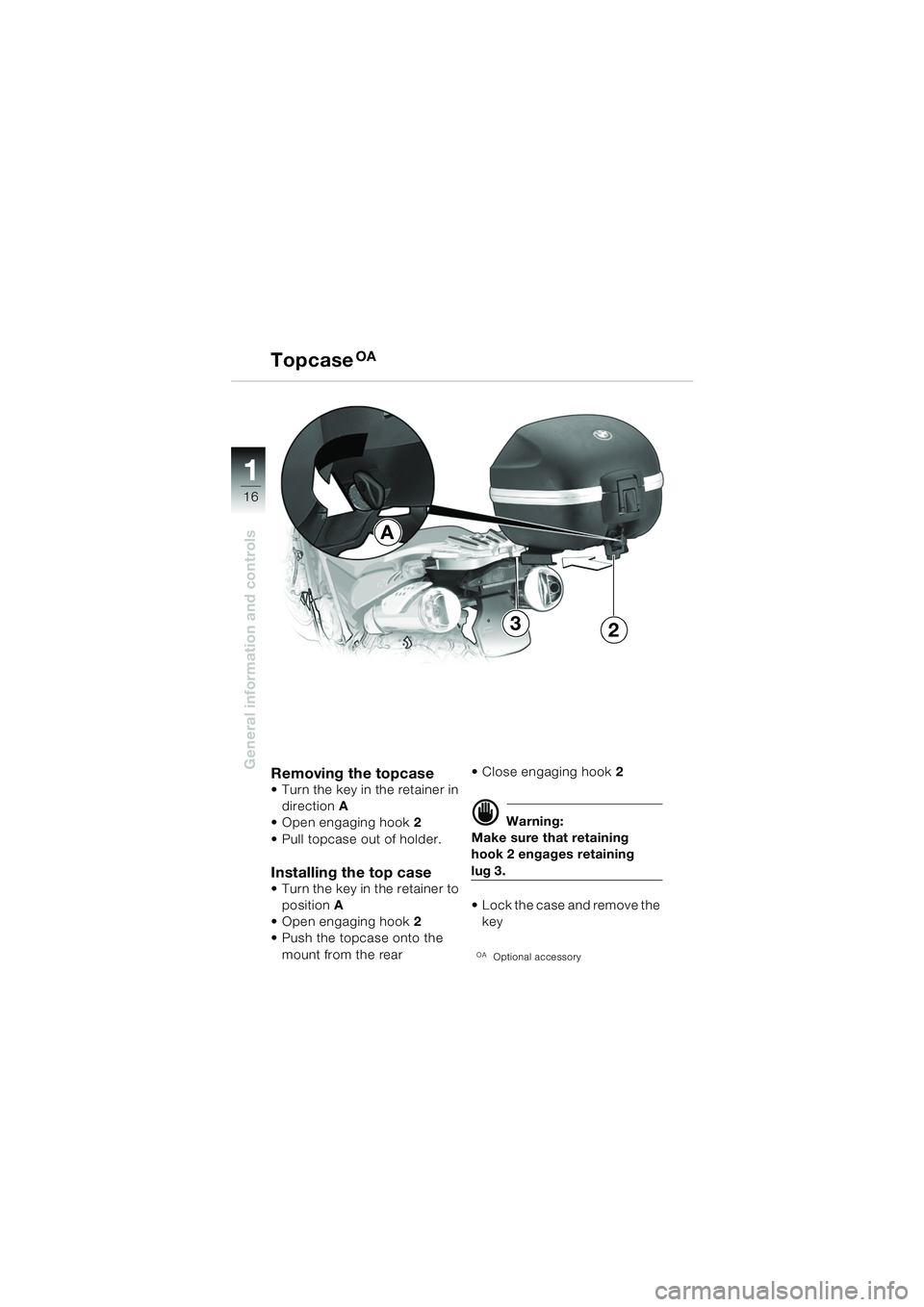

Removing the topcase Turn the key in the retainer in direction A
 Open engaging hook 2
 Pull topcase out of holder.
Installing the top case Turn the key in the retainer to position A
 Open engaging hook 2
 Push the topcase onto the
mount from the rear  Close engaging hook
2
d Warning:
Make sure that retaining
hook 2 engages retaining
lug 3.
Lock the case and remove the key
OAOptional accessory
TopcaseOA
10R13bkg4.book Seite 16 Montag, 22. September 2003 4:26 16

111
17
General information and controls
34
1
2
A
d Warning:
After an accident or if the
motorcycle has fallen over,
check that the System cases
are correctly installed.
Max. load per System case:
5 kg (approx. 11 lbs).
With System cases installed,
it is advisable not to exceed
130km/h (80mph).

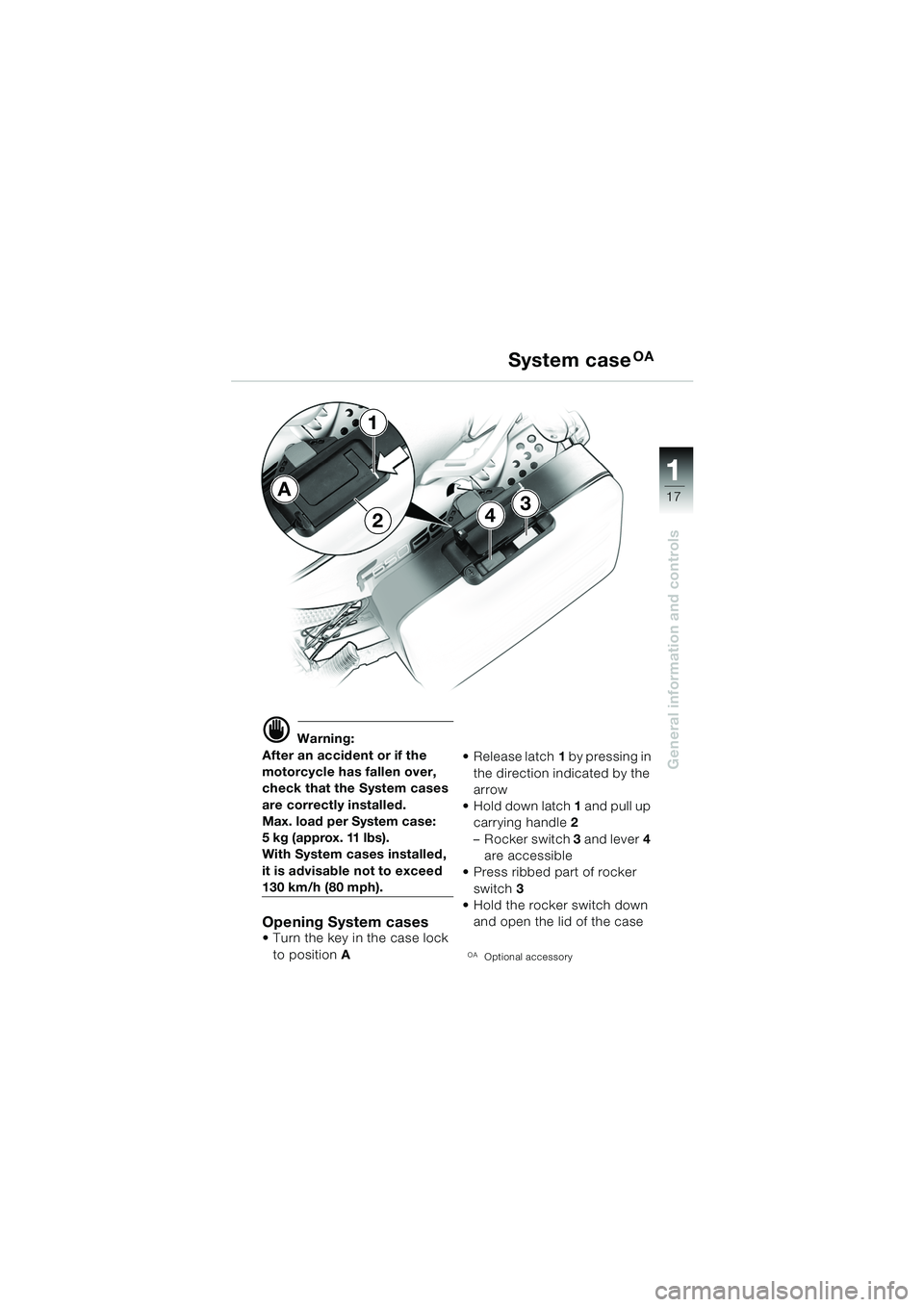

Opening System cases• Turn the key in the case lock
to position A Release latch
1 by pressing in
the direction indicated by the
arrow
 Hold down latch 1 and pull up
carrying handle 2
–Rocker switch 3 and lever4
are accessible
 Press ribbed part of rocker
switch 3
 Hold the rocker switch down
and open the lid of the caseOAOptional accessory
System caseOA
10r1301g4.fm Seite 17 Dienstag, 30. September 2003 1:37 13

11
18
General information and controls
System caseOA
Closing the System case
e Attention:
Before closing carrying handle
1 , mak e su r e th at t he c as e loc k
is in position A.
Risk of breaking the locking
tongue.  Turn the key in the case lock
to position A
 Lift the lid and push it closed
until the two hooks 2 at the
sides engage with an audible
click.
 Fold down carrying handle 1
Lock the case and remove the
keyOAOptional accessory
A
1
2
10R13bkg4.book Seite 18 Montag, 22. September 2003 4:26 16

111
19
General information and controls
B
2
3
1
A
B
A

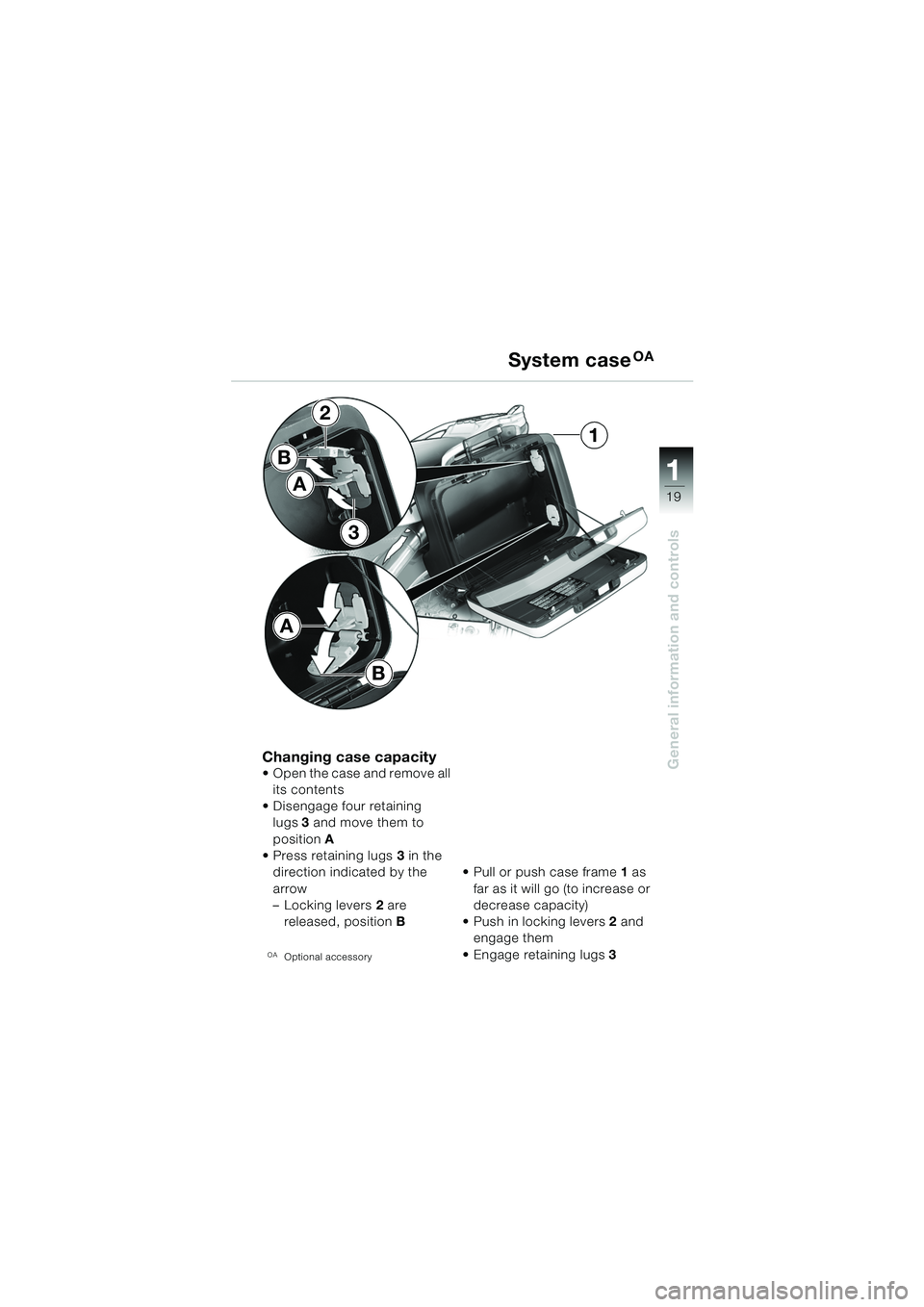

Changing case capacity Open the case and remove all its contents
 Disengage four retaining lugs 3 and move them to
position A
 Press retaining lugs 3 in the
direction indicated by the
arrow
– Locking levers 2 are
released, position B
OAOptional accessory
 Pull or push case frame 1 as
far as it will go (to increase or
decrease capacity)
 Push in locking levers 2 and
engage them
 Engage retaining lugs 3
System caseOA
10R13bkg4.book Seite 19 Montag, 22. September 2003 4:26 16

11
20
General information and controls
System caseOA

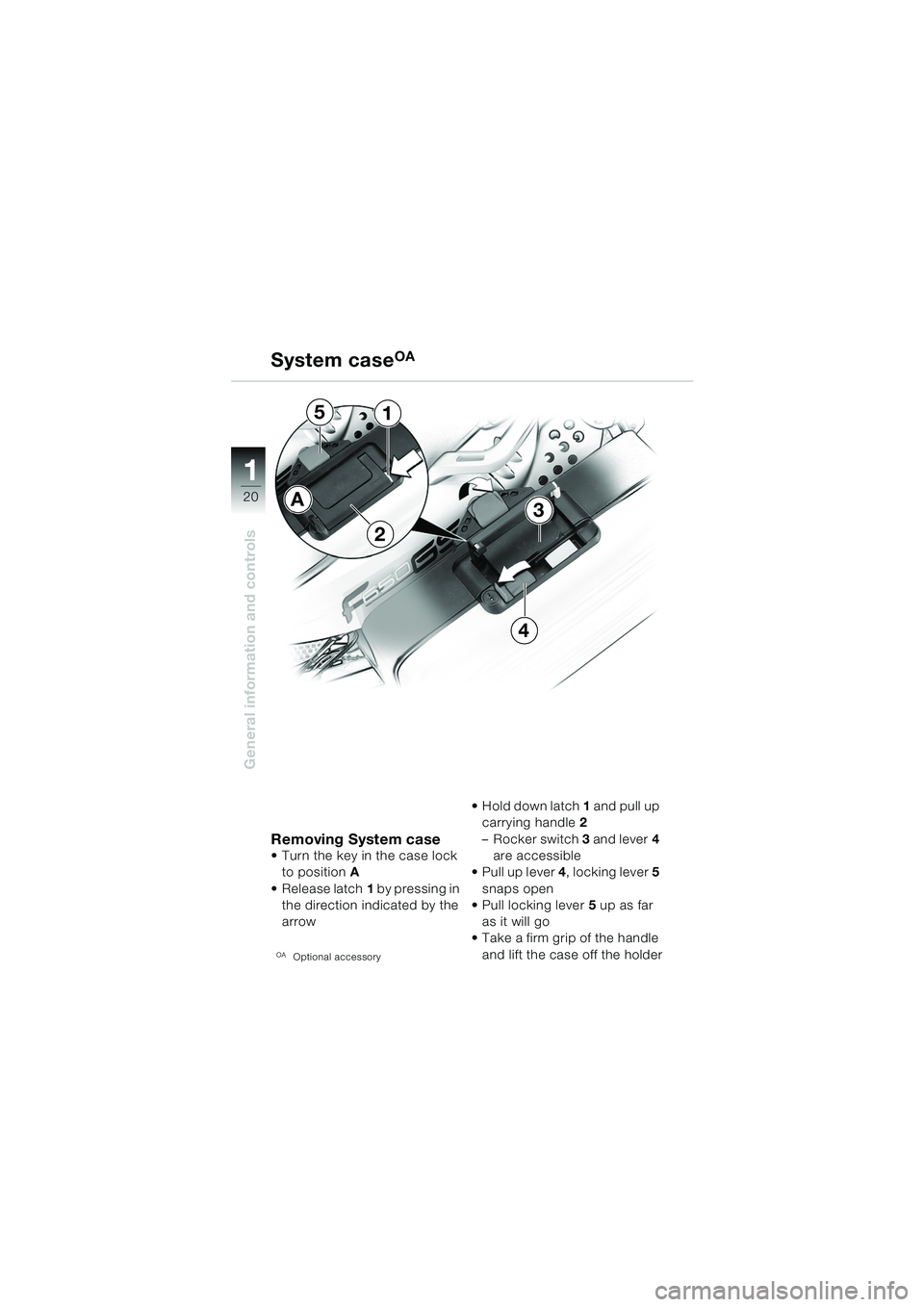

Removing System case
• Turn the key in the case lock to position A
 Release latch 1 by pressing in
the direction indicated by the
arrow
OAOptional accessory
 Hold down latch 1 and pull up
carrying handle 2
– Rocker switch 3 and lever 4
are accessible
 Pull up lever 4, locking lever 5
snaps open
 Pull locking lever 5 up as far
as it will go
 Take a firm grip of the handle
and lift the case off the holder
3
4
5
A
1
2
10r1301g4.fm Seite 20 Dienstag, 30. September 2003 1:39 13

111
21
General information and controls
System caseOA
Installing System case
d Warning:
When attaching, make sure
that the case is retained
securely.
An incorrectly secured case
could be lost and endanger
other road users.
• Open carrying handle 2
 Pull locking lever 5 and lever 4
up into "open" position
OAOptional accessory
 Begin by engaging the case in the retaining hoop
 then engage locking lever 5
in mushroom retainer 6
 Push locking lever 5 down
 Pivot lever 4 down
– Locking lever 5 is locked
 Check the security of the case
 Fold down carrying handle 2
 Lock the case and remove the
key
6
10r1301g4.fm Seite 21 Dienstag, 30. September 2003 1:41 13

22

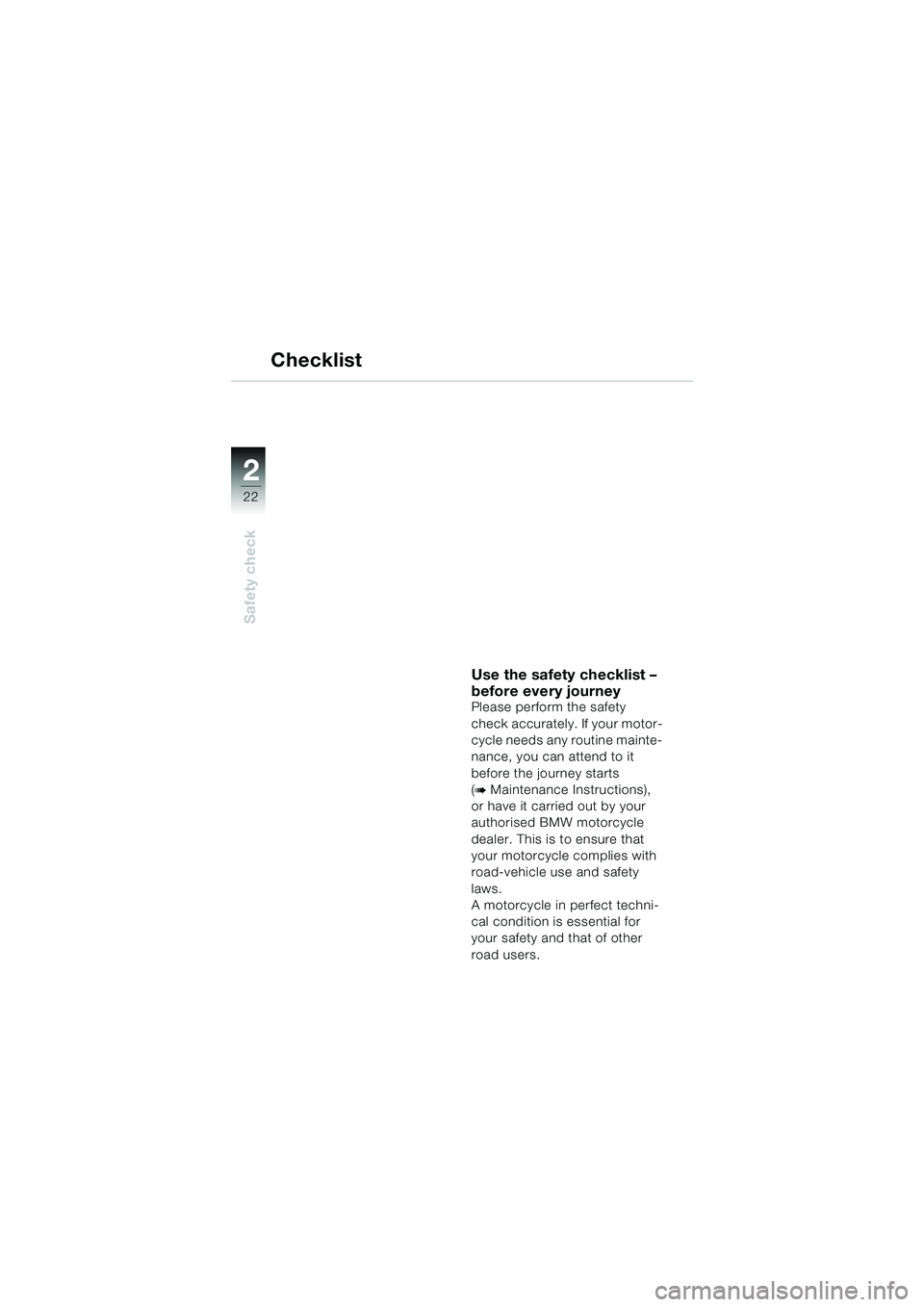

Safety check
2
Use the safety checklist –
before every journey
Please perform the safety
check accurately. If your motor-
cycle needs any routine mainte-
nance, you can attend to it
before the journey starts
(
b Maintenance Instructions),
or have it carried out by your
authorised BMW motorcycle
dealer. This is to ensure that
your motorcycle complies with
road-vehicle use and safety
laws.
A motorcycle in perfect techni-
cal condition is essential for
your safety and that of other
road users.
Checklist
10R13bkg4.book Seite 22 Montag, 22. September 2003 4:26 16
