2003 BMW M3 CONVERTIBLE turn signal bulb

136
Front turn signal indicators21 watt bulb
1. Extend a screwdriver through the
upper opening loosen the screw and
remove it
2. Remove lamp by pulling it out toward
the front
3. Applying light pressure, turn the bulb
to the left. Remove and exchange the
bulb
4. Insert the 2 pins on the lamp into the
guides on the vehicle
5. Slide in the lamp and screw the bulb
in place through the upper opening.
Side turn signal indicators5 watt bulb
1. Use finger pressure against the rear
end of the lamp – see arrow – to
press it forward for removal
2. Apply gentle pressure to the bulb
while turning it to the left to remove.
Lamps and bulbs
handbook.book Page 136 Tuesday, July 30, 2002 9:28 AM

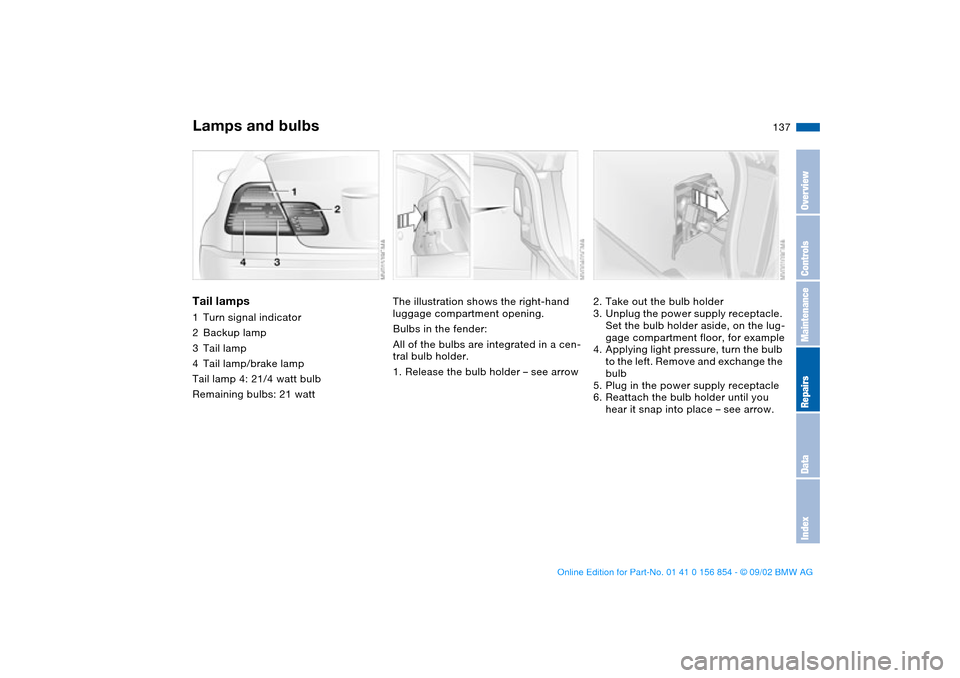

137
Tail lamps1Turn signal indicator
2Backup lamp
3Tail lamp
4Tail lamp/brake lamp
Tail lamp 4: 21/4 watt bulb
Remaining bulbs: 21 watt
The illustration shows the right-hand
luggage compartment opening.
Bulbs in the fender:
All of the bulbs are integrated in a cen-
tral bulb holder.
1. Release the bulb holder – see arrow
2. Take out the bulb holder
3. Unplug the power supply receptacle.
Set the bulb holder aside, on the lug-
gage compartment floor, for example
4. Applying light pressure, turn the bulb
to the left. Remove and exchange the
bulb
5. Plug in the power supply receptacle
6. Reattach the bulb holder until you
hear it snap into place – see arrow.
Lamps and bulbs
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 137 Tuesday, July 30, 2002 9:28 AM

Everything from A to ZReading lamps
front 94
rear 95
Rear lamps 137
Rear window defroster 99
Rear-entry assist 51
Rearview mirror 55
Recirculated-air mode 99
Refueling 24
Remote control 31
Remote key 30
Replacement key 30, 31
Reporting safety defects 6
Reserve indicator lamp 81
Restraint system 59
Reverse 70
Rims 118
Rollover protection
system 63
indicator lamp 19
lowering 63
Roof load capacity 152
Roof-mounted luggage
rack 107
S
Safe seating position 48
Safety belts 52
seat-integrated belt sys-
tem (SGS) 51
Seat
rear-entry assist 51Seat adjustment 48, 49
lumbar support 49, 50
power seats 49
Seat heating 54
Seat memory 53
Securing cargo 106
Securing child-restraint sys-
tem 61
Securing devices 107
Sequential M gearbox
SMG II 71
indicator lamp 19, 75
Service and Warranty Infor-
mation Booklet 128
SERVICE ENGINE SOON
warning lamp 19
Service interval display
82, 128
Set clock 83
Side airbags 57
Side turn signals
bulb replacement 136
Size 151
Ski bag 104
SMG gearbox 71
Snow chains 119
Socket 103
Spare key 30
Speedometer 16
Sport mode 91
Standing lamps 93
bulb replacement 135Starting problems 67
Starting the engine 67
Steering wheel lock 66
Steering wheel with multi-
function buttons 22
Steering wheel, adjusting 55
Storage compartments 101
Stroke 150
Summer tires 118
Surface ice warning 84
Switching off the engine 69
Symbols used 4
T
Tachometer 16, 80
Tail lamp assembly
replacing bulb 137
Tail lamps 137
replacing bulb 137
Tank capacity 153
Technical data 150
Technical modifications 5
Telephone hookup 102
Telephone, refer to the sep-
arate Owner's Manual
Temperature adjustment 98
Temperature display
engine coolant 81
ice warning 84
interior temperature 98
outside temperature 84
Temperature gauge 80Temperature layering 99
Thigh support area, adjust-
ing 49
Third brake lamp 138
Tilt alarm
deactivate 32, 39
Tilt alarm sensor
remote control 32
Time 83
Tire code 118
Tire damage 115
Tire inflation pressure
25, 115
checking 25
Tire pressure monitor
(TPM) 88
Tire replacement 116
Tire tread 115
Tools 134
Torque 150
Towing eyelet 146
Towing the vehicle 146
Track 151
Transmission 70
Transporting children
safely 59
Tread depth, tires 115
Tread wear indicator 115
Trip odometer 80
Trunk, see Luggage com-
partment 35, 152
handbook.book Page 160 Tuesday, July 30, 2002 9:28 AM

Everything from A to Z
161
Trunk lid, see Luggage com-
partment lid 35
Turn signal indicator 76
indicator lamps 20
replacing bulb 136
Turning circle 151
U
Uniform Tire Quality
Grading 117
Upholstery care, refer to the
Caring for your vehicle
brochure
Used batteries 143
V
Vacuum cleaner, connect-
ing 103
Variable pre-warning
zone 80
Vehicle
break-in procedures 110
starting 67
switching off 69
Vehicle battery 143
Vehicle Memory 65
Vehicle weight 152
Ventilation 96
draft-free 99
Viscosity 125W
Warning lamp Please fasten
safety belts 18
Warning lamps 18
Warning messages 82
Warranty and Service Guide
Booklet 128
Warranty, refer also to sepa-
rate booklet 6
Washer fluid
adding 124, 153
indicator lamp 19
Washer/wiper system 77
Washing vehicle, refer to the
Caring for your vehicle
brochure
Water on roadways
deep water 111
Wear indicator for tires 115
Weights 152
Wheelbase 151
Wheels and tires 118
Wheelslip control, see
DSC 87
Width 151
Wind deflector 46
Window condensation,
removing 98
Windows
convenience operation 33
defrosting 98Windshield washer reservoir
filling 124, 153
Windshield wiper blades,
replacing 134
Windshield wipers 77
Winter tires 118
Wiper blades, replacing 134
Work in the engine compart-
ment 120
X
Xenon lamps 135
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 161 Tuesday, July 30, 2002 9:28 AM
