Page 49 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6
EAU03596
Cowling B
To remove the cowling1. Remove cowling A. (See page 6-5
for cowling removal and installa-
tion procedures.)2. Remove the grab bar by removing
the bolts.3. Remove the screws, and then pull
the cowling off as shown.
To install the cowling
1. Place the cowling in the original
position, and then install the
screws.
2. Install the grab bar by installing the
bolts.
3. Install cowling A.
1. Grab bar
2. Cowling B
1. Bolt (× 2)
1. Screw (× 2)
E_4km.book Page 6 Tuesday, August 28, 2001 9:51 AM
Page 50 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6
EAU01880
Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal col-
or when the motorcycle is ridden nor-
mally), and all spark plugs installed in
the engine should have the same color.
If any spark plug shows a distinctly dif-
ferent color, the engine could be defec-
tive. Do not attempt to diagnose such
problems yourself. Instead, have a
Yamaha dealer check the motorcycle.If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.
Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads. Specified spark plug:
DPR8EA-9 (NGK) or
X24EPR-U9 (DENSO)
a. Spark plug gap
Spark plug gap:
0.8–0.9 mm
Tightening torque:
Spark plug:
17.5 Nm (1.75 m·kgf)
E_4km.book Page 7 Tuesday, August 28, 2001 9:51 AM
Page 51 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6
NOTE:@ If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible. @
EAU04261
Engine oil and oil filter
cartridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the motorcycle on the cen-
terstand.NOTE:_ Make sure that the motorcycle is posi-
tioned straight up when checking the oil
level. A slight tilt to the side can result in
a false reading. _2. Start the engine, warm it up for
several minutes, and then turn it
off.3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-right side of the
crankcase.
NOTE:_ The engine oil should be between the
minimum and maximum level marks. _4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise

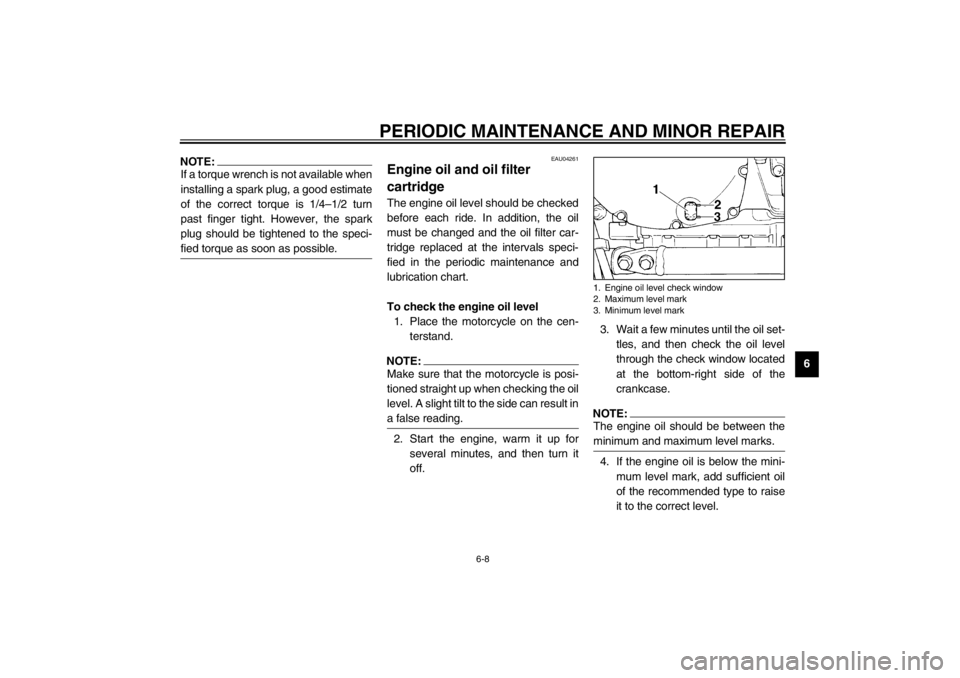

it to the correct level.1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
E_4km.book Page 8 Tuesday, August 28, 2001 9:51 AM
Page 52 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
6To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.3. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
NOTE:_ Skip steps 4–6 if the oil filter cartridge is
not being replaced. _
4. Remove the oil filter cartridge with
an oil filter wrench.NOTE:_ An oil filter wrench is available at a
Yamaha dealer. _

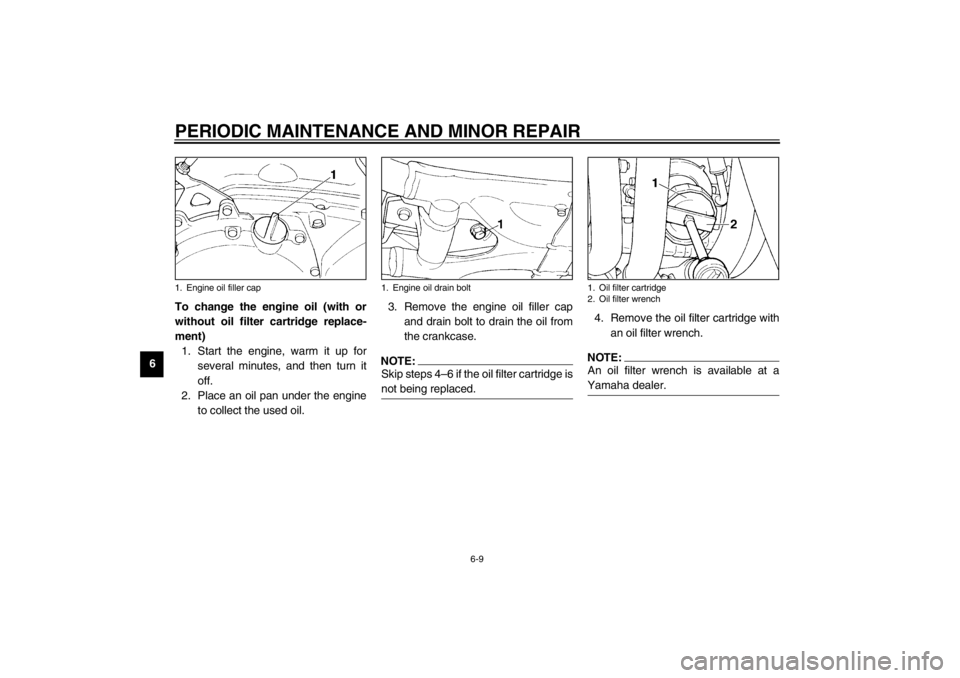

1. Engine oil filler cap
1. Engine oil drain bolt
1. Oil filter cartridge
2. Oil filter wrench
E_4km.book Page 9 Tuesday, August 28, 2001 9:51 AM
Page 53 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6 5. Apply a thin coat of engine oil to
the O-ring of the new oil filter car-
tridge.
NOTE:_ Make sure that the O-ring is properly
seated. _6. Install the new oil filter cartridge
with an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench.7. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
8. Add the specified amount of the
recommended engine oil, and
then install and tighten the oil filler
cap.
ECA00105
CAUTION:_
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives with
the oil or use oils of grade “CD”
or higher. In addition, do not
use oils labeled “ENERGY CON-
SERVING II” or higher.
Make sure that no foreign mate-
rial enters the crankcase.
_9. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.NOTE:_ After the engine is started, the engine
oil level warning light should go off if the
oil level is sufficient. _

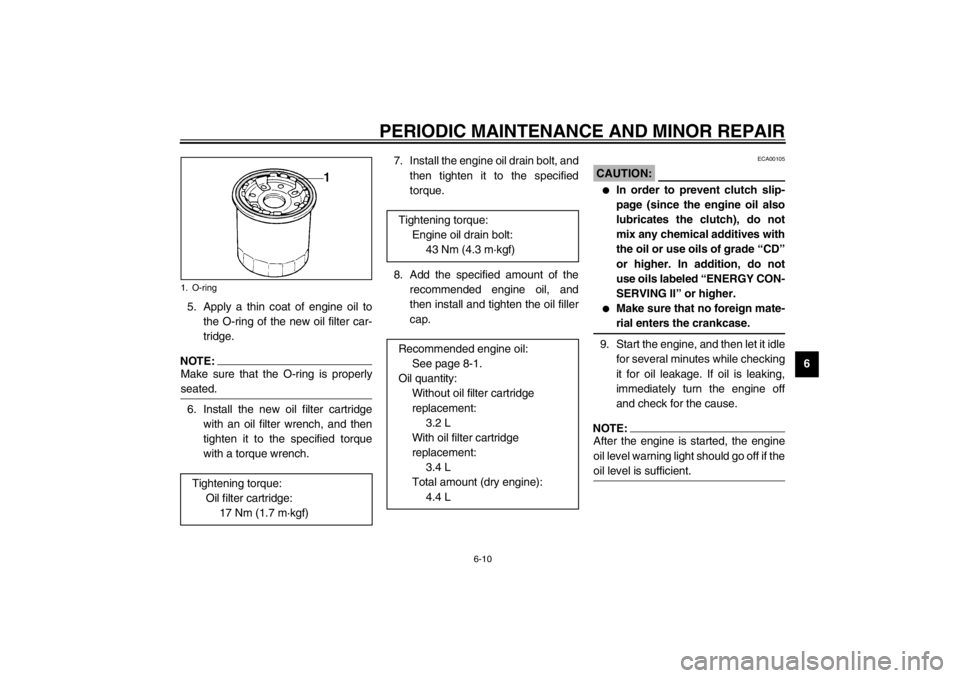

1. O-ring
Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge
replacement:
3.2 L
With oil filter cartridge
replacement:
3.4 L
Total amount (dry engine):
4.4 L
E_4km.book Page 10 Tuesday, August 28, 2001 9:51 AM
Page 54 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6
EC000067
CAUTION:_ If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha deal-
er check the vehicle. _10. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU03681
Final gear oil The final gear case must be checked
for oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the motorcycle. In
addition, the final gear oil must be
changed as follows at the intervals
specified in the periodic maintenance
and lubrication chart.
EW000066
WARNING
_
Make sure that no foreign mate-
rial enters the final gear case.
Make sure that no oil gets on
the tire or wheel.
_
To check the final gear oil level
1. Place the motorcycle on the cen-
terstand.NOTE:_
The final gear oil level must be
checked on a cold engine.
Make sure that the motorcycle is
positioned straight up when
checking the oil level. A slight tilt to
the side can result in a false read-
ing.
_
E_4km.book Page 11 Tuesday, August 28, 2001 9:51 AM
Page 55 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6 2. Remove the oil filler bolt, and then
check the oil level in the final gear
case.
NOTE:_ The oil level should be at the brim of
the filler hole. _3. If the oil is below the brim of the fill-
er hole, add sufficient oil of the rec-
ommended type to raise it to the
correct level.To change the final gear oil
1. Place an oil pan under the final
gear case to collect the used oil.
2. Remove the oil filler bolt and drain
bolt to drain the oil from the final
gear case.
3. Install the final gear oil drain bolt,
and then tighten it to the specified
torque.
4. Add the recommended final gear
oil to the brim of the filler hole.
NOTE:_ GL4 is a quality rating. Hypoid gear oils
rated GL5 or GL6 may also be used. _5. Install and tighten the filler bolt.
6. Check the final gear case for oil
leakage. If oil is leaking, check for
the cause.
1. Final gear oil filler bolt
2. Correct oil level
3. Final gear oil drain bolt
Tightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf)
Recommended final gear oil:
Hypoid gear oil SAE 80 (API GL4)
or multi-grade hypoid gear oil
SAE 80W-90
Oil quantity:
0.2 L
E_4km.book Page 12 Tuesday, August 28, 2001 9:51 AM
Page 56 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6
EAU03597*
Cleaning the air filter element The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.
1. Remove the seat. (See page 3-11
for seat removal and installation
procedures.)
2. Turn the fuel cock lever to “OFF”,
and then disconnect the fuel hose.3. Remove the fuel tank bolts.
4. Disconnect the fuel sender cou-
pler, and then take the fuel tank
off.5. Remove the air filter case cover by

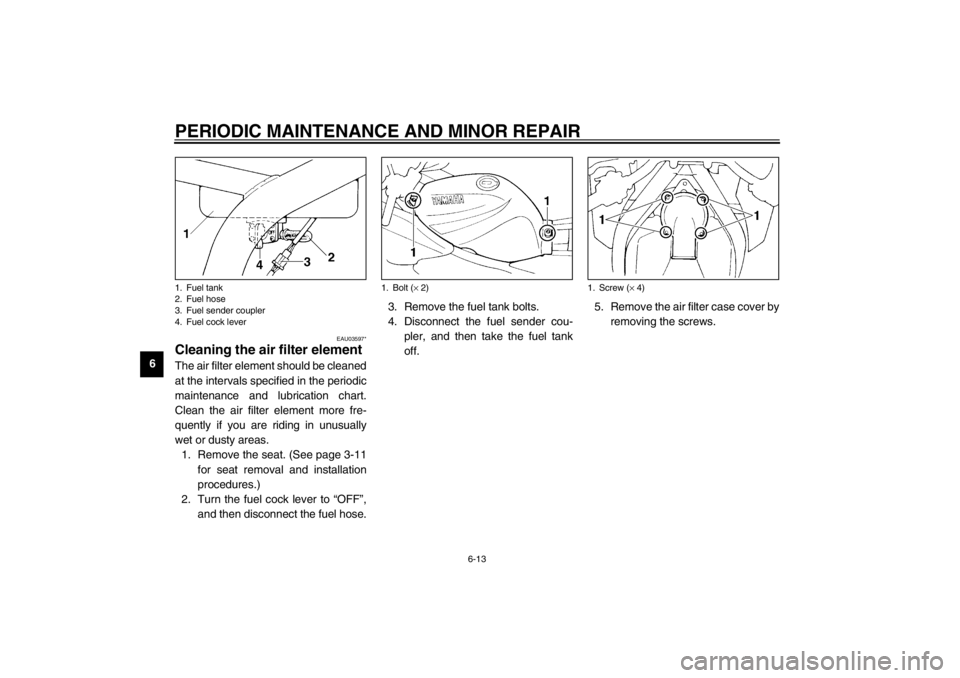

removing the screws.1. Fuel tank
2. Fuel hose
3. Fuel sender coupler
4. Fuel cock lever
1. Bolt (× 2)
1. Screw (× 4)
E_4km.book Page 13 Tuesday, August 28, 2001 9:51 AM
