2002 YAMAHA XJ900S Owners Manual

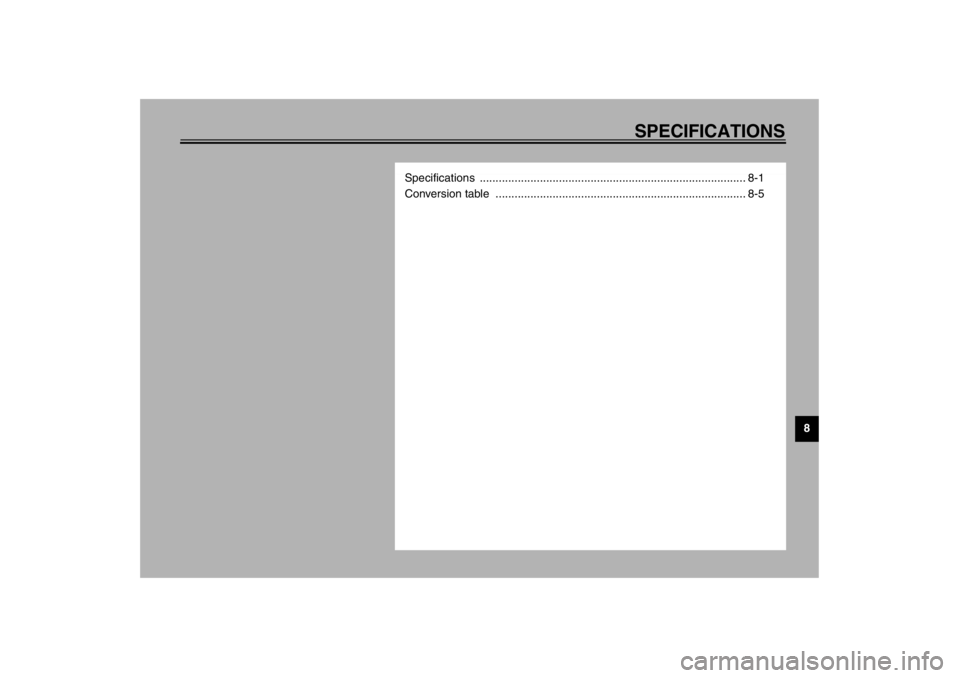

SPECIFICATIONS
8
Specifications .................................................................................... 8-1
Conversion table ............................................................................... 8-5
E_4km.book Page 1 Tuesday, August 28, 2001 9:51 AM

8-1
8
EAU01038
8-SPECIFICATIONSSpecifications CS-01E
Model XJ900S
Dimensions
Overall length 2,230 mm
Overall width 750 mm
Overall height 1,300 mm
Seat height 795 mm
Wheelbase 1,505 mm
Ground clearance 130 mm
Minimum turning radius 3,000 mm
Basic weight (with oil and full
fuel tank)
265 kg
Engine
Engine type Air-cooled 4-stroke, DOHC
Cylinder arrangement Forward-inclined parallel
4-cylinder
Displacement 892 cm
3
Bore × Stroke 68.5 × 60.5 mm
Compression ratio 10:1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG or
higher
Quantity
Without oil filter cartridge
replacement 3.2 L
With oil filter car tridge
replacement 3.4 L
Total amount (dry engine) 4.4 L
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
CAUTION:Be sure to use motor oils that do not contain anti-friction
modifiers. Passenger car motor oils (often labeled
“ENERGY CONSERVING II”) contain anti-friction additives
which will cause clutch and/or starter clutch slippage, result-
ing in reduced component life and poor engine performance.
E_4km.book Page 1 Tuesday, August 28, 2001 9:51 AM

SPECIFICATIONS
8-2
8
Final gear oil
Type Hypoid gear oil SAE 80 (API GL4)
or multi-grade hypoid gear oil
SAE 80W-90
Quantity 0.2 L
Air filterDry element
Fuel
Type REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity 24 L
Fuel reserve amount 5 L
Carburetor
Manufacturer MIKUNI
Model ×
quantity BDSR34 × 4
Spark plug
Manufacturer/model NGK / DPR8EA-9 or
DENSO / X24EPR-U9
Gap 0.8–0.9 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 1.672
Secondary reduction system Shaft drive
Secondary reduction ratio 1.278
Transmission type Constant-mesh, 5-speedOperation Left foot
Gear ratio
1st 2.188
2nd 1.500
3rd 1.154
4th 0.933
5th 0.813
Chassis
Frame type Double cradle
Caster angle 27°
°° °
Trail 121 mm
Tire
Front
Type Tubeless tire
Size 120/70-17 58V
120/70-17 M/C 58V
Manufacturer/
model Dunlop / K505F
Metzeler / ME33
Bridgestone / G601
Rear
Type Tubeless tire
Size 150/70-17 69V
150/70-17 M/C 69V
E_4km.book Page 2 Tuesday, August 28, 2001 9:51 AM

SPECIFICATIONS
8-3
8
Manufacturer/
model Dunlop / K505
Metzeler / ME55A
Bridgestone / G602
Maximum load* 205 kg
Tire air pressure (measured
on cold tires)
up to 90 kg*
Front 225 kPa (2.25 kgf/cm
2, 2.25 bar)
Rear 250 kPa (2.50 kgf/cm2, 2.50 bar)
90 kg–maximum*
Front 250 kPa (2.50 kgf/cm2, 2.50 bar)
Rear 290 kPa (2.90 kgf/cm2, 2.90 bar)
High-speed riding
Front 250 kPa (2.50 kgf/cm2, 2.50 bar)
Rear 290 kPa (2.90 kgf/cm2, 2.90 bar)
* Total weight of rider, passenger, cargo and accessories
Wheels
Front
Type Cast wheel
Size 17 × MT 3.00
17 M/C × MT 3.00
Rear
Type Cast wheel
Size 17 × MT 4.00
17 M/C × MT 4.00Brakes
Fr o n t
Type Dual disc brake
Operation Right hand
Fluid DOT 4
Rear
Type Single disc brake
Operation Right foot
Fluid DOT 4
Suspension
Front Telescopic fork
Rear Swingarm (link suspension)
Spring/shock absorber
Front Coil spring / oil damper
Rear Coil spring / gas-oil damper
Wheel travel
Front 140 mm
Rear 110 mm
Electrical systems
Ignition system T.C.I. (digital)
Charging system
Model A.C. generator
Standard output 13.5 V, 34 A @ 5,000 r/min
Battery
Model YTX14-BS
E_4km.book Page 3 Tuesday, August 28, 2001 9:51 AM

SPECIFICATIONS
8-4
8
Voltage, capacity 12 V, 12 Ah
Headlight typeQuar tz bulb (halogen)
Bulb voltage, wattage × quantity
Headlight 12 V, 60/55 W × 1
Tail/brake light 12 V, 5/21 W × 1
Auxiliary light 12 V, 4 W × 1
Turn signal light 12 V, 21 W × 4
Meter lighting 12 V, 3.4 W × 4
Neutral indicator light 12 V, 3.4 W × 1
High beam indicator light 12 V, 3.4 W × 1
Oil level warning light 12 V, 3.4 W × 1
Turn signal indicator light 12 V, 3.4 W × 2
Fuel level warning light 12 V, 3.4 W × 1
Fuses
Main fuse 30 A
Signaling system fuse 20 A
Headlight fuse 15 A
Hazard fuse 10 A
Ignition fuse 10 A
Clock fuse 10 A
E_4km.book Page 4 Tuesday, August 28, 2001 9:51 AM

SPECIFICATIONS
8-5
8
EAU03941
Conversion table CS-03EAll specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit values to IMPERIAL
unit values.
Example:METRIC VALUE CONVERSION
FACTORIMPERIAL VALUE
2 mm× 0.03937 = 0.08 in
Conversion table
METRIC SYSTEM TO IMPERIAL SYSTEM
Metric unit Conversion factor Imperial unit
Torquem·kgf
m·kgf
cm·kgf
cm·kgf
× 7.233× 86.794× 0.0723× 0.8679ft·lb
in·lb
ft·lb
in·lb
Weightkg
g× 2.205× 0.03527lb
oz
Speed km/h× 0.6214 mi/h
Distancekm
m
m
cm
mm× 0.6214× 3.281× 1.094× 0.3937× 0.03937mi
ft
yd
in
in
Volume,
Capacitycc (cm
3)
cc (cm3)
L (liter)
L (liter)
× 0.03527× 0.06102× 0.8799× 0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Miscellaneouskgf/mm
kgf/cm
2
°
C
× 55.997× 14.2234× 1.8 + 32 lb/in
psi (lb/in
2)
°
F
E_4km.book Page 5 Tuesday, August 28, 2001 9:51 AM

CONSUMER INFORMATION
9
Identification numbers ....................................................................... 9-1
Key identification number .................................................................. 9-1
Vehicle identification number ............................................................. 9-1
Model label ........................................................................................ 9-2
E_4km.book Page 1 Tuesday, August 28, 2001 9:51 AM

9-1
9
EAU01039
9-CONSUMER INFORMATION
EAU02944
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification number The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU01043
Vehicle identification number The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space
provided.NOTE:@ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your area. @
1. Key identification number
1. Vehicle identification number
