6-1
6
EAU00462

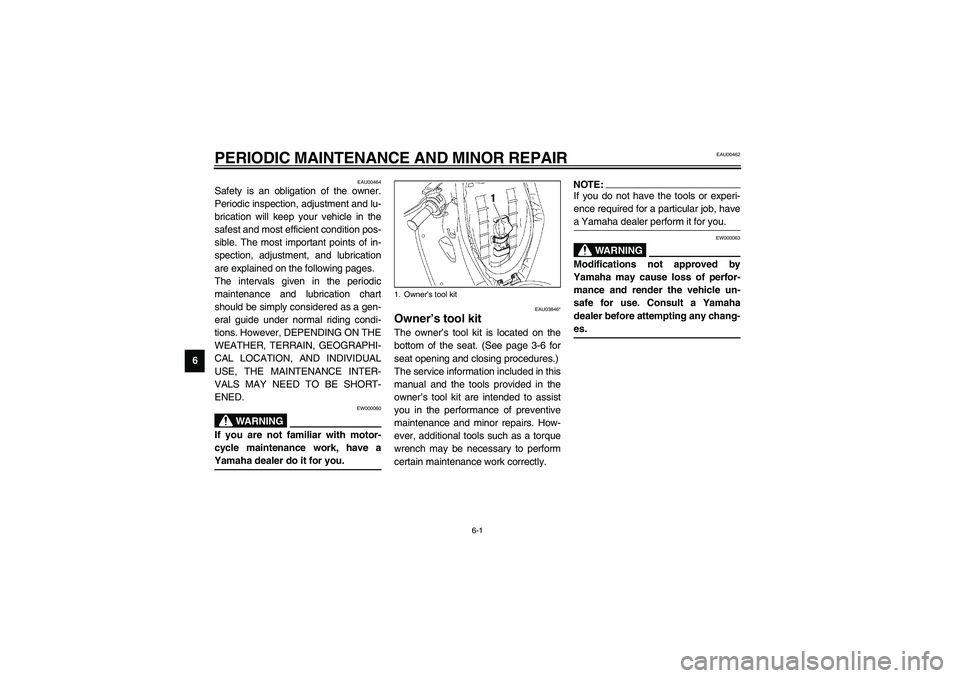

6-PERIODIC MAINTENANCE AND MINOR REPAIR
EAU00464
Safety is an obligation of the owner.
Periodic inspection, adjustment and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. The most important points of in-
spection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, DEPENDING ON THE
WEATHER, TERRAIN, GEOGRAPHI-
CAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORT-
ENED.
EW000060
WARNING
_ If you are not familiar with motor-
cycle maintenance work, have a
Yamaha dealer do it for you. _
EAU03846*
Owner’s tool kit The owner’s tool kit is located on the
bottom of the seat. (See page 3-6 for
seat opening and closing procedures.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.
NOTE:_ If you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you. _
EW000063
WARNING
_ Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle un-
safe for use. Consult a Yamaha
dealer before attempting any chang-
es. _
1. Owner’s tool kit
U5MXE0.book Page 1 Thursday, December 20, 2001 2:08 PM
Page 35 of 72
PERIODIC MAINTENANCE AND MINOR REPAIR
6-8

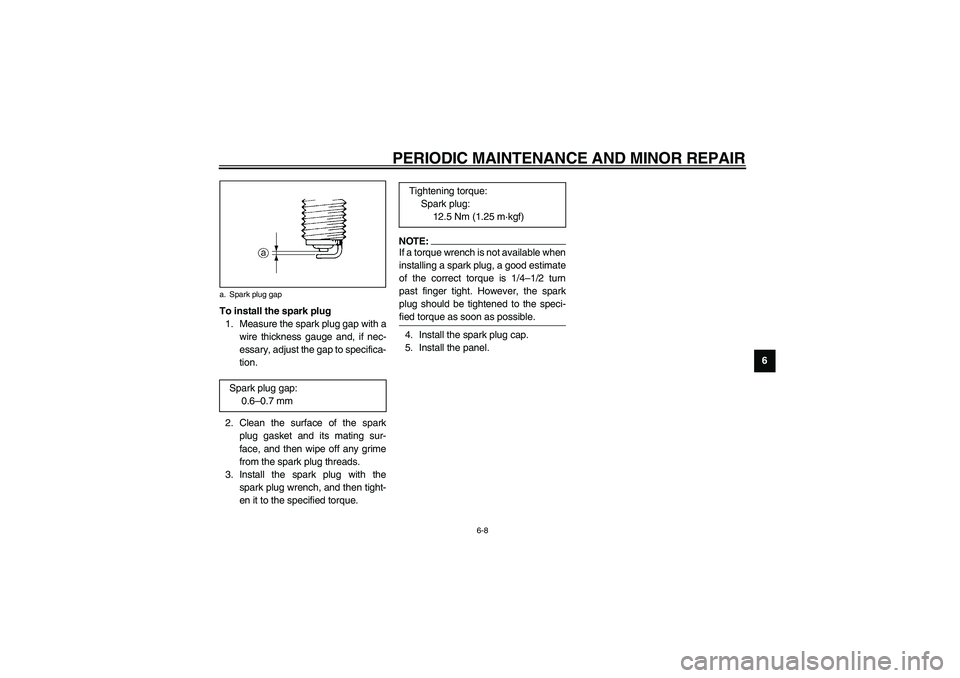

6 To install the spark plug
1. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.
2. Clean the surface of the spark
plug gasket and its mating sur-
face, and then wipe off any grime
from the spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
NOTE:_ If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible. _4. Install the spark plug cap.
5. Install the panel.
a. Spark plug gapSpark plug gap:
0.6–0.7 mm
Tightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf)
U5MXE0.book Page 8 Thursday, December 20, 2001 2:08 PM
Page 37 of 72

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6 To change the engine oil and clean
the oil strainer
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and drain bolts to drain the oil from
the crankcase.
NOTE:_ When only changing the engine oil, re-
move engine oil drain bolt A only. _
EC000070*
CAUTION:_ When removing the engine oil drain
bolt B, the O-ring, spring, and oil
strainer will fall out. Take care not to
lose these parts. _4. Clean the oil strainer with solvent,
and then check it for damage and
replace it if necessary.
5. Check the O-ring for damage and
replace it if necessary.
6. Install the oil strainer, spring, O-ring
and engine oil drain bolts, and then
tighten the drain bolts to the speci-
fied torque.
1. Engine oil drain bolt A
2. Engine oil drain bolt B
1. Strainer
2. Compression spring
3. O-ring
U5MXE0.book Page 10 Thursday, December 20, 2001 2:08 PM
Page 38 of 72

PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6
NOTE:_ Make sure that the O-ring is properly
seated. _7. Add the specified amount of the
recommended engine oil, and
then install and tighten the engine
oil filler cap.
ECA00105
CAUTION:_
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives with
the oil or use oils of grade “CD”
or higher. In addition, do not
use oils labeled “ENERGY CON-
SERVING II” or higher.
Make sure that no foreign mate-
rial enters the crankcase.
_8. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.
9. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU04228*
Final transmission oil The final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
motorcycle. In addition, the final trans-
mission oil must be changed as follows
at the intervals specified in the periodic
maintenance and lubrication chart.
1. Start the engine, warm it up by
riding the motorcycle for several
minutes, and then stop the engine.
2. Place the motorcycle on the cen-
terstand.
3. Place an oil pan under the final
transmission case to collect the
used oil. Tightening torques:
Engine oil drain bolt A:
20 Nm (2.0 m·kgf)
Engine oil drain bolt B:
20 Nm (2.0 m·kgf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Periodic oil change:
0.8 L
Total amount (dry engine):
0.9 L1. Oil filler cap
U5MXE0.book Page 11 Thursday, December 20, 2001 2:08 PM
Page 39 of 72
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12

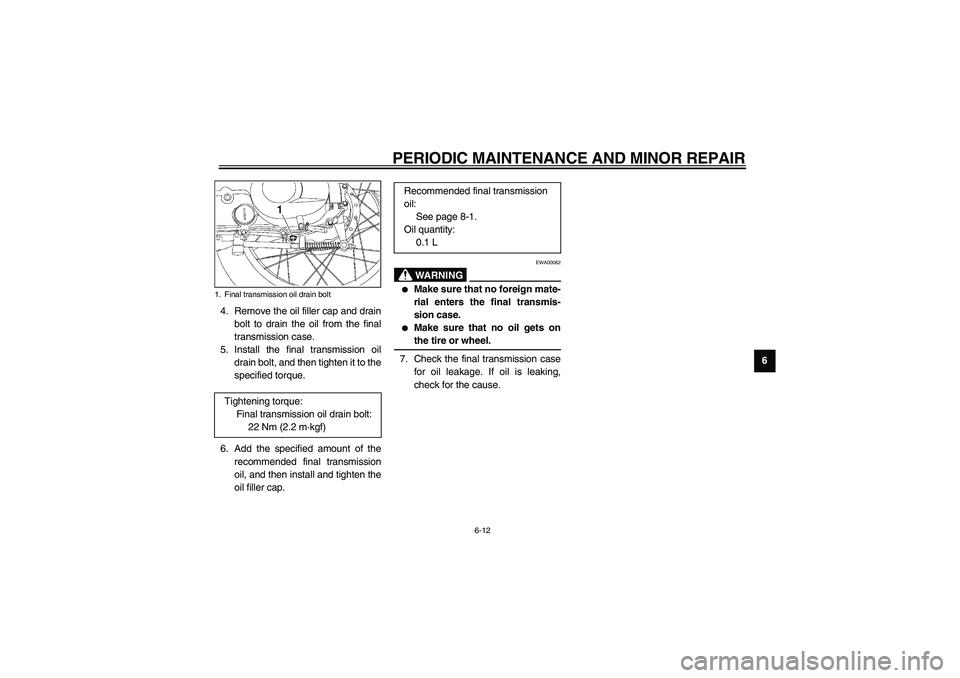

6 4. Remove the oil filler cap and drain
bolt to drain the oil from the final
transmission case.
5. Install the final transmission oil
drain bolt, and then tighten it to the
specified torque.
6. Add the specified amount of the
recommended final transmission
oil, and then install and tighten the
oil filler cap.
EWA00062
WARNING
_
Make sure that no foreign mate-
rial enters the final transmis-
sion case.
Make sure that no oil gets on
the tire or wheel.
_7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
1. Final transmission oil drain boltTightening torque:
Final transmission oil drain bolt:
22 Nm (2.2 m·kgf)
Recommended final transmission
oil:
See page 8-1.
Oil quantity:
0.1 L
