EAU00462PERIODIC MAINTENANCE AND MINOR REPAIR
EAB00016
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Install the spacers and insert the
wheel axle.
3. Lower the front wheel so that it is on
the ground.
4. Install the brake calipers by installing
the bolts.
NOTE:
Make sure that there is enough space
between the brake pads before installing
the brake calipers onto the brake discs.5. Tighten the wheel axle, then the front
wheel axle pinch bolt, and the brake
caliper bolts to the specified torques.EAUB0017
Rear wheel
To remove the rear wheel
EW000122WARNING0
It is advisable to have a Yamaha dealer
service the wheel.
Securely support the motorcycle so
that there is no danger of it falling over.
1. Loosen the rear wheel axle pinch
bolt, and then remove the axle nut.
6-33
6
6. Push down hard on the handlebar
several times to check for proper fork
operation. Tightening torques:
Wheel axle:
75 Nm (7.5 m·kgf)
Front wheel axle pinch bolt:
25 Nm (2.5 m·kgf)
Brake caliper bolt:
42 Nm (4.2 m·kgf)
1. Wheel axle pinch bolt
2. Axle nut
3. Brake torque rod bolt

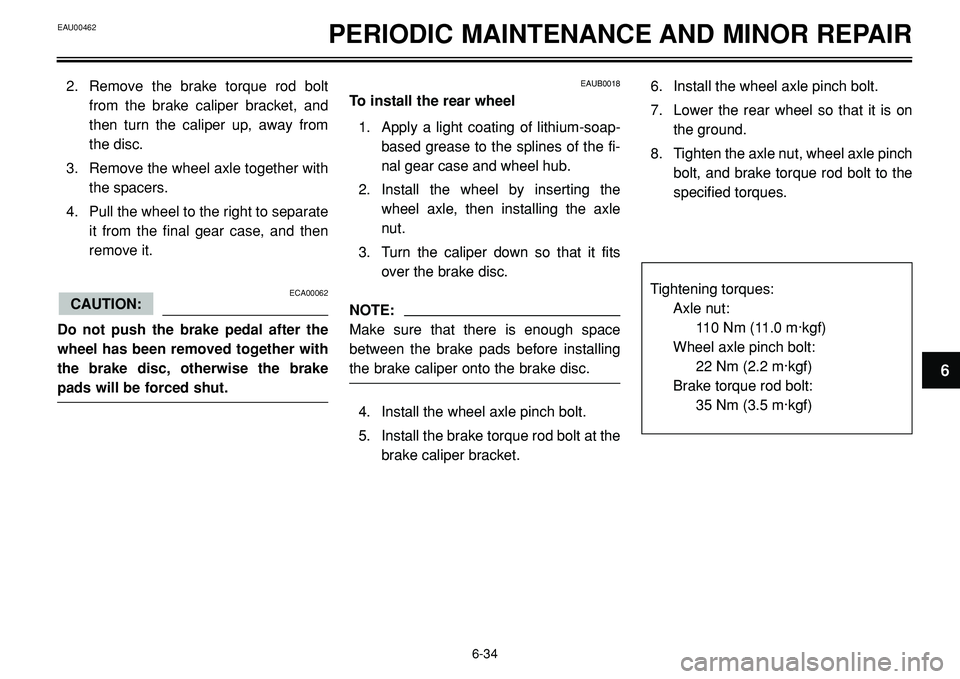

EAU00462PERIODIC MAINTENANCE AND MINOR REPAIR
2. Remove the brake torque rod bolt
from the brake caliper bracket, and
then turn the caliper up, away from
the disc.
3. Remove the wheel axle together with
the spacers.
4. Pull the wheel to the right to separate
it from the final gear case, and then
remove it.
ECA00062
Do not push the brake pedal after the
wheel has been removed together with
the brake disc, otherwise the brake
pads will be forced shut.
CAUTION:
EAUB0018
To install the rear wheel
1. Apply a light coating of lithium-soap-
based grease to the splines of the fi-
nal gear case and wheel hub.
2. Install the wheel by inserting the
wheel axle, then installing the axle
nut.
3. Turn the caliper down so that it fits
over the brake disc.
NOTE:
Make sure that there is enough space
between the brake pads before installing
the brake caliper onto the brake disc.
4. Install the wheel axle pinch bolt.
5. Install the brake torque rod bolt at the
brake caliper bracket.6. Install the wheel axle pinch bolt.
7. Lower the rear wheel so that it is on
the ground.
8. Tighten the axle nut, wheel axle pinch
bolt, and brake torque rod bolt to the
specified torques.
6-34
6
Tightening torques:
Axle nut:
110 Nm (11.0 m·kgf)
Wheel axle pinch bolt:
22 Nm (2.2 m·kgf)
Brake torque rod bolt:
35 Nm (3.5 m·kgf)
