2002 YAMAHA BT1100 clutch

22
0 20
01
80 160 14
0
12
0
1
0080
604020k
m
/
h345
6
7
2
1
0
3456721
8
DESCRIPTIONEAU00026
2-3
2
1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-8)
3. Instruments and warning lights (page 3-2)
4. Main switch and steering lock (page 3-1)
5. Right handlebar switches (page 3-9)
6. Throttle grip (page 6-13)
7. Front brake lever (page 3-10)
8. Fuel tank cap (page 3-11)
Controls and instruments

3
Main switch/steering lock .................................................................... 3-1
Indicator and warning lights ................................................................ 3-2
Speedometer unit ................................................................................ 3-3
Tachometer ........................................................................................ 3-6
Self-diagnosis device .......................................................................... 3-6
Anti-theft alarm (optional) .................................................................... 3-8
Handlebar switches ............................................................................ 3-8
Clutch lever ........................................................................................ 3-9
Shift pedal ........................................................................................ 3-10
Brake lever ........................................................................................ 3-10
Brake pedal ...................................................................................... 3-10
Fuel tank cap .................................................................................... 3-11
Fuel .................................................................................................. 3-11
Fuel tank breather hose .................................................................... 3-12
Starter (choke) lever ........................................................................ 3-12
Seat .................................................................................................. 3-13
Helmet holders .................................................................................. 3-14
Storage compartment ...................................................................... 3-14
Adjusting the front fork ...................................................................... 3-15
Adjusting the shock absorber assembly .......................................... 3-15
Sidestand .......................................................................................... 3-16
Ignition circuit cut-off system ............................................................ 3-17
INSTRUMENT AND CONTROL FUNCTIONSEAU00027

INSTRUMENT AND CONTROL FUNCTIONS
2
1
3
1
EAU03890
Engine stop switch “I/B”
Set this switch to “
I” before starting the
engine. Set this switch to “
B” to stop the
engine in case of an emergency, such as
when the motorcycle overturns or when
the throttle cable is stuck.
EAU03898
Light switch “G/E/H”
Set this switch to “
G” to turn on the aux-
iliary light, meter lighting and taillight. Set
the switch to “
E” to turn on the headlight
also. Set the switch to “
H” to turn off all the
lights.
EAU00143
Start switch “J”
Push this switch to crank the engine with
the starter.
EC000005
See page 5-1 for starting instructions
prior to starting the engine.
CAUTION:EAU00152
Clutch lever
The clutch lever is located at the left han-
dlebar grip. To disengage the clutch, pull
the lever toward the handlebar grip. To en-
gage the clutch, release the lever. The
lever should be pulled rapidly and re-
leased slowly for smooth clutch operation.
The clutch lever is equipped with a clutch
switch, which is part of the ignition circuit
cut-off system. (See page 3-18 for an ex-
planation of the ignition circuit cut-off sys-
tem).
3-9
3
1. Engine stop switch “I/B”
2. Light switch “G/E/H”
3. Start switch “J”1. Clutch lever
EAU00027

INSTRUMENT AND CONTROL FUNCTIONS
1
1
2
1
23
4
3
1
EAU00157

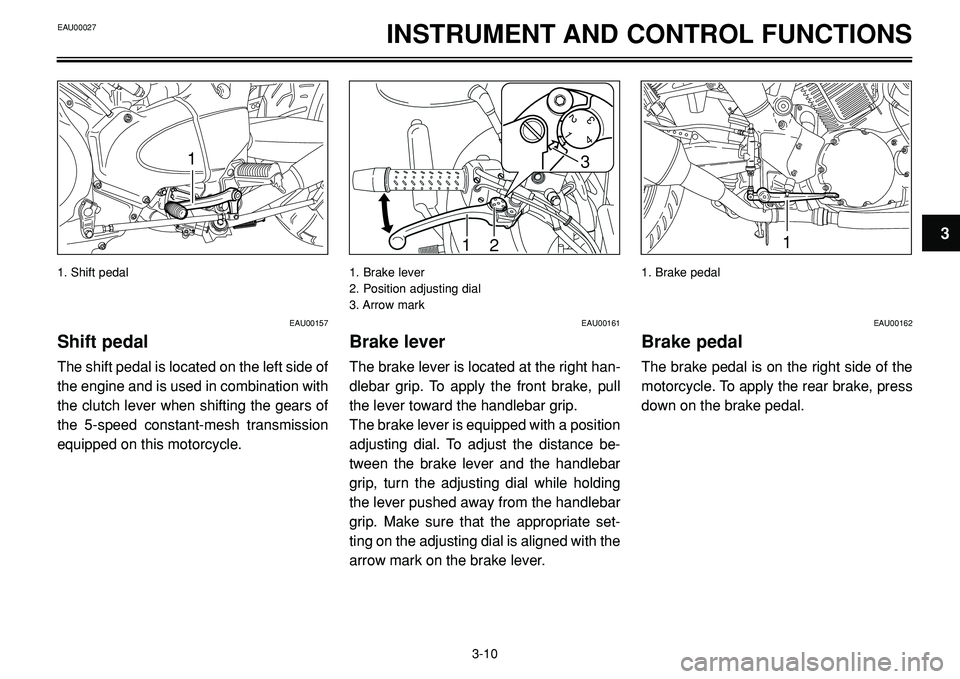

Shift pedal
The shift pedal is located on the left side of
the engine and is used in combination with
the clutch lever when shifting the gears of
the 5-speed constant-mesh transmission
equipped on this motorcycle.
EAU00161
Brake lever
The brake lever is located at the right han-
dlebar grip. To apply the front brake, pull
the lever toward the handlebar grip.
The brake lever is equipped with a position
adjusting dial. To adjust the distance be-
tween the brake lever and the handlebar
grip, turn the adjusting dial while holding
the lever pushed away from the handlebar
grip. Make sure that the appropriate set-
ting on the adjusting dial is aligned with the
arrow mark on the brake lever.
EAU00162
Brake pedal
The brake pedal is on the right side of the
motorcycle. To apply the rear brake, press
down on the brake pedal.
3-10
3
1. Shift pedal 1. Brake lever
2. Position adjusting dial
3. Arrow mark1. Brake pedal
EAU00027

INSTRUMENT AND CONTROL FUNCTIONS
EW000044WARNING0
The motorcycle must not be ridden
with the sidestand down, or if the side-
stand cannot be properly moved up (or
does not stay up), otherwise the side-
stand could contact the ground and
distract the operator, resulting in a pos-
sible loss of control.
Yamaha’s ignition circuit cut-off sys-
tem has been designed to assist the
operator in fulfilling the responsibility
of raising the sidestand before starting
off. Therefore, check this system regu-
larly as described below and have a
Yamaha dealer repair it if it does not
function properly.
EAU03720
Ignition circuit cut-off system
The ignition circuit cut-off system (com-
prising the sidestand switch, clutch switch
and neutral switch) has the following func-
tions.
•It prevents starting when the trans-
mission is in gear and the sidestand
is up, but the clutch lever is not
pulled.
•It prevents starting when the trans-
mission is in gear and the clutch lever
is pulled, but the sidestand is still
down.
•It cuts the running engine when the
transmission is in gear and the side-
stand is moved down.Periodically check the operation of the ig-
nition circuit cut-off system according to
the following procedure.
EW000045WARNING0
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
3-17
3
EAU00027

INSTRUMENT AND CONTROL FUNCTIONSEAU00027
3-18
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
I”.
3. Turn the key to “
I” (ON).
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
The neutral switch may be defective.
The motorcycle should not be riddenuntil checked by a
Yamaha dealer.
The sidestand switch may be defective.
The motorcycle should not be riddenuntil checked by a
Yamaha dealer.
The clutch switch may be defective.
The motorcycle should not be riddenuntil checked by a
Yamaha dealer.
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.
NOTE:
This check is most reliable if performed with a warmed-up
engine.
NO YES
NO YES
NO YES

PRE-OPERATION CHECKSEAU01114
4-2
4
ITEM CHECK PAGE
• Check operation.
• Lubricate cable if necessary.
Clutch
• Check lever free play.3-9, 6-17, 6-23
• Adjust if necessary.
• Make sure that operation is smooth.
• Lubricate throttle grip, housing and cables
Throttle gripif necessary.6-13, 6-22
• Check free play.
• If necessary, have Yamaha dealer make adjustment.
• Make sure that operation is smooth.
Control cables
• Lubricate if necessary.6-22
• Check for damage.
• Check tire condition and tread depth.
Wheels and tires
• Check air pressure.6-13, 6-16
• Correct if necessary.
Brake and shift • Make sure that operation is smooth.
pedals• Lubricate pedal pivoting points if necessary.6-23
Brake and clutch • Make sure that operation is smooth.
levers• Lubricate lever pivoting points if necessary.6-23
• Make sure that operation is smooth.
Sidestand
• Lubricate pivot if necessary.6-24
Chassis • Make sure that all nuts, bolts and screws are properly tightened.
fasteners• Tighten if necessary.–
Instruments, lights, • Check operation.
signals and switches• Correct if necessary.3-2, 3-3, 3-8, 3-9
Engine stop
switch• Check operation.3-9
Sidestand • Check operation of ignition circuit cut-off system.
switch• If system is defective, have Yamaha dealer check vehicle.3-18

OPERATION AND IMPORTANT RIDING POINTS
EAU00373WARNING0
•Become thoroughly familiar with
all operating controls and their
functions before riding. Consult a
Yamaha dealer regarding any con-
trol or function that you do not
thoroughly understand.
•Never start the engine or operate it
in a closed area for any length of
time. Exhaust fumes are poiso-
nous, and inhaling them can cause
loss of consciousness and death
within a short time. Always make
sure that there is adequate ventila-
tion.
•Before starting out, make sure that
the sidestand is up. If the side-
stand is not raised completely, it
could contact the ground and dis-
tract the operator, resulting in a
possible loss of control.
EAU03818
Starting the engine
In order for the ignition circuit cut-off sys-
tem to enable starting, one of the following
conditions must be met:
•The transmission is in the neutral po-
sition.
•The transmission is in gear with the
clutch lever pulled and the sidestand
up.
EW000054WARNING0
•Before starting the engine, check
the function of the ignition circuit
cut-off system according to the
procedure described on page 3-18.
•Never ride with the sidestand
down.
1. Turn the key to “I” (ON) and make
sure that the engine stop switch is set
to “
I”.
EC000035
If the fuel level warning light comes on,
check the fuel level, and, if necessary,
refuel as soon as possible.
2. Shift the transmission into the neutral
position.
When the transmission is in the neu-
tral position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical
circuit.
3. Turn the starter (choke) on and com-
pletely close the throttle. (See page
3-12 for starter (choke) operation).
CAUTION:
5-1
5
EAU00372
