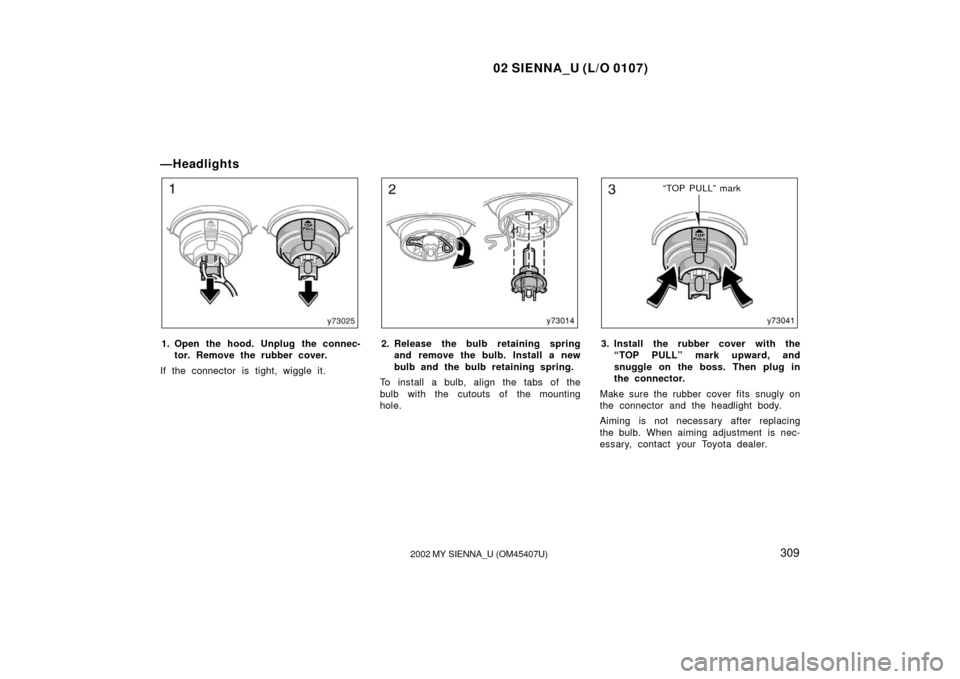

—Headlights
1. Open the hood. Unplug the connec-
tor. Remove the rubber cover.
If the connector is tight, wiggle it.2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
“TOP PULL” mark
3. Install the rubber cover with the “TOP PULL” mark upward, and
snuggle on the boss. Then plug in
the connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

02 SIENNA_U (L/O 0107)
3102002 MY SIENNA_U (OM45407U)
—Front fog lights
If either the left or right front fog burns
out, contact your Toyota dealer.
NOTICE
Do not try to replace the front fog
lights bulbs by yourself. You may
damage the vehicle.
Use a Phillipshead screwdriver.

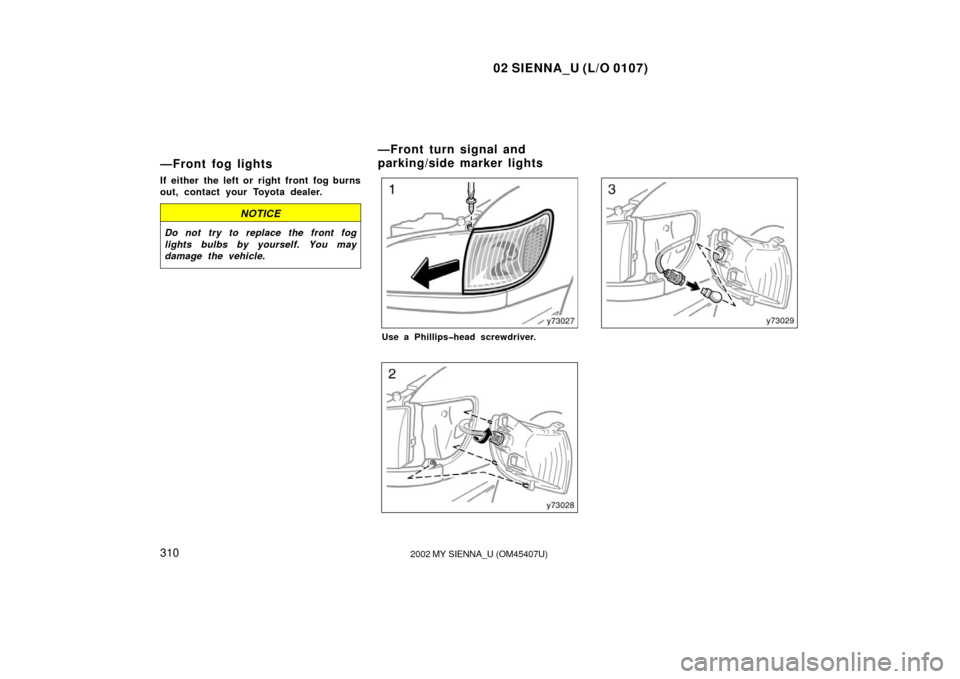

—Front turn signal and
parking/side marker lights

02 SIENNA_U (L/O 0107)
3112002 MY SIENNA_U (OM45407U)

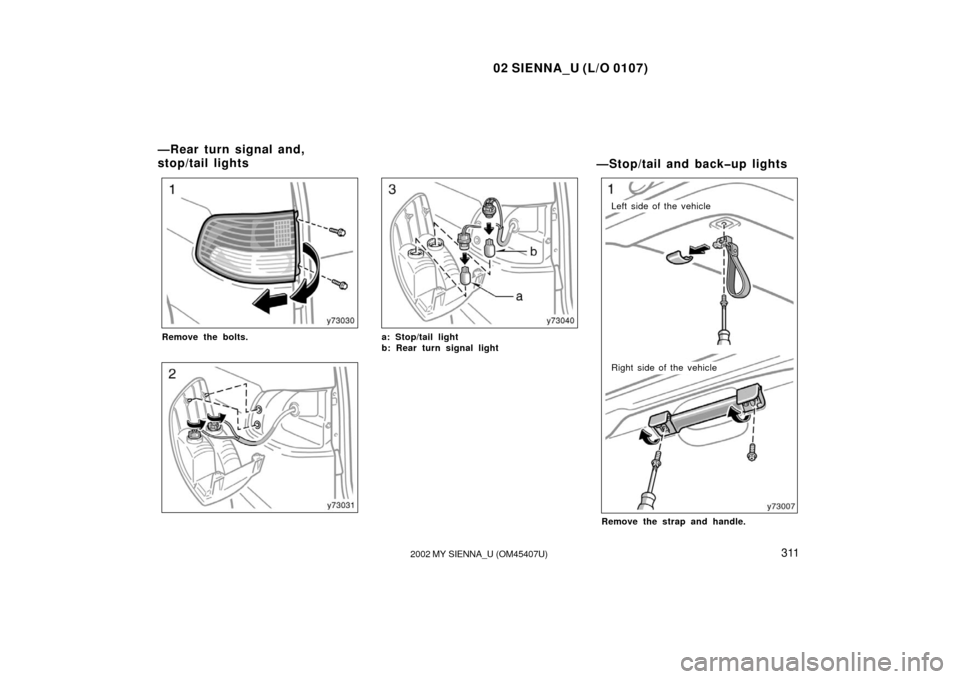

Remove the bolts.a: Stop/tail light
b: Rear turn signal light
—Stop/tail and backup lights
Left side of the vehicle
Right side of the vehicle
Remove the strap and handle.
—Rear turn signal and,
stop/tail lights

02 SIENNA_U (L/O 0107)
3122002 MY SIENNA_U (OM45407U)

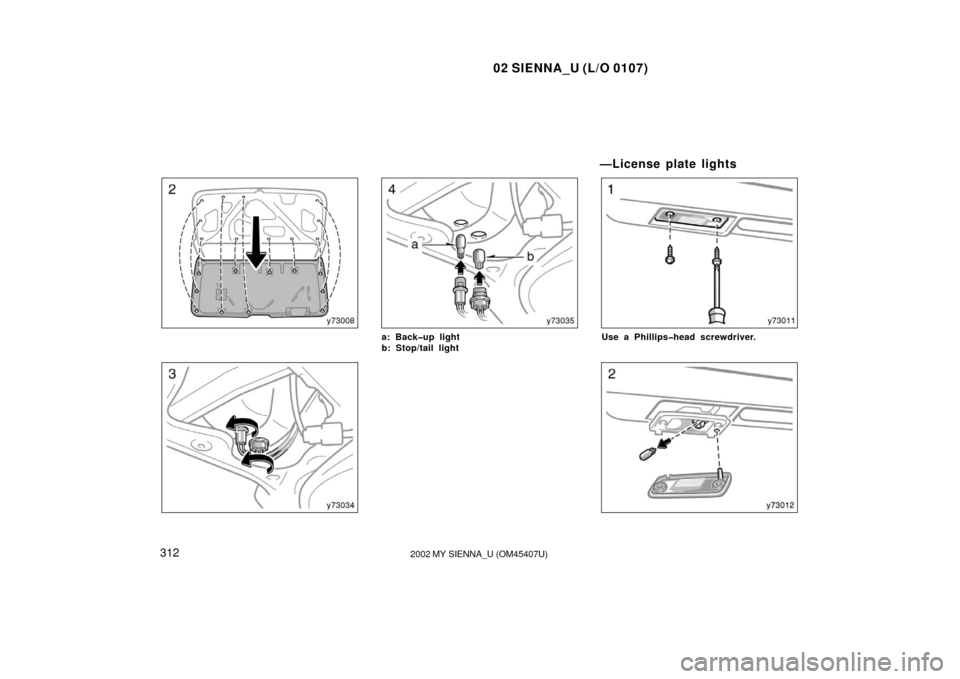

a: Backup light
b: Stop/tail light

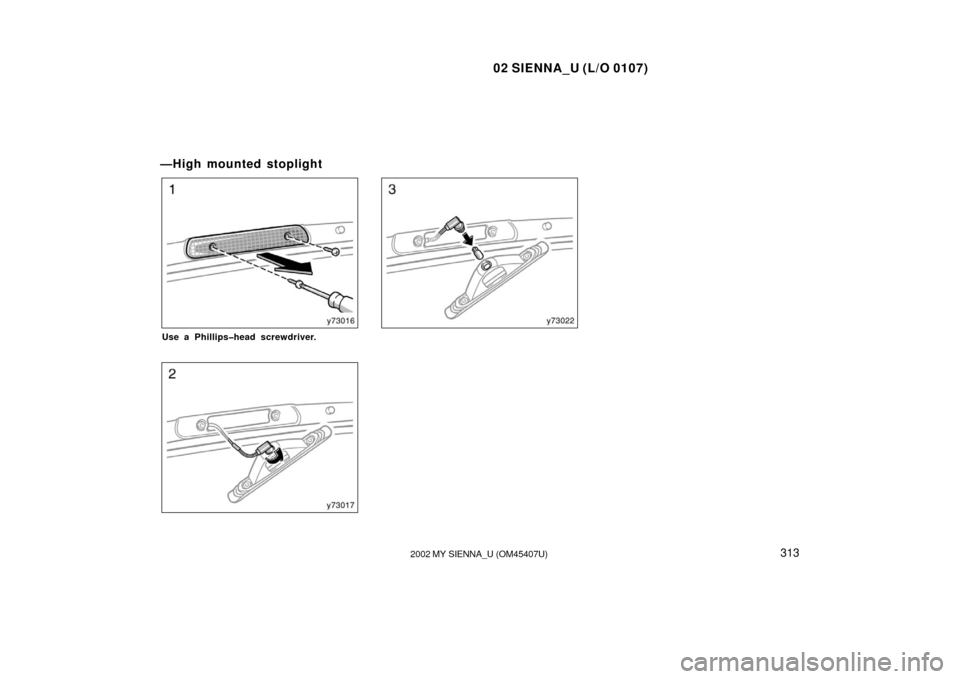

—License plate lights
Use a Phillipshead screwdriver.

02 SIENNA_U (L/O 0107)
3132002 MY SIENNA_U (OM45407U)
—High mounted stoplight
Use a Phillipshead screwdriver.

02 SIENNA_U (L/O 0107)
3142002 MY SIENNA_U (OM45407U)

02 SIENNA_U (L/O 0107)
3152002 MY SIENNA_U (OM45407U)
SPECIFICATIONS
Dimensions and weight 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 317
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 317
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 319
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 320
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

02 SIENNA_U (L/O 0107)
3162002 MY SIENNA_U (OM45407U)
Dimensions and weight Engine
Model:
1MZFE
Type: 6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.): 87.5 83.0 (3.44 3.27)
Displacement, cm
3 (cu. in.):
2995 (182.8)
Overall width mm (in.)
2900 (114.2)
Overall height mm (in.)
1610 (63.4)
Wheelbase mm (in.)
Front tread mm (in.) 1565 (61.6)
Rear tread mm (in.)
511 (1127)
∗: Unladen vehicleOverall length mm (in.)
Vehicle capacity weight
kg (lb.)
(occupants + luggage) 4930 (194.1)
1865 (73.4)
1710 (67.3)
∗
