The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system”.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady. Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with builtin transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobiliser sys-
tem. If any unauthorized changes or
modifications are made, the proper
operation of the system cannot be
guaranteed.
Engine immobiliser system

02 SIENNA_U (L/O 0107)
142002 MY SIENNA_U (OM45407U)

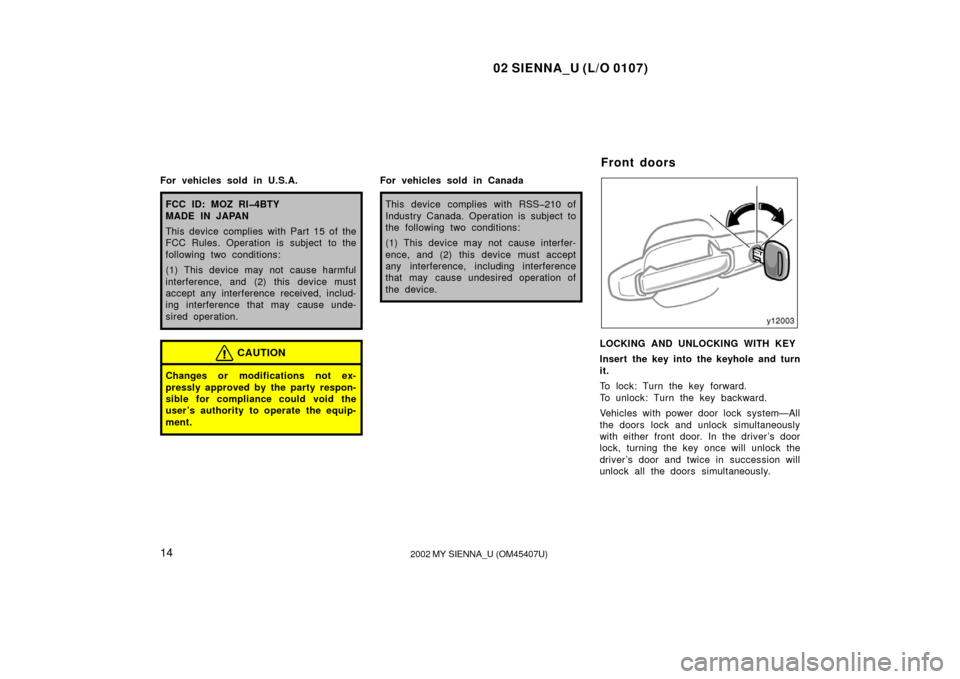

For vehicles sold in U.S.A.
FCC ID: MOZ RI4BTY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system—All
the doors lock and unlock simultaneously
with either front door. In the driver ’s door
lock, turning the key once will unlock the
driver’s door and twice in succession will
unlock all the doors simultaneously.
Front doors

02 SIENNA_U (L/O 0107)
152002 MY SIENNA_U (OM45407U)

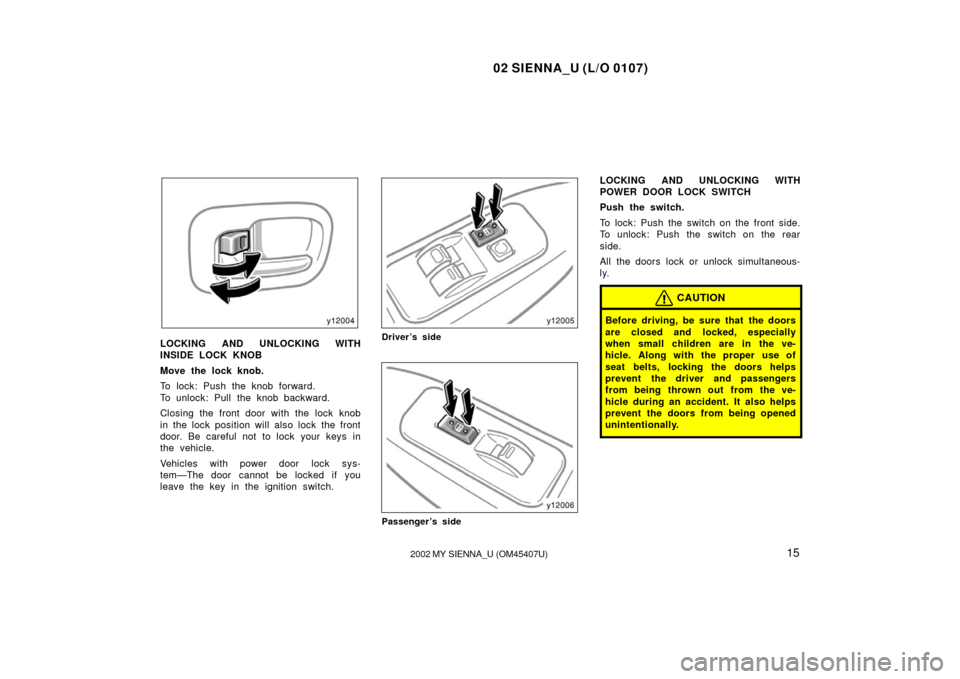

LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the front door with the lock knob
in the lock position will also lock the front
door. Be careful not to lock your keys in
the vehicle.
Vehicles with power door lock sys-
tem—The door cannot be locked if you
leave the key in the ignition switch.Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
All the doors lock or unlock simultaneous-
ly.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.

02 SIENNA_U (L/O 0107)
162002 MY SIENNA_U (OM45407U)
LOCKING AND UNLOCKING WITH KEY
(on some models)
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward. CLOSING FROM OUTSIDE
To close the fullyopened sliding door, pull
the outside handle toward you and then
close the door.
Lock release
button
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob downward.
To unlock: Push the knob upward.
To open the sliding door, push the lock
release button and then open the door.
Sliding door

02 SIENNA_U (L/O 0107)
172002 MY SIENNA_U (OM45407U)
Vehicles with power door lock sys-
tem—The sliding doors will be locked si-
multaneously when either front door or the
back door is locked with the power door
lock switch or key. If you lock either front
door or the back door with the power door
lock switch or key while the sliding door
is open, the sliding door will be locked
after it is closed. (For instructions, see
“Front doors” or “Back door” in this sec-
tion.)
Closing the sliding door with the lock knob
in the lock position will also lock the slid-
ing door. Be careful not to lock your keys
in the vehicle.
CLOSING FROM INSIDE
To close the fullyopened sliding door,
push the lock release button and then
close the door.
CAUTION
When closing the sliding door, con-
firm safety of the area around.
Keep the heads, hands and other
parts of the bodies of all occupants
away from the sliding door. Other-
wise, they will be possibly caught
and pinched by the closing door
causing an unexpected serious inju-
ry.
When the vehicle is stopped on a
gradient, the door will slide faster
when opening or closing, so be es-
pecially careful that the passengers
do not get hit or pinched by the
door.
When stopping on a downward
slope, open the door fully while
passengers are getting on or off.
Do not pull the outside handle or
push the lock release button while
the door is open as the door could
suddenly close by itself causing in-
jury.
NOTICE
Do not close the sliding door by ap-
plying the brakes. Doing so could
cause the door to be damaged.

02 SIENNA_U (L/O 0107)
182002 MY SIENNA_U (OM45407U)
HALFOPENED SLIDING DOOR
STOPPER
When opening the left side sliding door, it
stops at the halfopened position if the
fuel filler door is opened.
Left and right side power sliding door
models—The left side power sliding door
does not operate when the fuel f iller door
is open.
NOTICE
Avoid forcibly opening the left side
sliding door fully when refueling.
Otherwise, the fuel filler door may be
damaged.
SLIDING DOOR CHILDPROTECTORS
Open the sliding door fully and move
the lock lever to the “LOCK” position
as shown on the label. Then close the
sliding door.
If the childprotector is locked, you cannot
open the sliding door from the inside. We
recommend using this feature whenever
small children are in the vehicle. Vehicles with power sliding door system—
If the power sliding door system is on, the
childprotector feature is cancelled when
someone pushes one of the “DOOR L”,
“DOOR R” and “PWR DOOR” switches
inside the vehicle or “POWER DOOR”,
“DPWR DOOR” and “PPWR DOOR”
switches of the wireless remote control
transmitter. (For details, see “Power
sliding door” in this section.)
CAUTION
Make sure to turn off the power slid-
ing door system after locking the
childprotectors.

02 SIENNA_U (L/O 0107)
192002 MY SIENNA_U (OM45407U)
Some vehicles are equipped with a power
sliding door. This system has the following
functions:
The power sliding door can be oper-
ated with the “DOOR L”, “DOOR R”
and “PWR DOOR” switches inside the
vehicle or “POWER DOOR”, “DPWR
DOOR” and “PPWR DOOR” switches
of the wireless remote control transmit-
ter. (For details about the wireless re-
mote control transmitter, see “Wireless
remote control” in this section.)
If you move the sliding door to the
opening or closing direction by hand,
the sliding door will automatically and
completely open or close after you let
go of the sliding door.
CAUTION
Do not leave small children or pets
unattended in your vehicle. They
could operate the power sliding door,
and they themselves or others could
be injured. Turn off the power sliding
door system when the power sliding
door is not in use.
“PWR DOOR OFF” SWITCH
This switch is used to turn on and off
the power sliding door system. For op-
erating the power sliding door, the
“PWR DOOR OFF” switch on the instru-
ment panel must be pushed out. (The
orange line on the top of the switch
indicates that the system is on.) To dis-
able the power sliding door feature,
push in the switch. When the power sliding door system is
on, you can open and close the sliding
door with the “DOOR L”, “DOOR R” and
“PWR DOOR” switches inside the vehicle
or “POWER DOOR”, “DPWR DOOR” and
“PPWR DOOR” switches of the wireless
remote control transmitter even if the slid-
ing door childprotector is locked. If small
children or pets are in the vehicle, turn off
the system to prevent the accidental op-
eration of the door.
CAUTION
When jacking up the vehicle, turn off
the power sliding door system and
close the sliding door completely.
NOTICE
When your vehicle goes through an
automatic car wash, make sure the
power sliding door system is off.
Power sliding door

02 SIENNA_U (L/O 0107)
202002 MY SIENNA_U (OM45407U)
Instrument panel
Center pillar
OPENING AND CLOSING WITH “DOOR
L”, “DOOR R” AND “PWR DOOR”
SWITCHES
Push the switch. The power sliding
door opens and closes completely.
Left side power sliding door—
To open: Push the “DOOR L” switch or
“PWR DOOR” switch of the left side cen-
ter pillar.
To close: Push the “DOOR L” switch or
“PWR DOOR” switch of the left side cen-
ter pillar again.
Right side power sliding door—
To open: Push the “DOOR R” switch or
“PWR DOOR” switch of the right side cen-
ter pillar.
To close: Push the “DOOR R” switch or
“PWR DOOR” switch of the right side cen-
ter pillar again.
Opening and closing can be performed by
the “DOOR L”, “DOOR R” and “PWR
DOOR” switches under the following con-
ditions:
The sliding door is unlocked.
The power sliding door system is on.
(The “PWR DOOR OFF” switch is
pushed out.)
To open the power sliding door when
the ignition key is in the “ON” position,
the transmission selector lever must be
in “P”. (To close the sliding door from
the fullyopened or halfopened posi-
tion, the transmission selector lever is
not required to be in “P”.)
Left and right side power sliding door
models—The left side power sliding door
does not operate when the fuel f iller door
is opened.
CAUTION
If you shift the automatic transmis-
sion selector lever out of “P” and
accelerate before the power sliding
door is closed completely, the sliding
door may reverse to the open posi-
tion. A child or others could fall out
of the vehicle and be injured. Always
make sure the power sliding door is
closed and latched before you start
driving.
