2002 TOYOTA SIENNA Owners Manual

02 SIENNA_U (L/O 0107)
1092002 MY SIENNA_U (OM45407U)

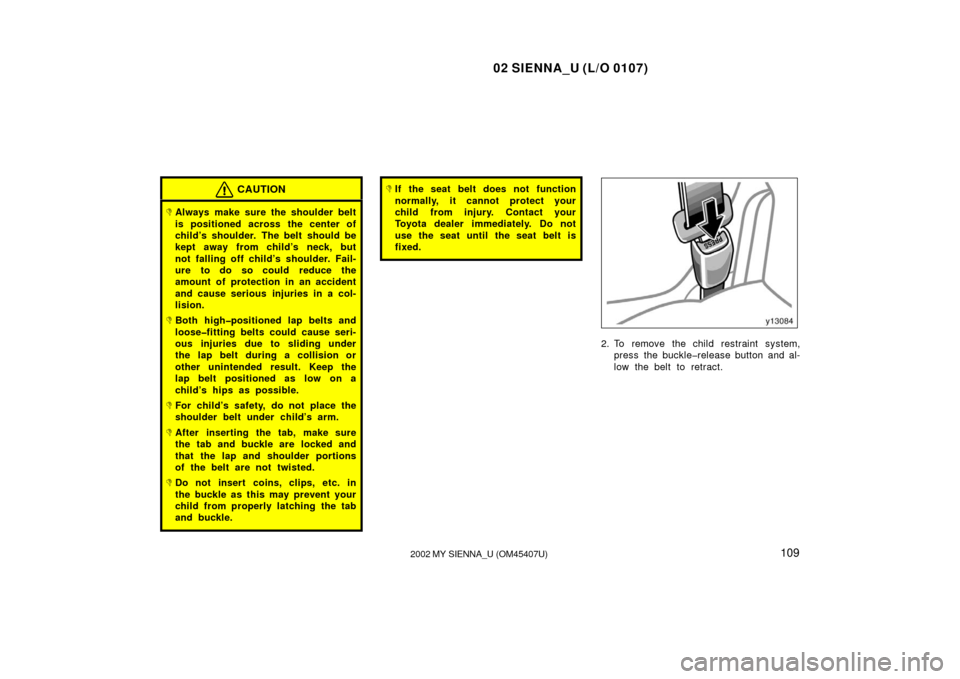

CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s s houlder. Fail-
ure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a col-
lision.
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on a
child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. To remove the child restraint system, press the bucklerelease button and al-
low the belt to retract.

02 SIENNA_U (L/O 0107)
11 02002 MY SIENNA_U (OM45407U)
Second seat (left side only)
Third seat
Follow the procedure below for a child
restraint system that requires the use
of a top strap.Anchor brackets
Second seat (left side only): Use the an-
chor bracket on the floor to attach the top
strap.
Anchor bracket is installed for left side
second seat.
Third seat: Use the anchor brackets on
the back of the third seat cushion to at-
tach the top strap.
Anchor brackets are installed for each
third seating position.
— U sin g a to p st rap

02 SIENNA_U (L/O 0107)
1112002 MY SIENNA_U (OM45407U)

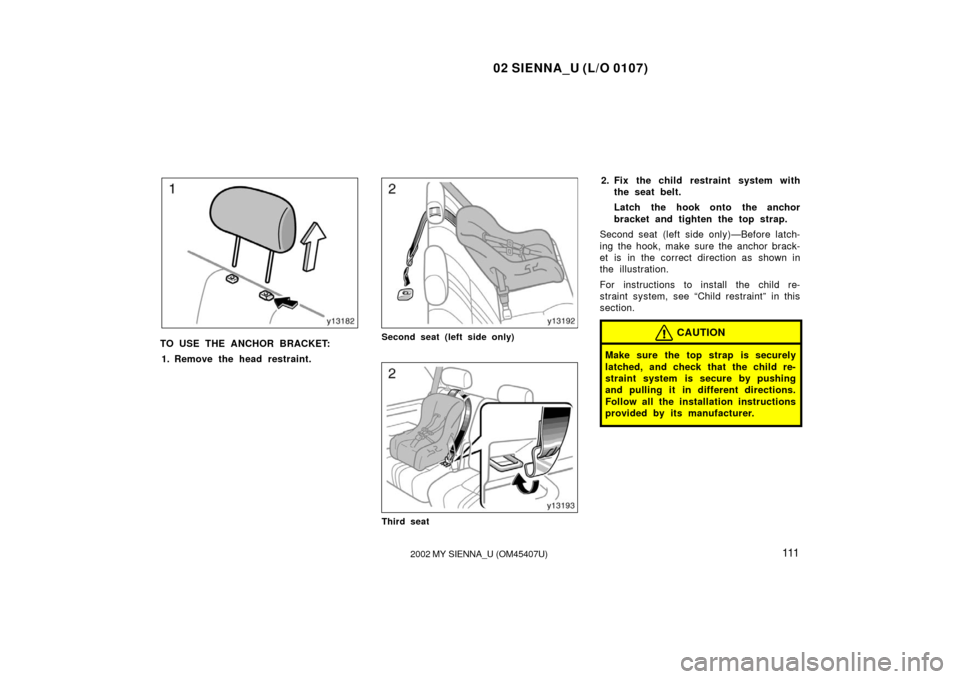

TO USE THE ANCHOR BRACKET:
1. Remove the head restraint.Second seat (left side only)
Third seat
2. Fix the child restraint system with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
Second seat (left side only)—Before latch-
ing the hook, make sure the anchor brack-
et is in the correct direction as shown in
the illustration.
For instructions to install the child re-
straint system, see “Child restraint” in this
section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.

02 SIENNA_U (L/O 0107)
11 22002 MY SIENNA_U (OM45407U)

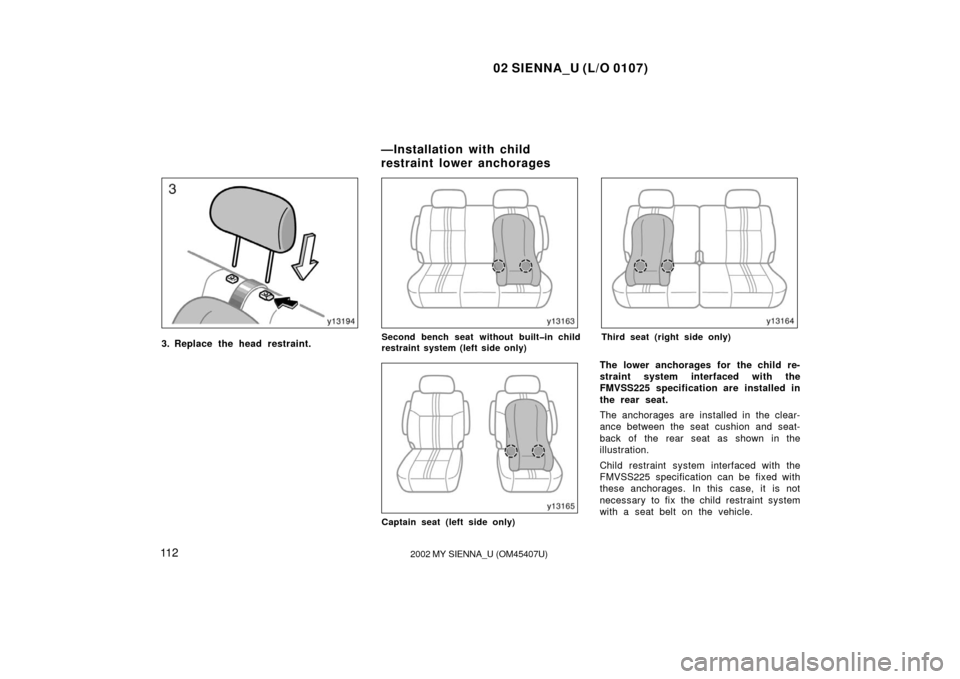

3. Replace the head restraint.Second bench seat without builtin child
restraint system (left side only)
Captain seat (left side only)
Third seat (right side only)
The lower anchorages for the child re-
straint system interfaced with the
FMVSS225 specification are installed in
the rear seat.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back of the rear seat as shown in the
illustration.
Child restraint system interfaced with the
FMVSS225 specification can be fixed with
these anchorages. In this case, it is not
necessary to fix the child restraint system
with a seat belt on the vehicle.
—Installation with child
restraint lower anchorages

02 SIENNA_U (L/O 0107)
11 32002 MY SIENNA_U (OM45407U)
Ty p e ATy p e B

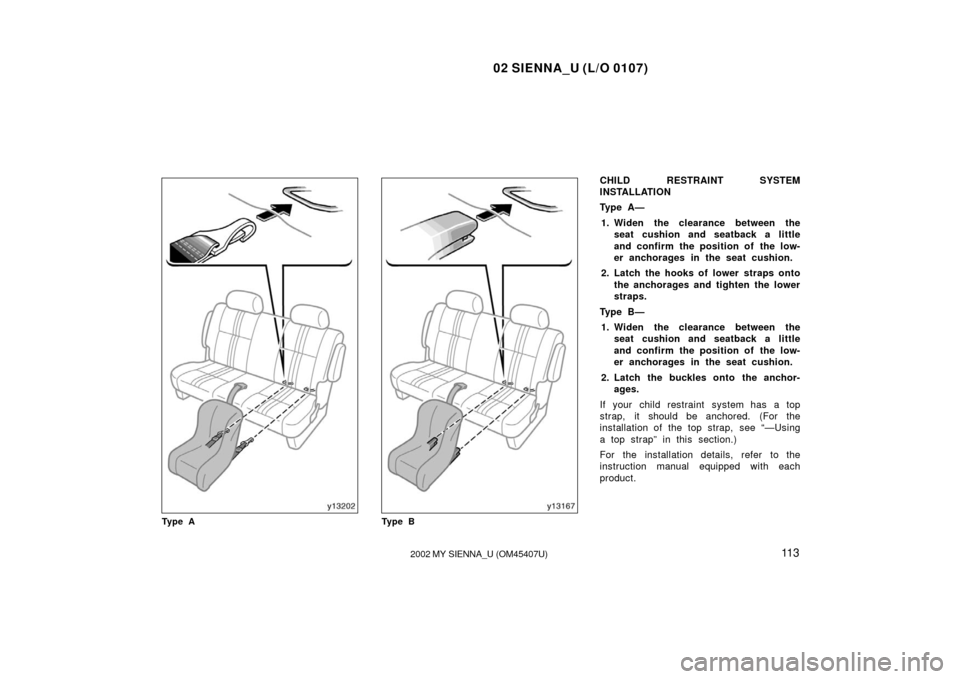

CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A —
1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages in the seat cushion.
2. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.
Ty p e B — 1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages in the seat cushion.
2. Latch the buckles onto the anchor- ages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” in this section.)
For the installation details, refer to the
instruction manual equipped with each
product.

02 SIENNA_U (L/O 0107)
11 42002 MY SIENNA_U (OM45407U)
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never slide or recline the
seat.
Do not put a child restraint system
on the second seat or third seat if
it interferes with the lock mecha-
nism of the front seat or second
seat. This can cause severe injury
to the child and front passenger in
case of sudden braking or a colli-
sion.

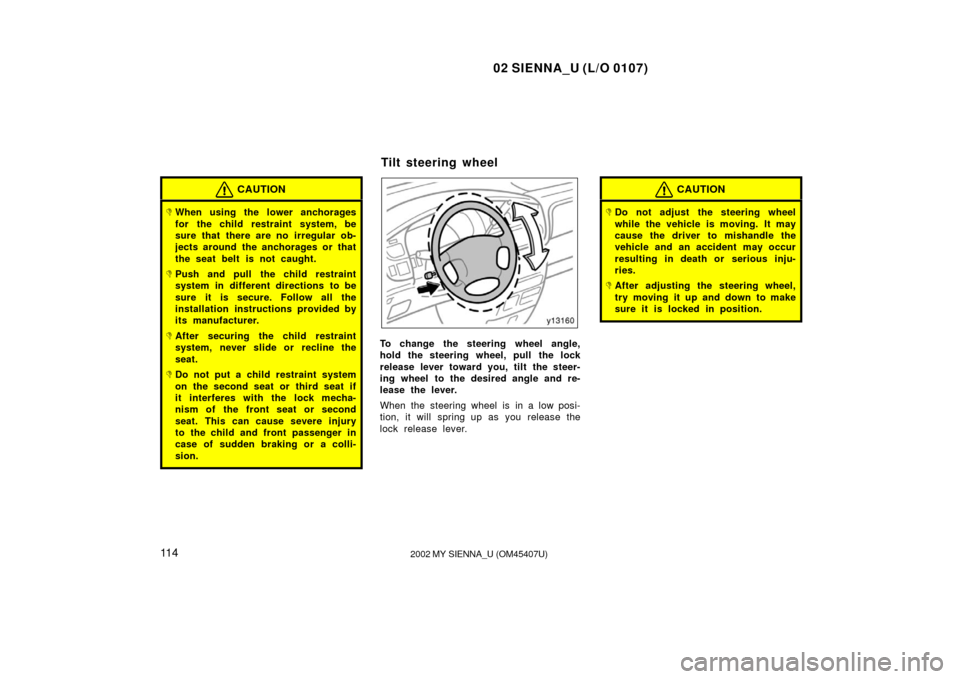

To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. It may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Tilt steering wheel

02 SIENNA_U (L/O 0107)
11 52002 MY SIENNA_U (OM45407U)

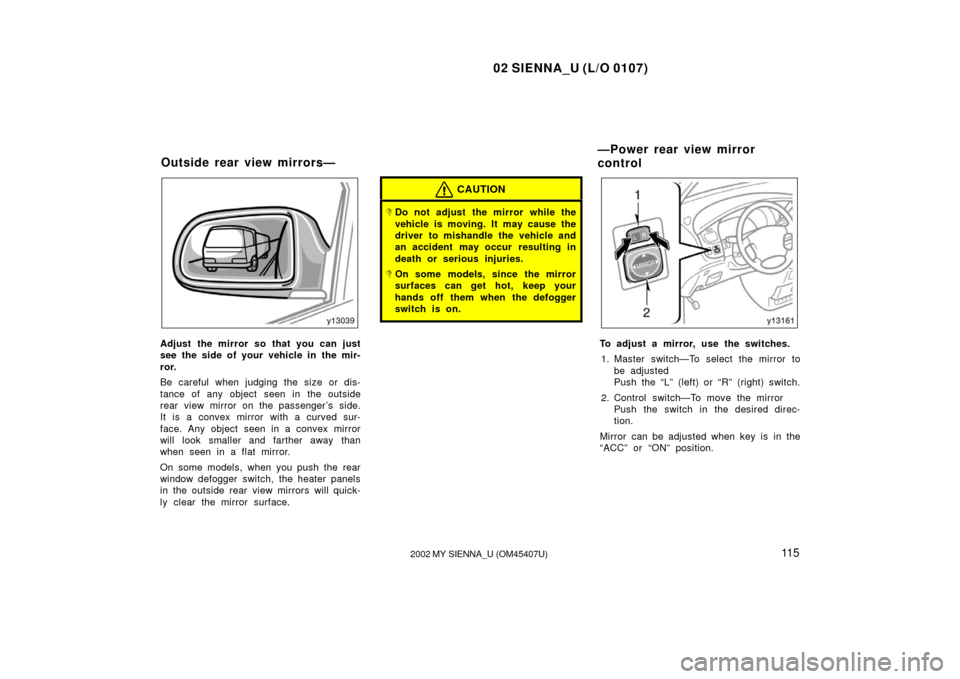

Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
On some models, when you push the rear
window defogger switch, the heater panels
in the outside rear view mirrors will quick-
ly clear the mirror surface.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
death or serious injuries.
On some models, since the mirror
surfaces can get hot, keep your
hands off them when the defogger
switch is on.
To adjust a mirror, use the switches.
1. Master switch—To select the mirror to be adjusted
Push the “L” (left) or “R” (right) switch.
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirror can be adjusted when key is in the
“ACC” or “ON” position.
Outside rear view mirrors— —Power rear view mirror
control

02 SIENNA_U (L/O 0107)
11 62002 MY SIENNA_U (OM45407U)
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
—Folding rear view mirrors
The rear view mirrors can be folded
backward for parking in restricted
areas.
To fold the rear view mirrors, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
Antiglare inside rear view
mirror
